37*7mm 1064nm coated protective windows for laser machine
- Category: >>>
- Supplier: Nantong Lianze Promise Technology Co. Ltd.
Share on (1600197861023):
Product Overview
Description
37*7mm 1064nm coated protective windows for laser machine
Laser protection lens for laser cutting head
It can be used as the machine made by Bystronic,Trumpf, Prima, LVD, AMADA, Mitsubishi, Mazak, NTC, unity, Hans, Fali Lai and so on.
Our available material is K9(CDGM), China Quartz, Imported quartz and Sapphire glass.
Product Description
Technique index sign :
| Diameter (mm) | 18-55mm |
| Diameter Tolerance (mm) | +0.00 / -0.10 |
| Clear Aperture (%) | 90 |
| Thickness (mm) | 7.0 |
| Thickness Tolerance (mm) | ±0.10 |
| Surface Quality | 10-5 |
| Transmitted Wavefront, RMS (λ) | 1/20 @ 632.8nm |
| Parallelism (arcseconds) | 5 |
| Substrate | UV Fused Silica/b270/k9/Impor optical glass |
| Angle of Incidence (°) | 0 |
| Design Wavelength DWL (nm) | 1064nm/1030nm/980nm/808nm/customize |
| Damage Threshold, Pulsed (J/cm2 @ 10ns) | 2 |
| Coating | 1064nm High Damage Threshold Coat |

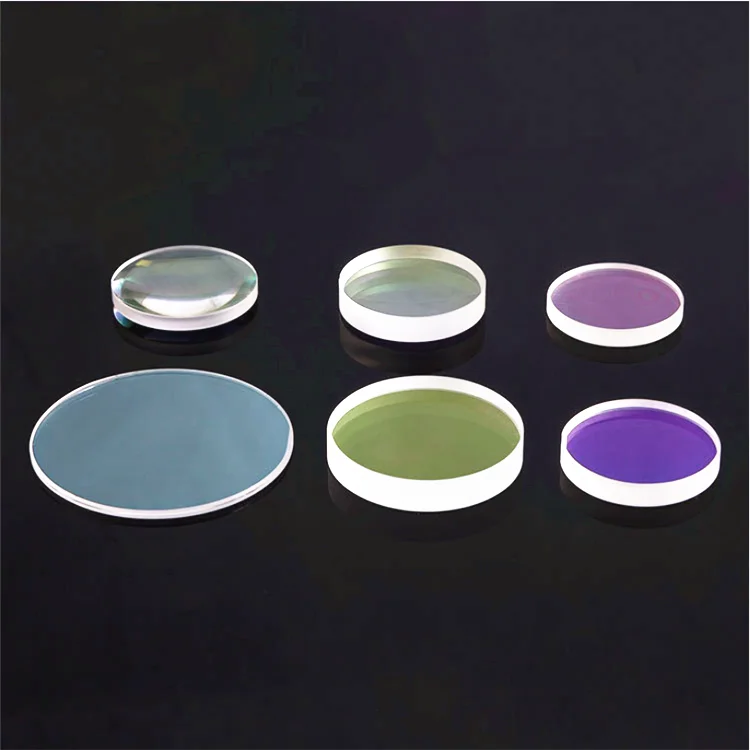

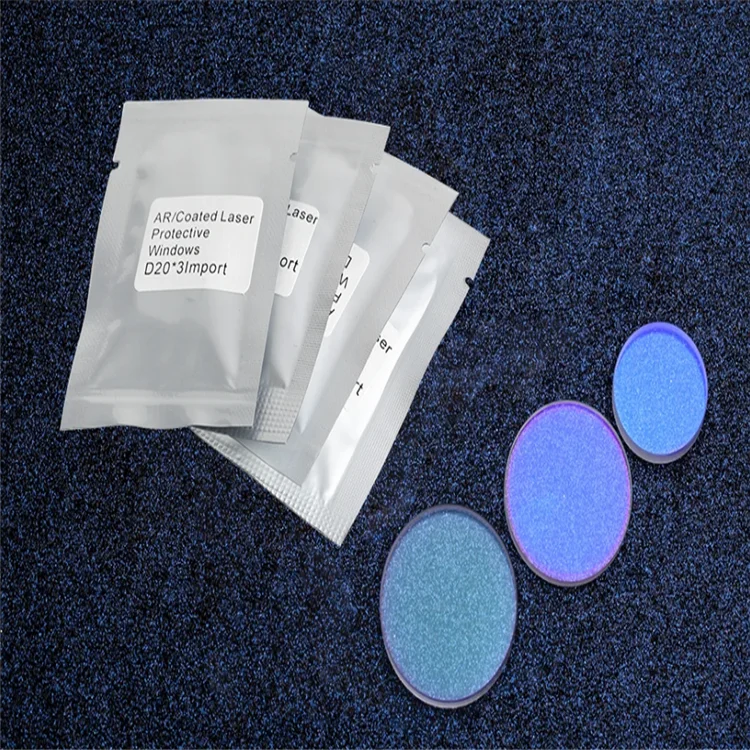

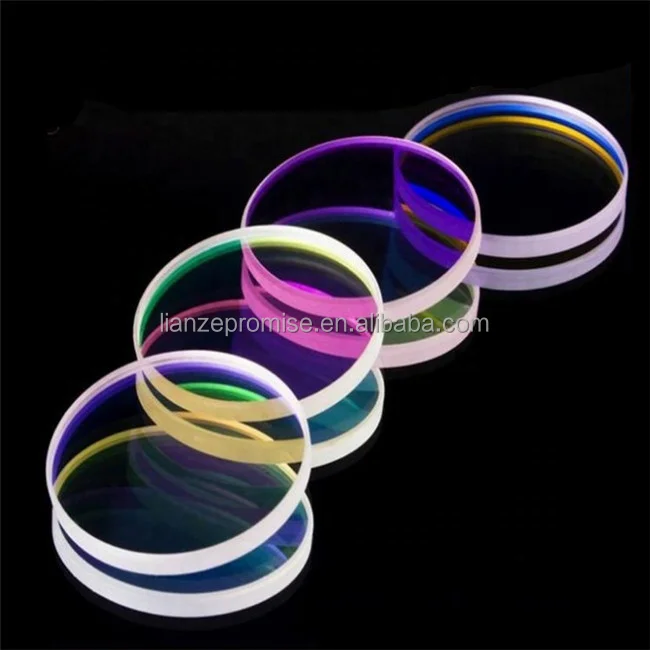

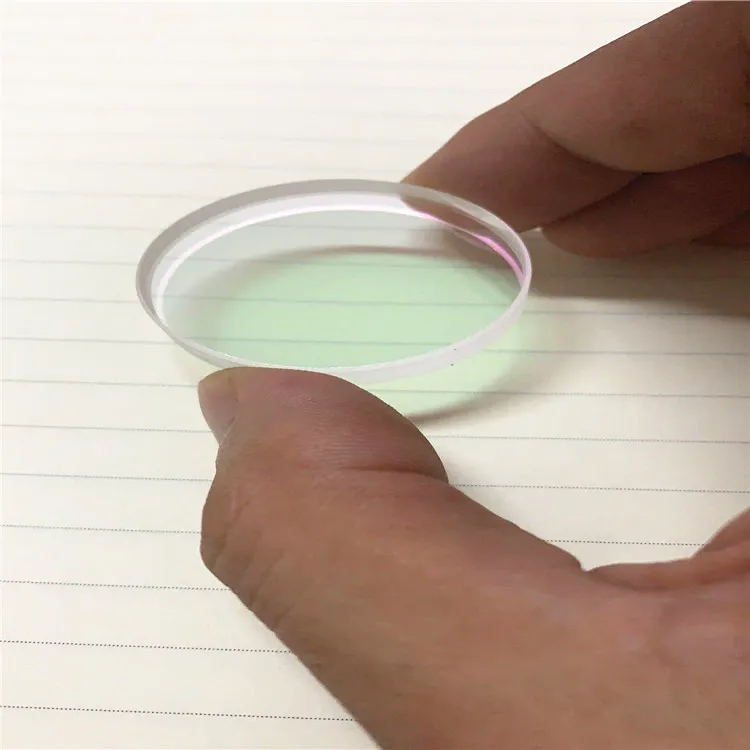

Product show:

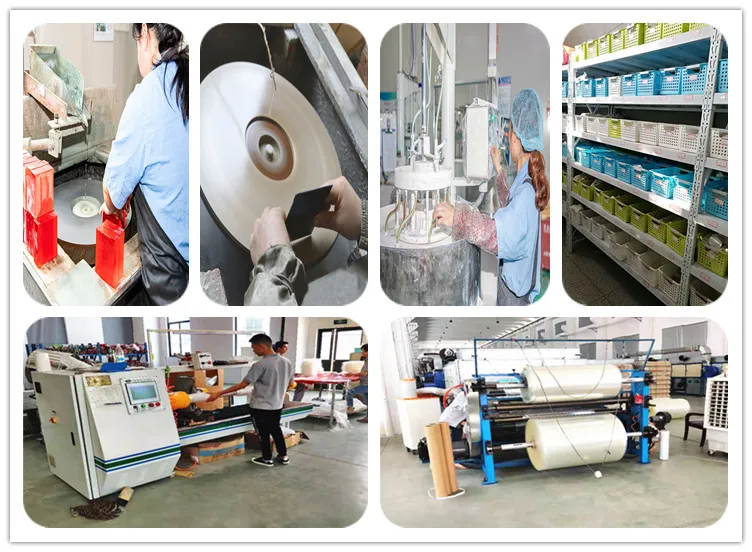

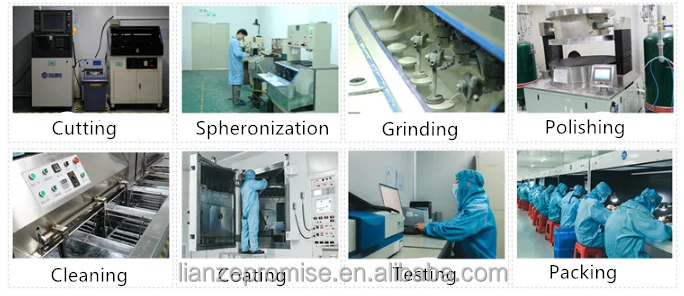

Product Process:
Precautions for laser lens installation and remova:

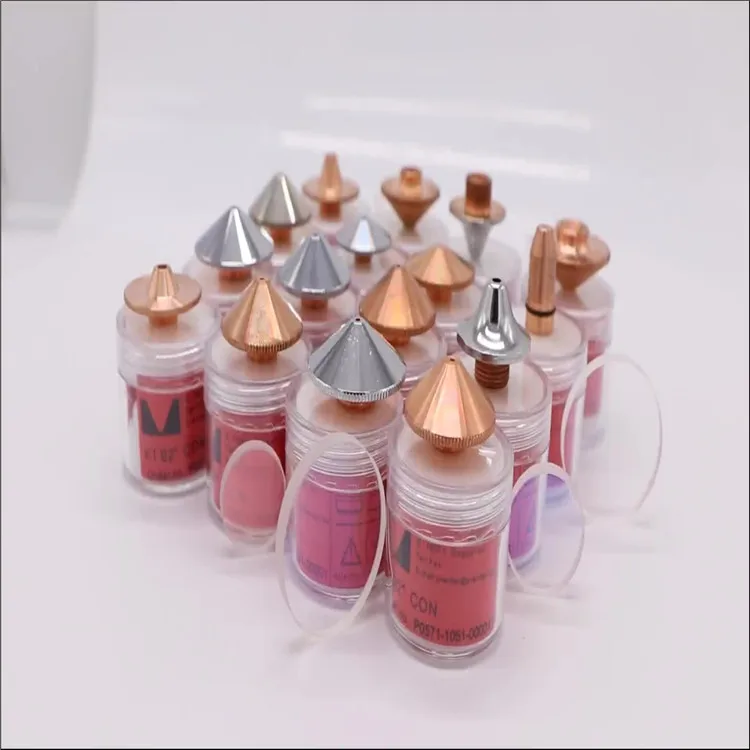

Applicable machines:
domestic and international brands - such as LVD, Bystrotronic,Prima, Miyachi, ROFIN, TRUMPF, Hans, Everbright, stars, LaserValley, U.W. Laser, Aohua, Penta such as laser welding equipment, cutting equipment application, can protect the focus lens from damage
The laser equipments wavelength: 1064-1080nm
Technical parameter data:

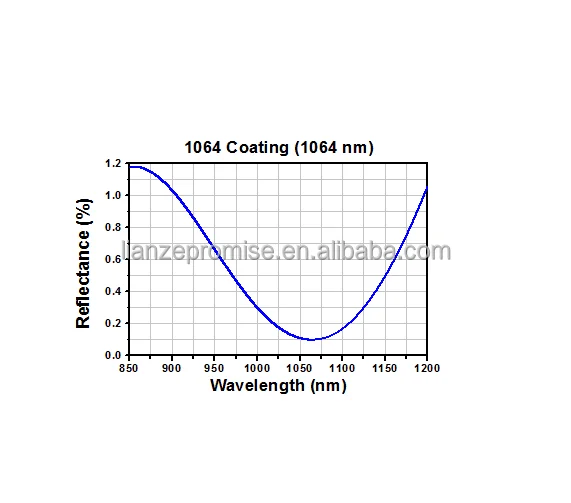

Plated 1064nm AR film K9 T> 99.65 (quartz T> 99.9%).
Surface finish: 20/10,
surface accuracy: λ/10
laser protection lens main role is to block debris splash, to prevent spatter injury lens. Both sides plated high damage threshold (> 15J/cm2)antireflection coating to reduce reflections.
Packaging & Shipping

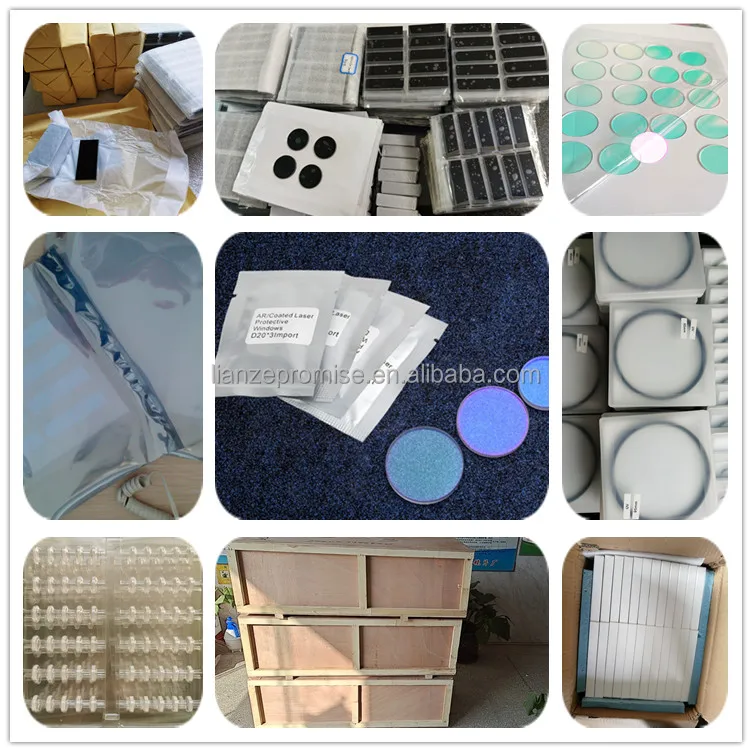

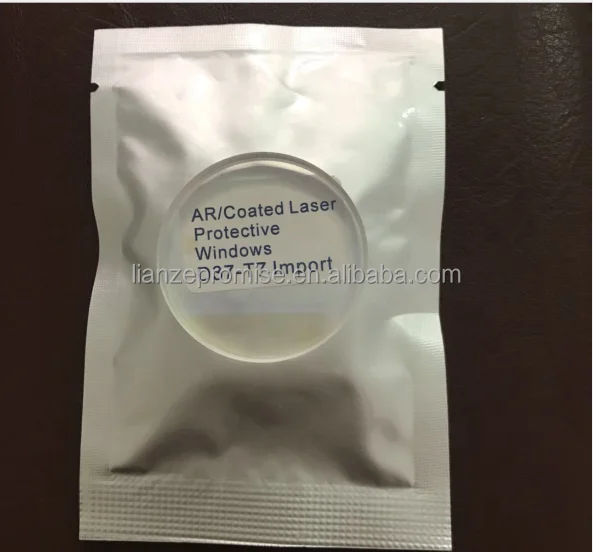

Packing:
Shipping:
- Urgent and small order are recommended for Express shipment, such as TNT, DHL, FedEx, UPS etc.
- Heavy and big orders are recommended for sea shipment. Nominated shiping agent and our own shipping agent are both available.
Company Information
Nantong Lianze Promise Technology Co., LTD is a professional production with well-equipped testing facilities and strong technical force.With competitive Factory Prices, good quality and Safety Import and Export Packaging.
Our products are extensively used in optical equipment and Rubber industries.Included optical color longpass filters,colorless optical glass,coating window,Silk print glass,KG heat insulation glass,Fused silica/Quartz glass,UV filter, APO Telescope,optical lens,prism,bandpass filter,optical window,camera parts,eyepiece,laser parts,PMMA IR filter with 3M tape,glass with VHB tape,Acrylic adhesive tape and ect.
Our company is based on high quality and good service to meet the customers' requirements. We sincerely welcome all new and old friends hand in hand to cooperate with us and create a bright future. Sincerely look forward to working with you to realize our ambition.
FAQ
| MOQ | Accept 10pcs of customer's trial order |
| Packing | Safety import and export packaging |
| Sample Lead-Time | Within 7 working days |
| Production Lead-Time | Within 2 weeks after details are confirmed |
| Payment terms | We accept Paypal,T/T,Trade assurance order on Alibaba,L/C at sight |
| Sample Policy | If we are the first cooperation,we will charge the samples and shipping fee,the sample fee will full return when bulk orders. |
| Shipping | 1)Express Door to door shipping by EMS,DHL,TNT,UPS,FedEx,Aramax. 2)Air shipping 3)Sea shipping |
