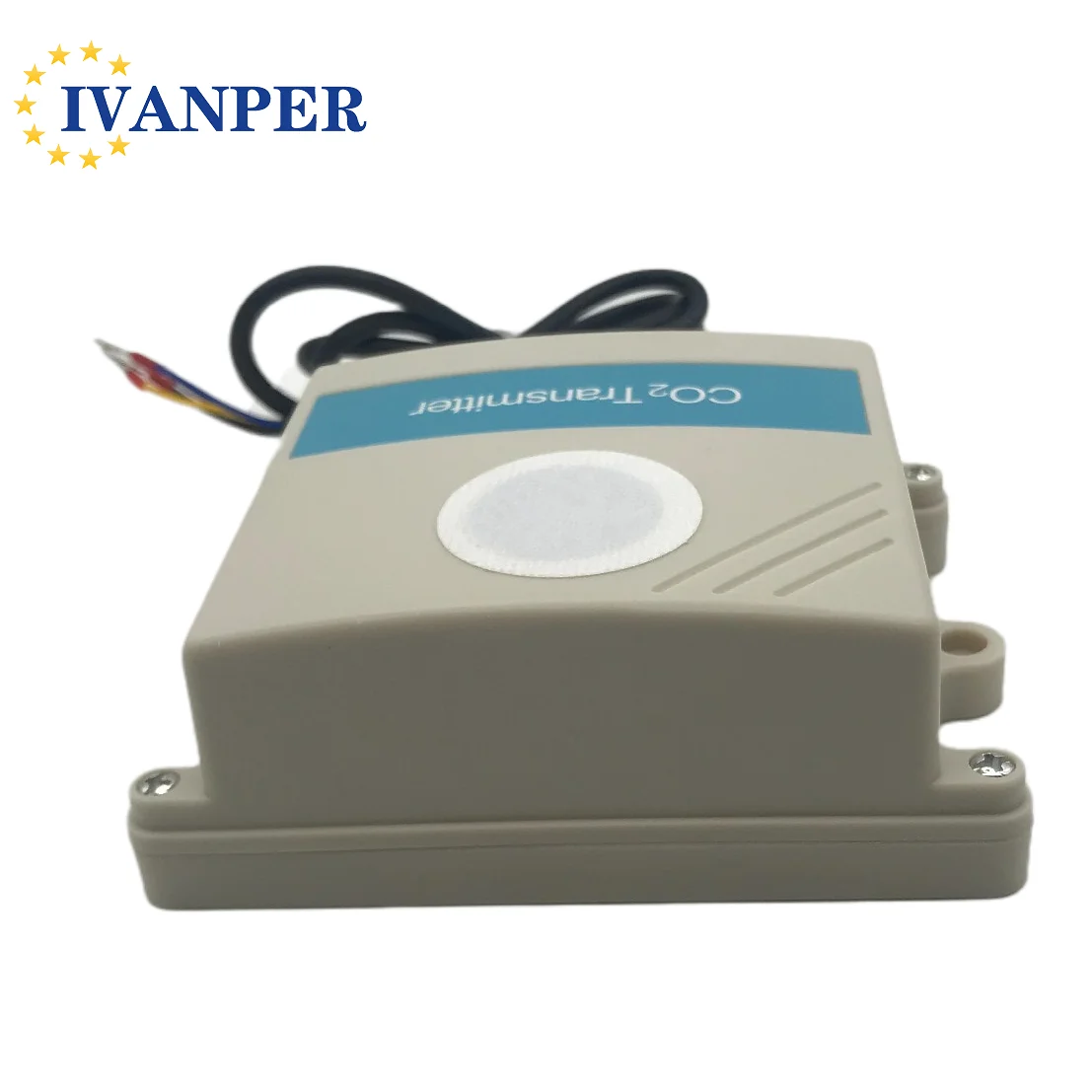

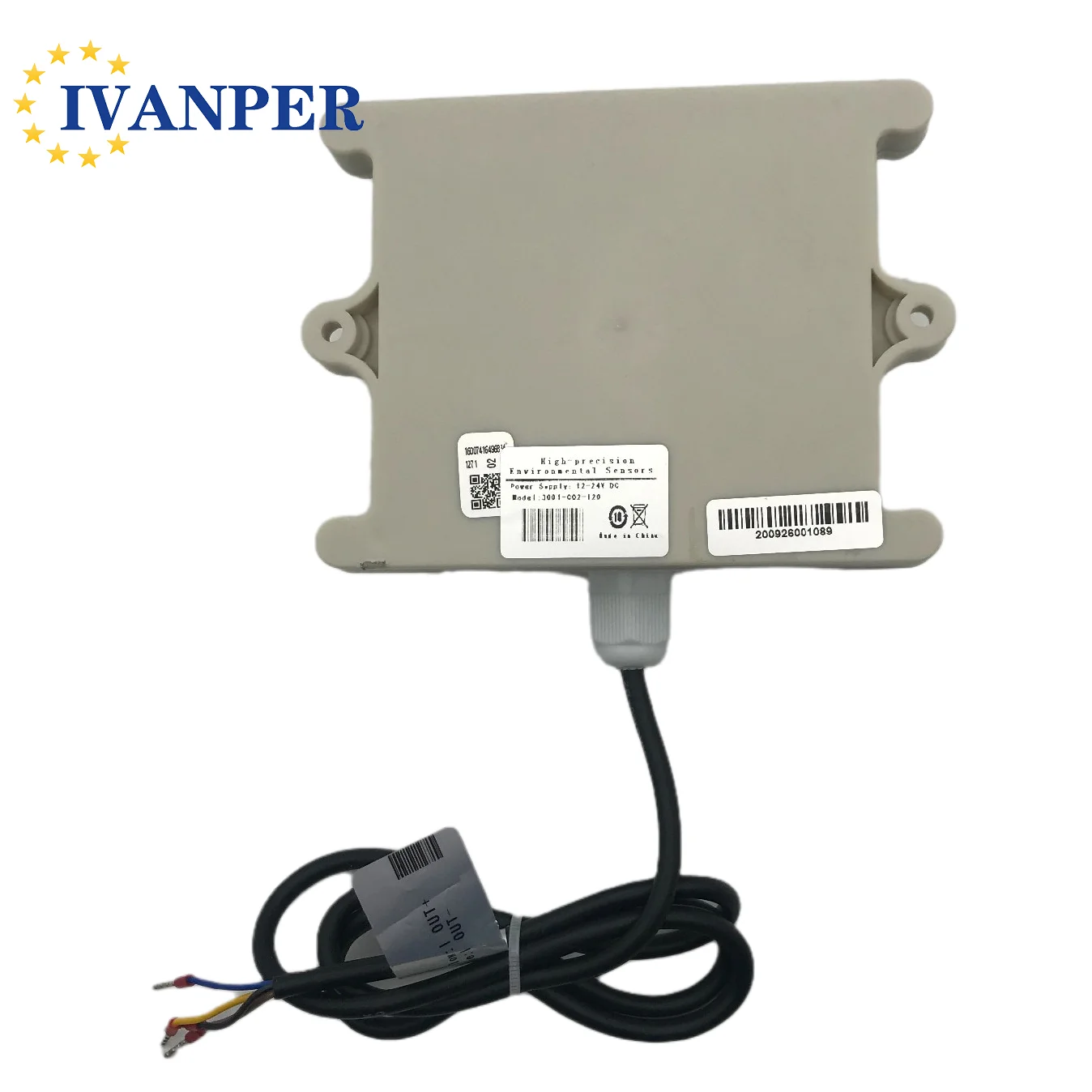

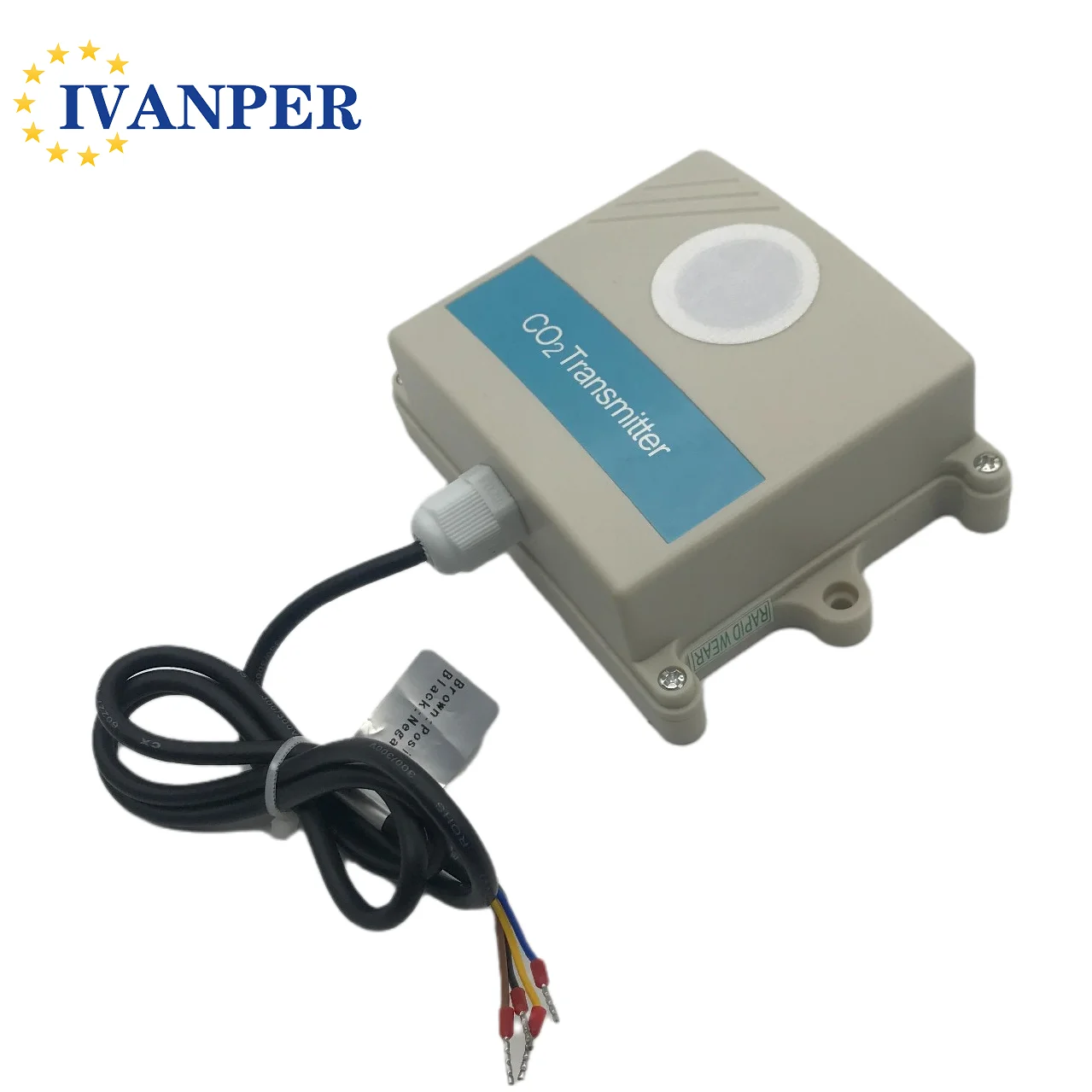

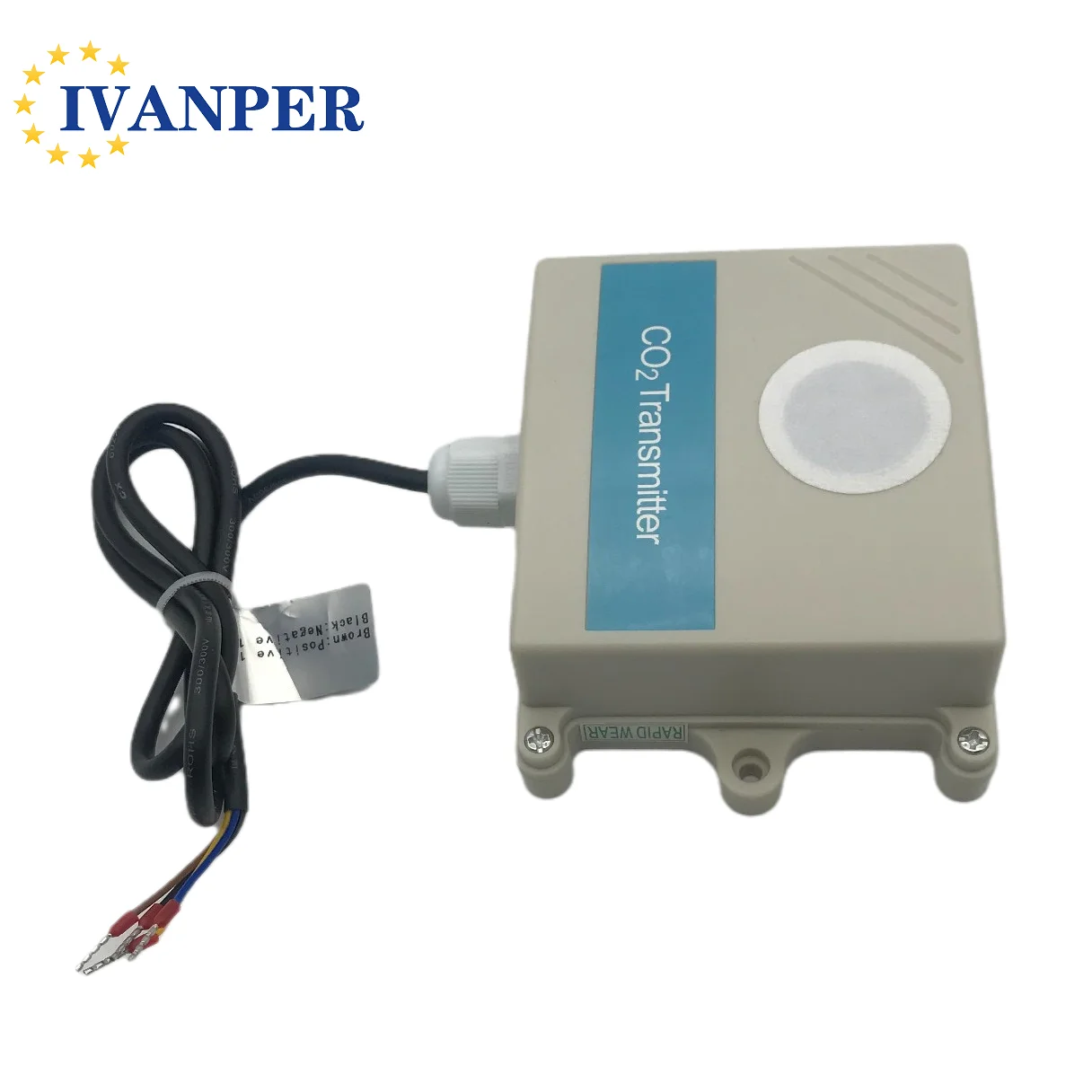

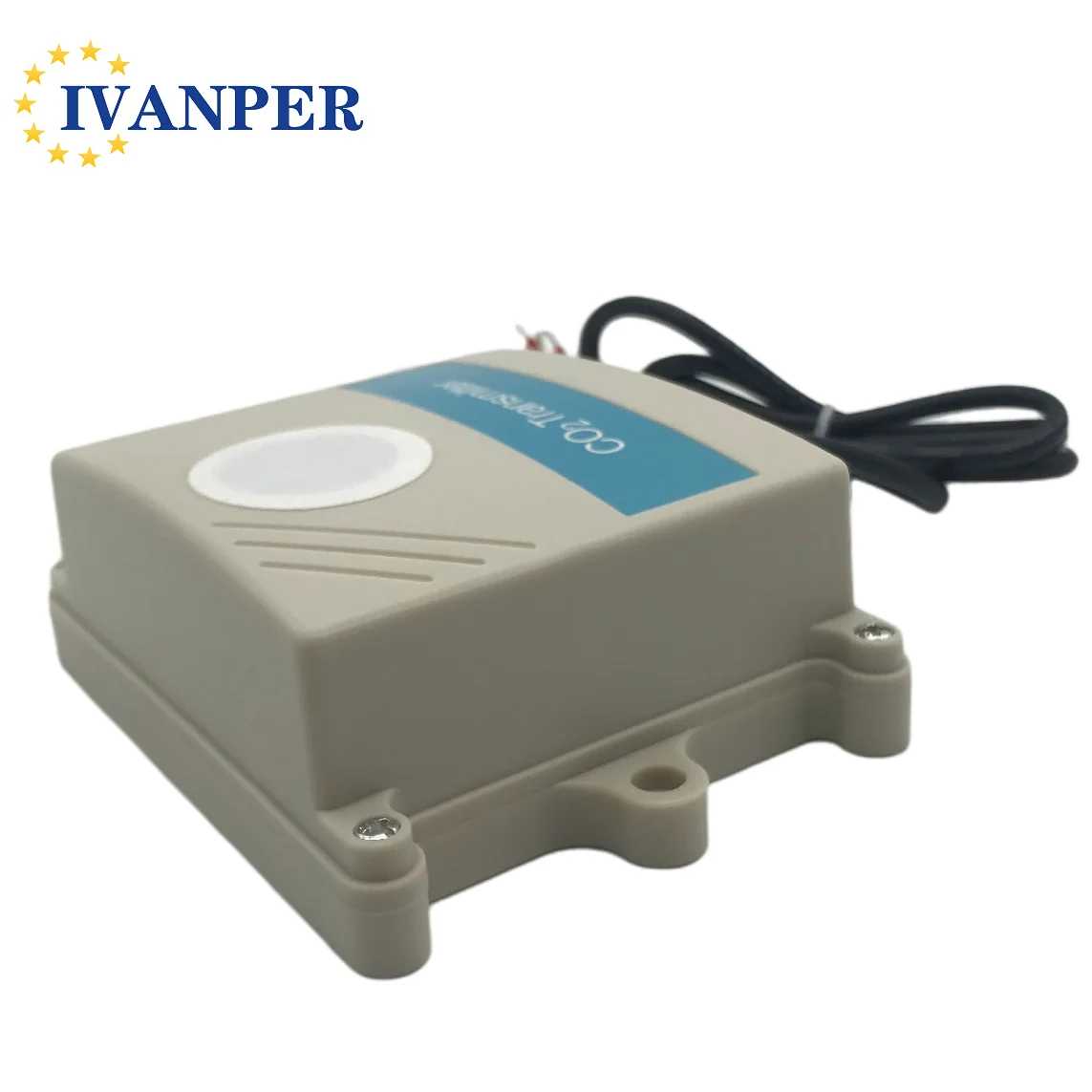

High Accuracy RS485 Carbon Dioxide Gas Detector CO2 Transmitter
- Category: >>>
- Supplier: Beijing Ifan Peng Instrument Co. Ltd.
Share on (1600197861069):
Product Overview
Description
Product Description
The transmitter is widely used in agricultural greenhouse, flower culture and other occasions requiring CO2, illumination and temperature and humidity monitoring.The three parts of input power supply, induction probe and signal output in the sensor are completely isolated.Safe and reliable, beautiful appearance, convenient installation.
Specifications
Carbon dioxide (CO2 )
Sensor: NDIR sensor, with ABC algorithm*
Sampling Method: diffusion
Accuracy: (40+3%MV) ppm
Response time: <10s (30cc/min, low airflow)
Drift: <±10ppm/year
Range: 0~2000ppm (measure range 400~2000ppm)
Output: 4~20mA, 0~10V, RS485/Modbus
Temperature
Sensor: Digital, RTD or thermistor, see models
Range: 0~50°C
Accuracy: see accuracy table
Output: 4~20mA, 0~10V, RS485/Modbus or RTD / thermistor
Relative Humidity
Sensor: Digital polymer
Range: 0~100%RH
Accuracy: see accuracy table
Hysteresis: <±1%RH
Response time: <10s (25°C, in slow air)
Drift: <±0.5%RH/year
Output: 4~20mA, 0~10V, RS485/Modbus
Power supply: 16~28VAC/16~35VDC
Load resistance: ≤500Ω (Current output),≥2kΩ (Voltage output)
Display: Optional LCD Display (CDTHW)
Display resolution: 1ppm, 0.1°C, 0.1%RH
Working environment: 0~50°C, 0~95%RH (Non-cond.)
Temp. compensation: 0~50°C
Storage temperature: -20~60°C
Housing material: ABS+PC (CDTHW), fireproof ABS(CDTHD)
Protection: IP30 (CDTHW), IP65 (CDTHD)
Approval: CE
*ABC algorithm: Automatic Baseline Correction, it constantly keeps track of the sensor's lowest reading over a few days interval
and slowly corrects for any long term drift detected as compared to the expected fresh air value of 400 ppm CO2.
1. All products are factory set to 0-10V as output default, and can be set to 4-20mA by jumper on the PCB
*2. See resistance table on page 1 of this catalog.
Accuracy table for temperature/ humidity
*When select RTD/ thermistor, total error will be 0.5°C more than the accuracy in the models
Carbon dioxide (CO2 )
Sensor: NDIR sensor, with ABC algorithm*
Sampling Method: diffusion
Accuracy: (40+3%MV) ppm
Response time: <10s (30cc/min, low airflow)
Drift: <±10ppm/year
Range: 0~2000ppm (measure range 400~2000ppm)
Output: 4~20mA, 0~10V, RS485/Modbus
Temperature
Sensor: Digital, RTD or thermistor, see models
Range: 0~50°C
Accuracy: see accuracy table
Output: 4~20mA, 0~10V, RS485/Modbus or RTD / thermistor
Relative Humidity
Sensor: Digital polymer
Range: 0~100%RH
Accuracy: see accuracy table
Hysteresis: <±1%RH
Response time: <10s (25°C, in slow air)
Drift: <±0.5%RH/year
Output: 4~20mA, 0~10V, RS485/Modbus
Power supply: 16~28VAC/16~35VDC
Load resistance: ≤500Ω (Current output),≥2kΩ (Voltage output)
Display: Optional LCD Display (CDTHW)
Display resolution: 1ppm, 0.1°C, 0.1%RH
Working environment: 0~50°C, 0~95%RH (Non-cond.)
Temp. compensation: 0~50°C
Storage temperature: -20~60°C
Housing material: ABS+PC (CDTHW), fireproof ABS(CDTHD)
Protection: IP30 (CDTHW), IP65 (CDTHD)
Approval: CE
*ABC algorithm: Automatic Baseline Correction, it constantly keeps track of the sensor's lowest reading over a few days interval
and slowly corrects for any long term drift detected as compared to the expected fresh air value of 400 ppm CO2.
1. All products are factory set to 0-10V as output default, and can be set to 4-20mA by jumper on the PCB
*2. See resistance table on page 1 of this catalog.
Accuracy table for temperature/ humidity
*When select RTD/ thermistor, total error will be 0.5°C more than the accuracy in the models
