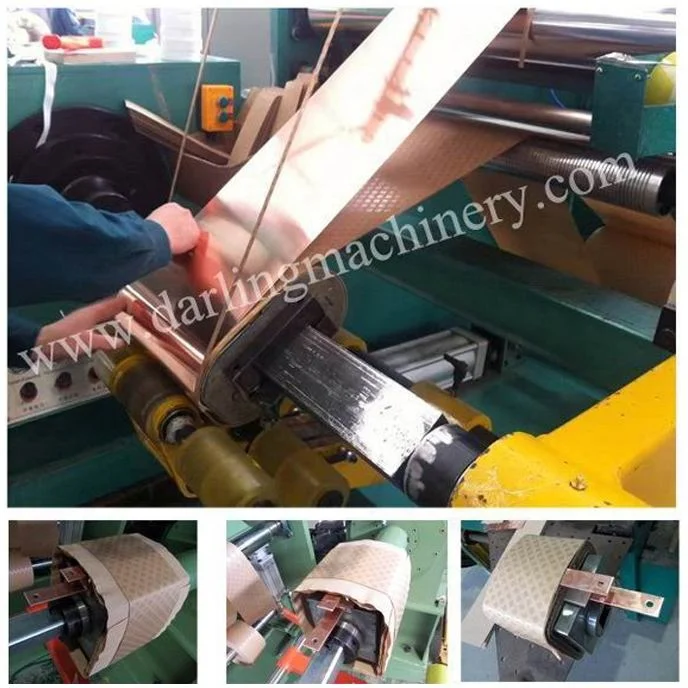

Darling Machinery new generation BRJ-500 single layer transformer foil winding machine

Watching machine working video directly (Video link):

YouTube:  https://youtu.be/RU9WL9J9s5c

QQ video:  https://v.qq.com/x/page/v3218vvy95w.html

Baidu video: https://haokan.baidu.com/v?vid=4013822319691845579&bfe=1

Working environment

Required working environment:

Environment temperature can not be higher than 40°C;

Electric and tolerance: AC3 x 380V ±10%; 50Hz.

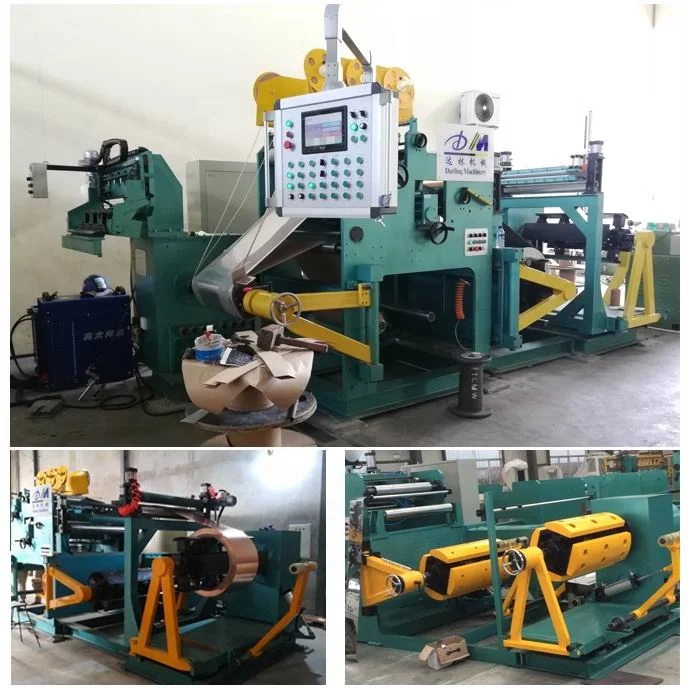

Main technology parameters and performance

5-1, wire processing extent:

5-1-1, the length of axis: 600mm

5-1-2, the outer diameter of coil winding: 700mm

5-1-3, the type of coil winding: Disc, oval, rectangle

5-2, wire material:

5-2-1, the width of foil coil: ≤500 mm

5-2-2, the thickness of foil material, copper foil: 0.5~2.5mm; aluminum foil: 0.2~2.5mm

5-2-3, the inner diameter of material coil: 500mm

5-2-4, the outer diameter of material coil: ≥1000mm

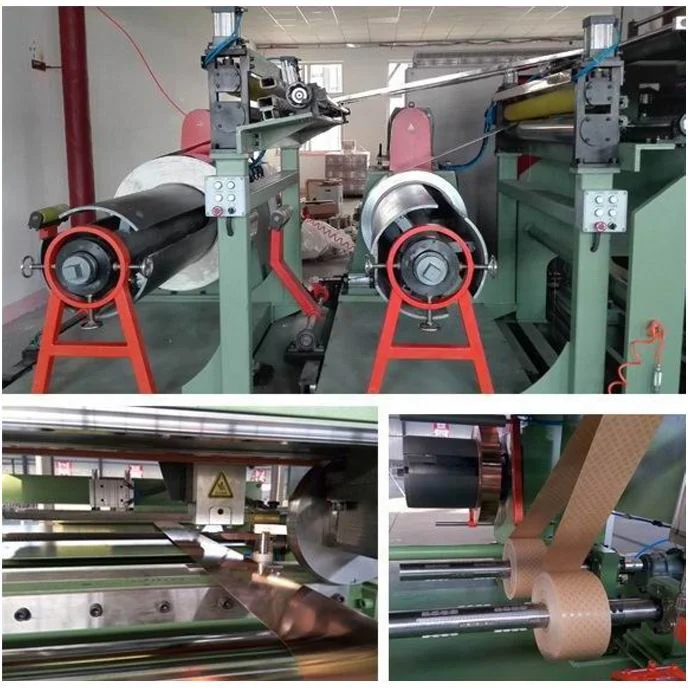

5-3, foil belt unreeling (1 set)

5-3-1, Length of material bearing tube(mm):  650 mm

5-3-2, Dilatation of material bearing tube(mm): φ460~φ520

5-3-3, Max bearing of material bearing tube(kg):  1500 KG

5-3-4, Max foil belt tension strength: ≤ 7000 N

5-3-5, working method of tension: electric and can be adjusted

5-3-6, Anti-deflection method: Photonics sensing auto anti-deflection

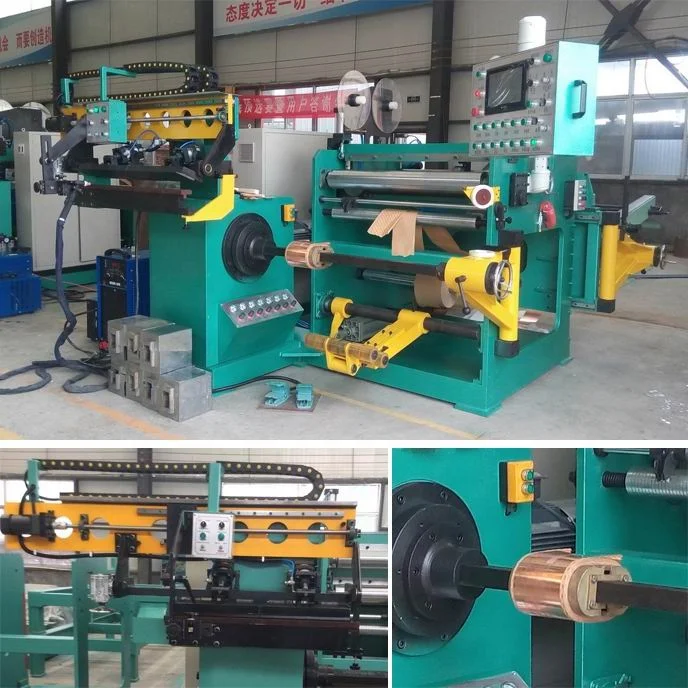

5-4, winding machine

5-1-1, Winding speed: 0~30 r/min

5-1-2, Max working strength: ≤5000 N.M

5-1-3, Machine power(KW):  15 KW

5-1-4, Speed modifying method: variable frequency motor in both side, modifying synchronization without grade, controlled by foot-touch switch.

5-5, welding device(1 set)

5-5-1, welding method:  welded by DC TIG Tungsten argon arc welding machine or cold-pressure welding

5-5-2, argon arc welding speed: frequency control 0~0.7m/min (no-rate speed adjustment)

5-6, cutting device(1 set)

5-6-1, type of cutting: Rolling shear mode

5-6-2, speed of cutting: 1.5m/min

5-6-3, thickness of cutting: copper foil 2mm

5-7, insulated layer unreeling device

5-7-1, Insulated layer installing axis: 2sets

5-7-2, Insulated layer outer diameter:  ≤φ400 mm

5-7-3, Insulated layer inner diameter:  φ74 mm

5-7-4, Insulated layer width:  650 mm

5-7-5, installing axis tension method: Pneumatic type

5-7-6, unreeling tension:  ≤300N

5-8, Anti-deflection device(1 set)

5-8-1, Anti-deflection method: frequency control motor

5-8-2, Anti-deflection precision: ≤±0 .5 mm

5-9,Cleaning burr device:

Special pressing burr device can keep burr≤0.02mm

5-10, electric control system

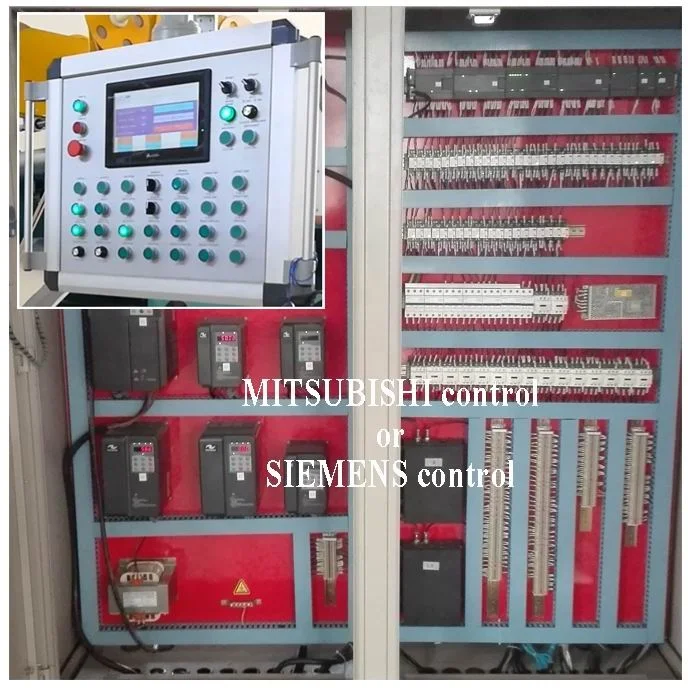

5-10-1, control method: PLC controlled automatically, assistant by button

5-10-2, number counting position: 4 position(0.0~999.9

5-10-3, counting precision: 0.1 circle

5-11, others

5-11-1, power: electric: total power 30KW, 3 phase, AC380, 50HZ

compressed air: ≥0.5Mpa,0.1M3/min

5-12, equipment color: blackish gree(can be chosen)
