high quality 2mm 3mm 4mm 5mm 6mm 8mm pmma acrylic led light guide panel lgp
- Category: >>>
- Supplier: Guangdong Yishun Material Limited
Share on (1600197898522):
Product Overview
Description
high quality 2mm 3mm 4mm 5mm 6mm 8mm pmma acrylic led light guide panel lgp
Product Description
The Mitsubishi PMMA light guide plate(LGP)is a transmission medium of light, it takes the brand-new optical grade pmma as base material,adopts the most advanced 3D laser processing and engraving processing technology, LGP is a kind of high- tech product that takes advantage of light effect such as refraction,reflection and diffuse reflection ,formed by side light source between lines dots and turns spots light source or line light source into plane light source.
Our light guide products have the following advantages
1. No printing ink and environmentally friendly.
2. High Luminous efficiency,80%~85%,composed by high quality reflective film and imported optical acrylic with high transmittance over 93%
3. Lighting uniformity can be 90% or above . Dot matrix is designed acordingly.
4. Durable , no fade and long life span( more than 8 years if normally used indoors).
5. Free from water and moisture,cold resistance and high temperature resistant, more suitablefor exporting to the countries and regions with bad climate conditions.
6. Mass producing, short delivery time . With imported laser dotting machine,daily output is 3-5 times more than others.
7. Superior stability.Good raw material (Mitsubishi sheet),carefully saved files, excellent equipment.
8.Product size can be customized, you can customize a variety of special-shaped
1. No printing ink and environmentally friendly.
2. High Luminous efficiency,80%~85%,composed by high quality reflective film and imported optical acrylic with high transmittance over 93%
3. Lighting uniformity can be 90% or above . Dot matrix is designed acordingly.
4. Durable , no fade and long life span( more than 8 years if normally used indoors).
5. Free from water and moisture,cold resistance and high temperature resistant, more suitablefor exporting to the countries and regions with bad climate conditions.
6. Mass producing, short delivery time . With imported laser dotting machine,daily output is 3-5 times more than others.
7. Superior stability.Good raw material (Mitsubishi sheet),carefully saved files, excellent equipment.
8.Product size can be customized, you can customize a variety of special-shaped
Specification of Acrylic LGP
| Product type | Acrylic Light Guide Panel/PMMA LGP |
| Material | MMA imported from Mitsubishi |
| Density | 1.2g/cm3 |
| Standard size | 300*300mm, 600*600mm, 1220*1830mm(4*6ft), 1220*2440mm(4*8ft), 24"*36", any customized sizes |
| Thickness | 2mm ,3mm, 4mm, 6mm,8mm |
| Color | clear+laser dotted/clear+3d v-cutting/clear+tiny stripes |
| Packing | covered with PE film, and using cartons or wooden pallet (case)for delivery |
| Certificate | SGS,ISO9001,CE |
| MOQ | 1pcs(negotiable when we have in stock) |
| Payment | T/T, L/C, Western Union, Paypal |
| Delivery | 7days |
Acrylic Technical Parameters
| Property | Property | ASTM Typical Value 3 Method mm (Thickness) |
| Mechanical Property | Specific Gravity | D792 1.19 |
| Optical Property | Tensile Strength | D638 700 kg/cm2 |
| Flexural Strength | D790 1170 kg/cm2 | |
| Modulus of Elasticity | 28000-35000 kg/cm2 | |
| Compressive Strength | D695 1200 kg/cm2 | |
| Rockwell Hardness | D785 M-100 | |
| Refractive Index | D542 1.49 | |
| Light Transmission,Total | D1003 93% | |
| Thermal Property | Forming Temperature | Approx 150-180℃ |
| Deflection Temperature | D648 95℃ | |
| Vicat Softening Point | D1525 120℃ (223℉) | |
Coefficient of Linear Thermal Expansion (-18℃ To 38℃ Ave) | D696 5×10-5 cm/cm/℃ | |
| Coefficient of Thermal Conductivity | Cenco-Fitch 6×10-5 cm/cm/℃ | |
| Selflgnition Temperature | D1929 443℃ | |
| Specific Heat | 0.35 (BTU/1b℉) | |
| Electrical Property | Volume Resistivity | D257 1016ohm-cm |
| Surface Resistivity | D257 1015ohm-cm | |
| Water Absorption | D570 0.3 |

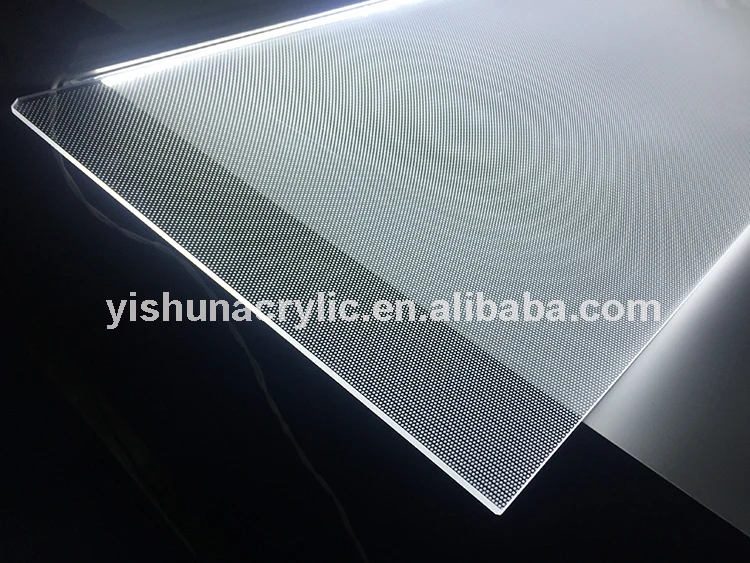

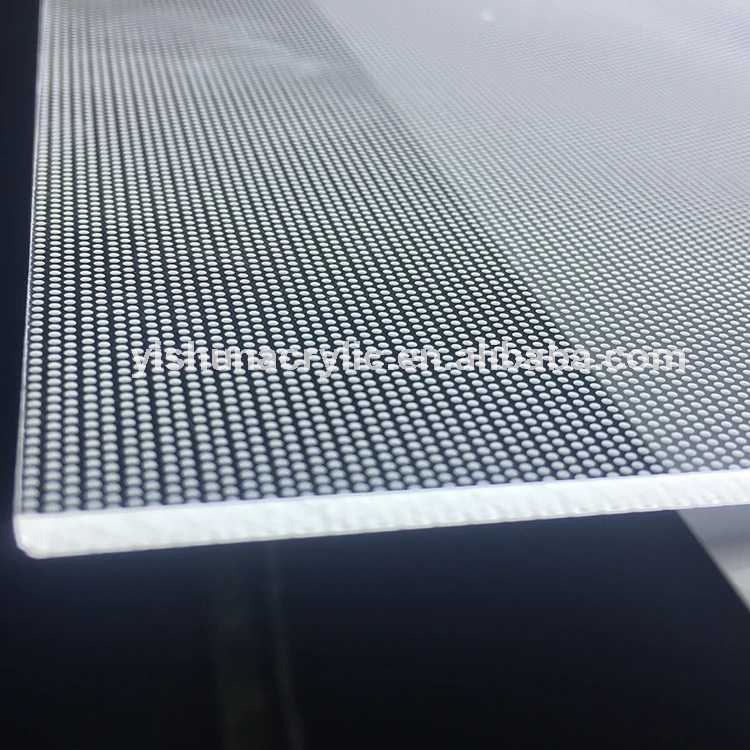

Comprehensive Presentation of Acrylic LGP
Main Products

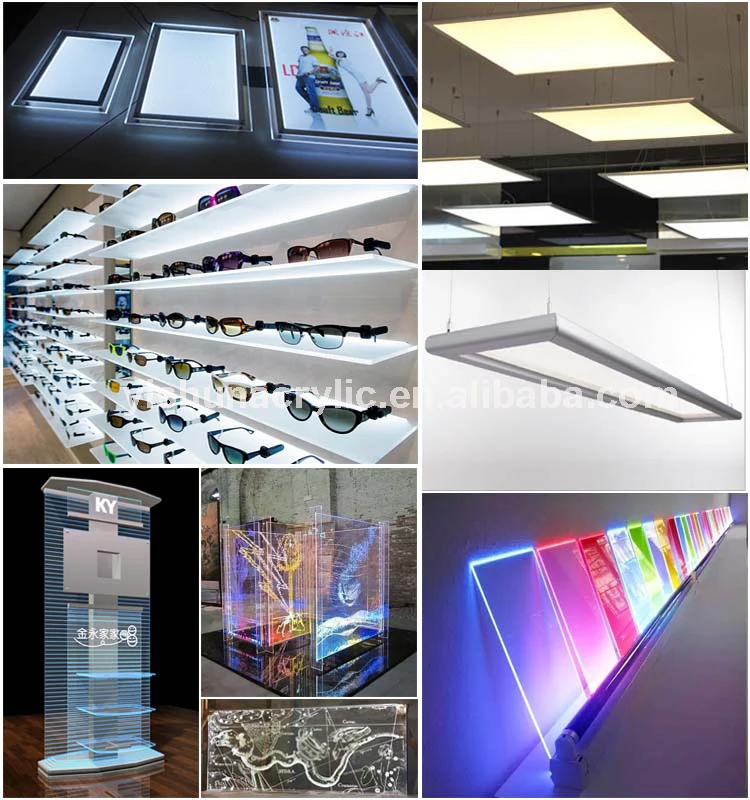

Application
1.Illuminated poster display box
2.Retail POP and displays
3.Way finding and general signage
4.Bus shelter advertising
5.Interior Lighting
6.Menu Boards
7.Trade show booth design
8.In-floor lighting
LGP Work Principle
LGP Installation

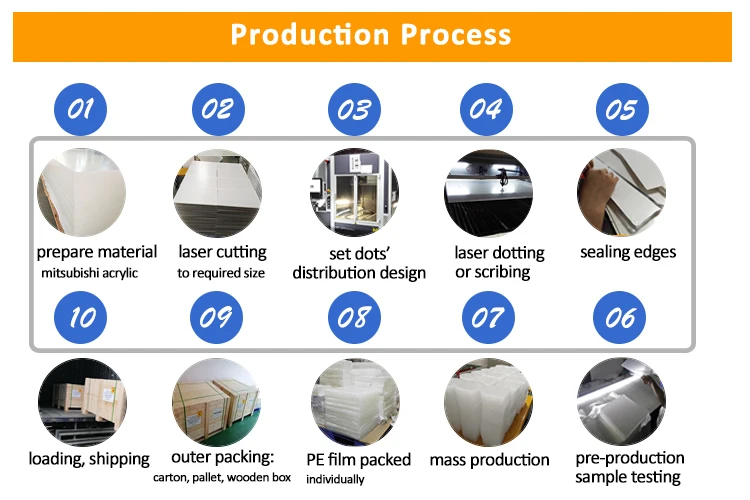

Production Process of Acrylic LGP

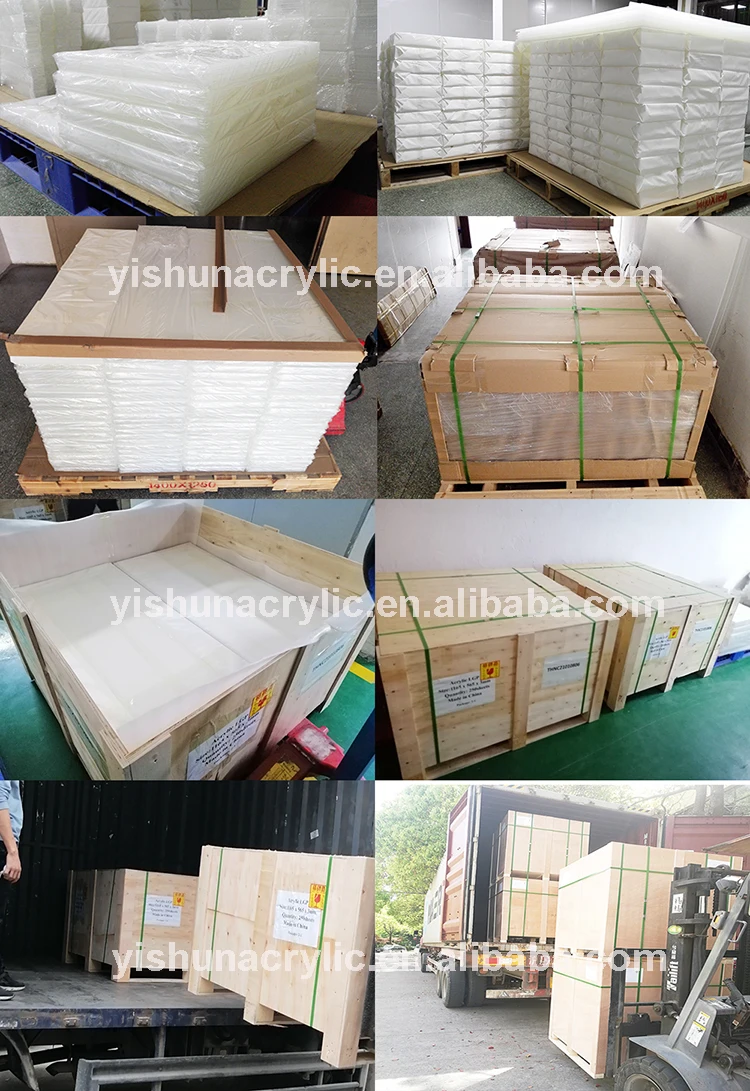

Packing and Shipping of Acrylic LGP

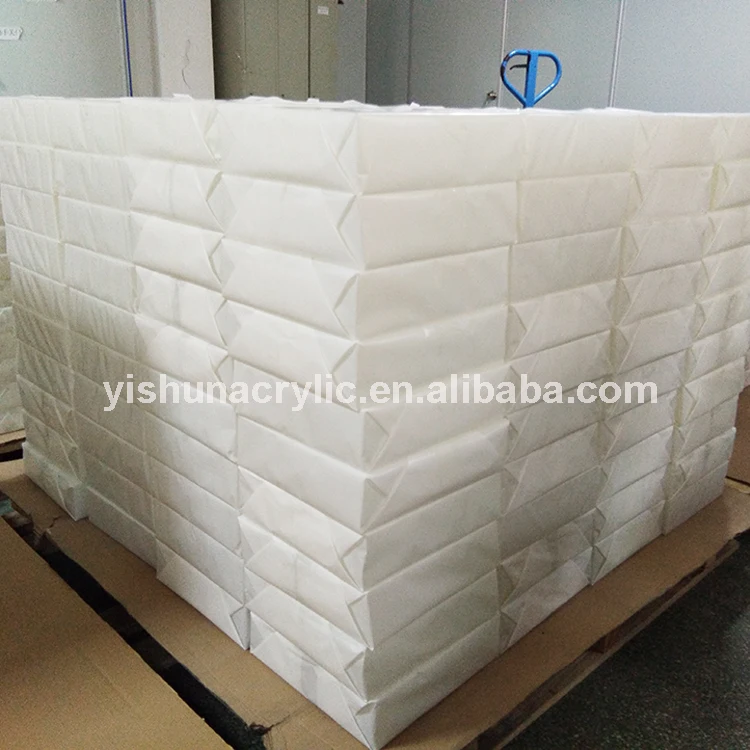

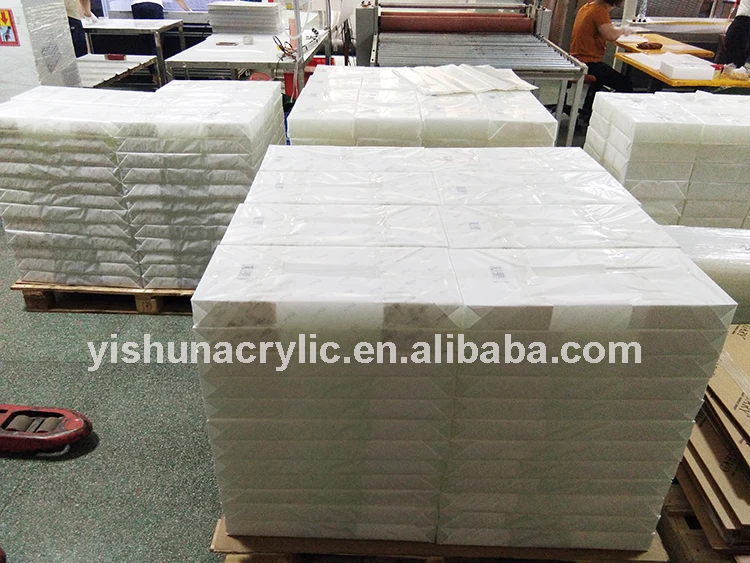

Packing details:
1. One piece of acrylic sheet packing: covered with PE film, the covered film without any company sign.
2. Bulk cargo packing with wooden pallets: 2 tons/pallet, with packing film packages all around ensure transportation security.
3. Full container load packing: 20-23 tons of a 20 foot container with 10 -12pallets
Shipping details:
1. By ocean shipping: 10-25days
2. By air transportation: 4-7days
3. By International express, like DHL, TNT, UPS, FEDEX, 3-5days(door to door)
Acrylic Certification

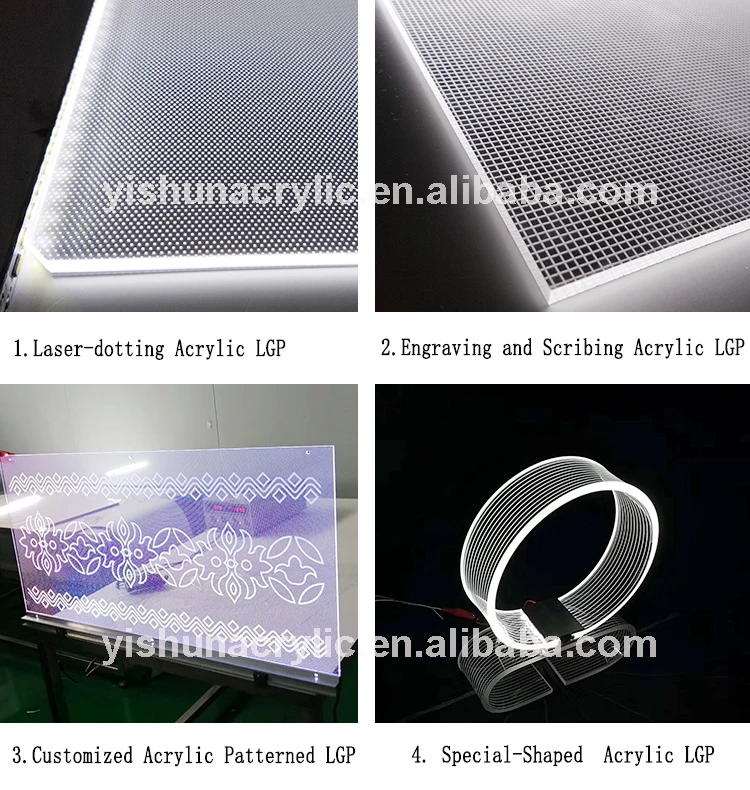

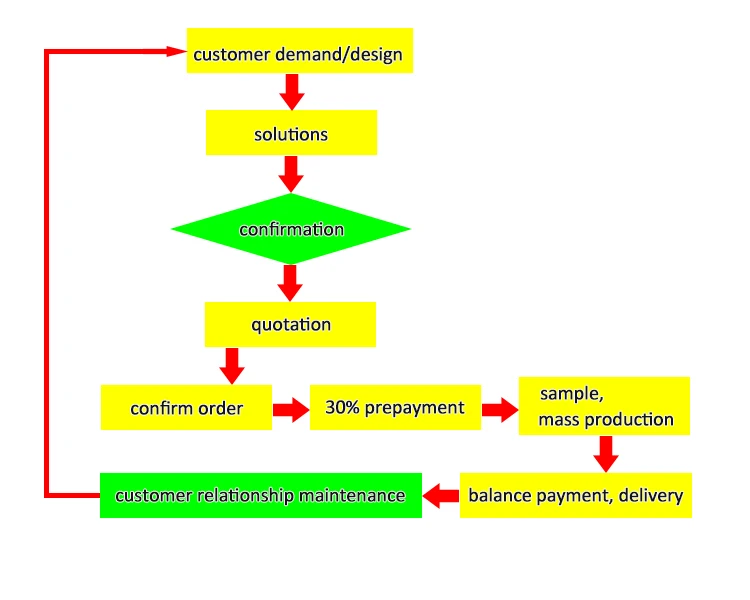

Custom acrylic lgp process
Trade Term
1.terms of trade: EXW, FOB, CNF, CIF,CFR,DDP etc.
2.terms of payment: T/T,LC,Western Union,Paypal etc.
3.Delivery time: 7-10days after confirming the order.
Contact us
If you have any questions or advices, please kindly send us email!
We will offer you according to your sepcific dimension, color, thickness and quantity!
