I. Product overview

The wheel type explosion-proof chassis uses lithium battery power supply as the power source, can carry various forms, the original rotation design can make the transportation more flexible, the whole machine explosion-proof can be used in various large petrochemical enterprises;

II. Scope of application

large-scale petrochemical enterprises, tank areas, open-pit mines and other areas.

III. Product characteristics

1. load capacity is large, can carry a variety of flexible equipment;

2. differential independent suspension structure, make the operation more stable, turn more flexible, can adapt to complex and changeable environment;

IV. Key technical indicators

4.1 Robots:

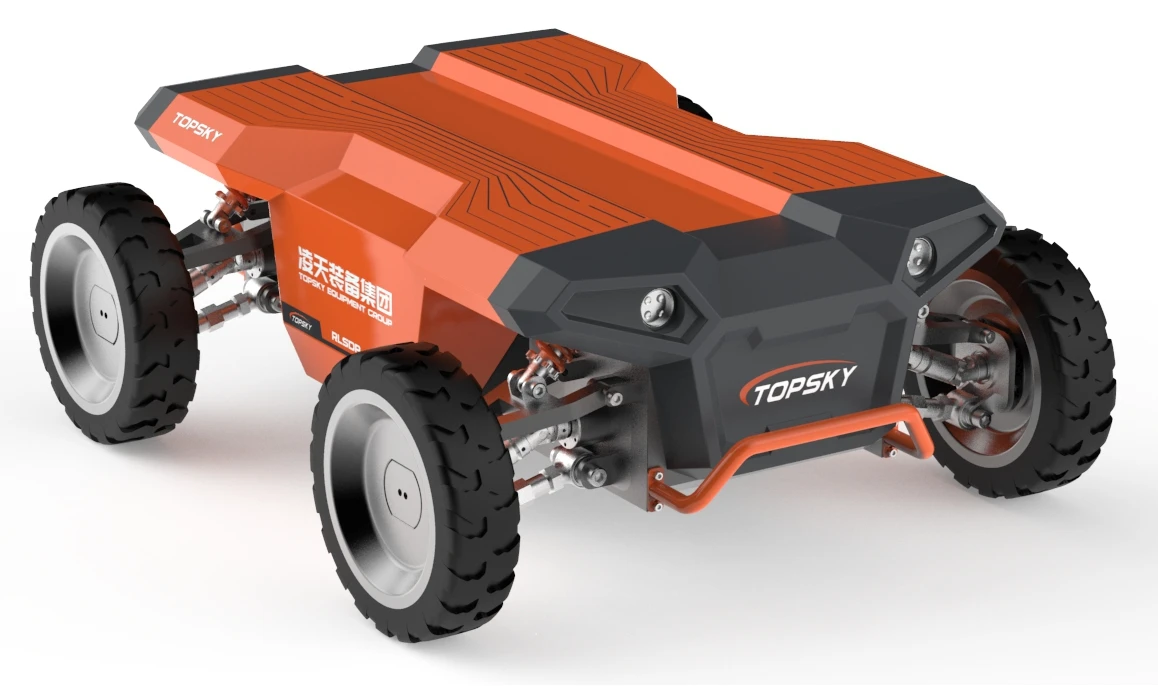

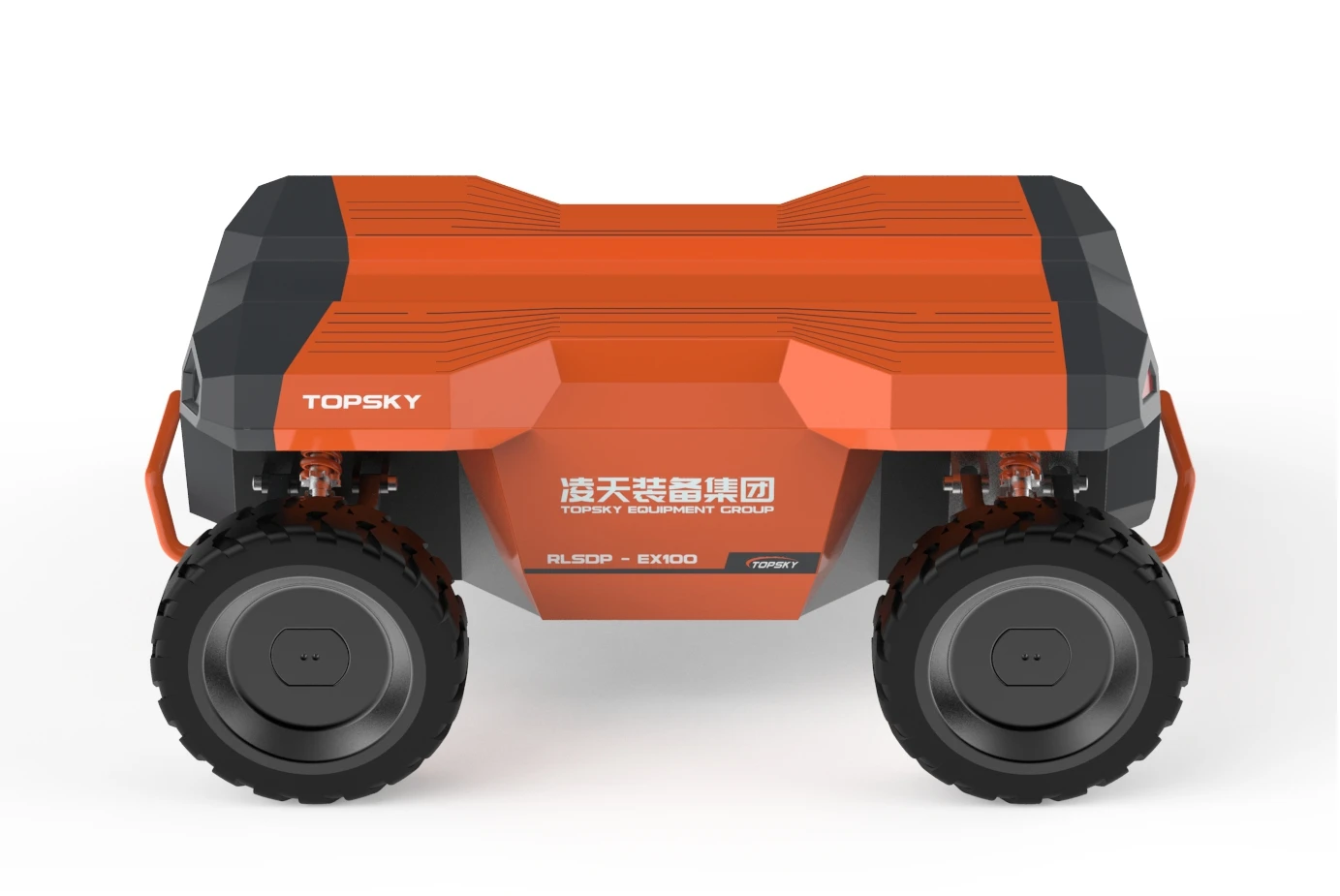

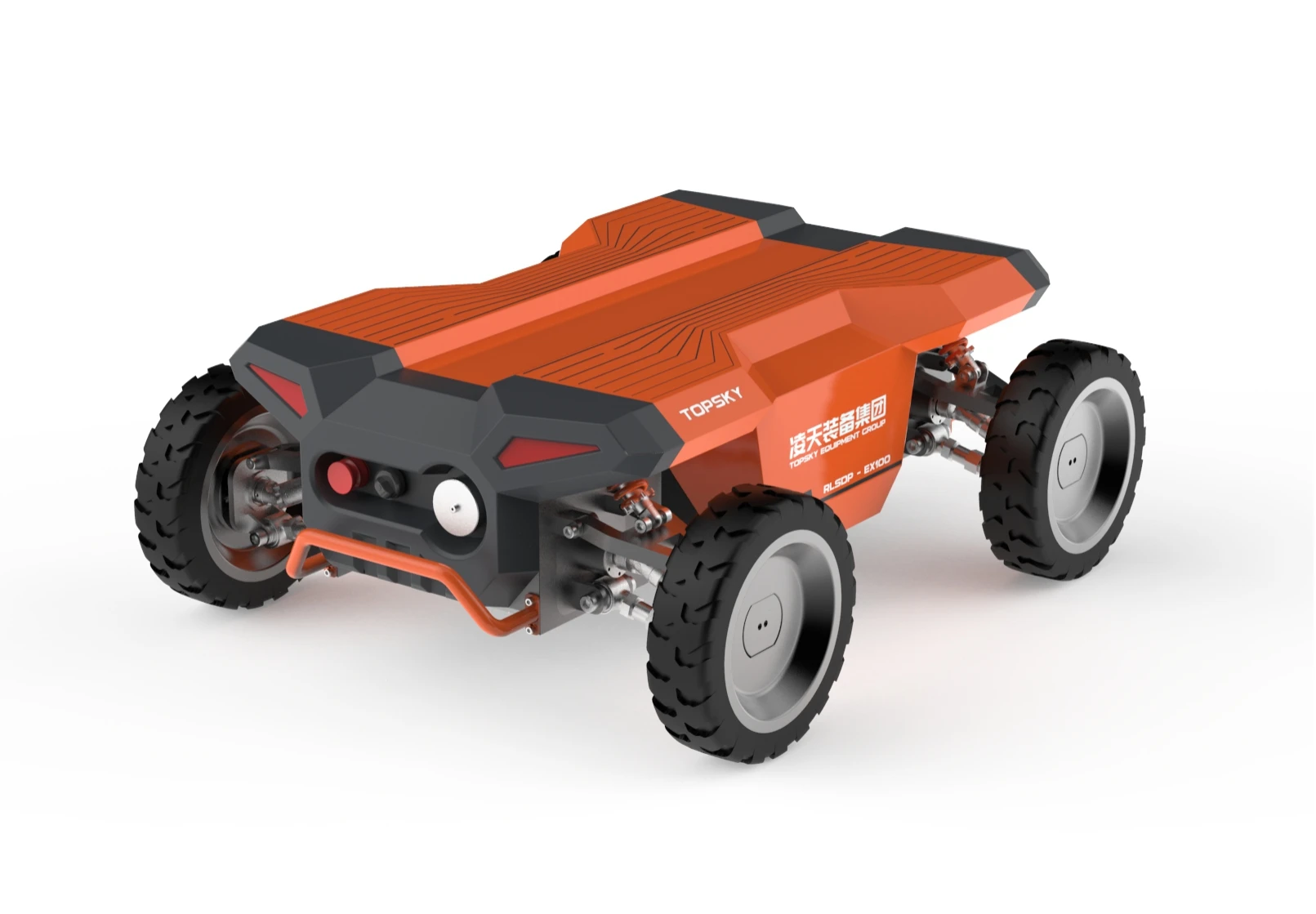

1. Name: wheeled patrol robot chassis

2. Model: RLSDP-Ex100

3. protection grade: IP67 of chassis body protection grade

4. Power: Electric, ternary lithium battery

5. size :≤ length 1150 mm× width 920 mm× height 430

6. Weight :≤200 Kg

7. load capacity :100 Kg

8. line maximum speed :≥1.5 m/s, remote control continuously variable speed

9. running deviation :≤2 per cent

10. Brake distance :≤10 mm

11. climbing capacity :≥58 per cent (or 30°)

12. Altitude :90 mm,

13. Lateral stabilization angle :≥30°

14. wading depth :300 mm

15. Capability :4 h

16. Distance :1000 m

4.2 Remote terminal configuration parameters

1. Dimensions :410*310*70 mm( No rocker height)

2. Full weight: kg 6.5

3. Display screen: not less than 10 inches high brightness LCD screen

4. Hours of work :8 h

5. Walking control function: there is a three-axis industrial rocker, a rocker to realize the robot forward, backward, left turn, right turn flexible operation

6. Lighting control function: yes, self-reset point switch, PC self-locking response

7. Auxiliary tools: Handheld remote control terminal shoulder strap, mobile tripod

4.7 Other:

 emergency transportation scheme (optional): robot special transport trailer or robot special transport vehicle
