Application: The preceding process of the machine is blowing room and the following process is drawing frame.The machine is mainly used for the processing of cotton(chemical fibre)laps and cotton (chemical fibre) layers.The machine combs the curly cotton (chemical) lumps moving from the preceding process or feeding hopper to straight single fibers.Meanwhile the impurities will be removes.Then it spins them into standard slivers and stored in a sliver can next process.
MAIN ADVANTAGES:
Microcomputer control and digital display relevant parameters.Front and rear stationary flats and card segment under taker-in are fixed.Automatic stopping while Doffer returning flow of fibers,thick laps and sliver breakage.Testing the delivery speed and draft range,display the length.
Flat uses 0.56mm small heel-toe to improve the carding efficiency.Doffer motor is of stepless frequency control by inverter,piecing-up with low speed and high-speed motion.Continuous suction is adopted.
Main parameters
Model
right-handed(standing in front Width:1020mm Applicable lap: Width:980mm of the machine,facing to the Doffer)
Max diameter
￠550mm
Cylinder working diameter
￠1289mm
Cylinder speed(selective)
330rpm(for chemical fibre);360rpm(for cotton)
Doffer working diameter
￠707mm
Draft multiple
67.3-120.2 7. Motor:main motor 3.3kw
Overall size
3684*2009.5mm(LxW)
Output
30kg/h
Motor Main motor
3.3kw Doffer motor : 0.75/0.37kw Suction motor : Model F : 0.06kw
Related Products
Payment&Shipping
Payment
30% advance payment, the rest to be paid before shipment
Shipping
Standard export packaging, or as required by the customer
After Sales Service
1.One year warranty,
2.Overseas installation training
3.24-hour network technical support
Company Introduction

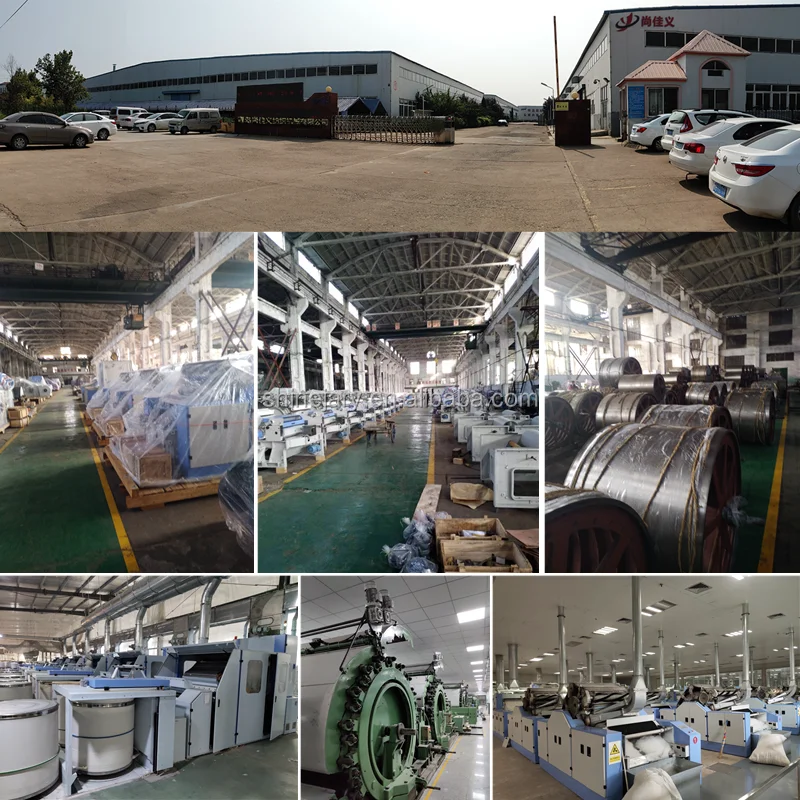

Qingdao Shinejary Textile Machinery Co, Ltd was specialized in the manufacture of textile machinery for more then 20years, With advanced CNC processing equipment and professional machinery production technology, our team can always offer research and development, production, sales and after sale service etc.. Our products are not only highly favored in China domestic market, also exported to India, Pakistan, South Korea, Turkey, Russia and other countries, where we get good international reputation. There are mainly three series of our products:
1.Weaving machine: water jet looms, air jet looms, rapier looms, leno looms, shuttle looms.
Our company focus on R & D and manufacturing high-grade intelligent textile machinery, adhering to the concept of "Technological innovation quality improvement and service optimization", and constantly develop new products, new technology research and development efforts, we will make persistent efforts to customer needs and interests, and strive to develop, steady progress, and strive to get more satisfaction and recognition from domestic and abroad.
FAQ
(1)Q: Are you a manufacturer or Trade Company? A: We are a professional manufacturer holding our own International Trade Department, for thatwe can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We warmly welcome to visit our company for detailed negotiation.Meanwhile,we would send our exposition and relative information to promote a face-to-face meeting. We offer reasonable price for every client. (3)Q: How about the quality? A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(4)Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling.Our products have passed ISO9001 international quality system certification .
(5) Q:What about the delivery time?
A: Normally the delivery time is 20 days after getting down payment.If the order is small and we have some looms in stock,the delivery time is 10-15 days.If our factory is busy with many orders in hand,the delivery time will be negotiable or as per our production plan.
