Thermal Scope and Hunting Scope Thermal Sight Thermal Monocular & Thermal Sight 15*5.2*5.7 1024*768 400*300 4X
- Category: >>>
- Supplier: Wuhan Guide Sensmart Tech Co. Ltd.
Share on (1600198224170):
Product Overview
Description
Products Description

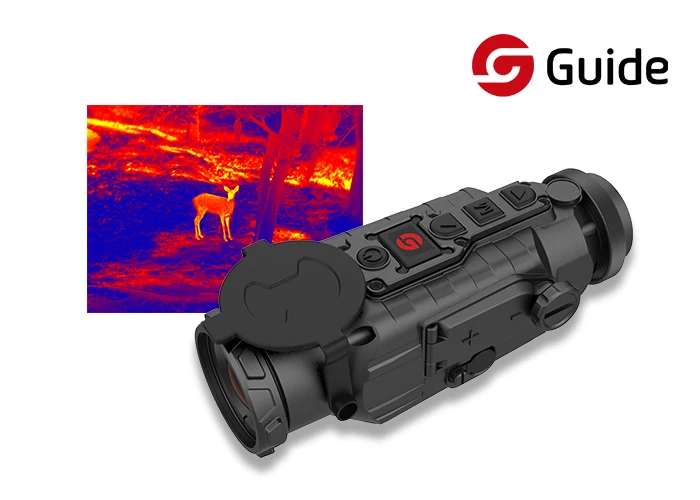

Thermal Scope and Hunting Scope Thermal Sight
Guide TA435 TA450 Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager.It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.
Main Features of Thermal Scope and Hunting Scope Thermal Sight
* Simple & Adaptable: Switchover among five scene modes by one button, truly realizing all-weather environment self-adaptation
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)
Product Paramenters
Model | TA435 | TA450 | ||
Detector | ||||
Detector Type | 400×300 @17μm, VOx | |||
Spectral | 8μm～14μm | |||
NETD | ≤50mk | |||
Focus lens | ||||
Focal Length | 35mm F1.2 | 50mm F1.2 | ||
Focusing | Manual focus | |||
FOV | 10.66°×8.0° | 7.5°×5.6° | ||
Display system | ||||
OLED | Colorful 0.39 inch OLED screen 1024×768 | |||
Eyepiece | Monocular, Pupil Distance 10mm, Pupil Caliber 20mm | |||
Digital Zoom | 1 | |||
Image Processing | ||||
Frame Rate | 50Hz（PAL） | |||
Digital Zoom | 2×,4× | |||
Auto Tracking | Hotspot track | |||
Calibration | Automatic calibration/ Manual calibration (shutter) /Manual scene compensation | |||
Scenes Modes | Enhanced, Highlight, Natural | |||
Color Palettes | Black hot, white hot, red hot, green hot | |||
Contrast/Brightness | Adjustable | |||
Power Systems | ||||
Battery | CR123A×2/ICR16340×2 | |||
Power Supply | can be powered by 5V2A external power supply | |||
Interface | ||||
7-Pin LEMO Interface | Support video output and external power supply | |||
Environment parameter | ||||
Operating Temperature | -30°C-50°C | |||
IP level | IP67 | |||
Certificate | RoHS Certificate/CE Certificate/FCC Certificate | |||
Physical Characteristics | ||||
Weight | ≤400g | ≤450g | ||
Size | 150mm×52mm×57mm | 178mm×58mm×62mm | ||
Package | ||||
Standard | Blinder, Carrying bag, Charger, User manual, 7-Pin Lemo to USB cable, Warranty | |||
Optional | External eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery, Bluetooth remote controller, Charger, Video cable (two in one, power supply & video output | |||
Detection Range | ||||
Human：1.8m×0.5m | 1000m | 1400m | ||
Vehicle：2.3m×2.3m | 2400m | 3000m | ||
Recognition Range | ||||
Human：1.8m×0.5m | 500m | 700m | ||
Vehicle：2.3m×2.3m | 1000m | 1400m | ||
