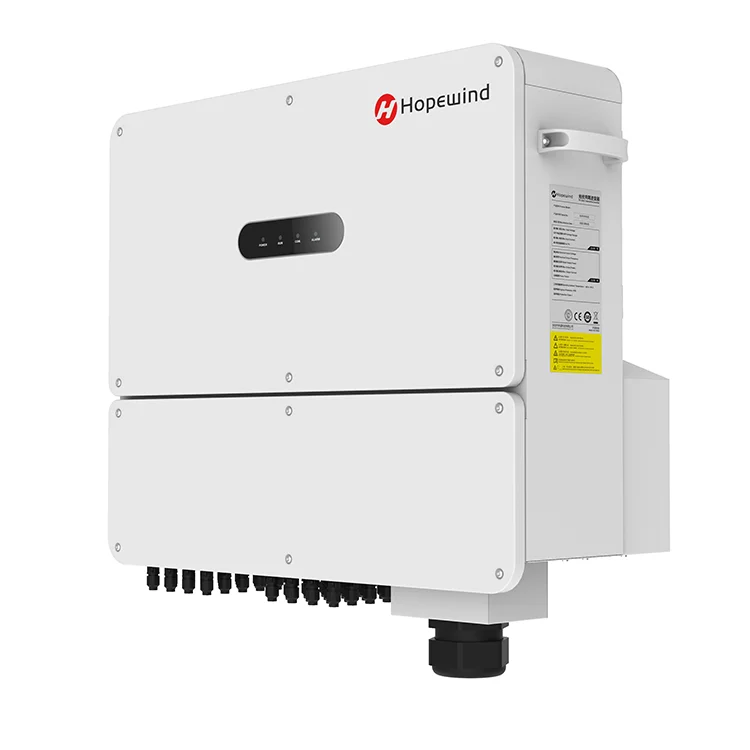

Hopewind Factory Price 80kw 100kw Solar Power System Solution On grid 3 Phase Inverter
- Category: >>>
- Supplier: Shenzhen Hopwinn Innovation Technology Co. Ltd.
Share on (1600198299564):
Product Overview
Description
Model | hopeSun 80KTL | hopeSun 100KTL | hopeSun 125KTL | |||
DC Input | Max. DC Voltage | 1100V | ||||
MPPT Voltage Range | 250V-1000V | |||||
Max. Input Current of Each MPPT | 39A/52A | 65A | 65A | |||
Number of DC Inputs | 14 | 18 | 20 | |||
MPPT Number | 4 | |||||
AC Output | Rated Output Power | 80kw | 100kw | 125kw | ||
Max. Active Power(cosθ=1) | 88kw | 110kw | 137.5kw | |||
Rated Output Voltage | 500V (Three Phase) | 400V(Three Phase) | 500V (Three Phase) | |||
Operating Voltage Range | 500V±10% | 400±20% | 500V±10% | |||
Rated Output Current | 92.4A | 144A | ||||
Max. Output Current | 101.6A | 158.8A | ||||
Rated Grid Frequency | 50Hz/60Hz | |||||
Power Factor | 0.8(Leading)~0.8(Lagging) | |||||
THD | ＜3% | |||||
System Parameters | Max. Efficiency | 99.03% | 99.01% | 99.04% | ||
European Efficiency | 98.53% | 98.52% | 98.54% | |||
AC / DC SPD | Support | |||||
Insulation Impedance Detection | Support | |||||
Residual Leakage Current Detection | Support | |||||
PV String Fault Detection | Support | |||||
Output Overcurrent Protection | Support | |||||
Protectin Level | IP65 | |||||
Operating Temperature Range | —25℃ ~ 60℃ | |||||
Cooling System | Smart Air Cooled | |||||
Standby Power Consumption | ＜5W | |||||
Topology Structure | Transformerless | |||||
Operating Altitude | 5000m (Derating above 4000m) | |||||
Display | LED Indicator + APP | |||||
Communication | RS485 / WiFi / GPRS | |||||
Certification | IEC62109 / IEC61000 / IEC62116 / IEC61727 / EN50549 / CQC / CGC | |||||
Mechanical Parameters | Dimensions (W*H*D) | 705*650*283mm | 800*680*330mm | |||
Weight | ＜75kg | ＜95kg | ||||
