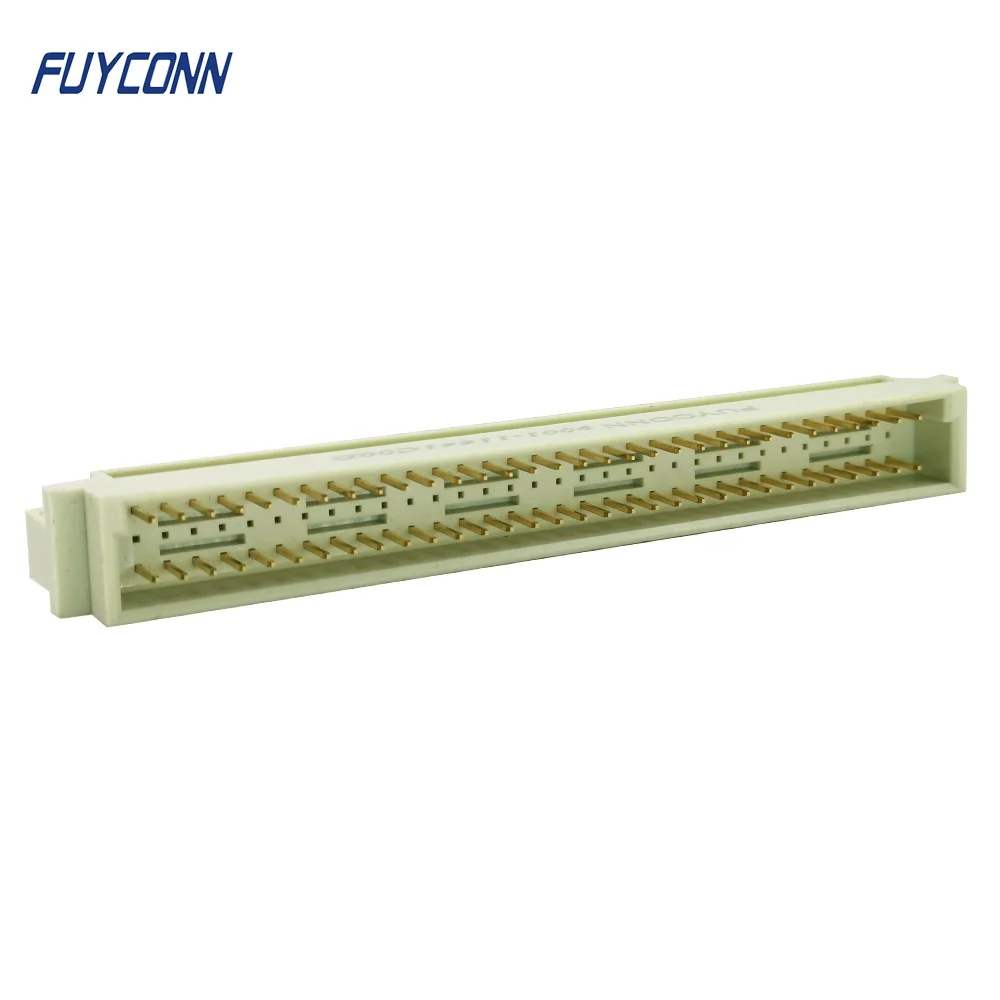

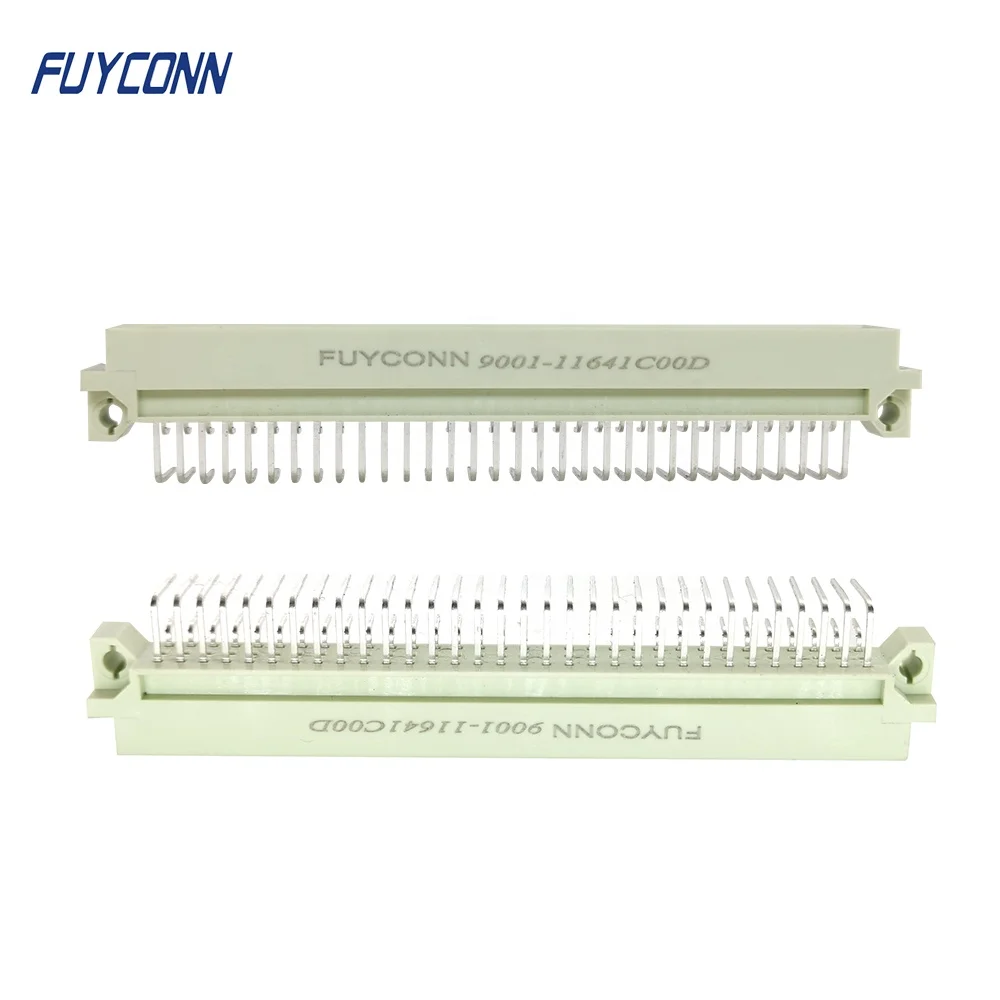

B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch

B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch

Share on:


Price:$0.40 - $1.20
Price in USD:Details

Quantity:


Product Overview

Description



B Type male PCB 3 rows 64Pin DIN 41612 Euro Connector, 2*32pin 64 pin Right Angle PCB Male Euro card connector with 2.54mm Pitch
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system. They were also used by NuBus. The standard has subsequently been upgraded to international standards IEC 60603-2 and EN 60603-2.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.


Why Choose Us


1, 16 years Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods


Product Description


 Product features
1. Product Line:
DIN41612 Connector
2. Connector Gender:
Male Plug
3. Row
3 rows
4. Number of Position:
A+C 2*32pin 64pin
5. Contact Material:
Brass
6 Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:
PBT
8. UL Flammability Rating
UL-94-V0
8.Color
Gray
10. Connector Type
PCB connector
11.Terminal Type
Right Angle
12. Pitch
2.54mm


Electrical Specifications
Current Rating:
2AMP
Dielectric Withstanding Voltage:
AC 1000V For 1 minute
Insulator Resistance:
1000 MΩ min.at DC500V
Contact Resistance:
30mΩ max. at DC 100MA
Operating Temperature:
-55°C--+105°C


  • Application

Euro card line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.





Related Products

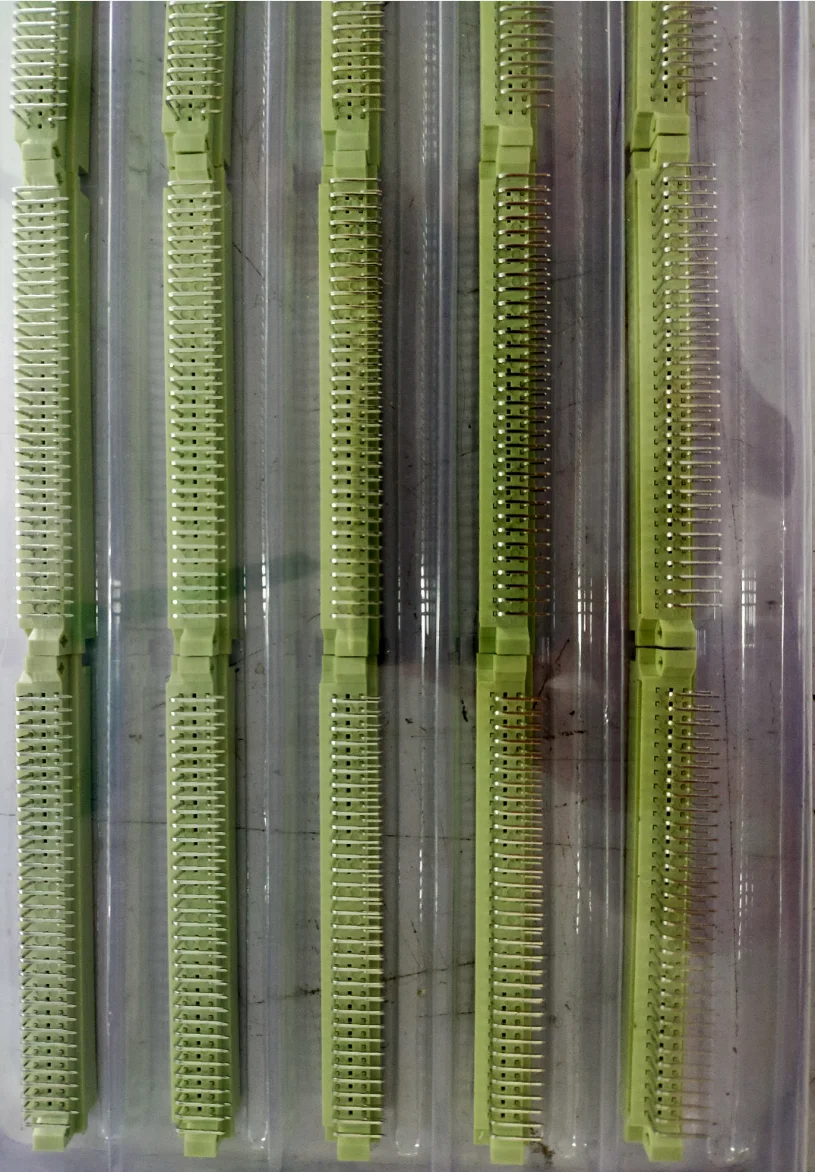

Packing&Shipping


Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips




Company Profile


Dongguan Fuyconn Electronics Co,. Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, DIN41612 connector, SCSI series and RJ series. We have over 1,000 models for you choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.








Certification




Contact us


Grace Zhong
Wechat: +86 18925547246
Skype: fuyconn001
Phone: +86 18925547246
Office Phone: +86 0769 83690889
Add: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province,China
