High Quality 100/80/50 KG/hr Large Ozone Generator For Industrial Exhaust Air Odor Aquapure Wastewater Treatment System
- Category: >>>
- Supplier: Qingdao Guolin Technology Group Co. Ltd.
Share on (1600198496434):
Product Overview
Description
Products Description
80kg/h -150kg/h
ozone generator
★ Water cooling mode. Multi-stage cooling structure design ensures the cooling efficiency to be increased by 20%. Equipment can be running continuously for 24hrs;

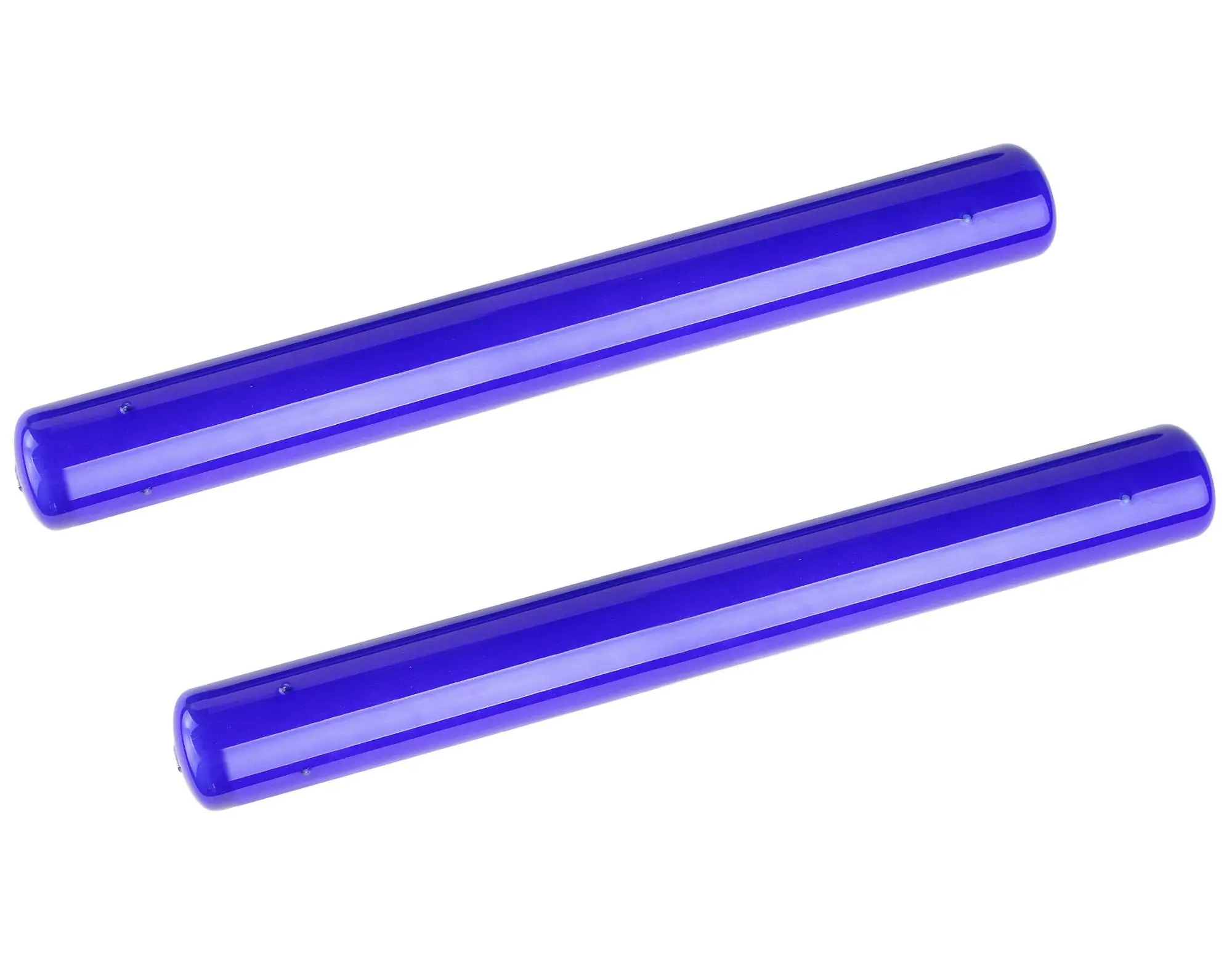

★Patented enamel dielectric tube with features of high strength, good pressure resistance and good heat resistance; easier to be maintained;
★ Electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube;
★ Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time;
★Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions;
★ Control method includes manual control and automatic control for option.
Products Characteristics
The core device of this series of ozone generators uses the patented technology---- connectable type non-glass dielectric tube (Patent No.: ZL 01 2 68920.3). The patented enamel dielectric tube has advantages of large ozone production and high ozone concentration. Ozone power supply adopts special independent power supply technology for more reasonable matching and better adaptability. The equipment uses standard feed gas source and cooling way guarantee.
The stability, technical indicators and application results of the equipment are better than those of domestic similar products. The life time of equipment is more than ten years.

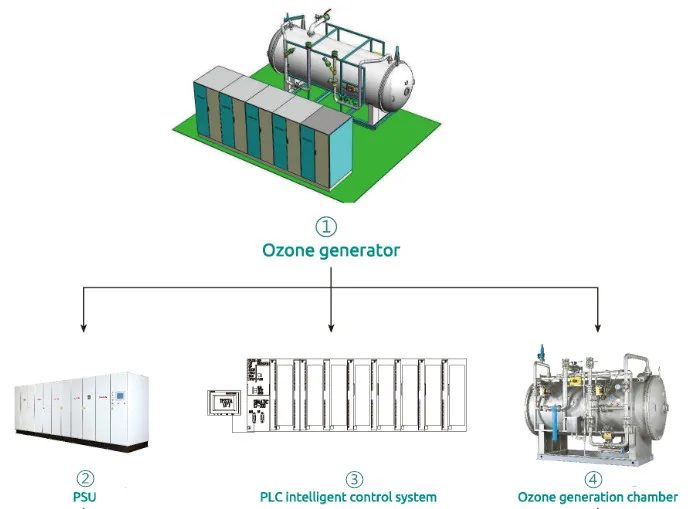

Product Composition | ||||||||

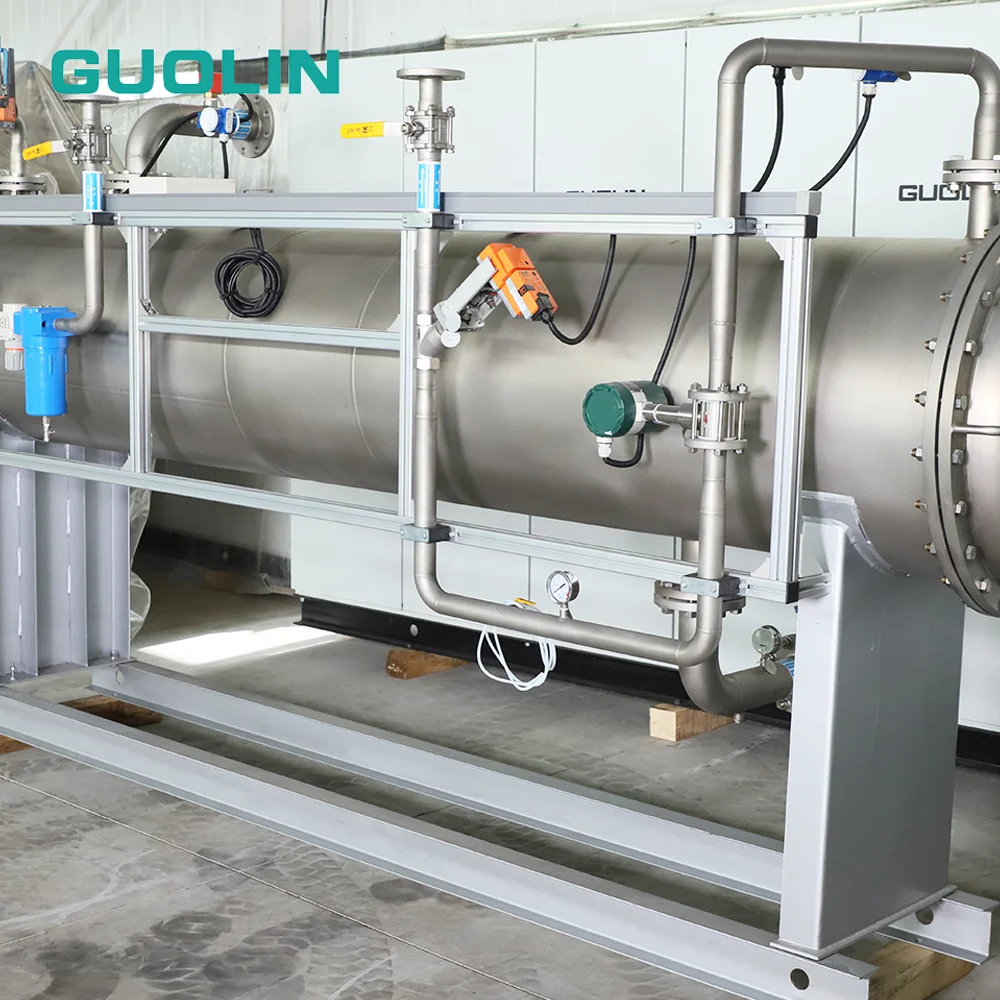

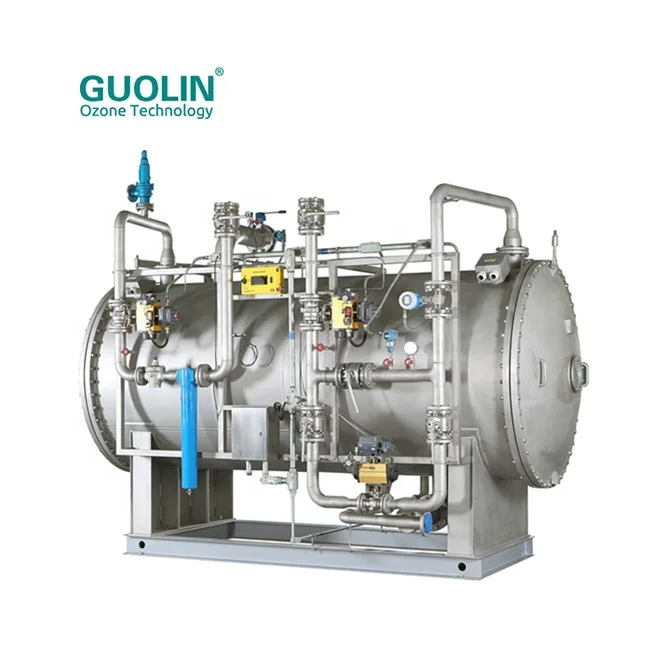

ozone generation device (ozone generation tank, dielectric tube, high voltage fuse) | ||||||||

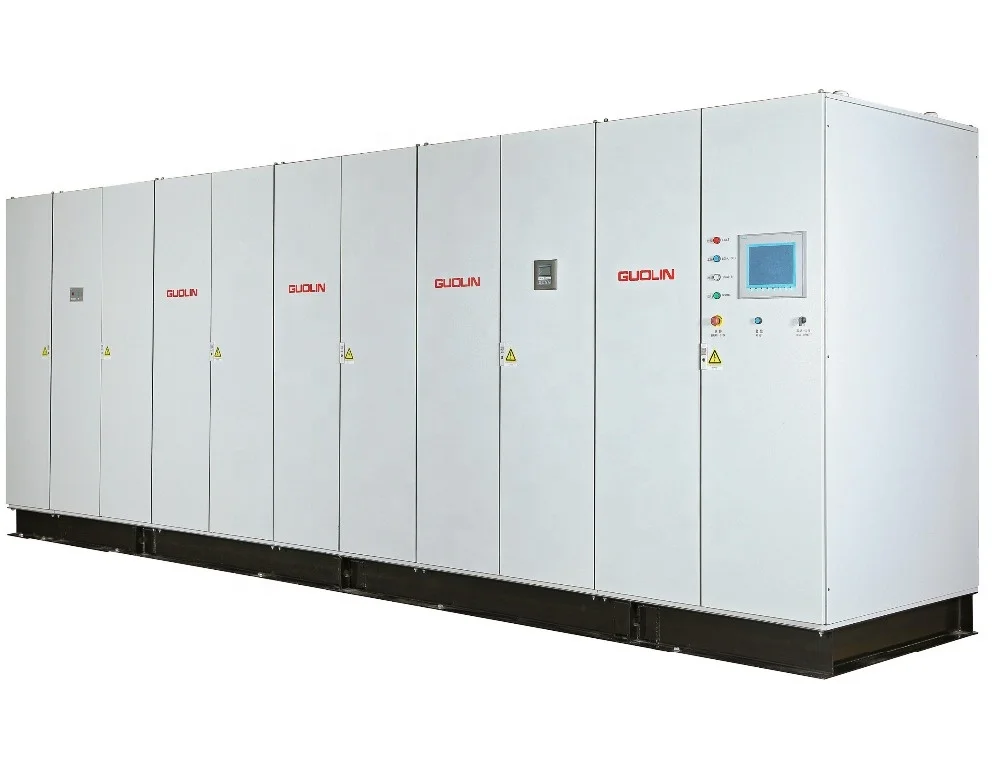

PSU device(includes high voltage transformer, DC reactor, coil in reactor, rectifier and inverter, etc ) | ||||||||
control device (includes circuit board, power meter, ozone capacity adjusting knob, etc.) | ||||||||

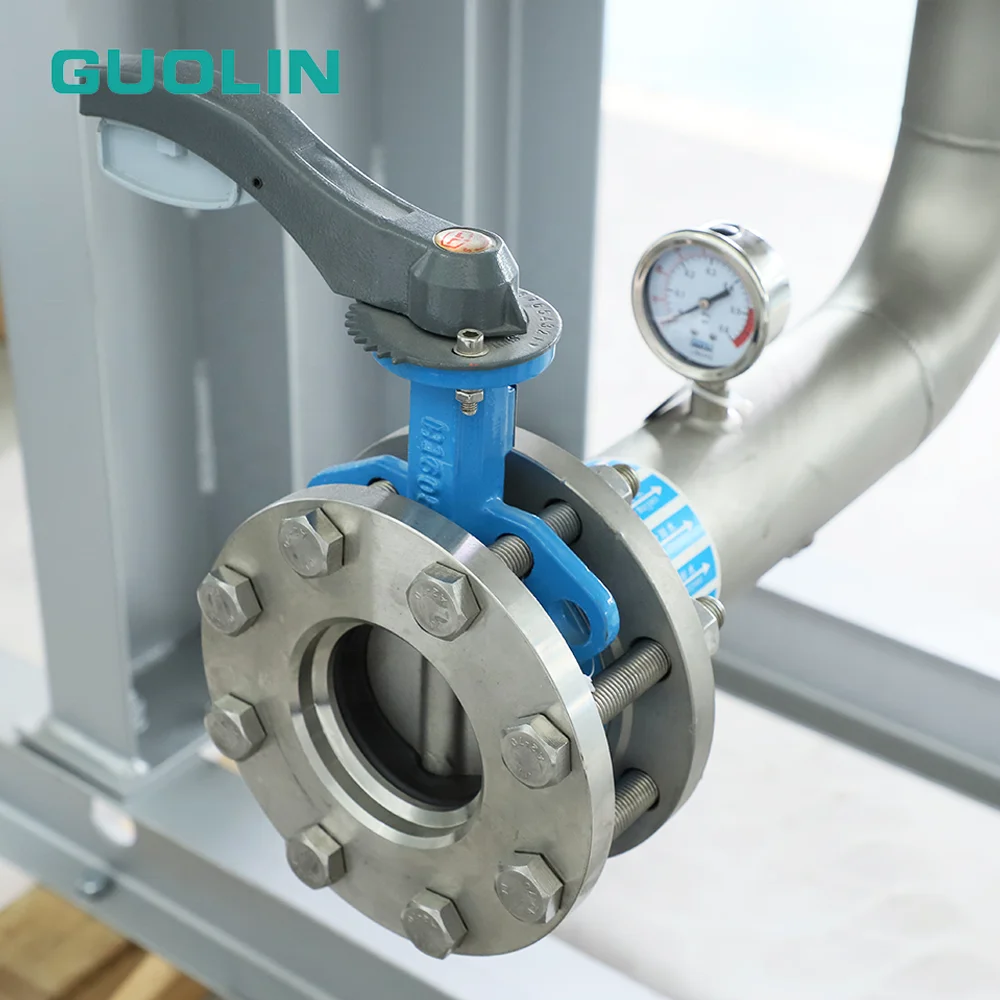

instruments and pipelines(gas flow meter, pressure relief valve, check valve, pressure switch and regulation valve...) | ||||||||
PLC control system and monitoring instruments (automatic control type) | ||||||||

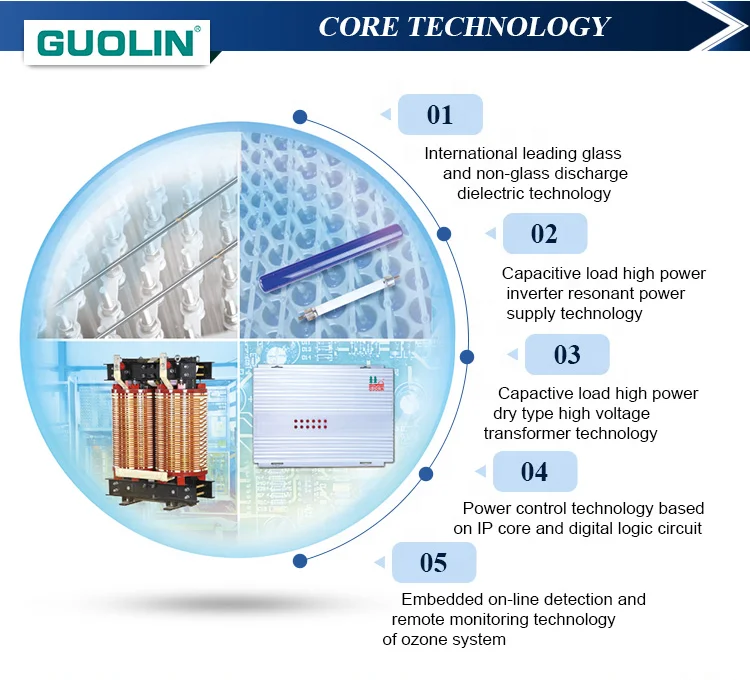

Core Technical
1. International leading glass and non-glass discharge dielectric technology.
2. Capacitive load high power inverter resonant power supply technology.
3. Capactive load high power dry type high voltage transformer technology.
4. Power control technology based on IP core and digital logic circuit.
5. Embedded on-line detection and remote monitoring technology of ozone system.
Technical Data
Ozone generator with oxygen source
(super large type 80-150kg/h)
Type | Ozone capacity | Feed gas flow | Ozone concentration | Cooling water flow | Power consumption | Dimension | Weight |
(kg/h) | (Nm3/h) | wt% | (m³/h) | (kwh/kgo3) | mm | T | |
CF-G-2-100KG | 100 | 676.6-851.1 | 8-10 | 170-200 | 6-8 | 460*2100*3400 7200*1400*2400 | 24.9 |
CF-G-2-120KG | 120 | 811.9-1021.3 | 8-10 | 204-240 | 6-8 | 4800*2200*3500 7200*1400*2400 | 26.6 |
CF-G-2-150KG | 150 | 1012.5-1276.5 | 8-10 | 255-300 | 6-8 | 5000*2400*3700 8400*1400*2400 | 34 |
Remark:
1. Power consumption depends on different ozone concetration and cooling water temperature.
2. We could design special type ozone generator with oxygen source above 10wt% concentration(max.18wt%/273.6mg/L); and with air source above 3wt%(max.4.3 wt%/56mg/L).
Application Area
Municipal Water Treatment
Dringking Water
Swimming Pool Disinfection

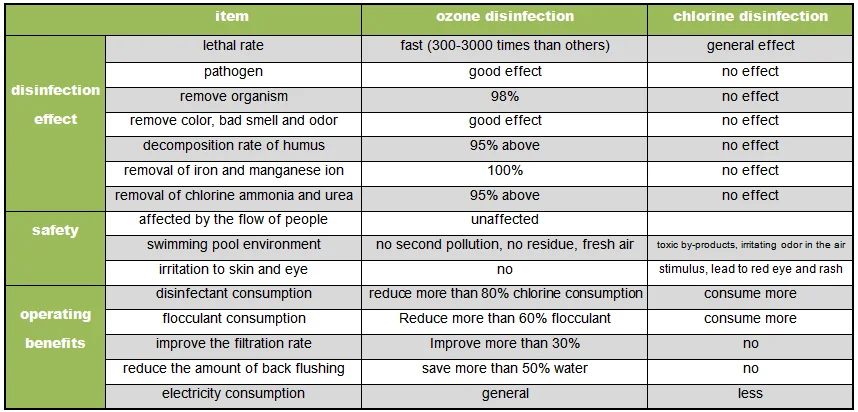

As oxidant, disinfectant, cleaning agent and catalyst, ozone has been widely used in municipal water and waste water treatment, flue gas treatment, fine chemical oxidation, food and beverage industry, swimming pool disinfection, space disinfection, preservation, paper-making industry, packaging film, aquaculture industry and semiconductor cleaning, etc. Ozone could remove toxic substances in the water, such as metal ions, organic toxicant, cyanide, sulfide and a variety ofpesticides so that it can reduce the organic carcinogen in the water, such as halohydrocarbons, thus solving the problem of quality of drinking water. Ozone also can be used for fresh-keeping. It can effectively inhibit the respiration of fruit trees, slow down the metabolic process and inhibit the growth and spread of pathogenic bacteria, thereby play a important role in fresh-keeping and storage.
Domestic/industrial
wastewater treatment
Aquaculture& Agriculture
Medical water and wastewater
