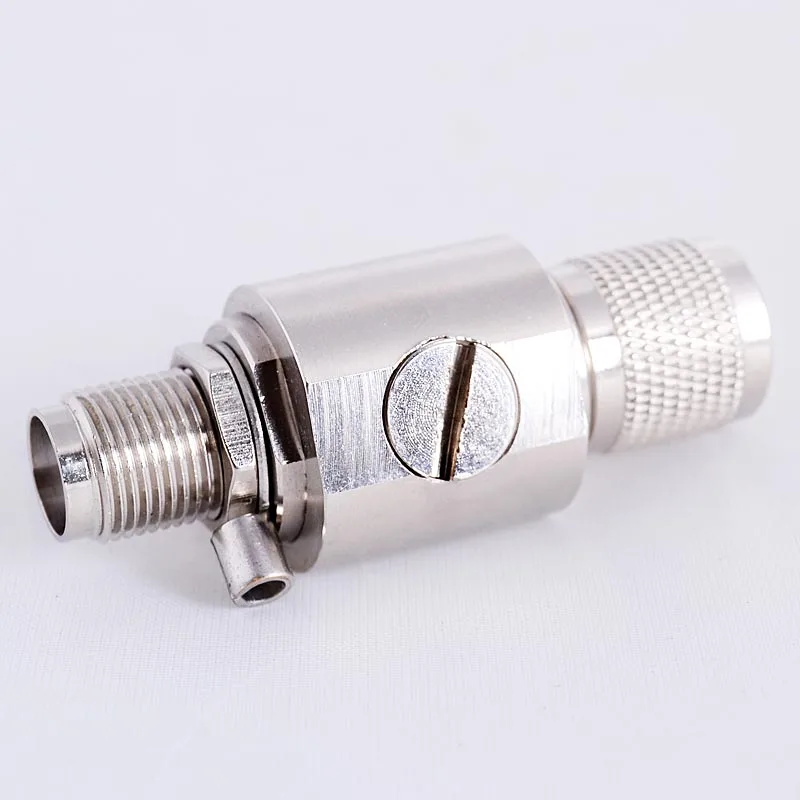

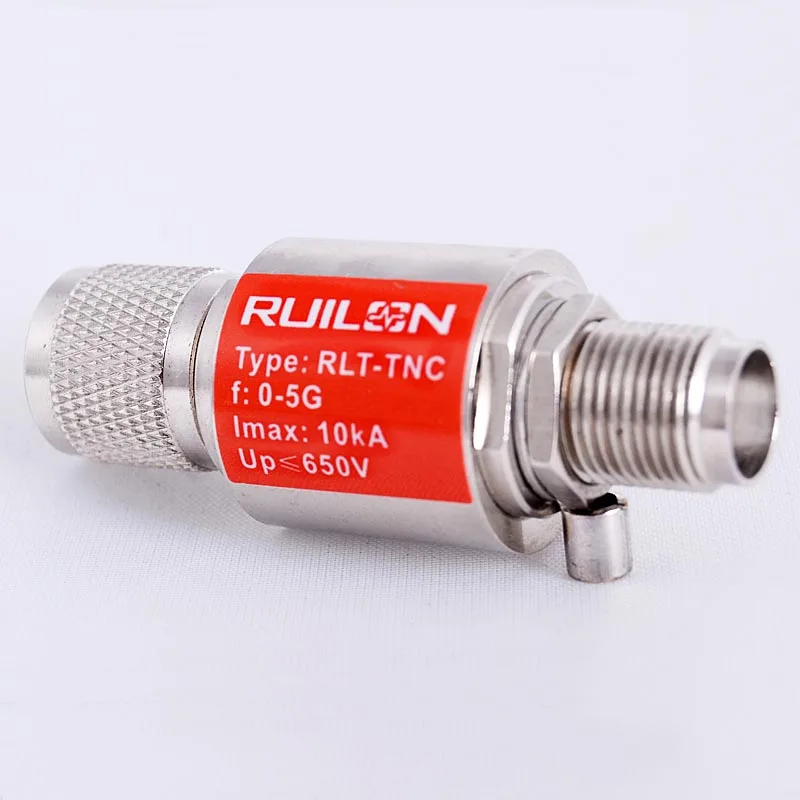

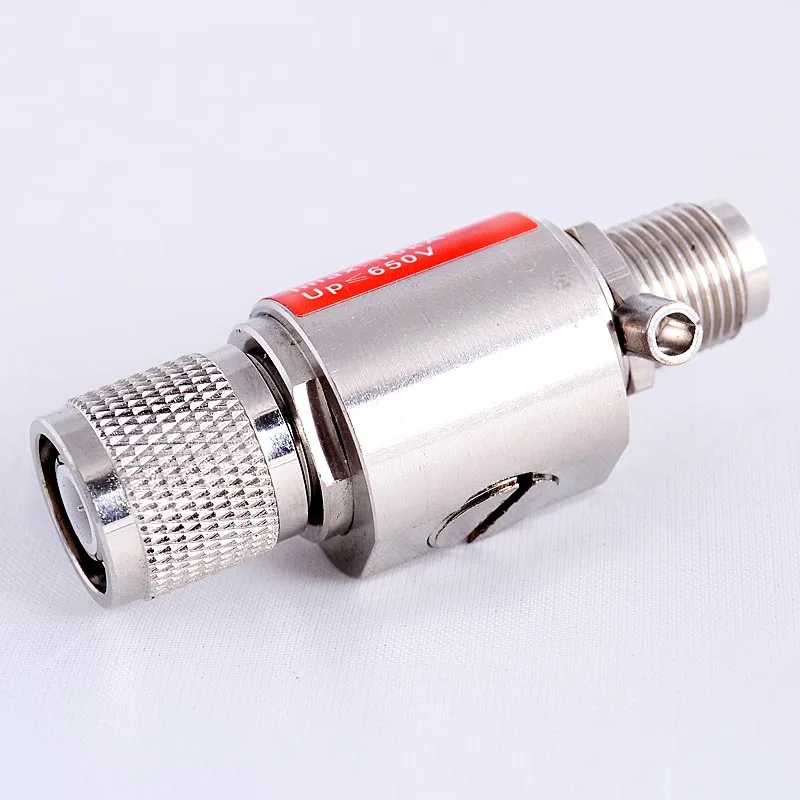

Компоненты защиты от вспышки устройство защиты от перенапряжения

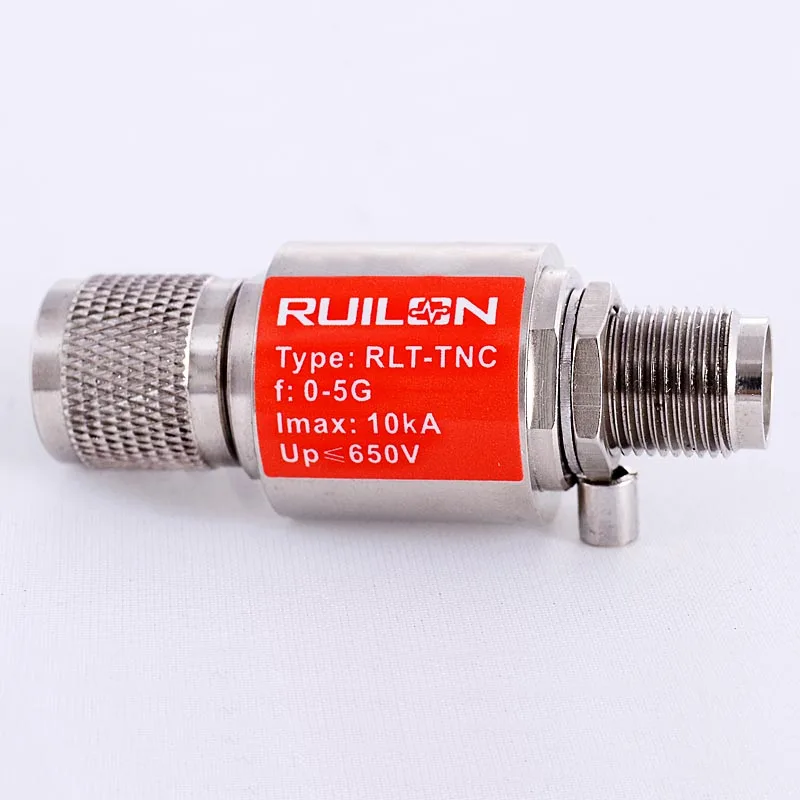

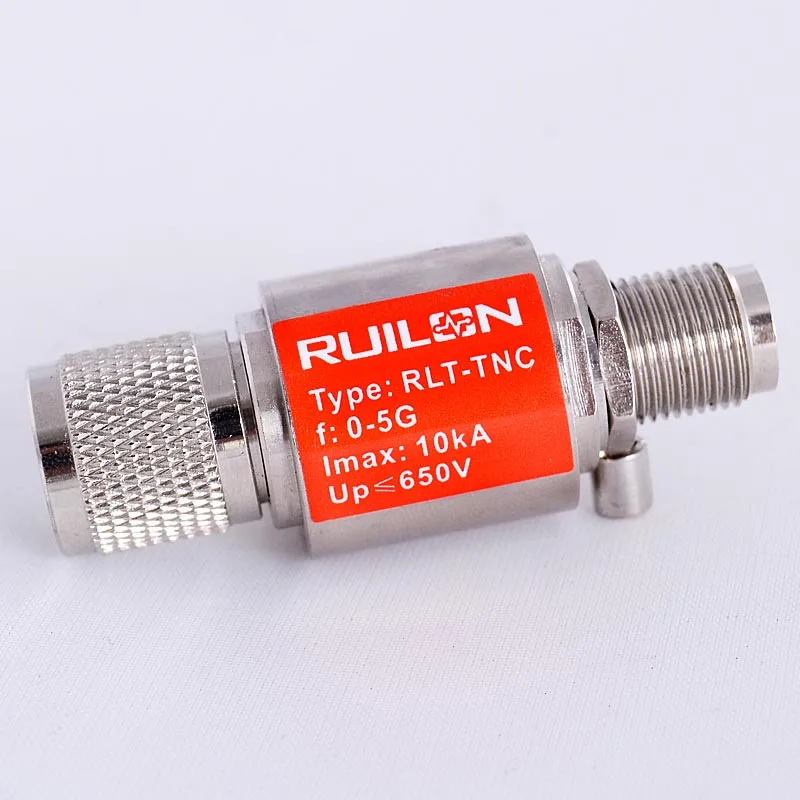

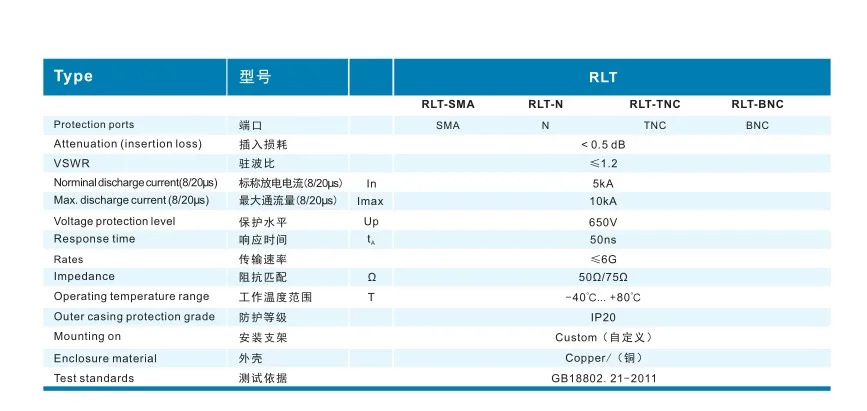

Parameters of lightning protection components:

Port: TNC

Insertion loss: <0.5db

Standing Wave Ratio: ≤1.2

Nominal discharge current (8/20us): 5kA

Maximum flow (8/20us): 10kA

Protection level: 650V

Response time: 50ns

Transmission rate: ≤G

Impedance matching: 50Ω/75Ω

Working temperature range: -40℃~+80℃

Protection level: ip20

Mounting bracket: custom (custom)

Shell: copper/(Copper)

Test basis: GB18802.21-2011

Application of lightning protection components:

RF port

Satellite Antenna

feeder transmission

Bank

Securities

radar antenna

mobile base station

Telecom Repeater

Features of lightning protection components:

The flow rate is large, the residual pressure is extremely low

Quick response

It core devices all adopt the internationally renowned RUILON brand

When the lightning protection components are working normally, the switching elements are disconnected; when the lightning surge comes, the switching elements are turned on, and the surge current is discharged to the ground, thereby protecting the electronic equipment from the surge impact.

Lightning protection components are suitable for protecting the signal transceiver system of various radio frequency equipment, and can be widely used in various types of antenna feed system lightning protection requirements.

For more parameters of surge protector, please call us~

Promises:

The manufacturer promises that during the warranty period, if our products have any defects, we will apply for a free replacement for you. We are sincere to every customer and our service is very good. If you have any questions, you can call our customer service immediately. Until you are satisfied with our sevice.

Contact us:

Ruilongyuan Electronics Co., Ltd. We are a manufacturer of electronic components in China, the brand is RUILON, the ex-factory price, and there is no middleman. New original, Price and quality are guaranteed. if you are interest, please contact us at any moment!

Main Products:
Transient Voltage Suppressors(TVS)
Thyristor Surge Suppressors(TSS)
Protection Device TVS/ESD Arrays
Glass Gas Discharge Tubes (GGD)
Positive Thermal Coefficent (PTC)
Metal Oxide Varistors (MOV)
Surge Protective Device (SPD)
