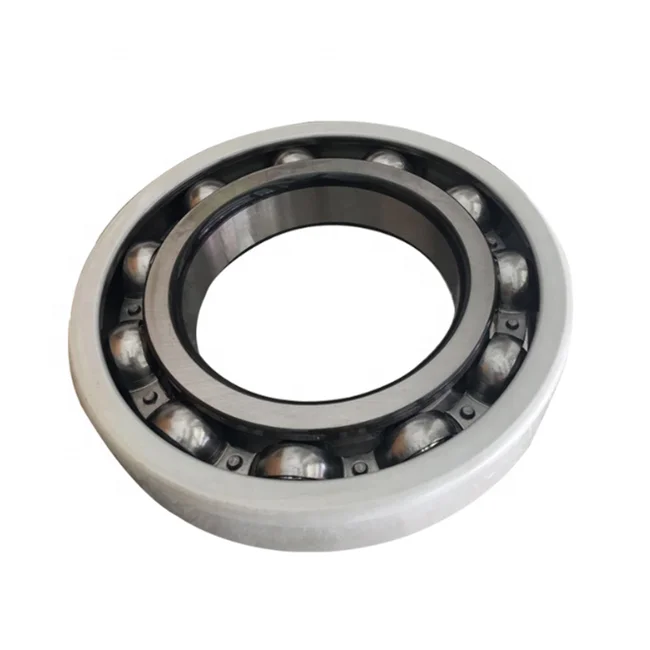

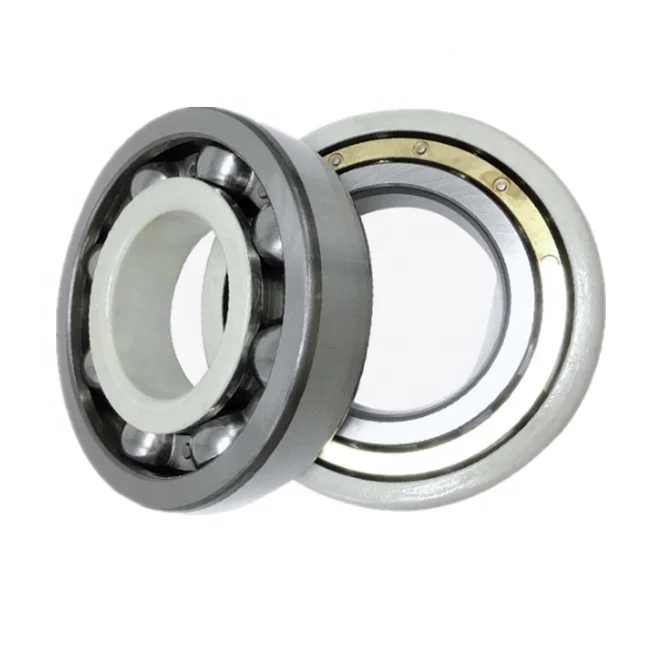

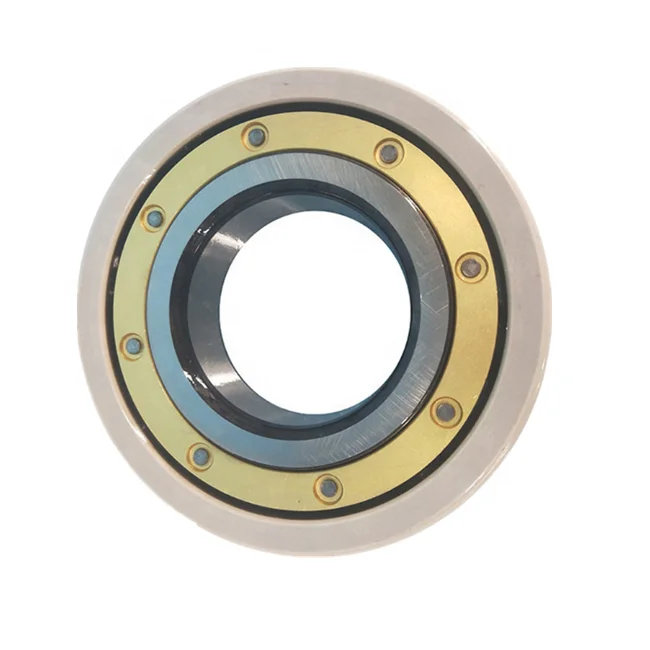

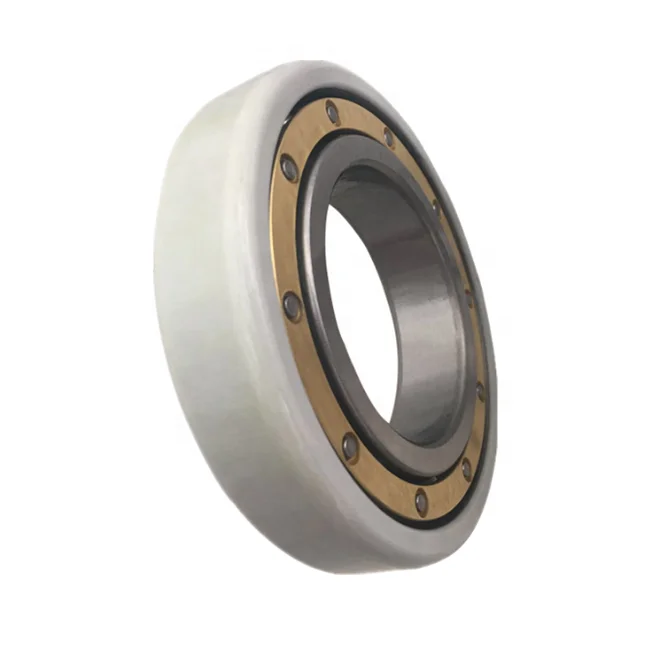

high quality electric insulation bearing 6322 M/C3VL0241 bearing for generators

Product Overview

Description

high quality electric insulation bearing 6322 M/C3VL0241 bearing for generators

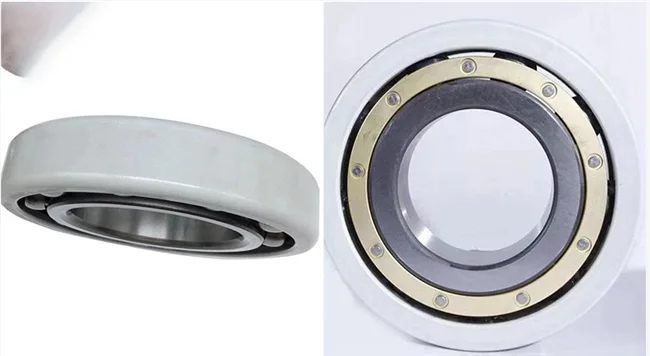

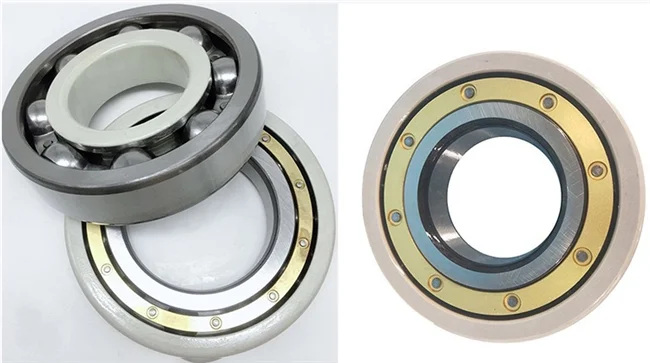

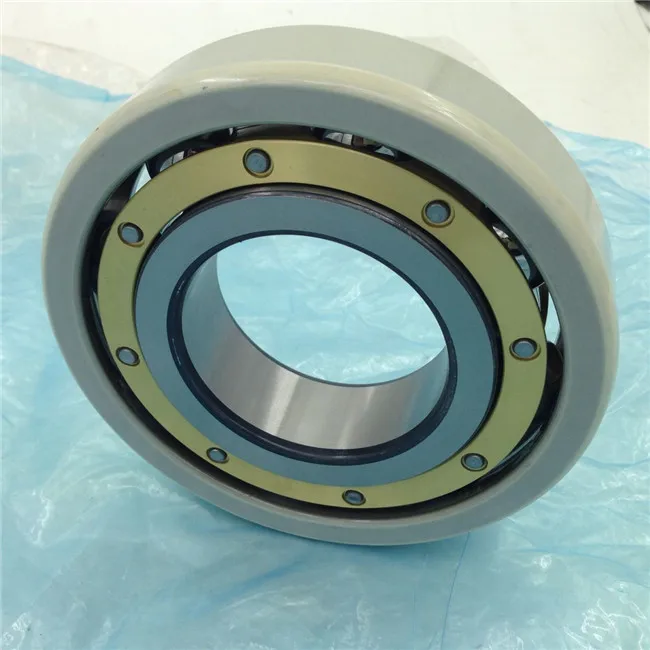

Electrically insulated bearings using special spraying process, the outer surface of the sprayed coating quality in the bearing, film and the substrate with strong, good insulation properties, can prevent induced current galvanic action of the bearing to prevent the current grease and rolling elements raceway damage caused increase bearing life.



The process is constantly being improved, insulated bearings, the outer or inner surface layer of 100μm thick coatings, can withstand voltages up to 1000 V DC. Special spraying may form a layer of uniform thickness, strong adhesion uniform coating, and then subjected to further processing, so that it can from moisture and humidity.

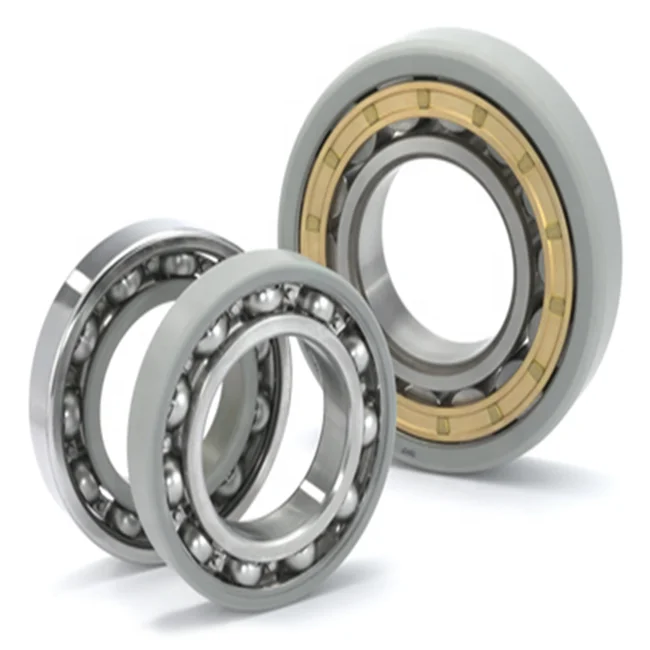

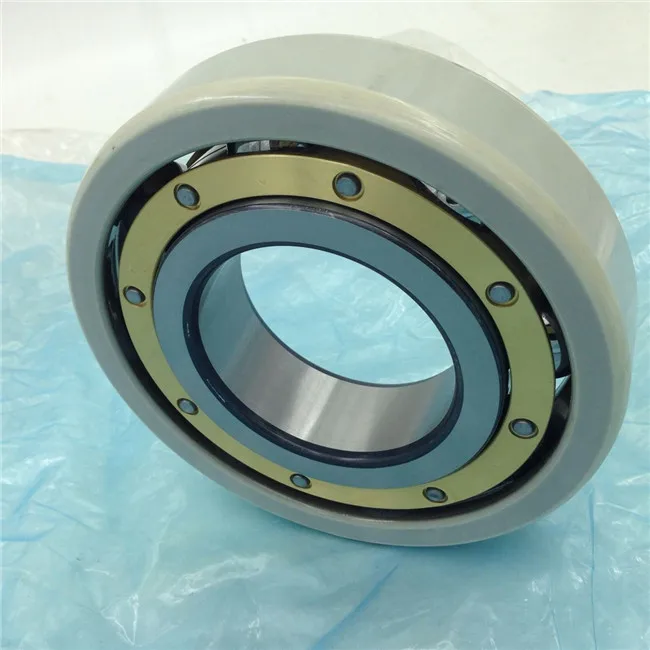

Electrically insulated deep groove ball bearings
Inner diameter range: 40mm ~ 140mm
Diameter size range: 80mm ~ 300mm
Width range: 18mm ~ 62mm



Depending on the bearing series and size, electrically insulated bearings cages containing the following:
Reinforced nylon 66 cage
Sheet steel cage
Machined solid brass cage

Principal dimensions			Basic load ratings		Fatique load limit	Speed ratings		Designation
			dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
70	150	35	104	68	2.75	9 500	9 000	6314 M/C3VL0241
70	150	35	111	68	2.75	9 500	6 300	6314/C3VL0241
75	130	25	68.9	49	2.04	10 000	6 700	6215/C3VL0241
75	160	37	119	76.5	3	9 000	5 600	6315/C3VL0241
75	160	37	119	76.5	3	9 000	8 000	6315 M/C3VL0241
80	140	26	72.8	55	2.2	9 500	6 000	6216/C3VL0241
80	170	39	130	86.5	3.25	8 500	5 300	6316/C3VL0241
80	170	39	130	86.5	3.25	8 500	7 500	6316 M/C3VL0241
85	150	28	87.1	64	2.5	9 000	5 600	6217/C3VL0241
85	180	41	140	96.5	3.55	8 000	5 000	6317/C3VL0241
85	180	41	140	96.5	3.55	8 000	7 500	6317 M/C3VL0241
90	160	30	101	73.5	2.8	8 500	5 300	6218/C3VL0241
90	190	43	151	108	3.8	7 500	4 800	6318/C3VL0241
90	190	43	151	108	3.8	7 500	7 000	6318 M/C3VL0241
95	170	32	114	81.5	3	8 000	5 000	6219/C3VL0241
95	170	32	114	81.5	3	8 000	7 500	6219 M/C3VL0241
95	200	45	159	118	4.15	7 000	4 500	6319/C3VL0241
95	200	45	159	118	4.15	7 000	6 300	6319 M/C3VL0241
100	180	34	127	93	3.35	7 500	4 800	6220/C3VL0241
100	215	47	182	140	4.75	6 700	4 300	6320/C3VL0241
100	215	47	182	140	4.75	6 700	6 000	6320 M/C3VL0241
110	200	38	151	118	4	6 700	4 300	6222/C3VL0241
110	200	38	151	118	4	6 700	6 300	6222 M/C3VL0241
110	240	50	216	180	5.7	6 000	3 800	6322/C3VL0241
110	240	50	216	180	5.7	6 000	5 300	6322 M/C3VL0241
120	215	40	153	118	3.9	6 300	4 000	6224/C3VL0241
120	260	55	216	186	5.7	5 600	3 400	6324/C3VL2071
120	260	55	216	186	5.7	5 600	5 000	6324 M/C3VL2071
130	230	40	163	132	4.15	5 600	3 600	6226/C3VL2071
130	280	58	242	216	6.3	5 000	3 200	6326/C3VL2071
130	280	58	242	216	6.3	5 000	4 500	6326 M/C3VL2071
140	250	42	174	150	4.55	5 300	3 400	6228/C3VL2071
140	300	62	265	245	7.1	4 800	3 000	6328/C3VL2071
140	300	62	265	245	7.1	4 800	4 300	6328 M/C3VL2071
150	270	45	186	166	4.9	5 000	3 200	6230/C3VL2071
150	320	65	286	285	7.8	4 300	2 800	6330/C3VL2071
160	340	68	291	285	7.65	4 000	3 800	6332 M/C3VL2071
170	360	72	332	340	8.8	3 800	3 400	6334 M/C3VL2071
180	380	75	371	405	10.4	3 600	3 200	6336 M/C3VL2071
