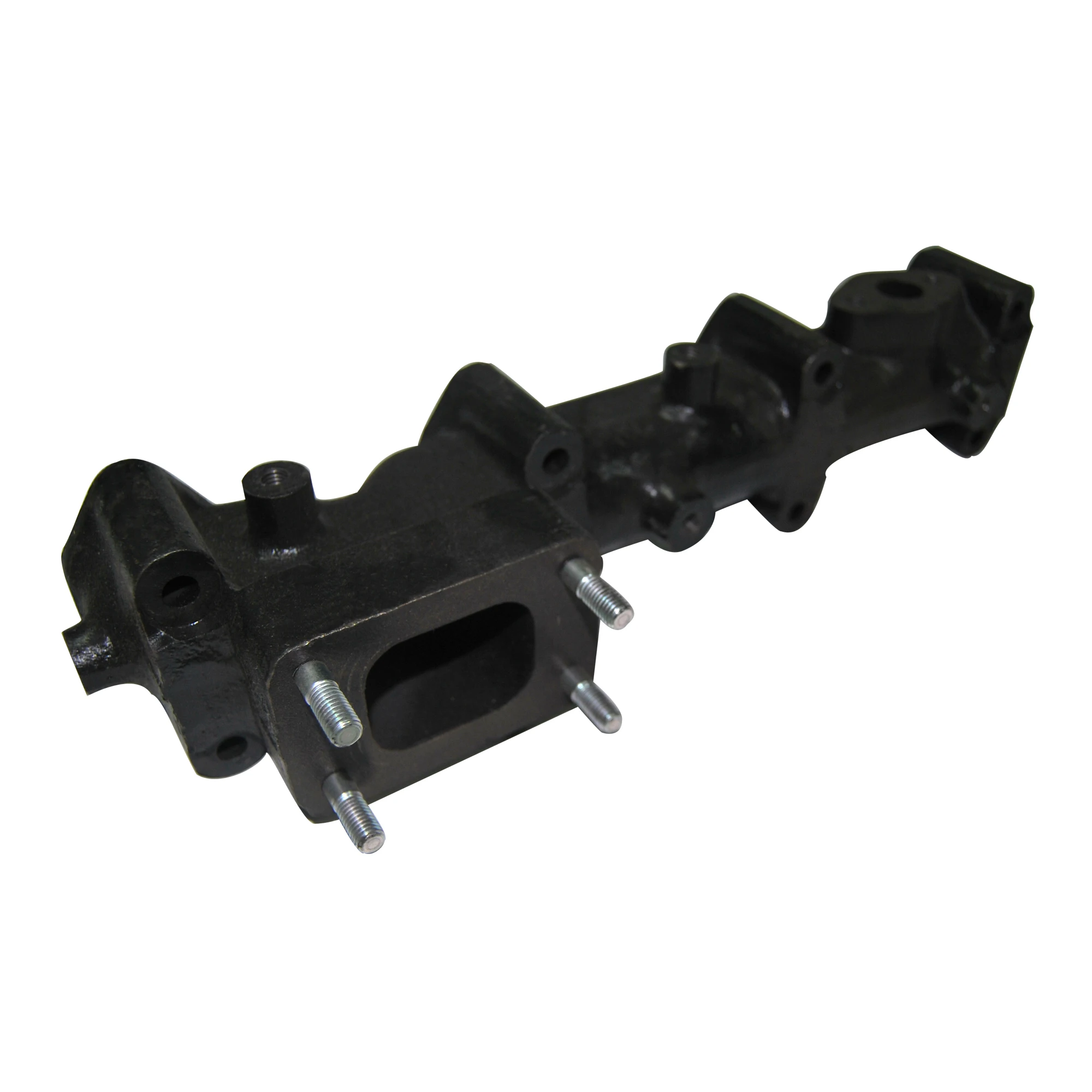

Manufacturer Custom m54 n54 Iron Exhaust Manifold
General Products Application/Service Area
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system. E.g.

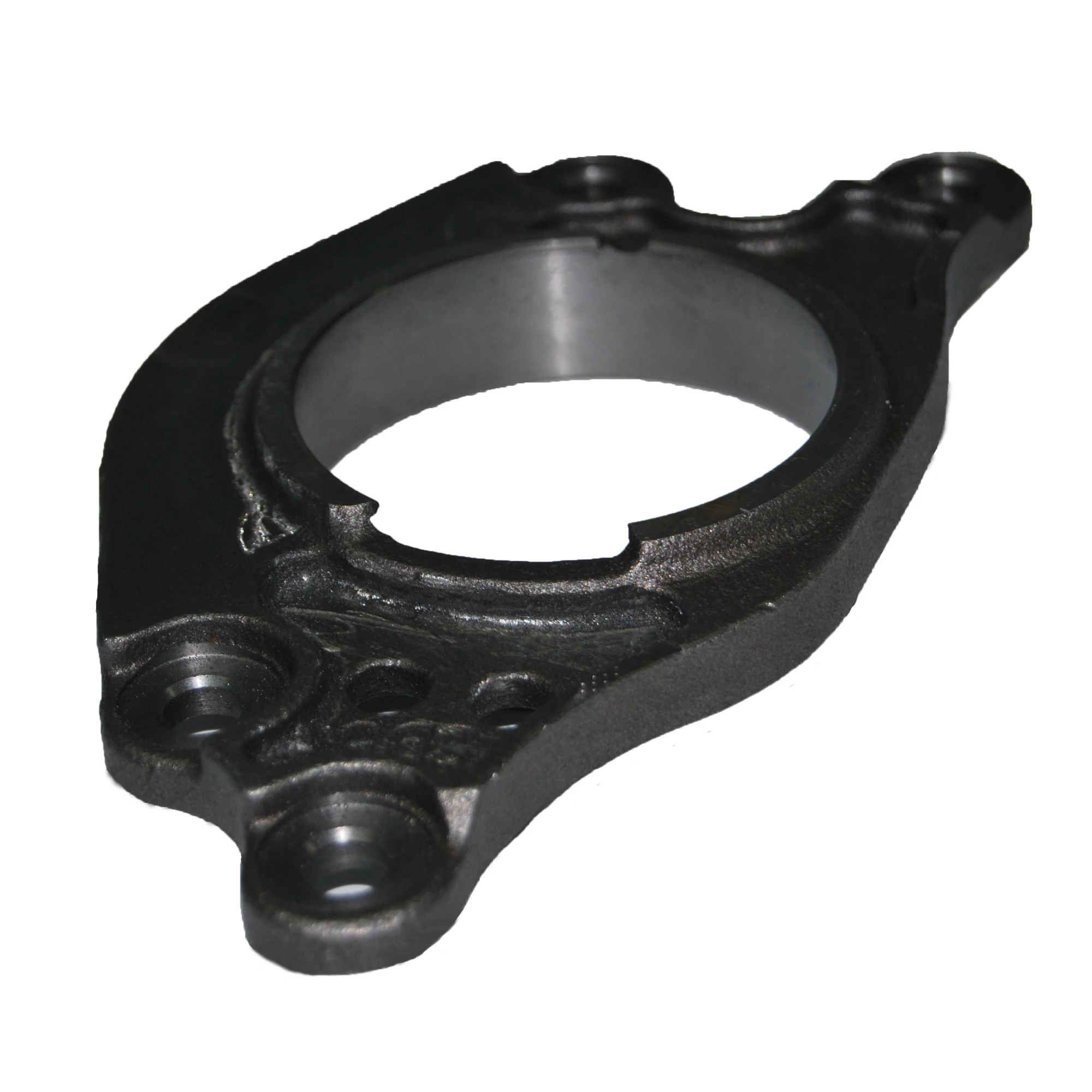

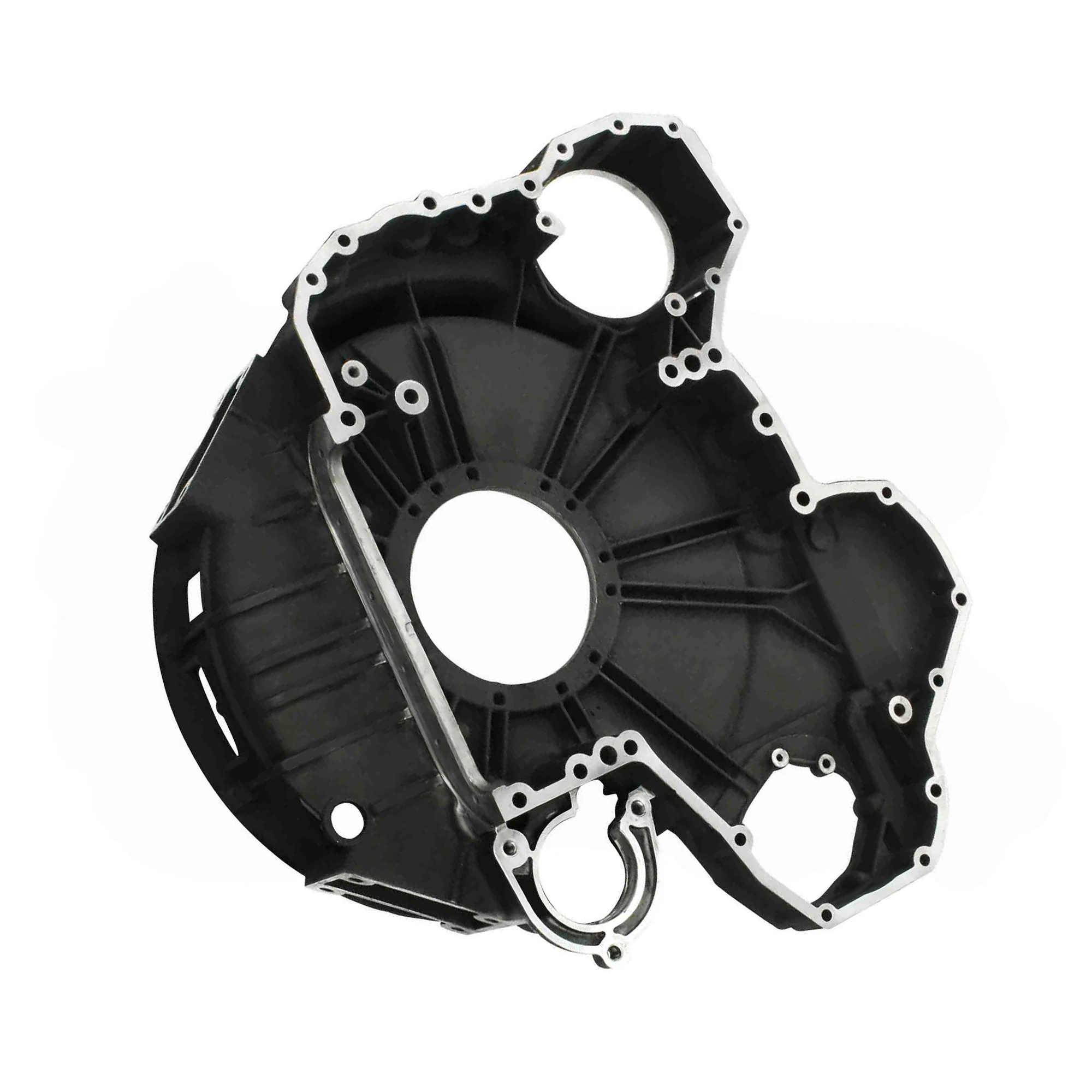

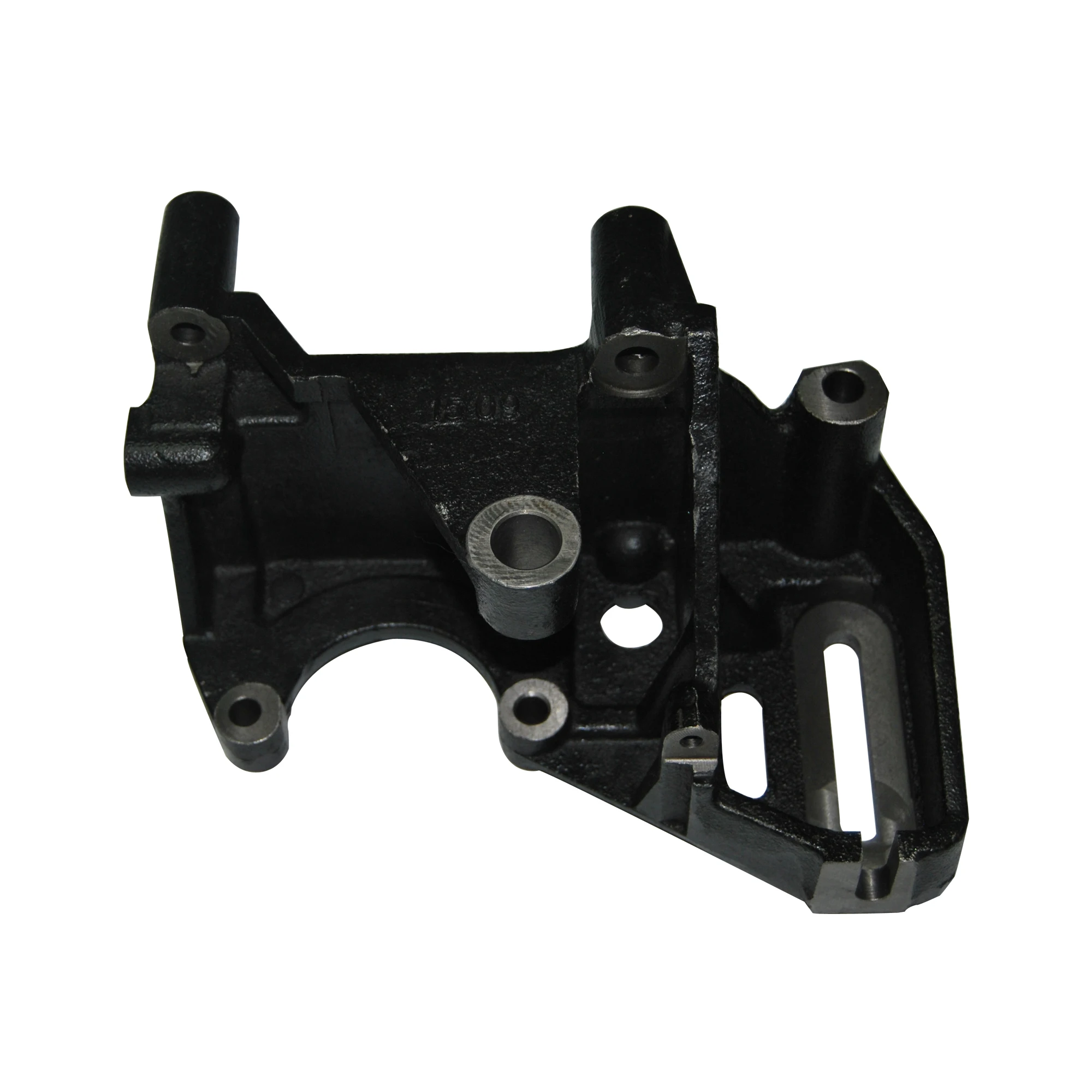

Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection

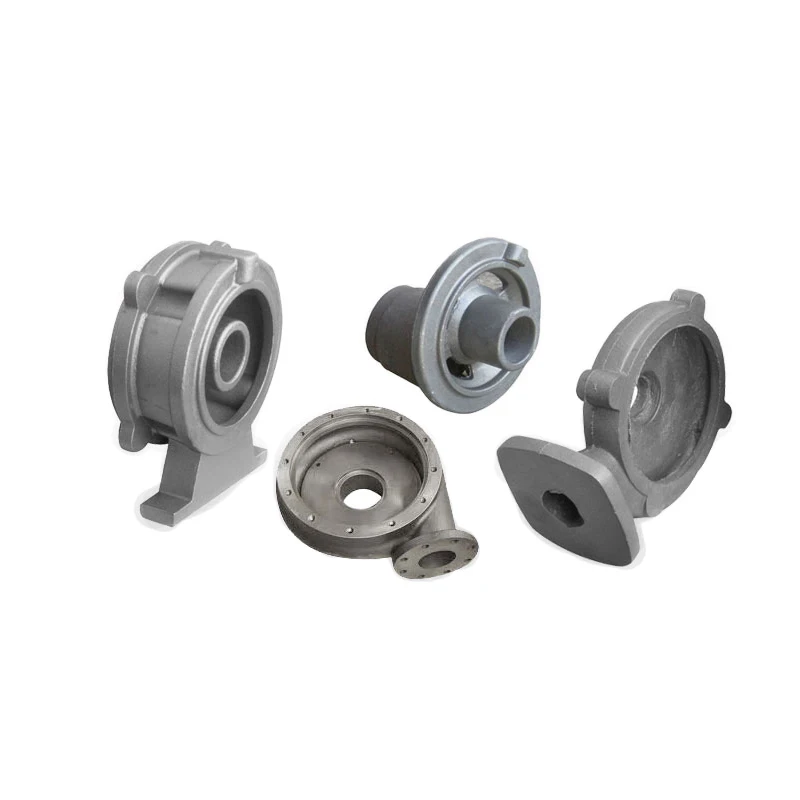

pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump
housing, transmission shaft , transmission gear, sprocket, chains etc.

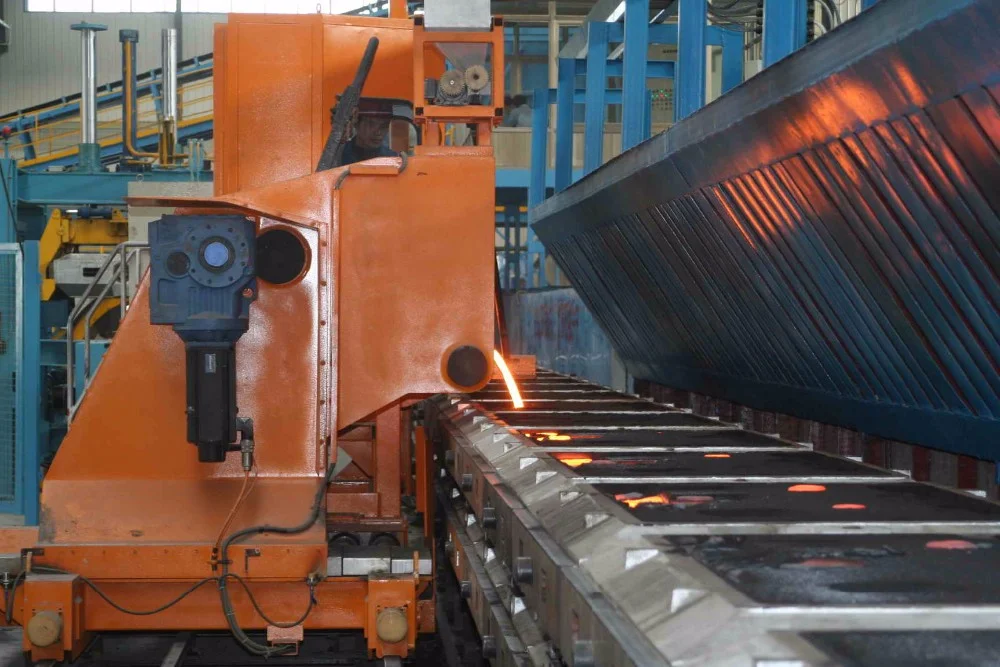

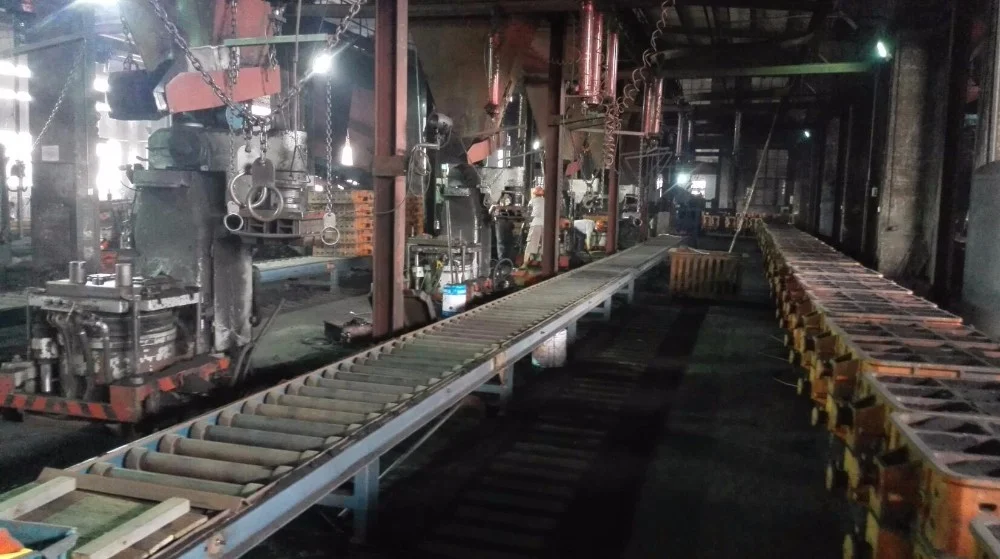

Main blank Process for Casting Iron

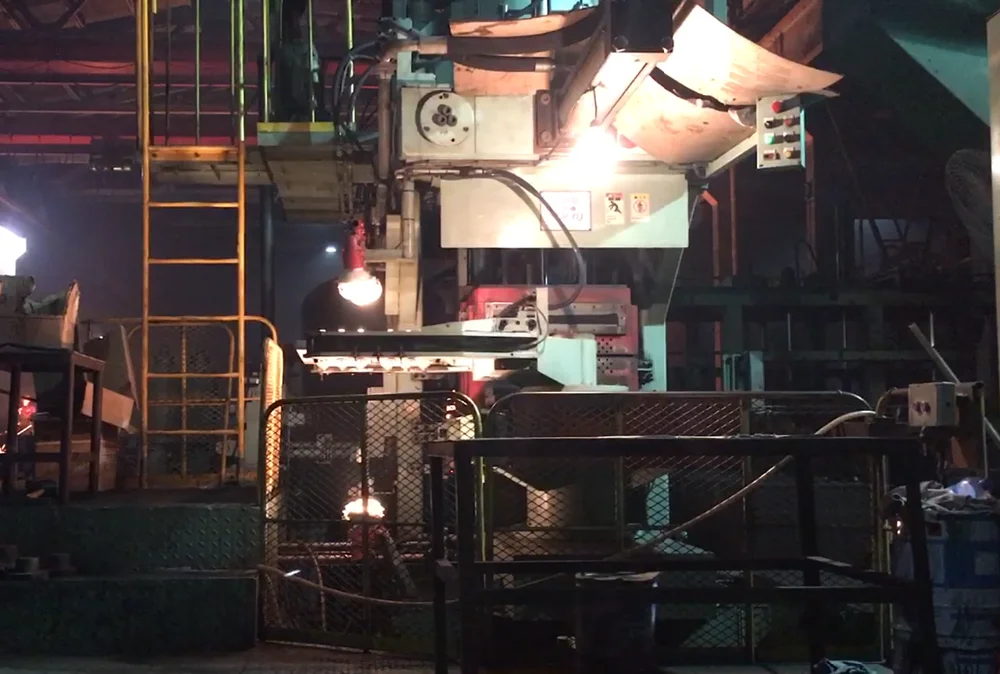

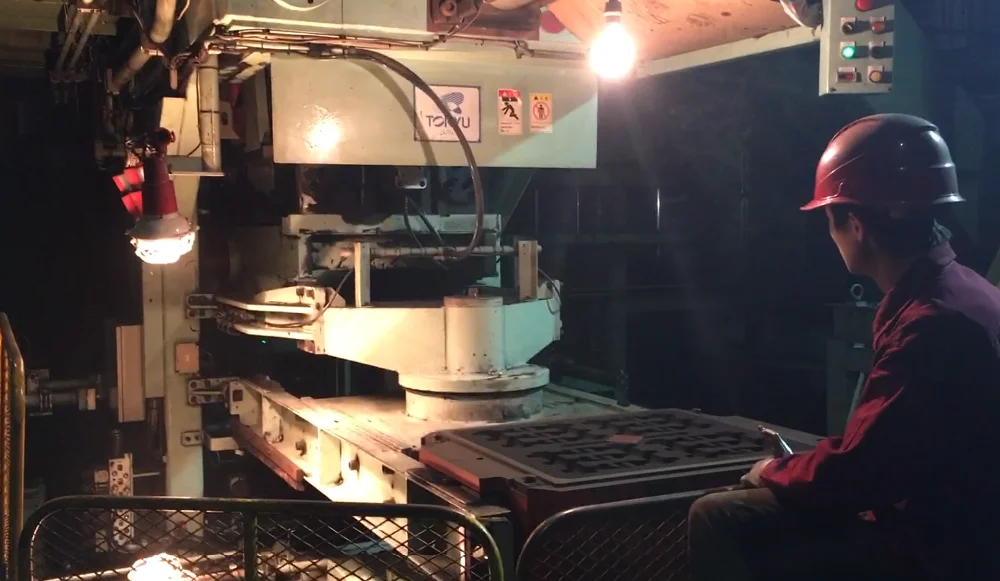

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding
Blanks Casting Tolerance
CT9-10 for Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand casting Process
Ductile Iron, Grey Iron Casting, or as customer request.
Casting Blank Size /Dimensions
2 mm-2000mm / 0.08inch-79inch for casting iron, as per customer requirement
Casting Blank Weight
Range from 0.01kg-1000kg for n54 iron exhaust manifold
Applicable Machining Process

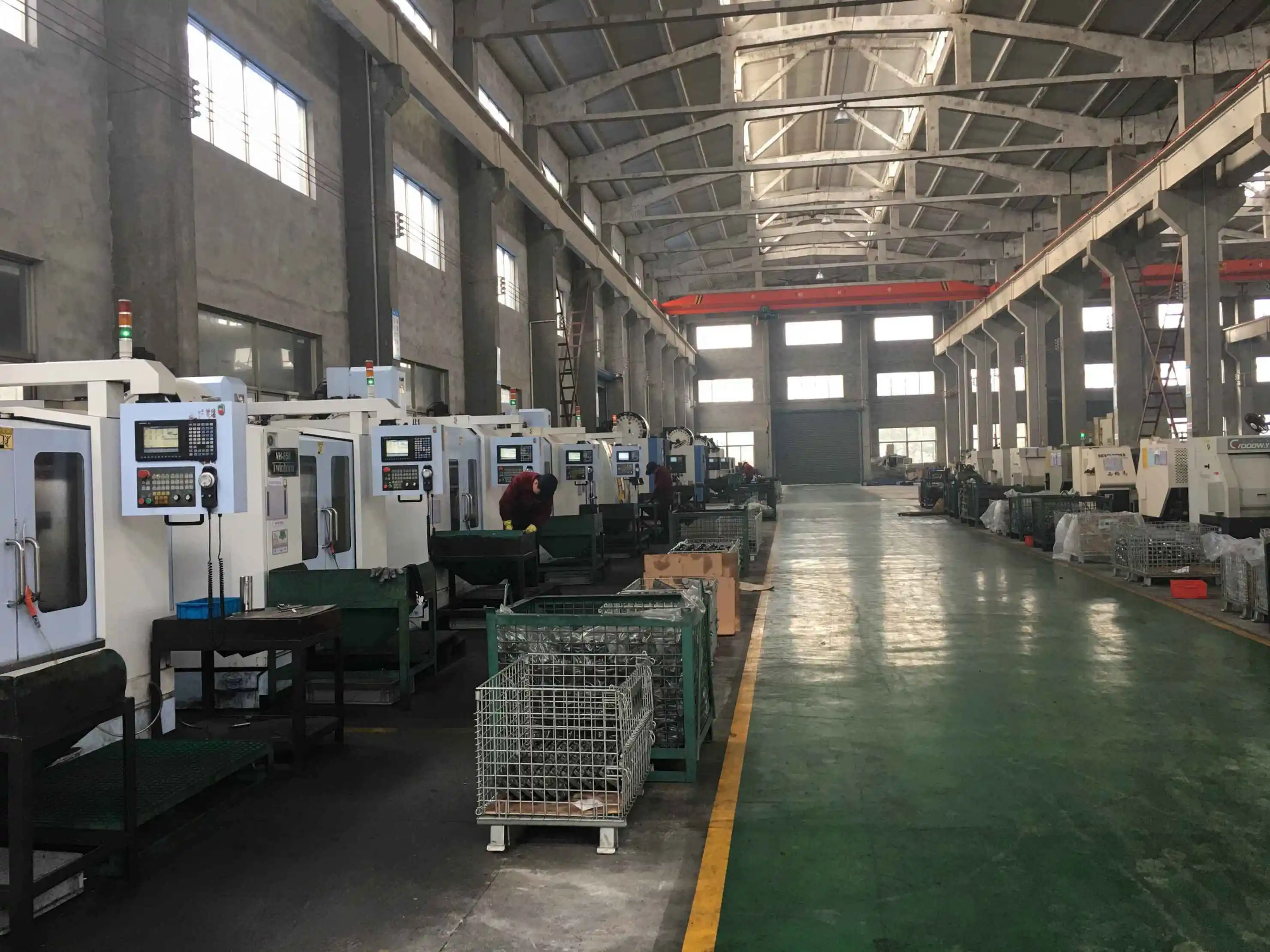

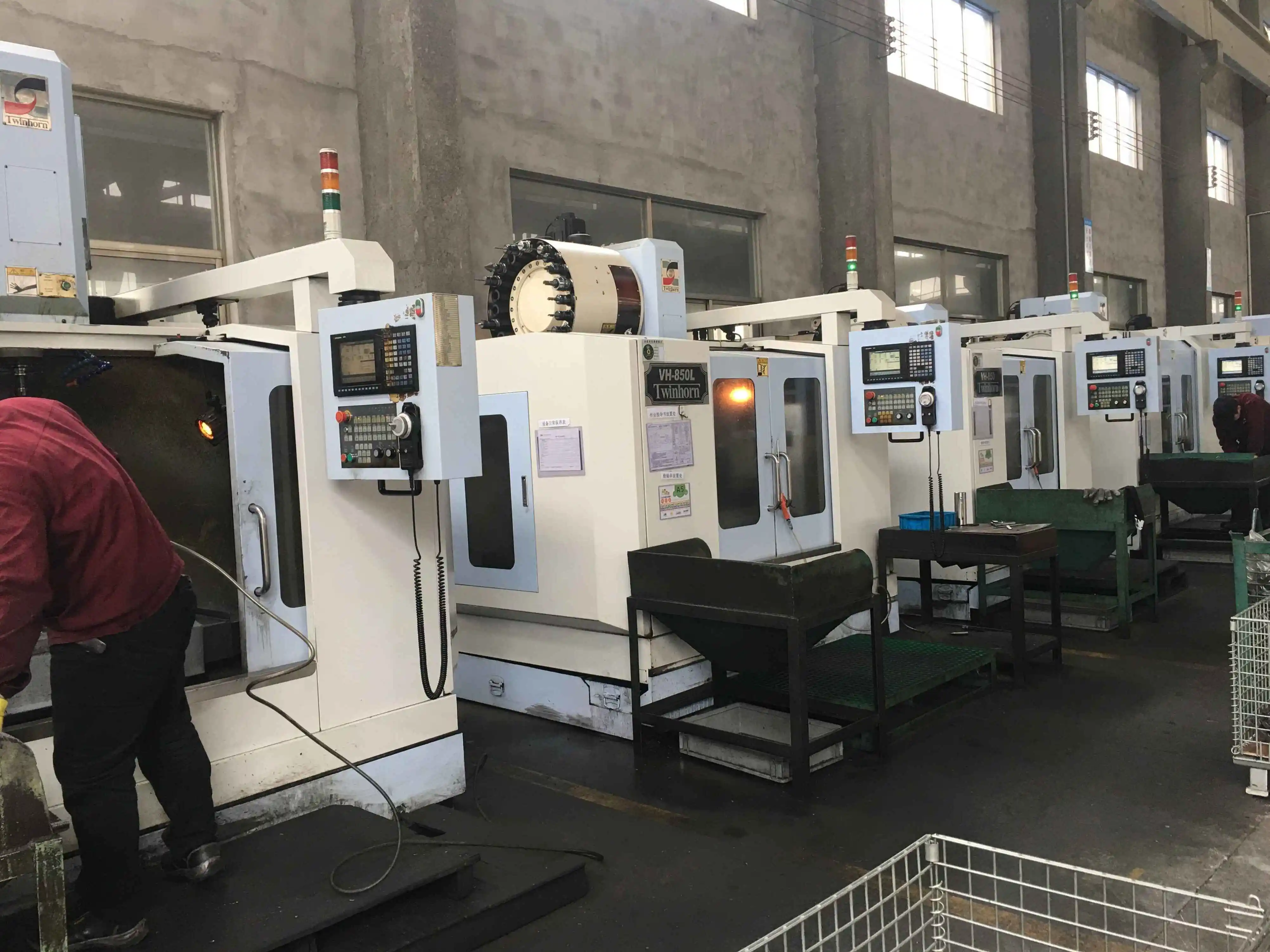

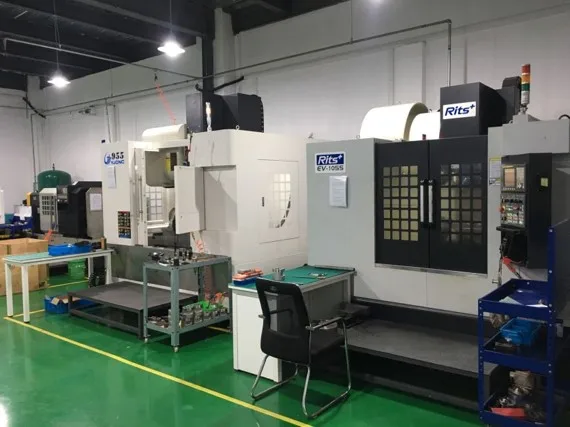

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/ Reaming /Grinding/Honing and etc.
Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching.
Applicable Finish Surface Treatment
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate,
Dacromat coating, Finish Painting etc.
MOQ per batch
For cast iron: 1pc available for sample test
about 50 days of n54 iron exhaust manifold
1.What do you do?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
2. Can you make marine exhaust pipe casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
3.How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
4.Can you make marine exhaust pipe casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

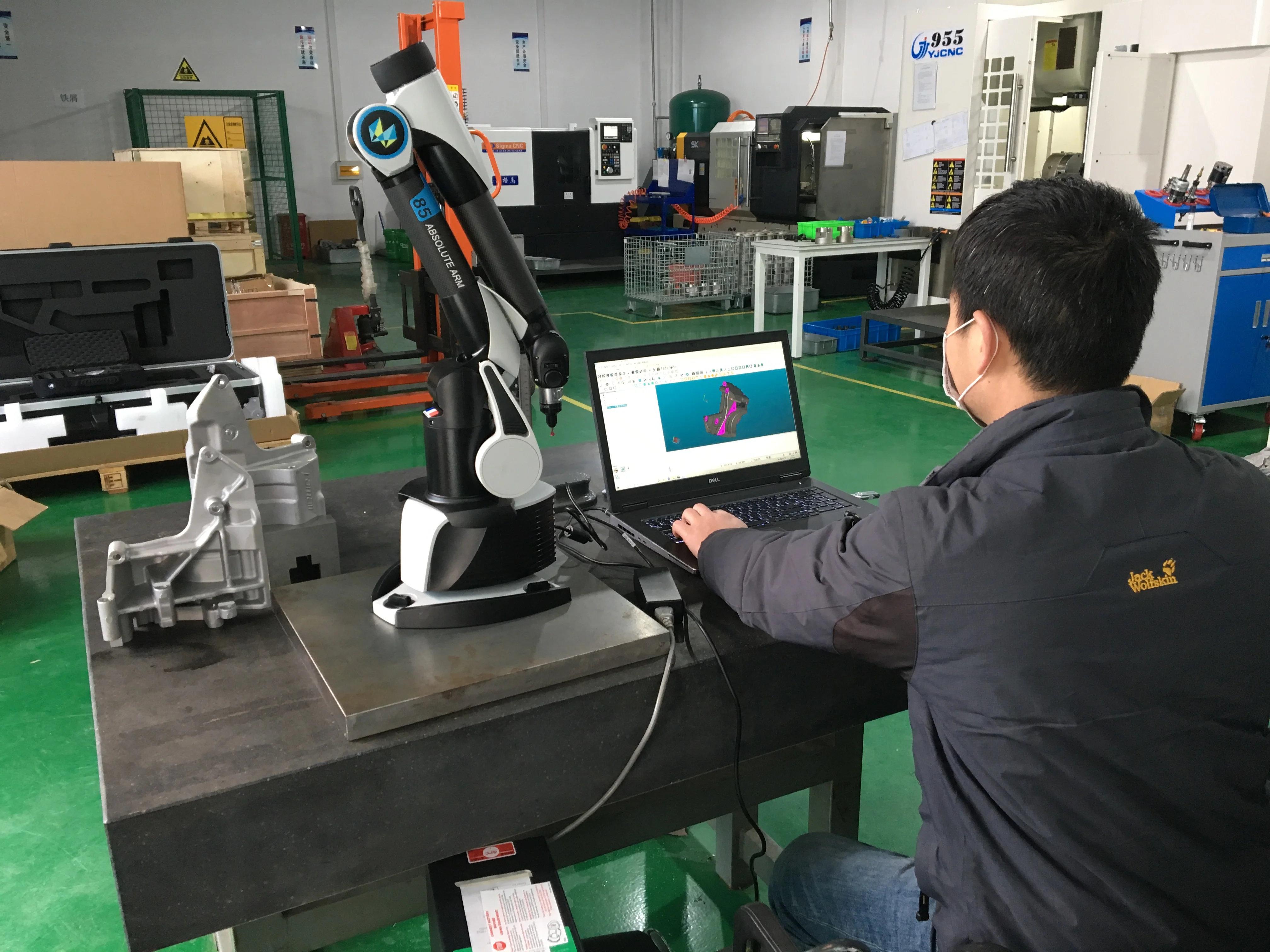

5.What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
