Product Overview
Description
Products Description

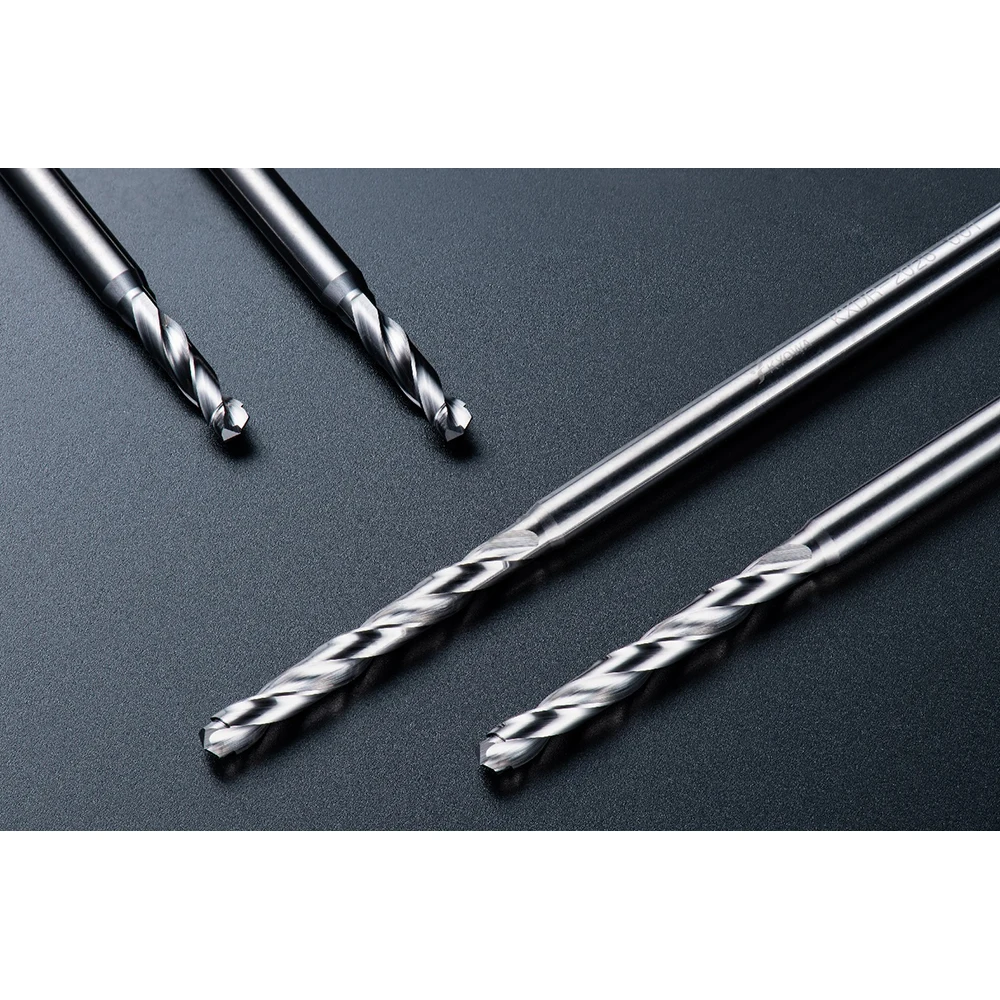

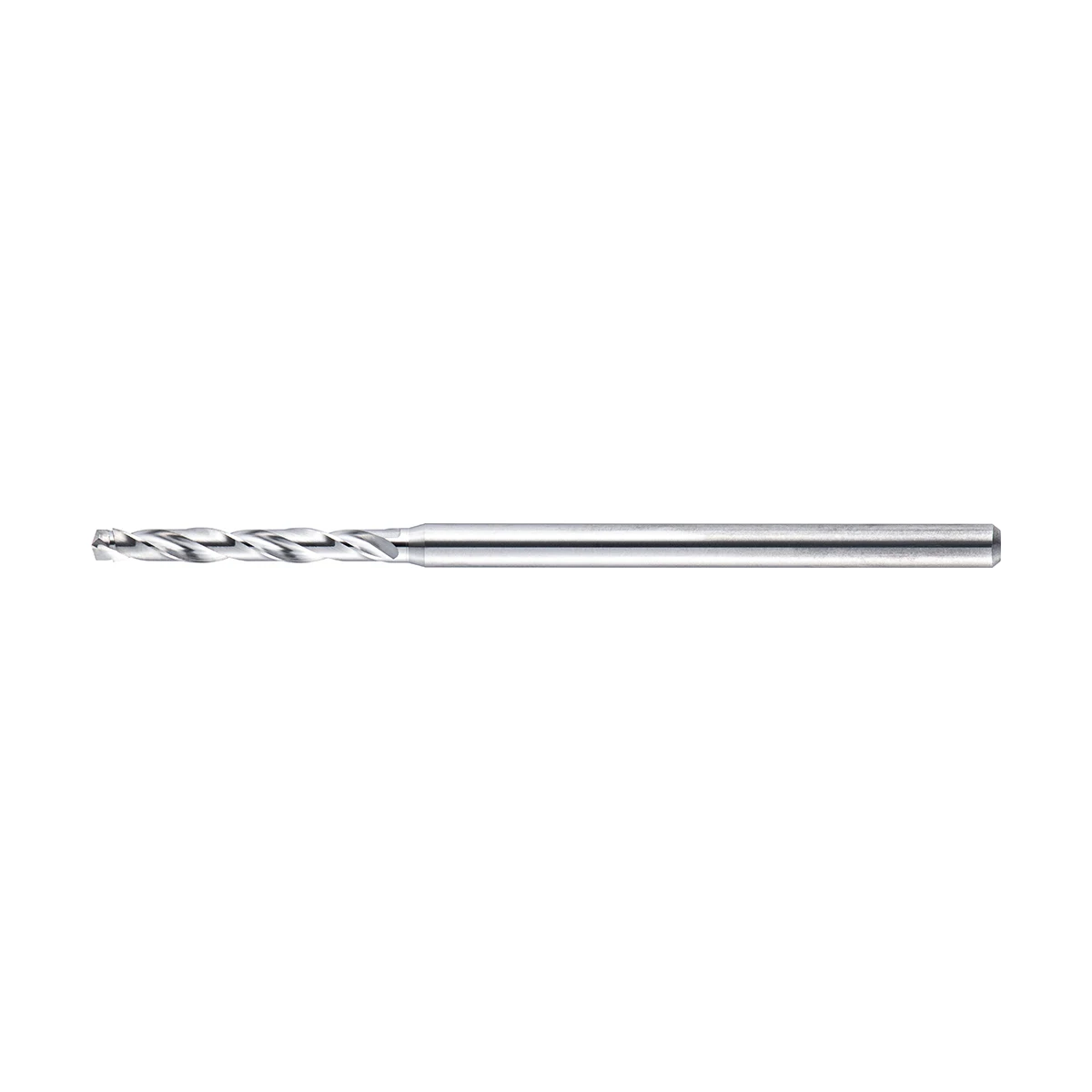

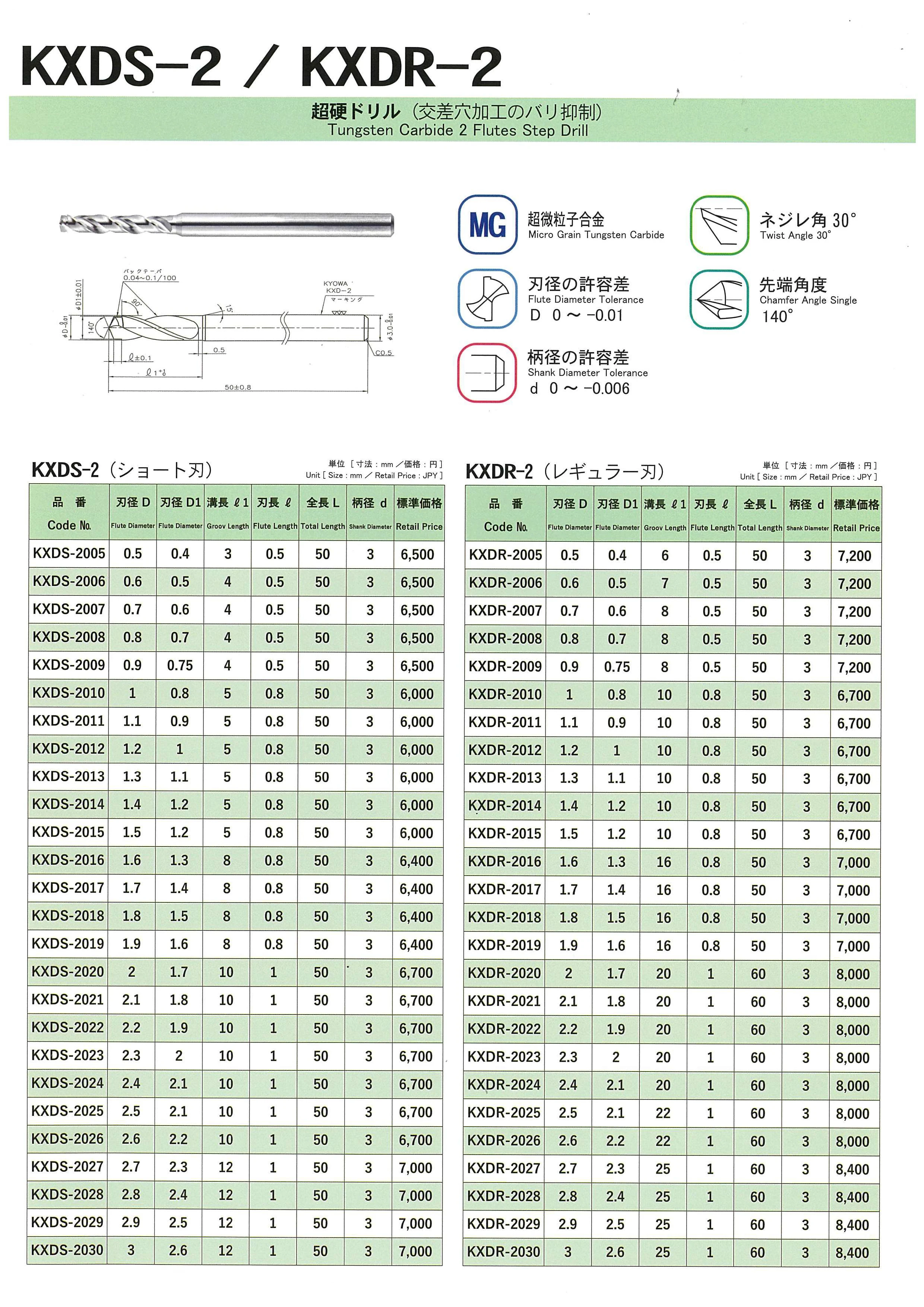

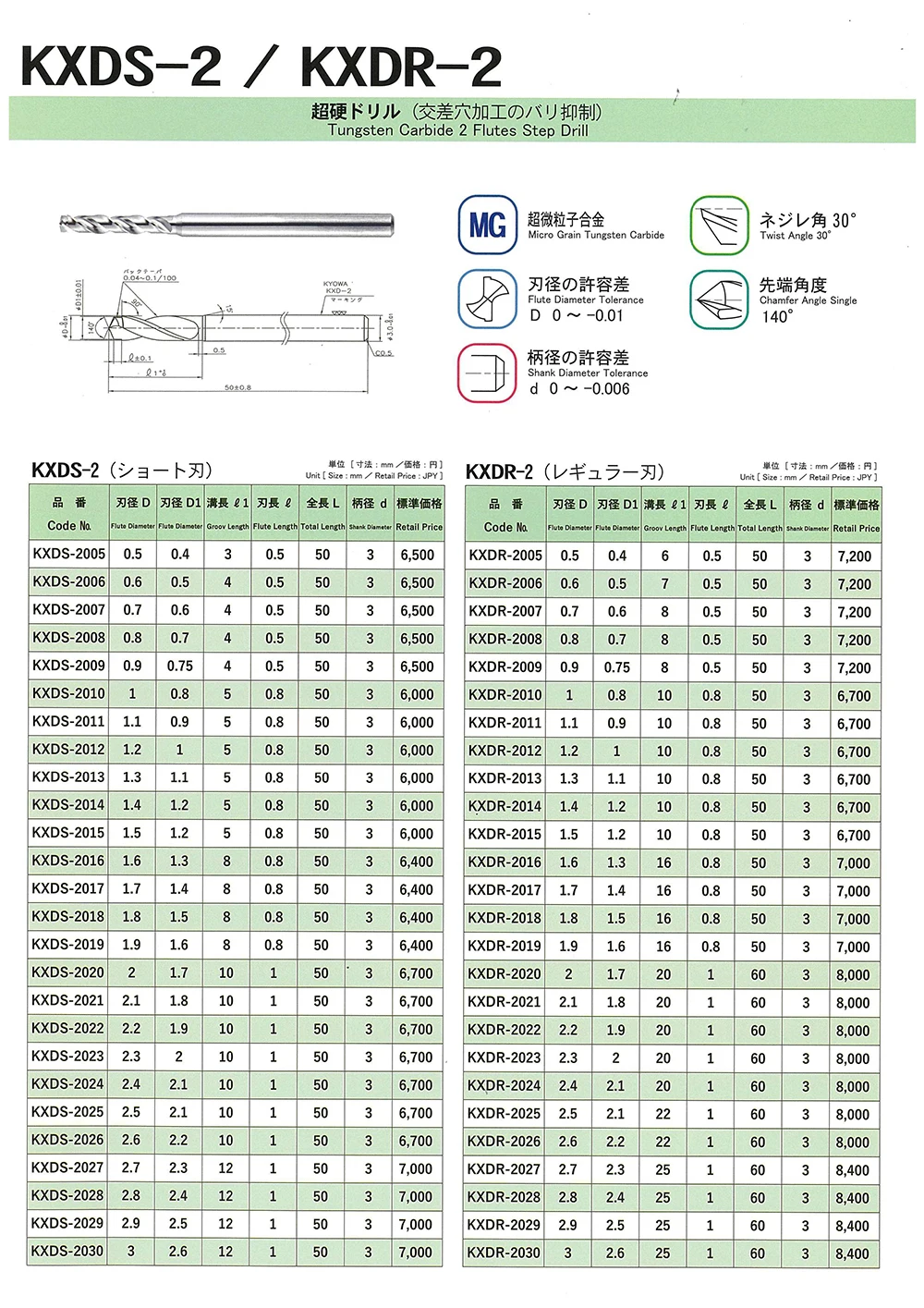

Tungsten Carbide 2 Flutes Step Drill "short" and "regular" (KXDS-2/KXDR-2)
This is a burr suppressing cross-hole drill bit (KXDS-2/KXDR-2).
This tool combines the benefits of both an angled point drill bit and a flat drill bit.
It has a two-step bit shape, with the first step doing the boring, while the flat shape of the second step suppresses exit burrs.
It is able to suppress burrs even when drilling deep holes.
The standard sizes for drill bits range from 0.3mm - 3.0mm in diameter in increments of 0.1mm.

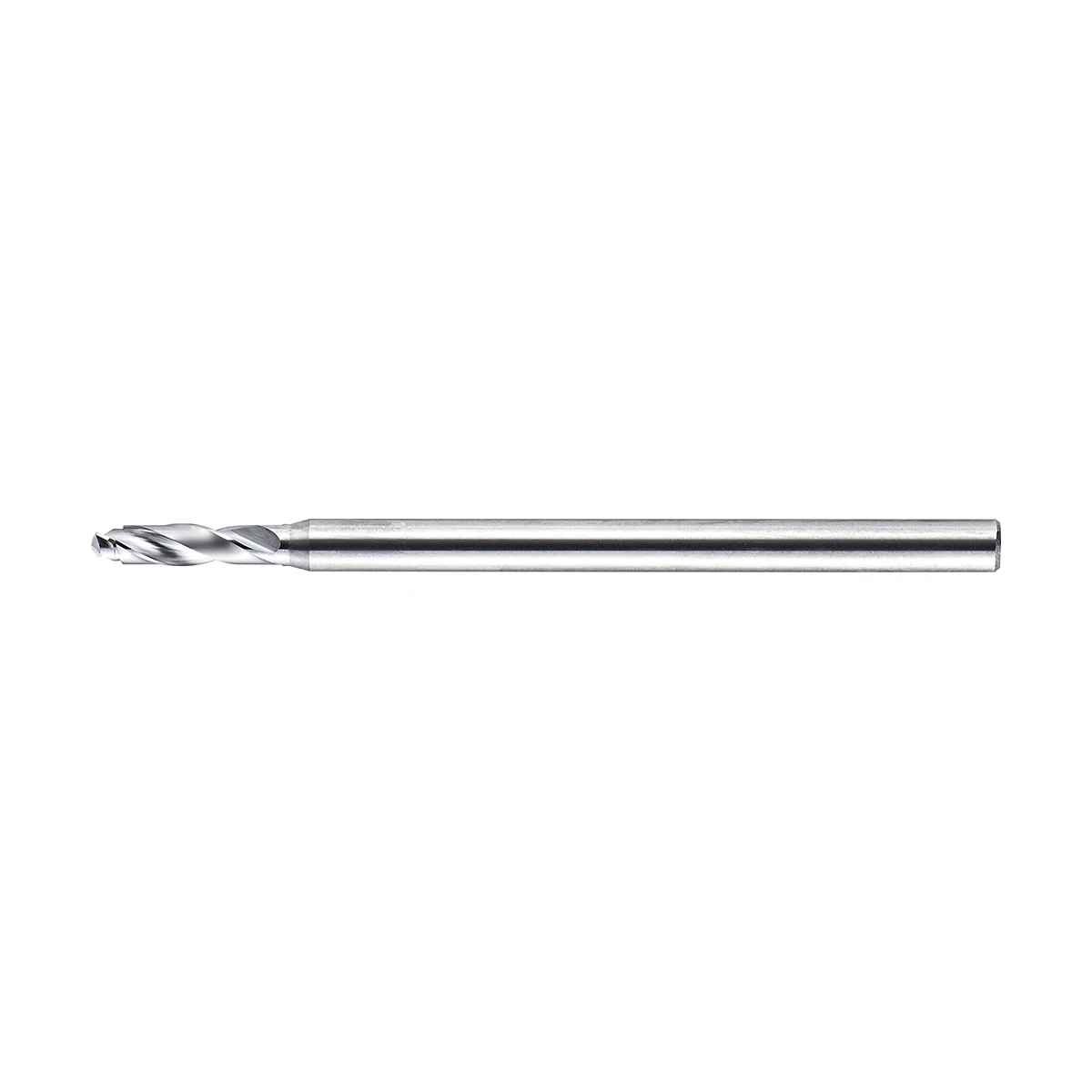

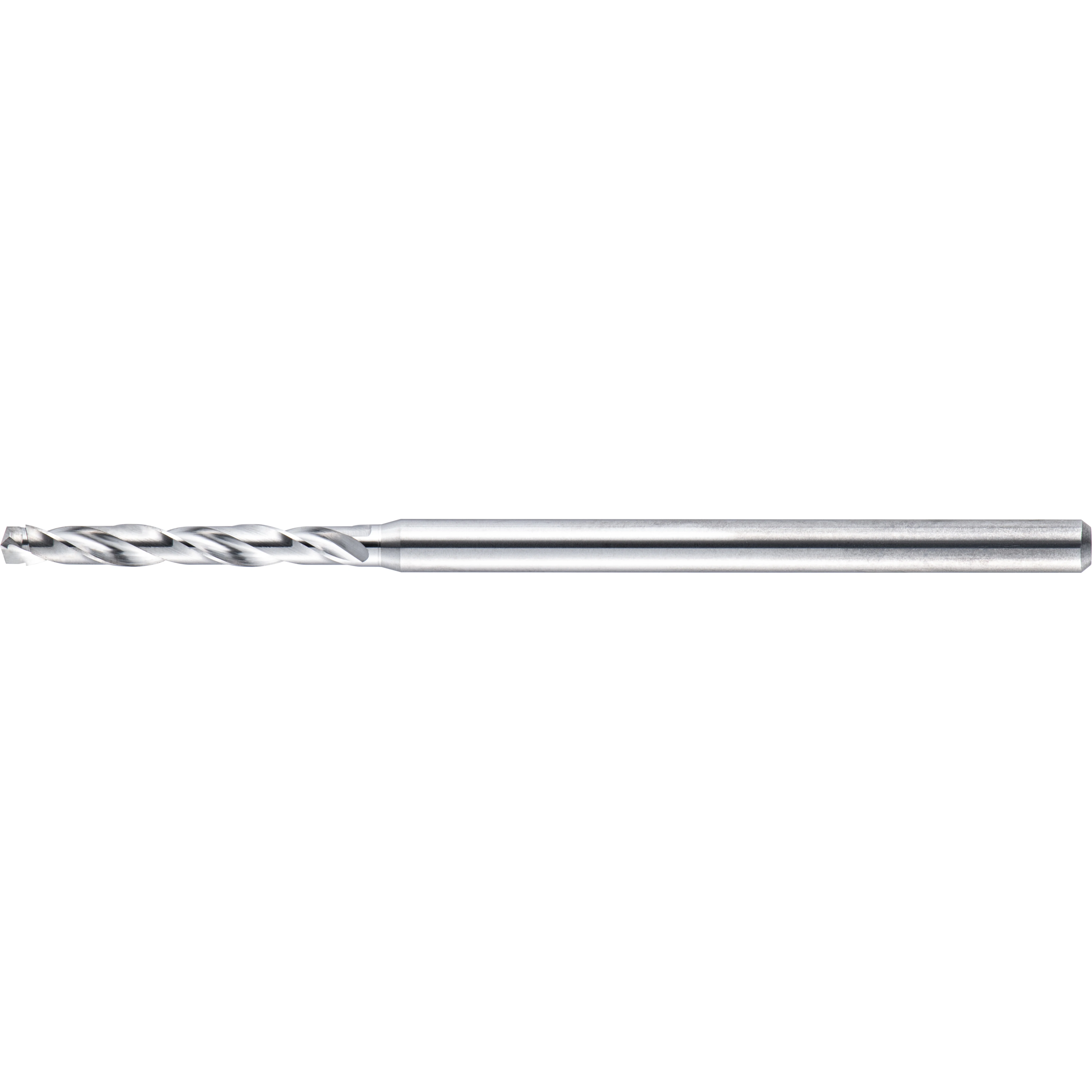

There are two types of cutting edge available: the short type KXDS with a length 4-6 times the diameter, and the long type KXDR with a length 8-12 times the diameter.
It has a two-step bit shape, with the first step doing the boring, while the flat shape of the second step suppresses exit burrs.
It is able to suppress burrs even when drilling deep holes.
The standard sizes for drill bits range from 0.3mm - 3.0mm in diameter in increments of 0.1mm.
There are two types of cutting edge available: the short type KXDS with a length 4-6 times the diameter, and the long type KXDR with a length 8-12 times the diameter.

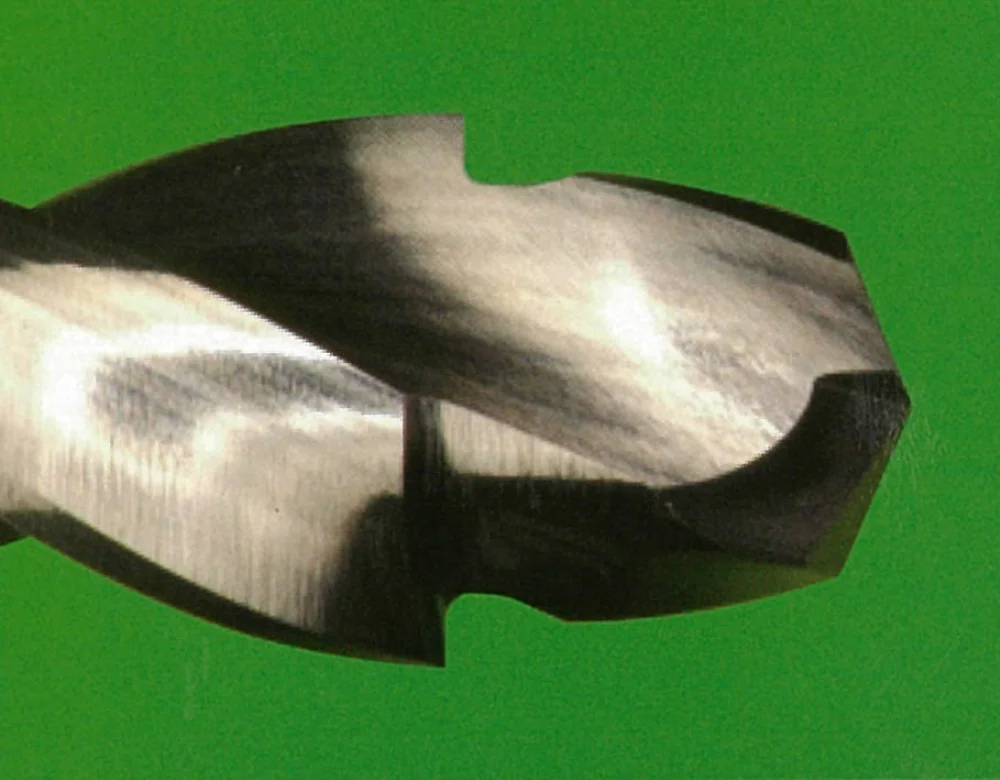

Enlarged photo of cutting edge

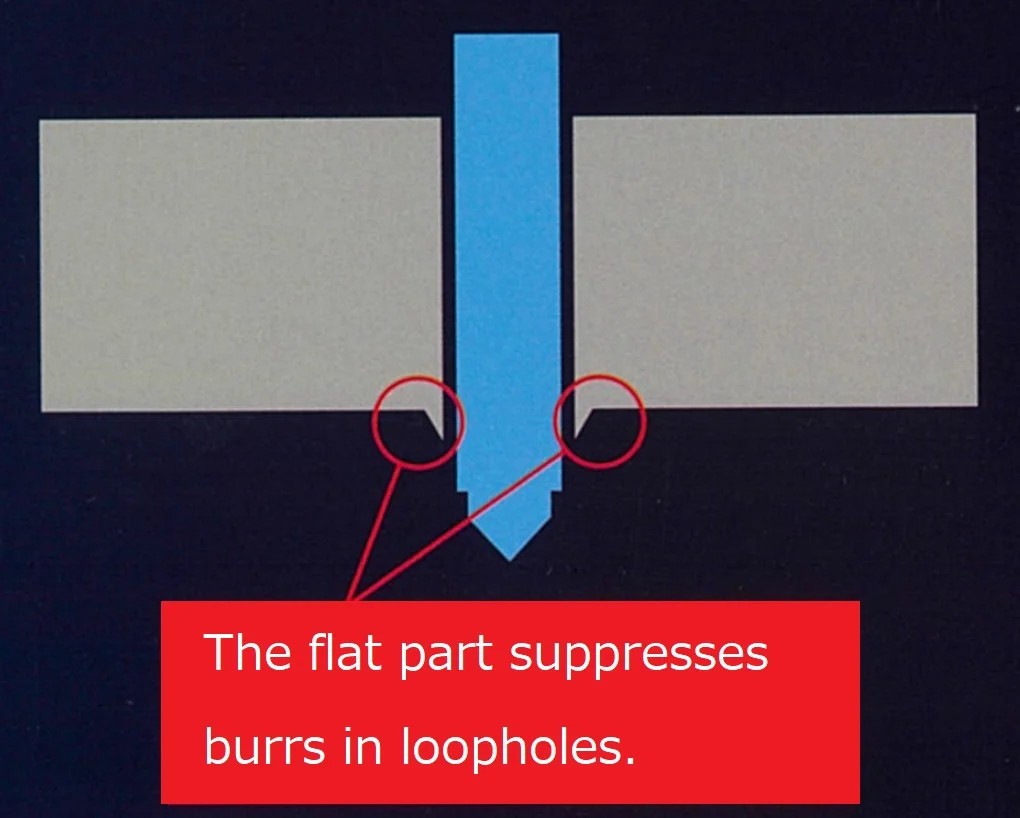

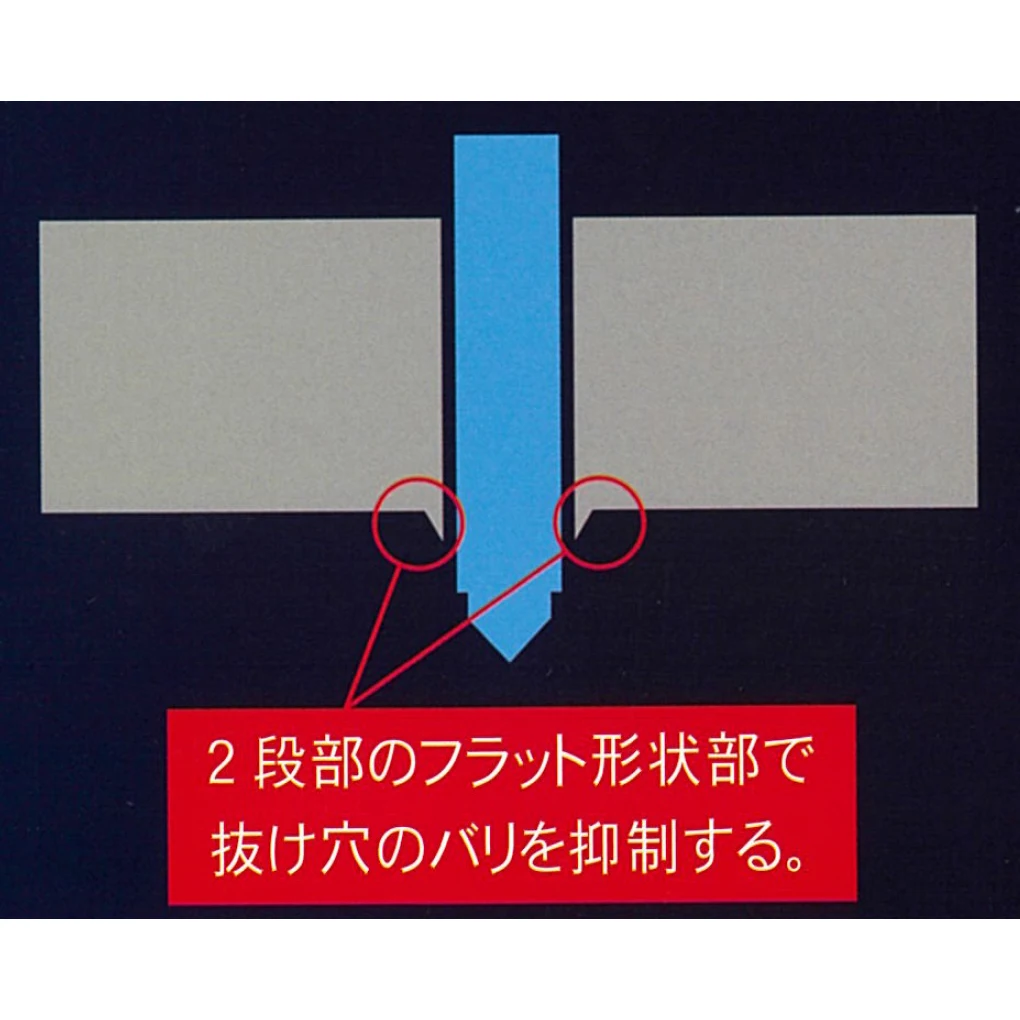

Explanatory diagram of the 2-step bit shape
Machining Demonstration
Drilling holes in S50C carbon steel
Drilling holes in S50C carbon steel
Tool Used | Burr suppressing cross-hole drill bit (KXDR-2) |
Material Drilled | S50C carbon steel |
Coolant | Water soluble cutting fluid |
Tool Diameter (mm): | 1.1 |
Speed (rpm): | 5,800 |
Feed Rate (mm/rev): | 0.03 |
Drilling Depth (mm): | 5.0 |

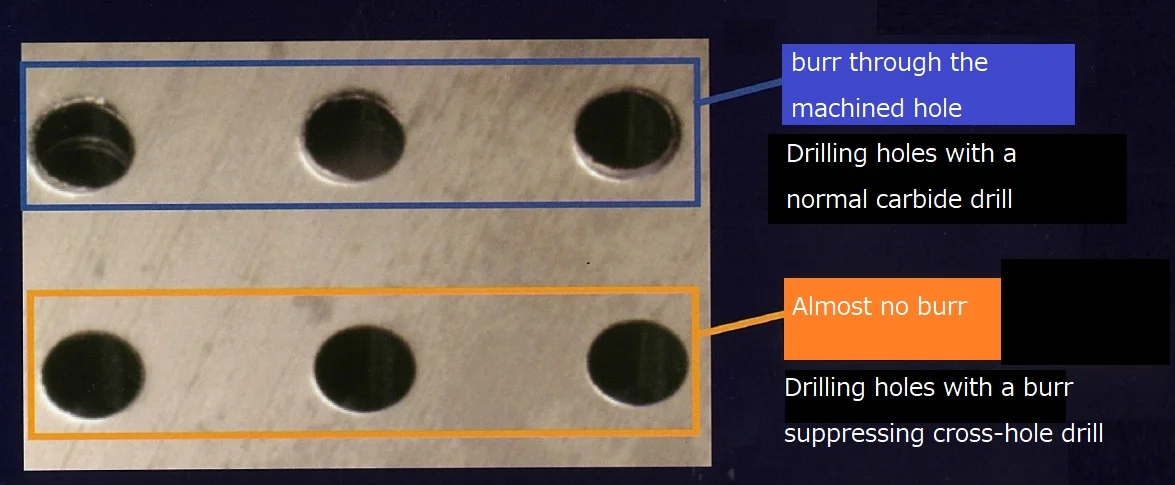

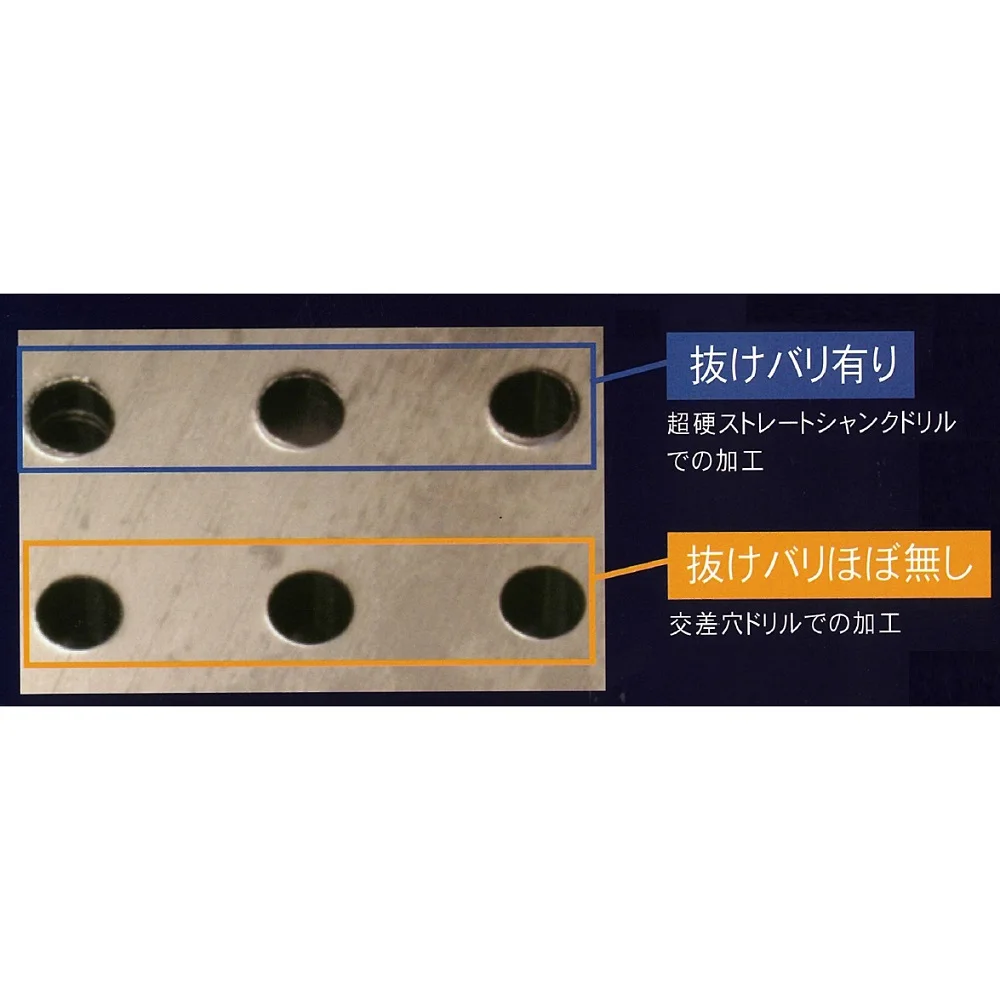

Enlarged photo of drilled workpiece
This photo shows the exit side of the drilled holes. Drilling holes with a typical carbide straight shank drill bit will produce exit burrs, but our company’s cross-hole drill bits suppress exit burrs so that they rarely occur.
Company Profile
• Kyowa Seiko Co., Ltd. is a Japanese manufacturer which specializes in producing and selling small bore cutting tools.
• Our signature products are tools for difficult cutting work, such as small diameter end mill bits and drill bits made from PCD and CBN materials, as well as an extensive lineup of tools such as carbide end mill bits and drill bits for machining standard steel and plastics ranging from 0.03mm to 6.0mm in diameter.
• Since our founding in 1963, we have received the Super Monozukuri Nippon Grand Award from the Tohoku Bureau of Economy for our CBN spiral end mill in 2008, and the Small and Medium Business Agency Director’s Encouragement Prize for our patented technologies for sharpening the cutting edges of CBN and PCD tools using electro-abrasive sharpening.
• Our signature products are tools for difficult cutting work, such as small diameter end mill bits and drill bits made from PCD and CBN materials, as well as an extensive lineup of tools such as carbide end mill bits and drill bits for machining standard steel and plastics ranging from 0.03mm to 6.0mm in diameter.
• Since our founding in 1963, we have received the Super Monozukuri Nippon Grand Award from the Tohoku Bureau of Economy for our CBN spiral end mill in 2008, and the Small and Medium Business Agency Director’s Encouragement Prize for our patented technologies for sharpening the cutting edges of CBN and PCD tools using electro-abrasive sharpening.
