Automatic stretch wrapping pallet machine
- Category: >>>
- Supplier: Lanzhou LS Energy Equipment International Engineering Co. Ltd.
Share on (1600198833118):
Product Overview
Description
Products Description

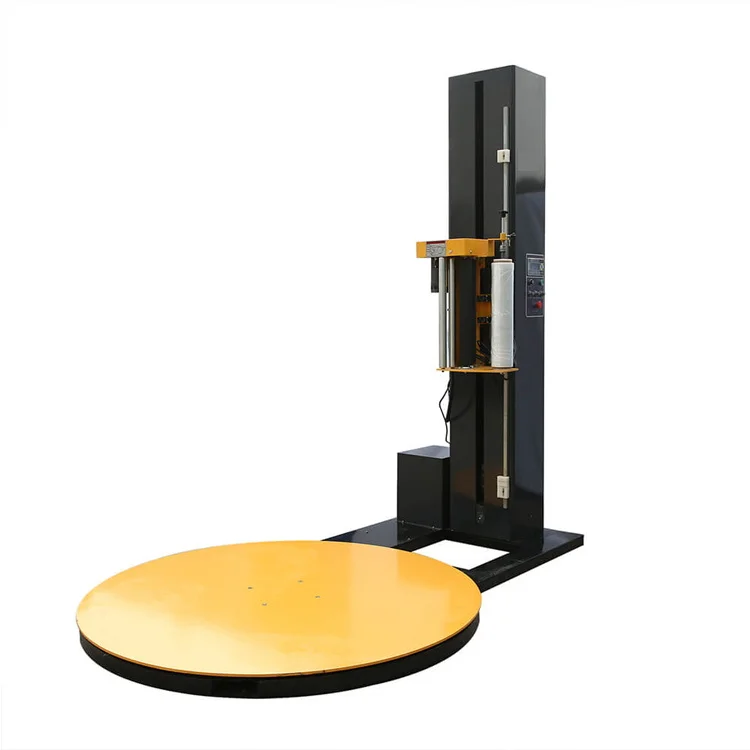

Automatic pallet wrapping machine
1. Excellent build quality, durability and user friendly
2. Operator has full control over how many wraps are applied to the top and bottom of the pallet
3. Full control over how much film you apply to the pallet
4. One layer from bottom to lower is also possible
Technical Paramenters
Name | Pallet wrapping machine |
Turntable diameter | 1650mm(can customize 1800/2000/2200/2400/2800/3000mm) |
Max.wrapping height | 1800mm(can customize 2000/2200/2400/2600/2800/3000mm) |
Min.Wrapping size | 500*500*500mm |
Max.Loading | 2000kgs (3000kg can be customized) |
Steel Ramp | Optional |
Voltage | 110V~230V 1Phase |
Machine size | L2650*W1650*2400mm |
Machine weight | 700kg |
H.S | 84224000 |
Operating panel | Text screen(english) |
Consumable specifications
Material | LLDPE |
Width | 500mm |
Thickness | 17-25um |
Film roll Inner Diameter | 3inch |
Max.Outer Diameter | ≤260mm |
Details of pallet wrapping machine

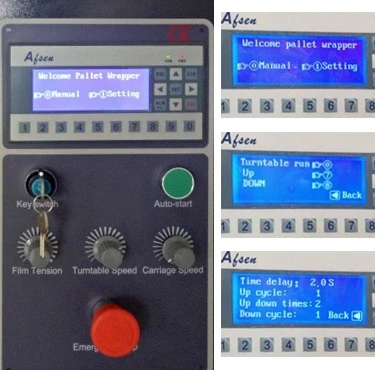

Text Screen
1. Wrapping layer can be any as your requirements, one is no problem.
2. Wrapping overlap can be chosen to protect the four corner of your pallet
3. Manual is mainly used for adjusting the machine
4. Auto mode is for normal usage

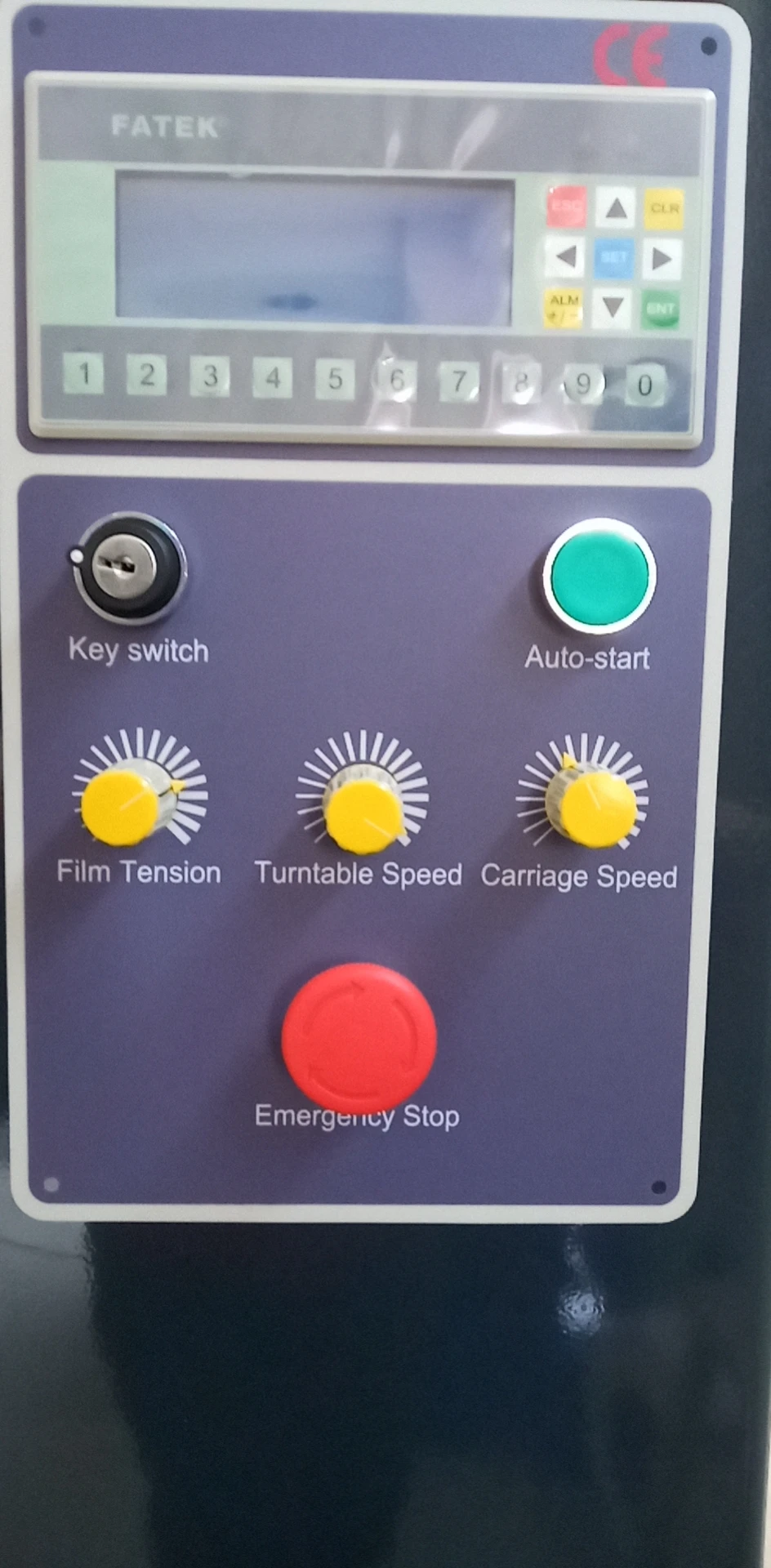

Knob Operation
1. Power switch: Key type
2.Film Tension : Max Pre-stretch 350%
3.Turntable speed: adjustable
a.when products is quite fixed: "faster"
b.when products is Loose: "Slower"
4.Carriage Speed: running with Turntable speed to adjust the film layer
5.E-stop: Safe design position

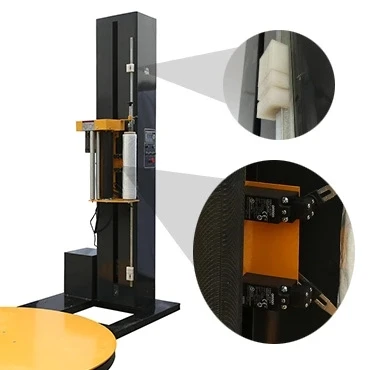

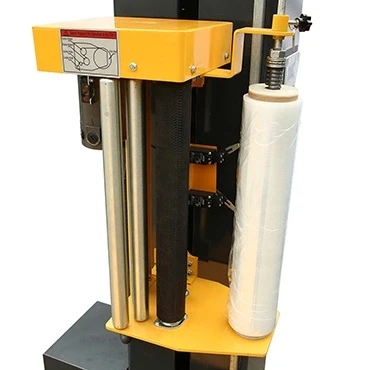

Laminated film-type structure
1. Photoelectric Sensor
2. Limit Block
Optional Choice

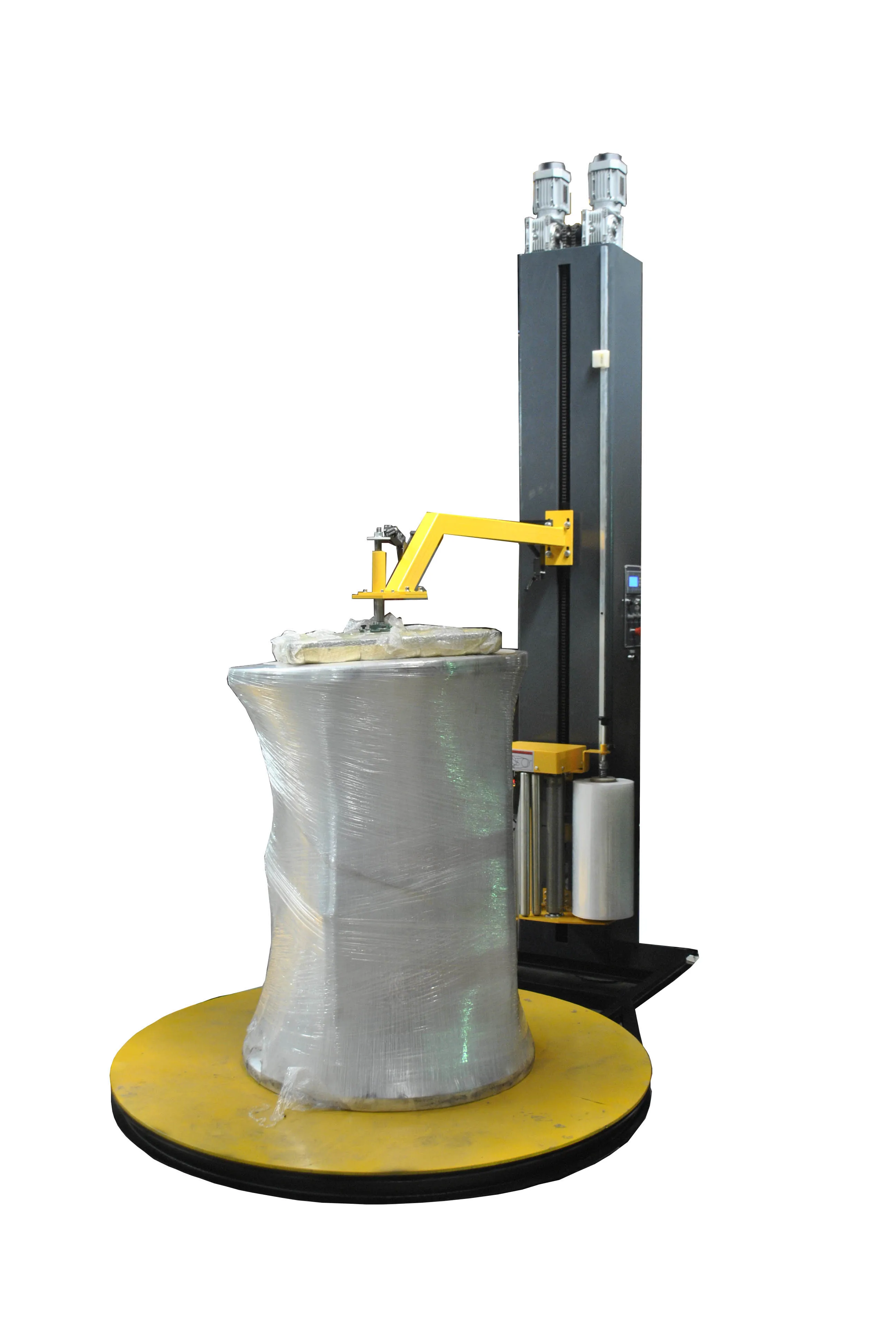

Fully Auto Type
with film cutting function and remote control

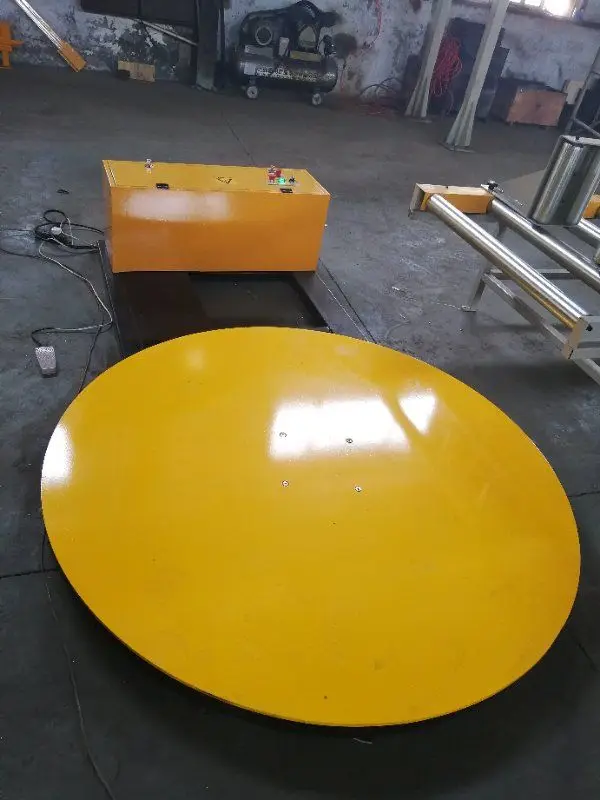

with turntable height of 340mm
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

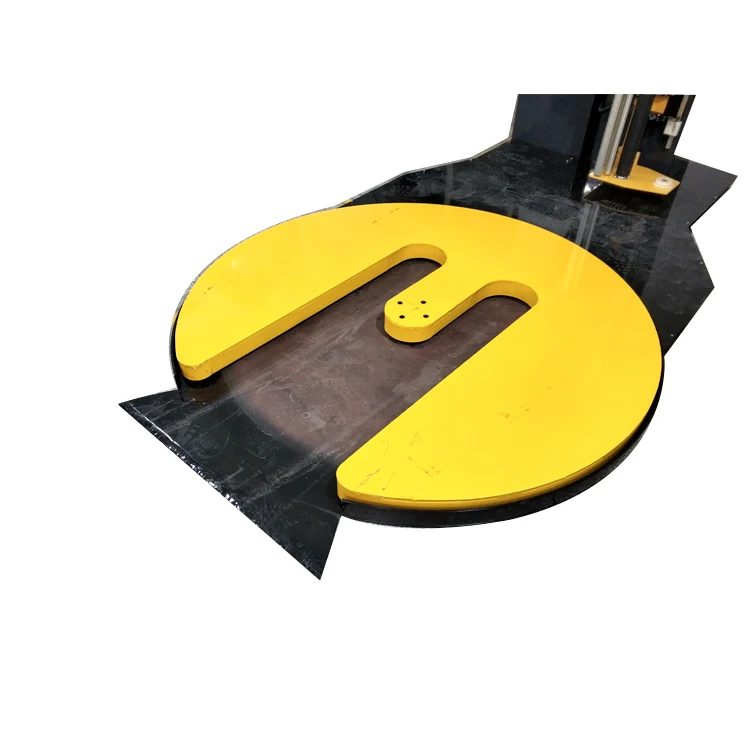

M type wrapping
for Manual forklift
No Column Type

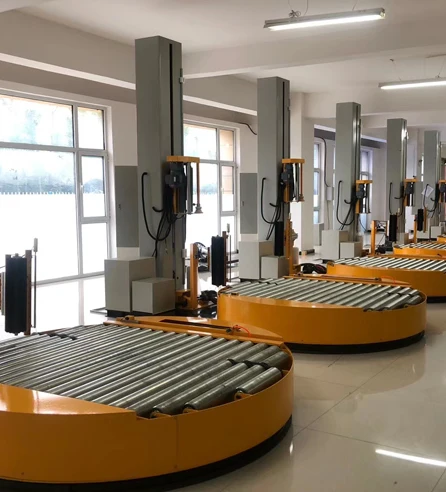

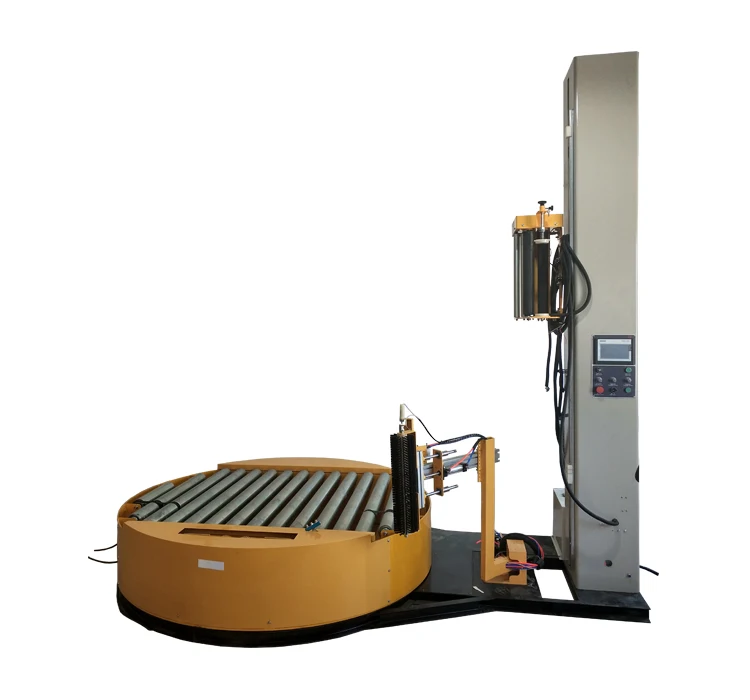

Fully Auto turntable
wrapping machine with
online packaging conveyor
Our warehouse
