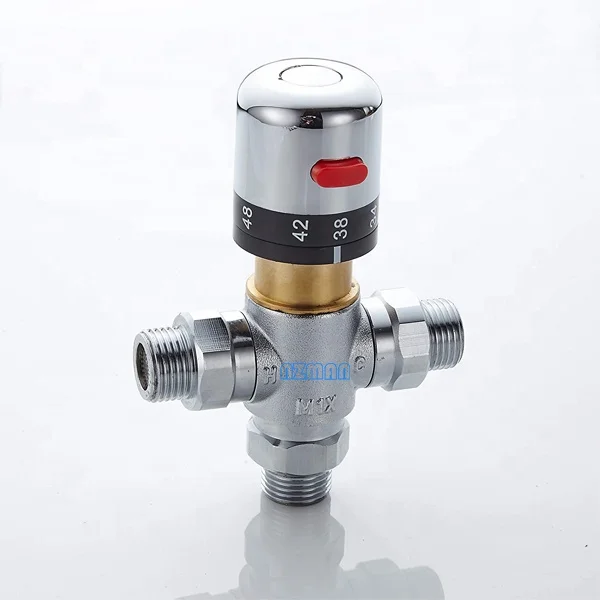

3 Way 1/2 Inch Temperature Control Faucet Shower Valve, hot cold mixing valve for Shower, DN15 Thermostatic Mixing Shower Valve
- Category: >>>
- Supplier: Xiamen Nzman Trade Co. Ltd.
Share on (1600198842260):
Product Overview
Description
WE OFFER 7/24/365 CUSTOMER SUPPORT

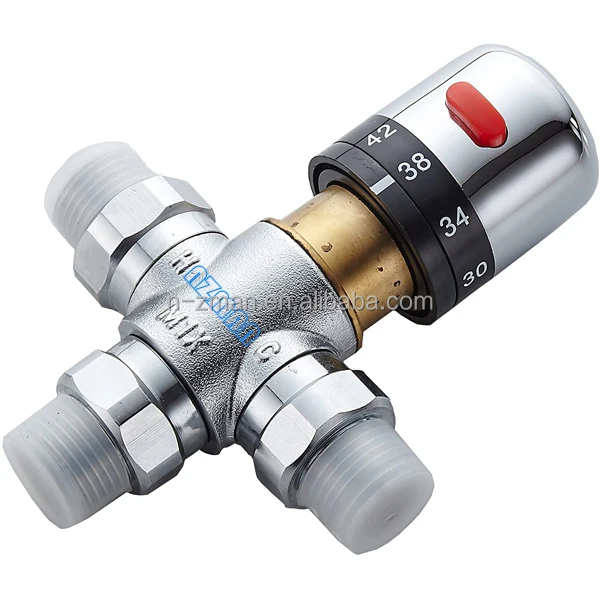

NZMAN 3 Way 1/2 Inch Temperature Control Faucet Shower Valve, hot cold mixing valve for Shower, DN15 Thermostatic Mixing Shower Valve #NB530

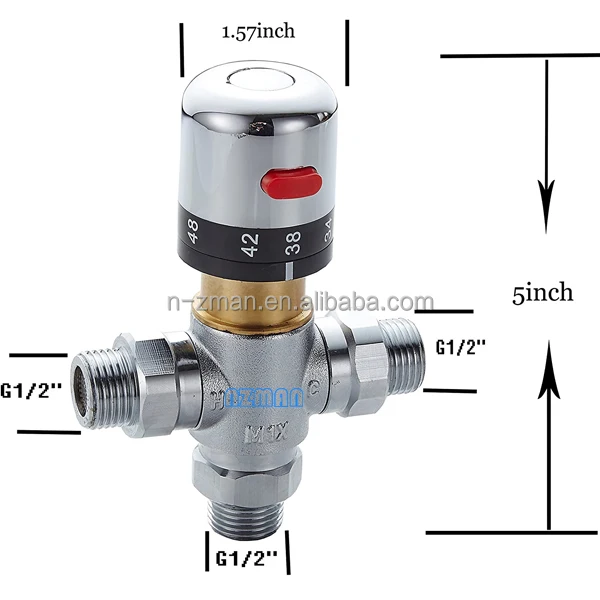

- DN15, G1/2" thermostatic mixing valve, 3 way male thread

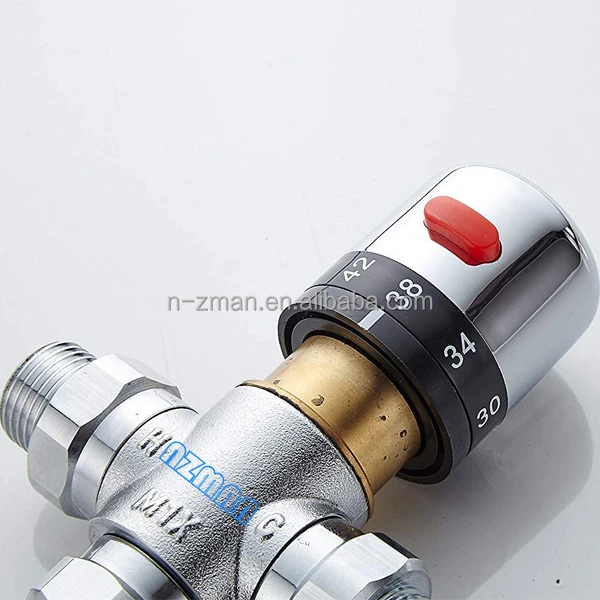

- Brass main body,lead free, plastic handle with red button
- Safe water temperature stops at 38 degree, press the red button and switch the handle to get more hot water. Be carefull not to get scald.
- Water temperature adjust range is 35-45 degree

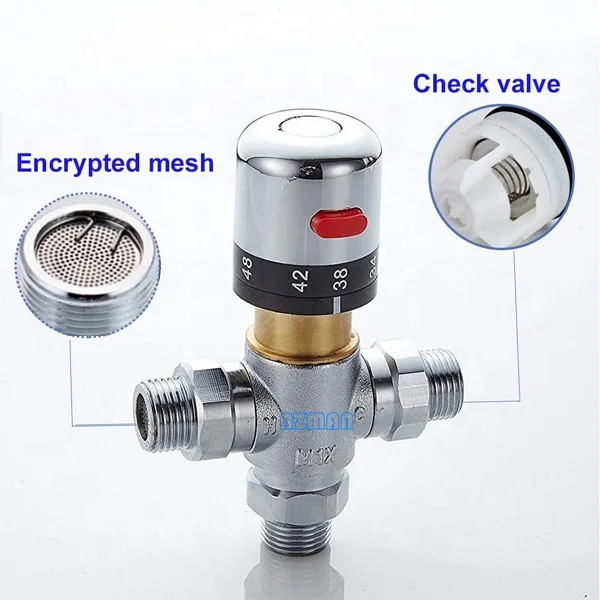

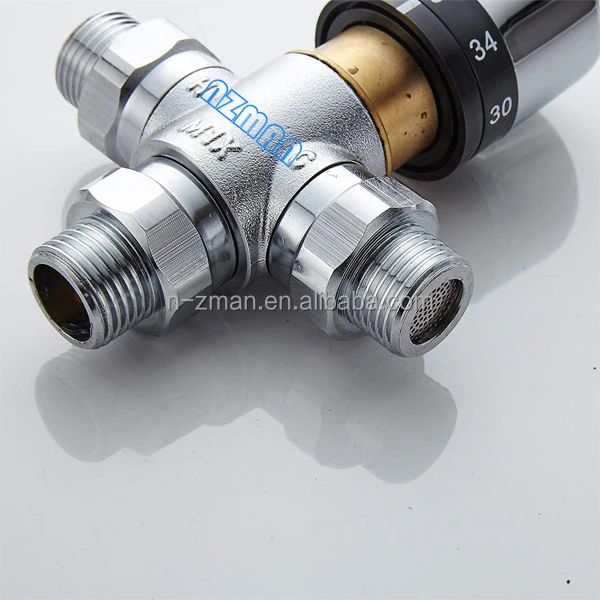

- 3 way T valve, one inlet for cold water marked with C, one inlet for hot water marked with H, one outlet is mixing water marked with MIX, both the inlets are with check vave inside.(do not connect the cold and hot water on backward)
- [RELIABLE FUNCTION]:Connect to hot and cold water - and mixed out;
- [PRERIUM QUALITY]:Thermostatic Mixing Valve (temperature control) with non-return inlets is made of brass.
- [TEMPERATURE RANGE]:Cold water supply temperature:4-29°C ,hot water supply temperature:55-85°C;
- [DURABLE PERFORMANCE]:If cold water supply fails ,flow rate will be reduced to virtually shut off which avoid the risk of scalding;
- [TEPPERATURE ACCURANCY]:Kept constant ±2°C for the setting. Note:NPT Connection Parts can be purchased separately or contact us directly.
Specification:
Material: Brass Body + Plastic Handle
Usage: Pipe Water Valve, Use for Wash Basin, Bidet, Shower
Water Pressure: Working Pressure: 0.03-1.0Mpa, Recommend Pressure: 0.1-0.5Mpa
Temperature: Inlet Cold Water: 5-29℃, Inlet Hot Water: 50-95℃, Mixing Water: 35-45℃, Adjustment Accuracy: ±2℃
Flow Rate: 11.67L/min in 1 Bar Water Pressure

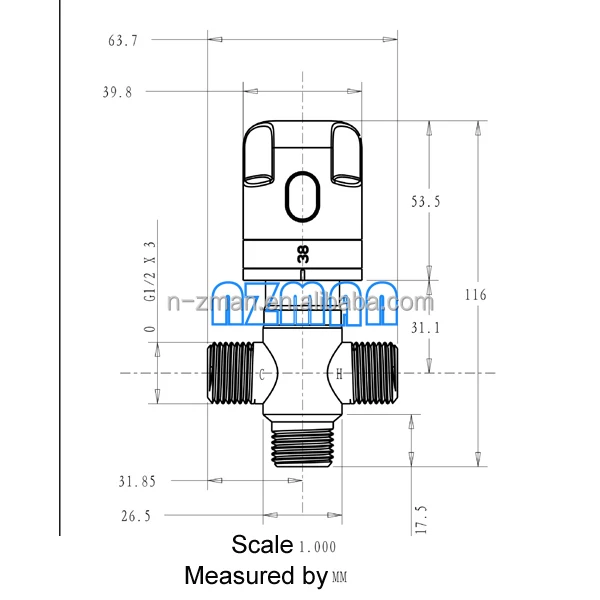

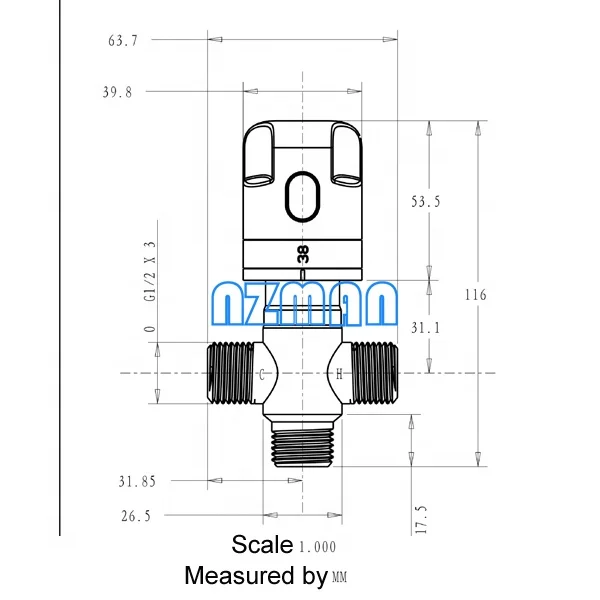

Size: G1 / 2"(DN15)
Package Included:
1 x Thermostatic Mixing Valve

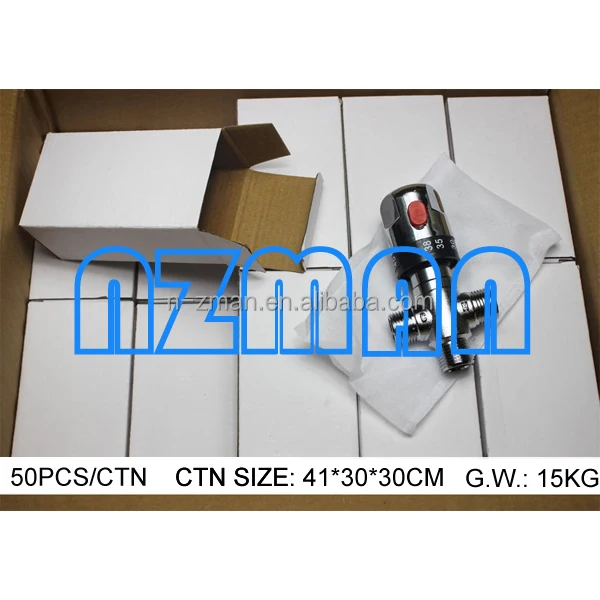

PACKAGING:

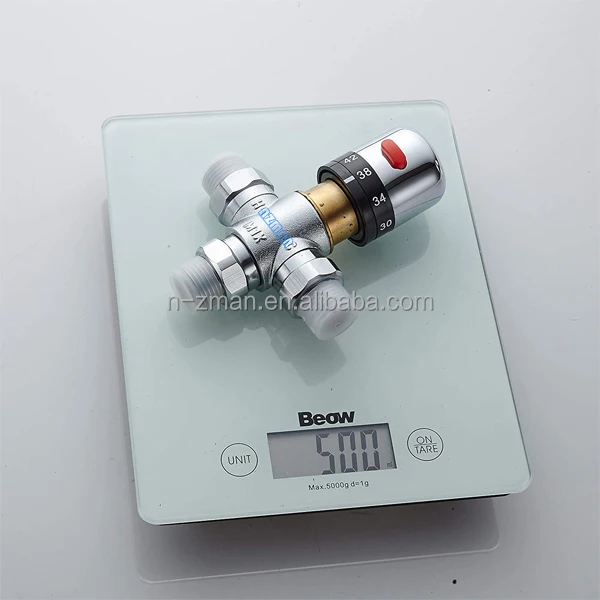

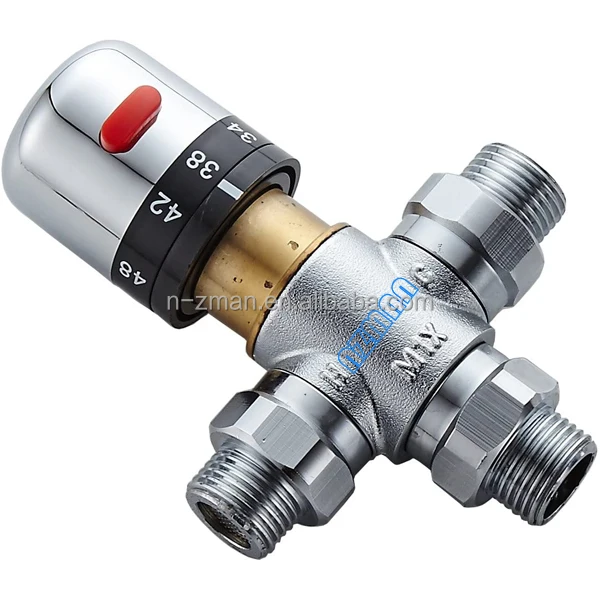

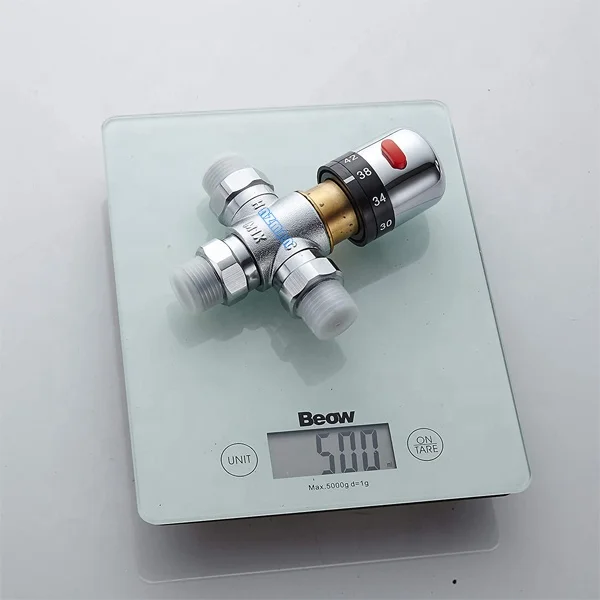

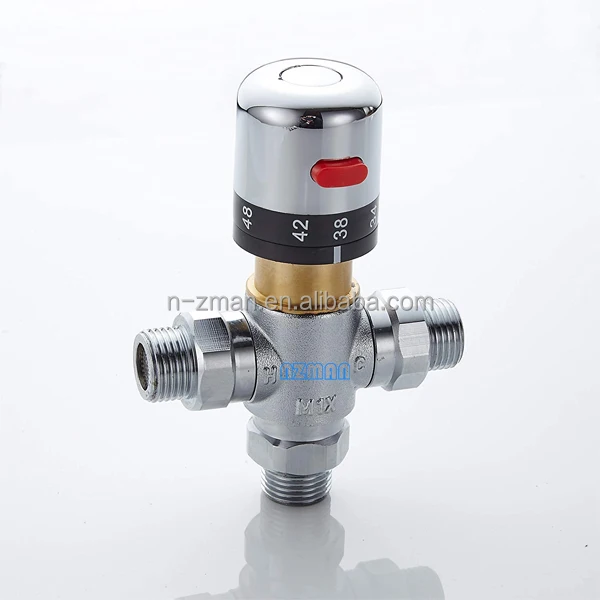

MORE PICTURES:

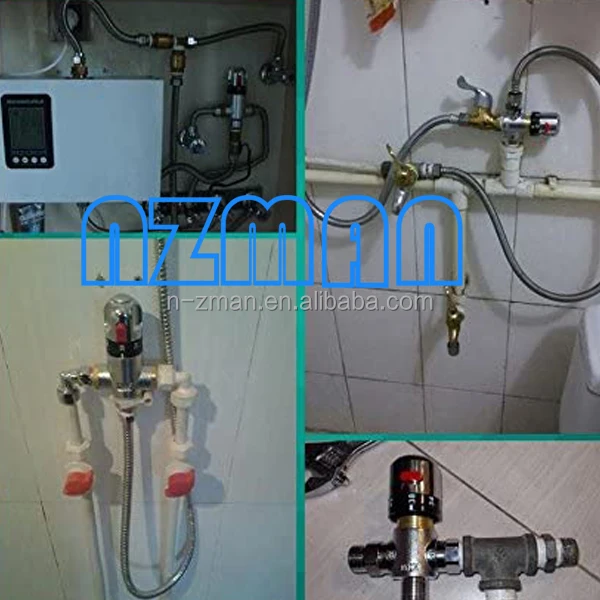

APPLICATIONS:
MORE RELATED PRODUCTS:
Item Name: Hot/Cold Water Mixer Adapter
Model: NB432
Material: Brass
Surface: Chrome plated
Weight: 450g
Parts Including:
- 200cm SS braided hose
- 9/16" brass T-connector with rubber washer
- 100% MONEY BACK GUARANTEE, UNPARALLED CUSTOMER SERVICE & LIFETIME
Universally Compatible
Connect any hand held bidet with a ½” bidet hose connection for a warm water wash and safety shut-off. Easily installs at your toilet fill valve in minutes, no plumber required. Easily connect your NZMAN hand held bidet to add warm water.
Parts including:
- Sprayer, Stainless Steel 304, Brushed Nickel
- Hose, SS, double locked, brass nuts
- Bracket, wall mount or toilet tank hanger
- Hot water Mixer T-adapter for North American market
Easy-to-Use Valve for Both Hot and Cold
Connect the provided 78” long braided metal hot water connection hose to a nearby hot water connection below your sink for a warm water wash. Rotate the Mixing Valve handle to find the desired temperature, and shut off the valve after every use to prevent leaking and damage to your bidet sprayer.
ACCESSORIES FOR HOT WATER MIXER T-ADAPTER
- 200cm SS braided hose
- 9/16" brass T-connector
All High-Quality Components Included
All-metal brass core mixing valve, 3/8” braided metal hot water hose (78” length), and two all-metal hot water t-valves (3/8” and ½” size to fit all standard connections) are included along with a one year warranty and industry leading customer support from NZMAN based in XIAMEN, CHINA.
- Cold/Hot \u007FWater\u007F Mixer \u007FT-adapter\u007F for\u007F North\u007F American

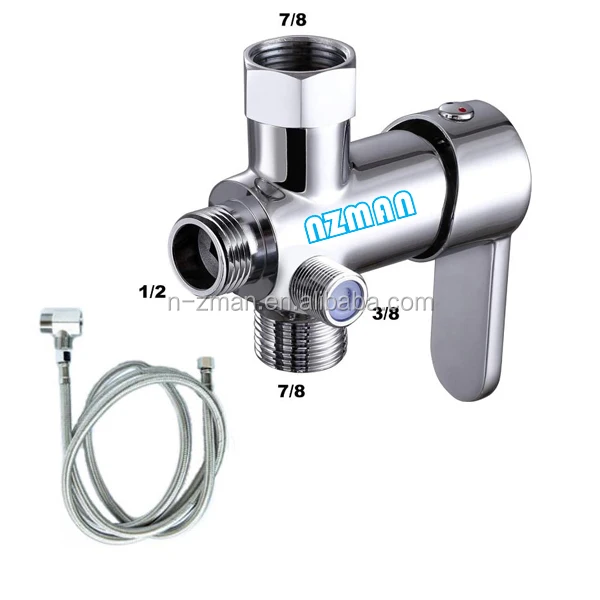

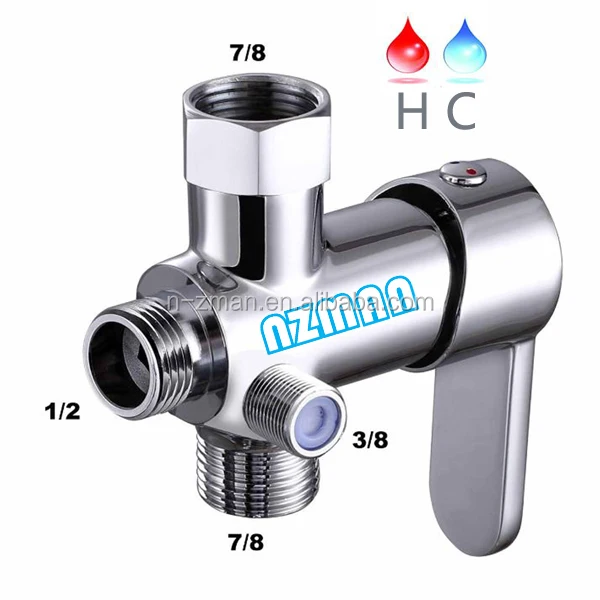

- Threads connection analysis:
Thread\u007F of\u007F T-adapter:\u007F F7/8"+ M1/2"+ M7/8"+ M3/8"
Female \u007Fthread\u007F 7/8" \u007F(15/16)\u007F to \u007Fconnect\u007F toilet\u007F tank
Male\u007F thread\u007F 7/8" \u007F(15/16)\u007F from\u007F flex\u007F hose\u007F water\u007F supply
Male\u007F thread\u007F 3/8"\u007F (9/16)\u007F from\u007F hot \u007Fwater\u007F connection\u007F tube
Male \u007Fthread\u007F 1/2"\u007F to \u007Fconnect\u007F spray\u007F hose \u007Fto\u007F bidet
- NZMAN Stainless Steel Bidet Sprayer is Easy & Efficient Way to Get Fresh w/Gentle Rise or Jet Spray
- Getting Clean is Convenient and Frustration Free Without Leaks or Sprayer Problems, Easy Hand Bidet
- Great Water Flow/Pressure Control from Custom Designed Brass Sprayer, Hand Held Bidet
- Includes Brass T Valve Adapter, Hose & Bracket to Form Complete Set for 10 Min Installation
- Stainless Steel Sprayer Built with One-Piece Construction to Avoid Extra Parts, Brushed Nickel Plating
| Chrome Salt Spray Test | ASS 24Hs or CASS 4Hs |
| Extreme work pressure | 5-125PSI (0.34-8.6 Bars) |
| Normal work pressure | 15-50PSI (1-3.5 Bars) |
| Extreme work tempreture | Less than 70°C |
| Normal work tempreture | Less than 40°C |
| Guarantee | 1 year |
| Lifetime | Minimum 10,000 cycles of triger |
