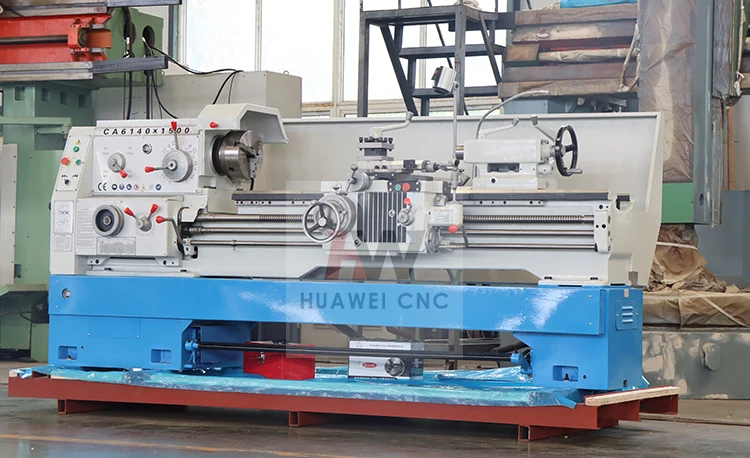

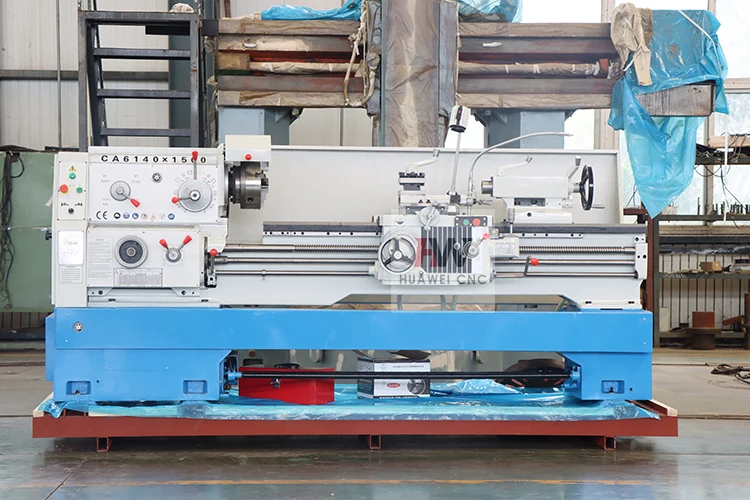

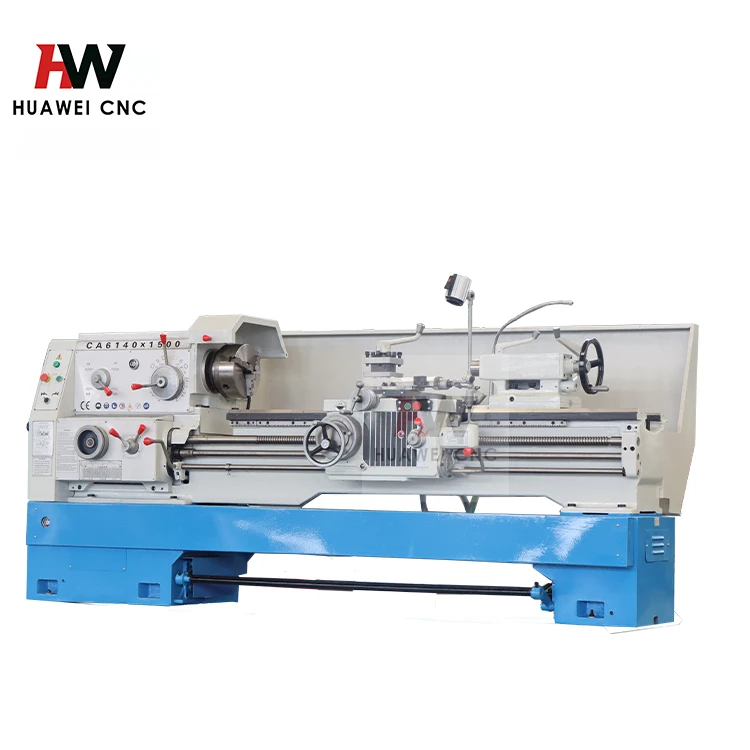

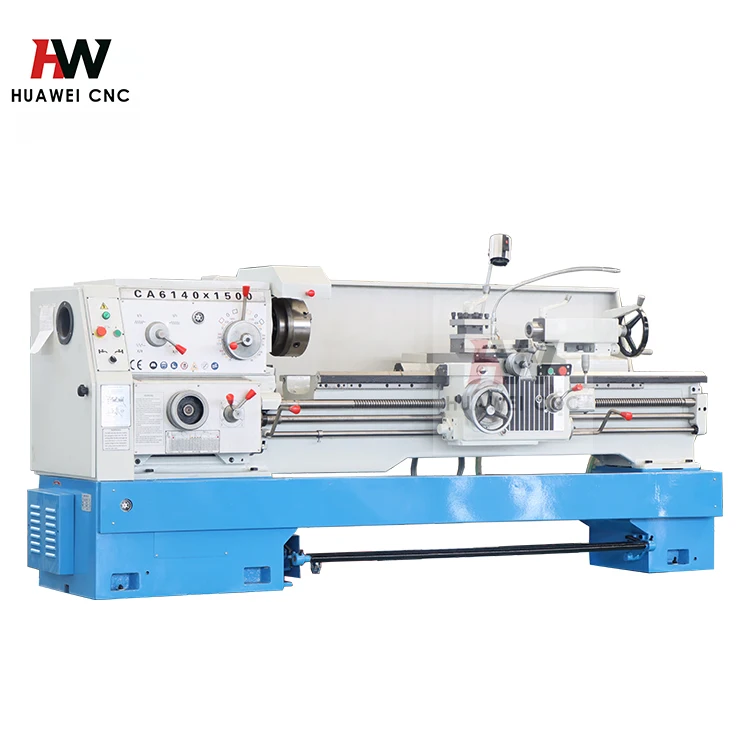

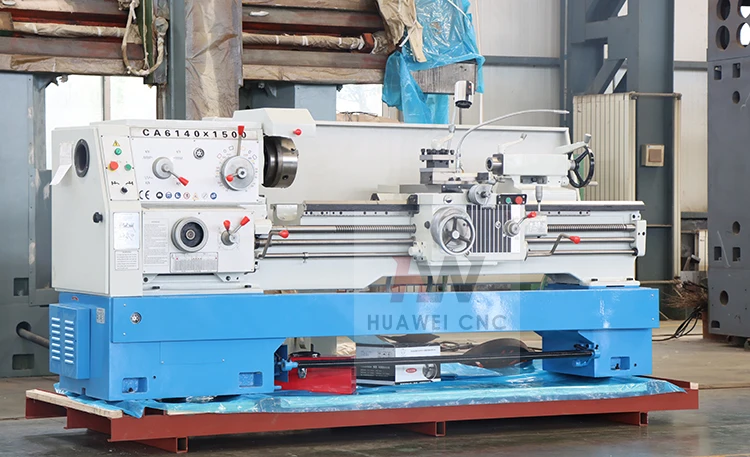

Factory Price lathe turning machine CA6150 universal lathe machine price lathe made in china
- Category: >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1600198955354):
Product Overview
Description
Product Description
Factory Price lathe turning machine CA6150 universal lathe machine price lathe made in china
Type | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | ||||
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | ||||
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | ||||
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | ||||
Max. effective length in gap | 210mm | |||||||
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | |||||||
Width of bed | 400mm | |||||||
Section of turning tool | 25*25 mm | |||||||
Main spindle motor | 7.5kw(10HP) | |||||||
Spindle | ||||||||
Spindle speed | 16--1400rpm(24step) | |||||||
Spindle bore | 52mm (B: 80mm),(C: 105mm) | |||||||
Spindle taper | No.6(MT6)(90 1:20)[113:20] | |||||||
Feed | ||||||||
NO. of feed | (64 kinds)(for each) | |||||||
Range of metric threads | (1-192mm) (44 kinds) | |||||||
Range of inch threads | (1-24tpi) (21kinds) | |||||||
Range of module threads | 0.25-48 (module 39 kinds) | |||||||
Range of diametral pitch threads | 1-96DP (37 kinds) | |||||||
Tailstock | ||||||||
Max. tailstock spindle travel | 150mm | |||||||
Tailstock spindle diameter | 75mm | |||||||
Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | |||||||
Packing dimensions (L*W*H) | ||||||||
Overall dimensions for 750mm | 2440*1140*1750mm | |||||||
Overall dimensions for 1000mm | 2700*1140*1750mm | |||||||
Overall dimensions for 1500mm | 3200*1140*1750mm | |||||||
Overall dimensions for 2000mm | 3700*1140*1750mm | |||||||
Overall dimensions for 2200mm | 4030*1140*1750mm | |||||||
Overall dimensions for 3000mm | 4800*1140*1750mm | |||||||
Overall dimensions for 4000mm | 5680*1140*1750mm | |||||||
Weight (kg) | ||||||||
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | ||||
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | ||||
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | ||||
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | ||||
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | ||||
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | ||||
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | ||||
Features:
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Product main technical specifications:
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Product main technical specifications:
Standard accessories:
Living Center 3-jaw chuck
Dead Center Toolpost protection
Steady rest Chuck protection
Follow rest Leading screw guard
Foot plate Cooling system
Face plate Lubrication system
Back guard Work lamp
Tool box
Optional Accessories:
Taper attachment 4 jaw chuck
Digital Readout Quick Change Toolpost
As shown in below
Living Center 3-jaw chuck
Dead Center Toolpost protection
Steady rest Chuck protection
Follow rest Leading screw guard
Foot plate Cooling system
Face plate Lubrication system
Back guard Work lamp
Tool box
Optional Accessories:
Taper attachment 4 jaw chuck
Digital Readout Quick Change Toolpost
As shown in below
Detailed Images

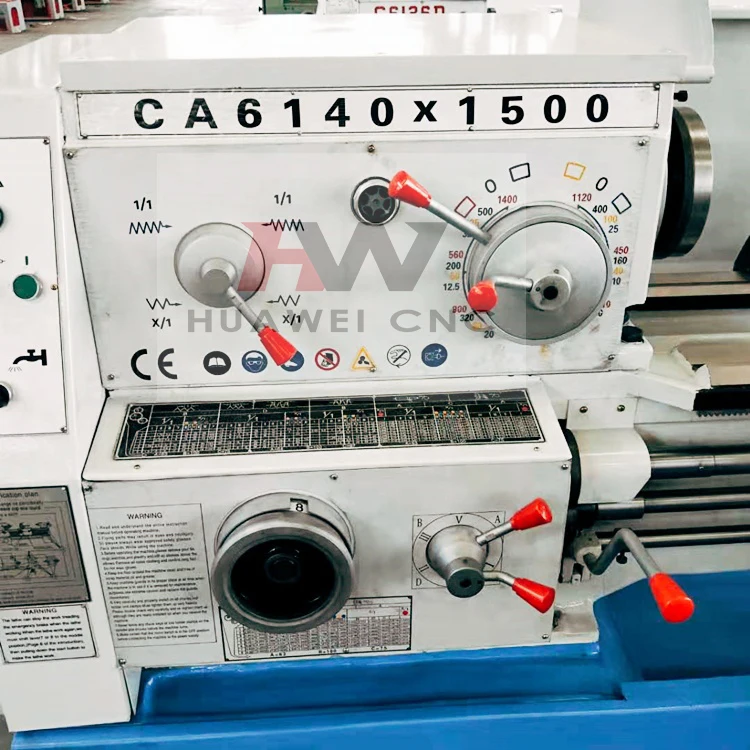

GEAR SPINDLE BOX
GEAR SPINDLE BOX
Multistage speed change, can meet a variety of processing needs
PRECISION CHUCK
standard :3-jaw chuck
optional:4-jaw chuck

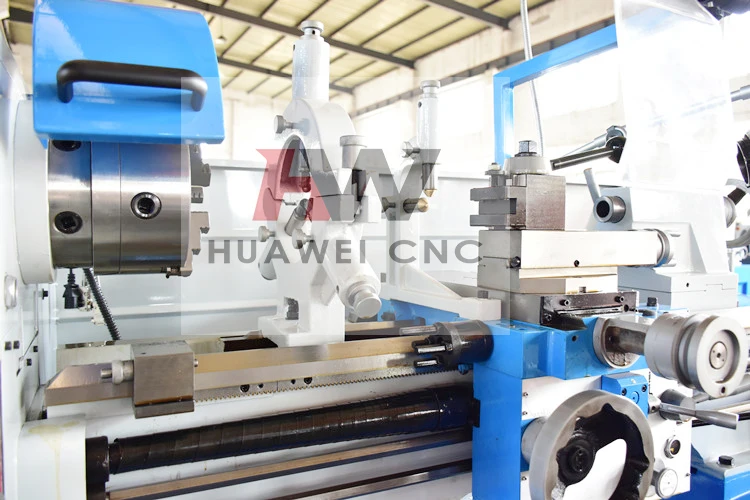

STEADY REST ,FOLLOW REST
steady rest and follow rest
manual tailstock tool cover as standarad

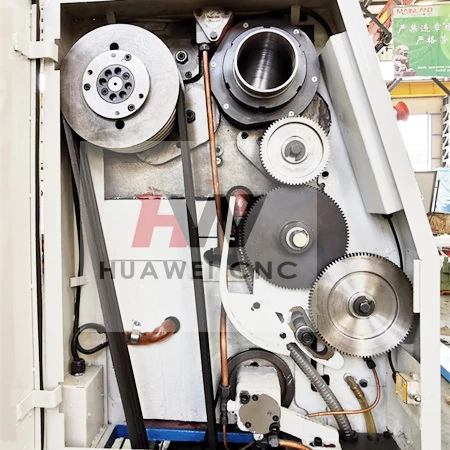

PRECiSION GEAR
Precise grinding gear, smooth operation of the machine, ensure the machining accuracy

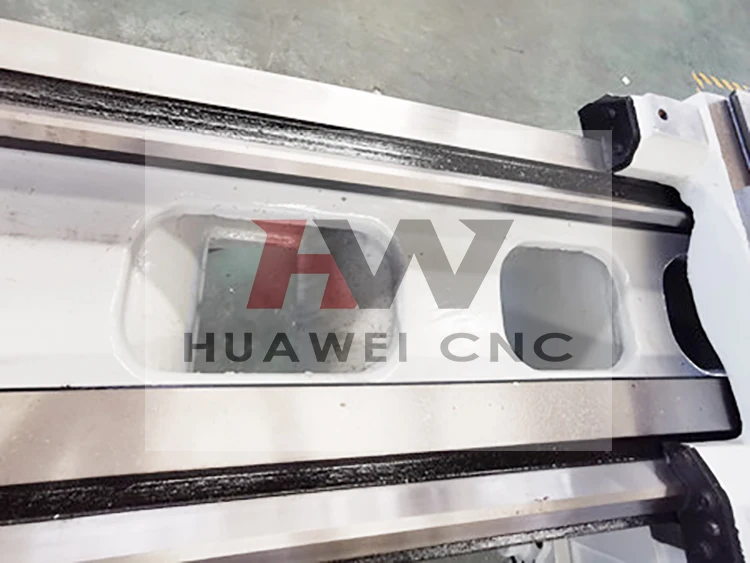

QUENCHING BED 400MM WIDTH
Quench the guide rail to ensure the hardness of the guide rail, widen the width and increase the stability of the machine bed
