Automatic lotion bottle cosmetic filler water beverage honey cream piston paste liquid filling machine
- Category: Tobacco Processing Machinery >>>
- Supplier: Guangzhou Qiansun Packaging Equipment Co. Ltd.
Share on (1600199010647):
Product Overview
Description

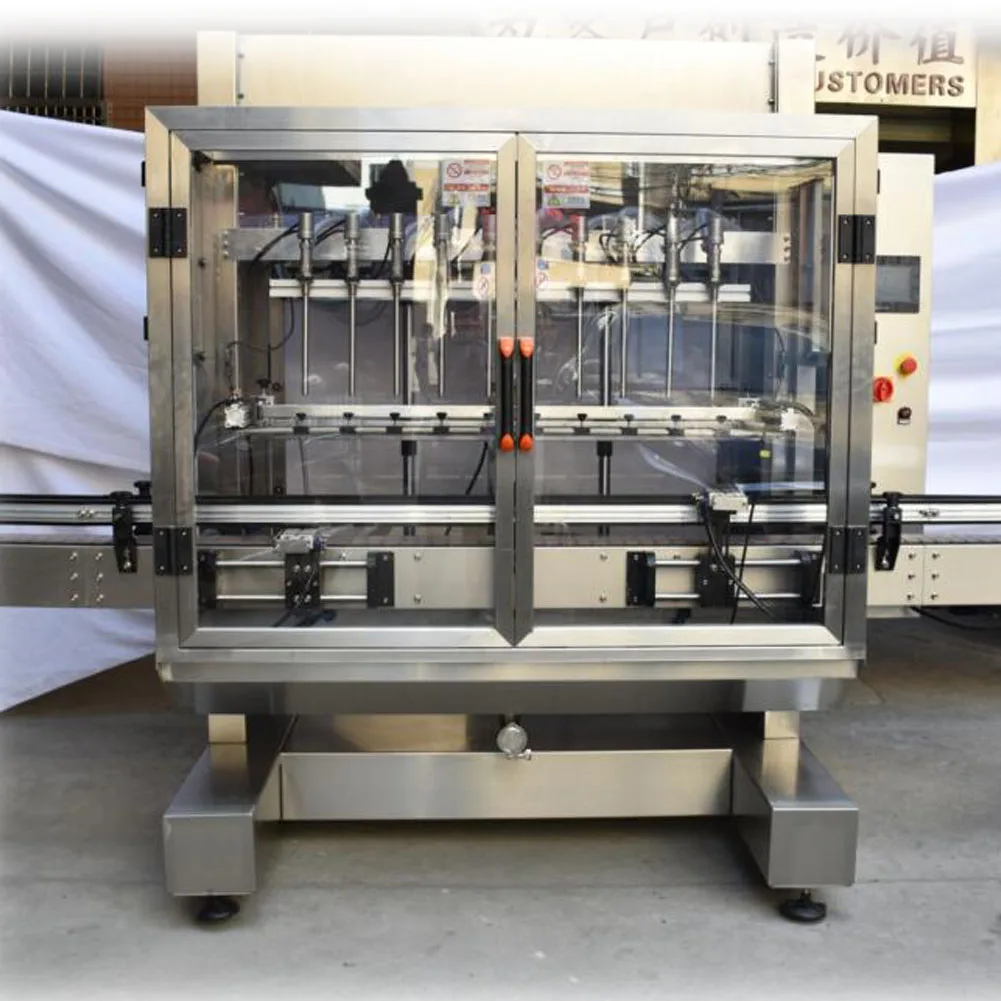

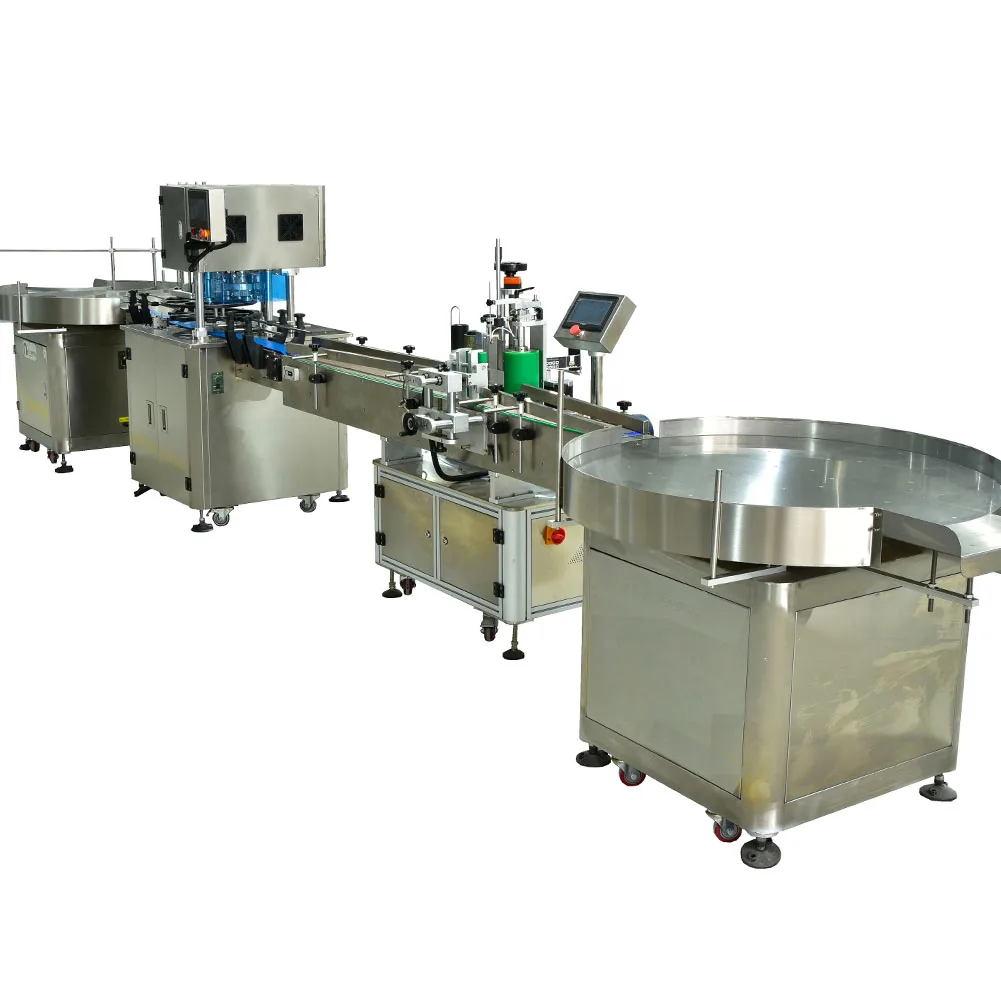

Filling Machine configurations in this filling line
Filling speed | 35-50cans/min |
Filling range | Filling capacity (ML) is adjustable |
Filling Precision | ±1% |
The filling speed (BPM) | is calculated according to the number of heads and filling volume |
Motor power (kw) | 1500W |
Air consumption (min) | 0.4-0.6mpa |
Overall dimension (mm) | 2000x1000x2100mm |

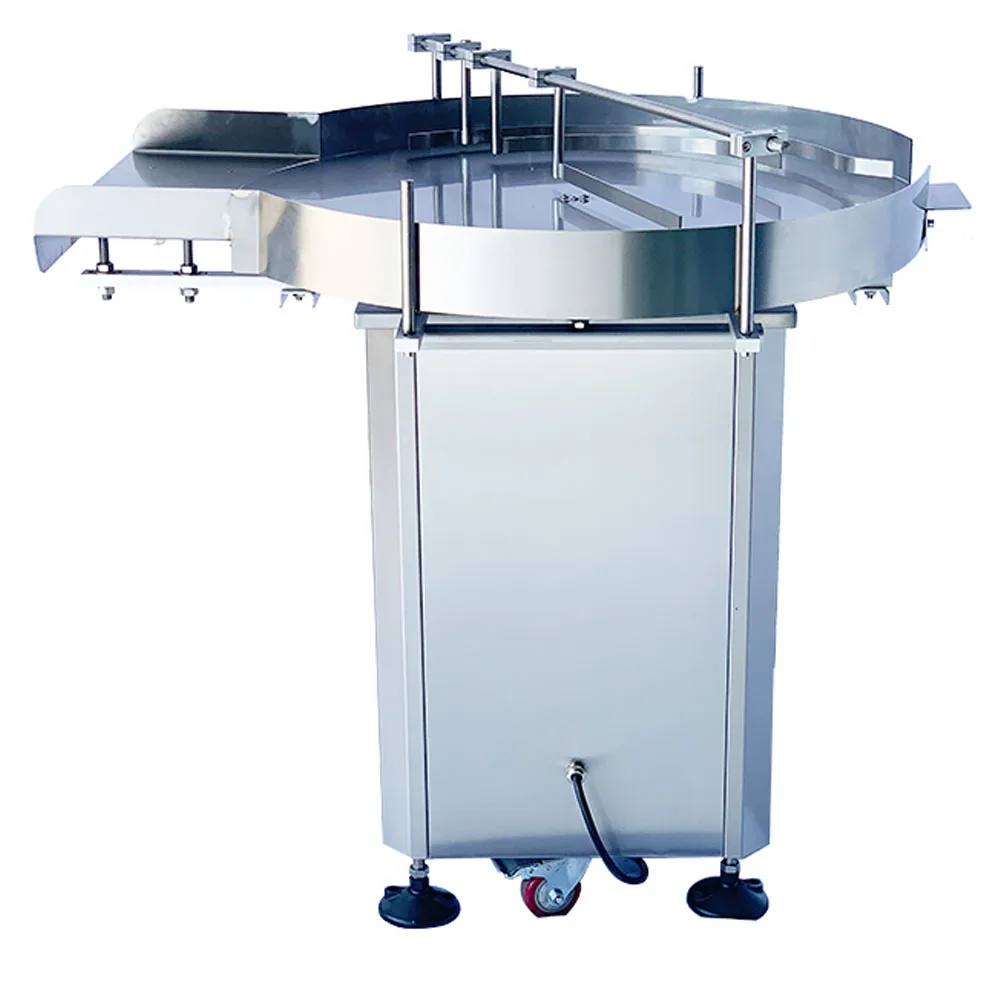

Cans/bottles sorting table in this filling line.
1.Production capacity：35～50cans/min
2.Table diameter:1200mm
2.Can height：40-200mm
3.Can diameter：35-130mm
4.Operating temperature：0～45℃，Operating humidity：35～85%
5.Power supply：AC220V 50/60Hz6.Power：200W
7.Weight：152KG（about）
8.Size：L1200*W1200*H840mm
2.Table diameter:1200mm
2.Can height：40-200mm
3.Can diameter：35-130mm
4.Operating temperature：0～45℃，Operating humidity：35～85%
5.Power supply：AC220V 50/60Hz6.Power：200W
7.Weight：152KG（about）
8.Size：L1200*W1200*H840mm

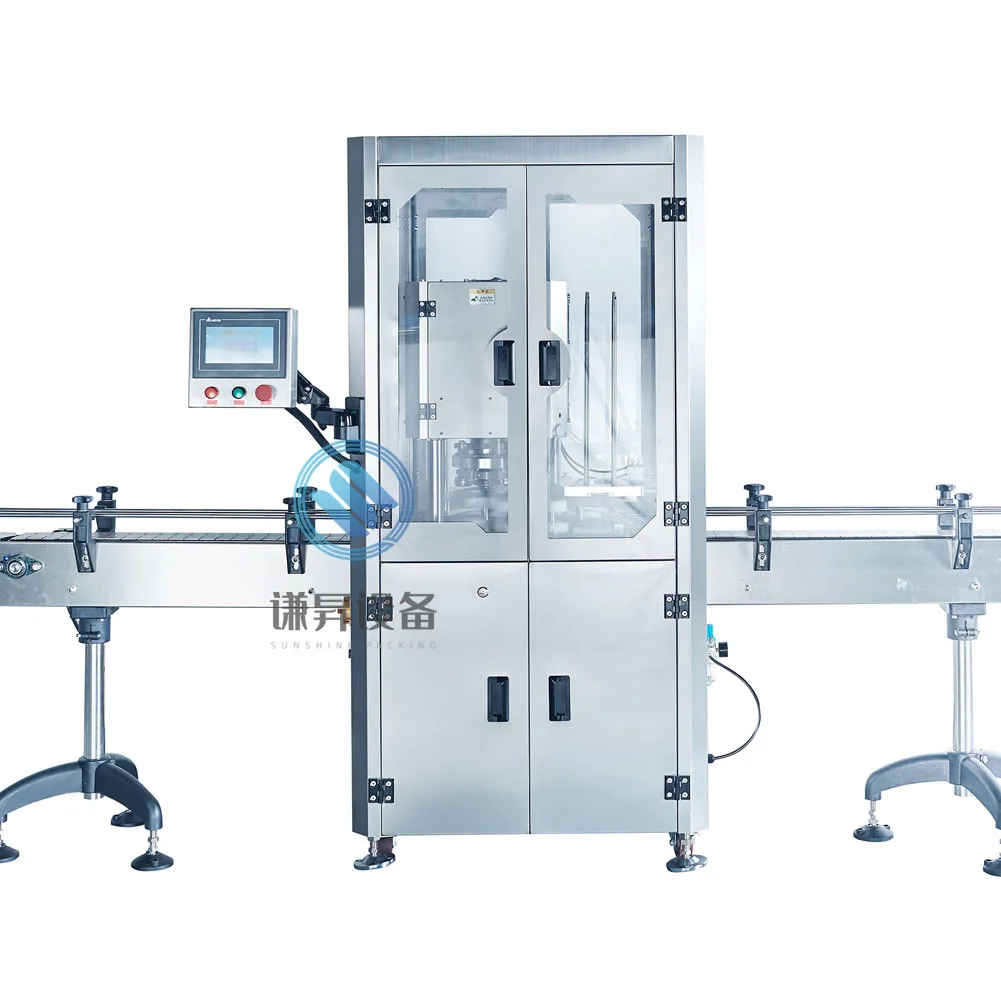

Can seamer in this filling line
1. Number of sealing head: 1
2. Number of seaming rollers: 4 (2 first operation, 2 second operation) 2. Sealing speed: 35~50 cans /min
3. Sealing height: 25-220mm
4. Sealing can diameter: 35-153mm
5. Working temperature: 0 ~ 45 ° C, working humidity: 35 ~ 85%
6. Working power supply: single-phase AC220V 50/60Hz
7. Total power: 1.7KW
8. Weight: 400KG (about)
9. Dimensions: L 1850* W 840* H1650mm
3. Sealing height: 25-220mm
4. Sealing can diameter: 35-153mm
5. Working temperature: 0 ~ 45 ° C, working humidity: 35 ~ 85%
6. Working power supply: single-phase AC220V 50/60Hz
7. Total power: 1.7KW
8. Weight: 400KG (about)
9. Dimensions: L 1850* W 840* H1650mm

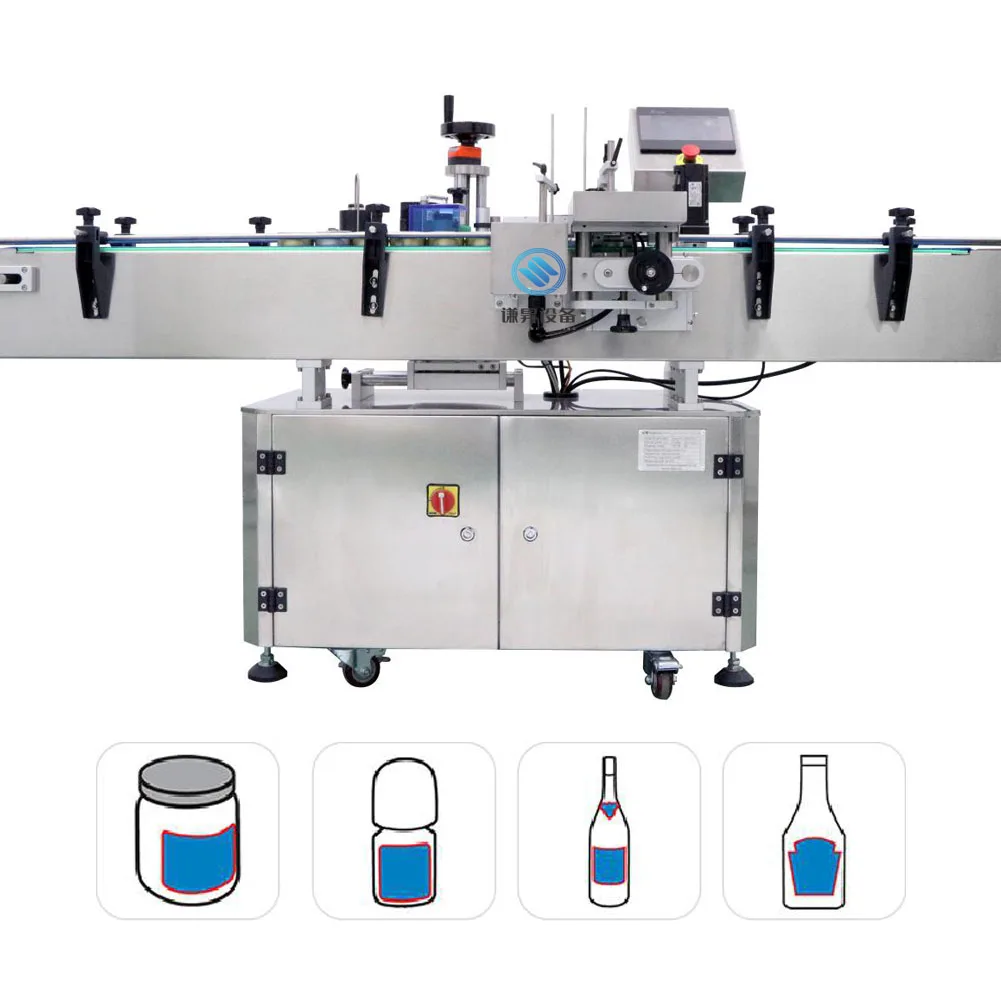

Label Machine in this filling line
Labeling speed: about 0-60P/min
Labeling accuracy: ±1mm (does not include product label errors)
Applicable product size: diameter 30-150mm; height 30-350mm;
Applicable label range: length 10 ~ 260mm, bottom paper width 10-160mm
Max label supply: OD 300 or less, inner diameter 76mm
Ambient temperature / humidity: 0-50 ° C / 15-85%
Voltage specification: AC220V, 50HZ
Dimensions and weight: about L2200*W1300*H1700mm / 190Kg
label parameters (for reference only):
Label spacing: 2-3mm ± 0.2mm
Labeling accuracy: ±1mm (does not include product label errors)
Applicable product size: diameter 30-150mm; height 30-350mm;
Applicable label range: length 10 ~ 260mm, bottom paper width 10-160mm
Max label supply: OD 300 or less, inner diameter 76mm
Ambient temperature / humidity: 0-50 ° C / 15-85%
Voltage specification: AC220V, 50HZ
Dimensions and weight: about L2200*W1300*H1700mm / 190Kg
label parameters (for reference only):
Label spacing: 2-3mm ± 0.2mm
