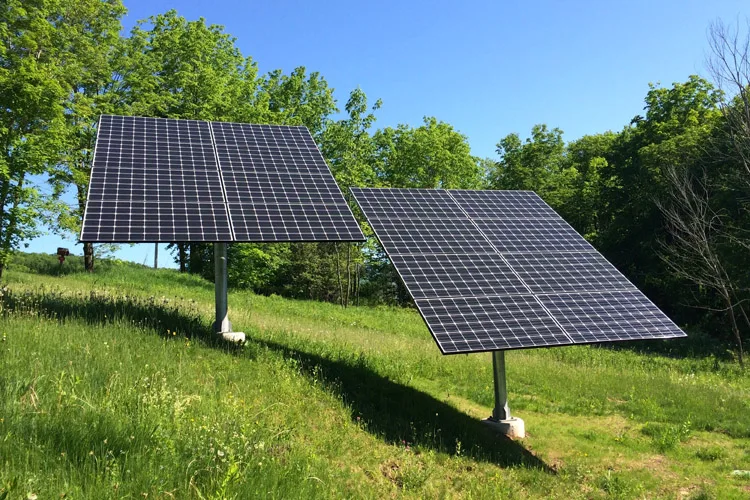

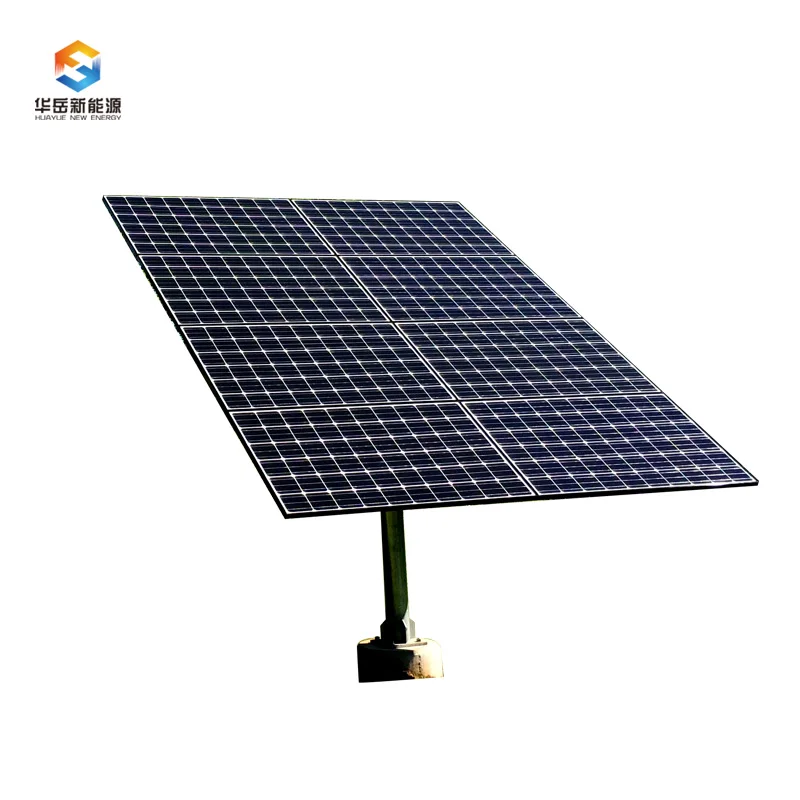

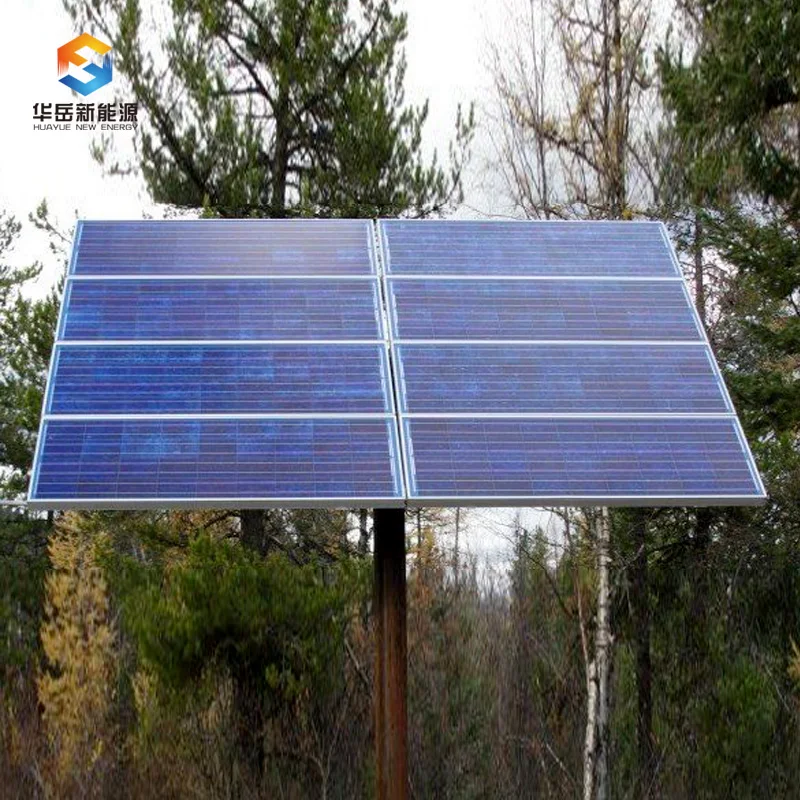

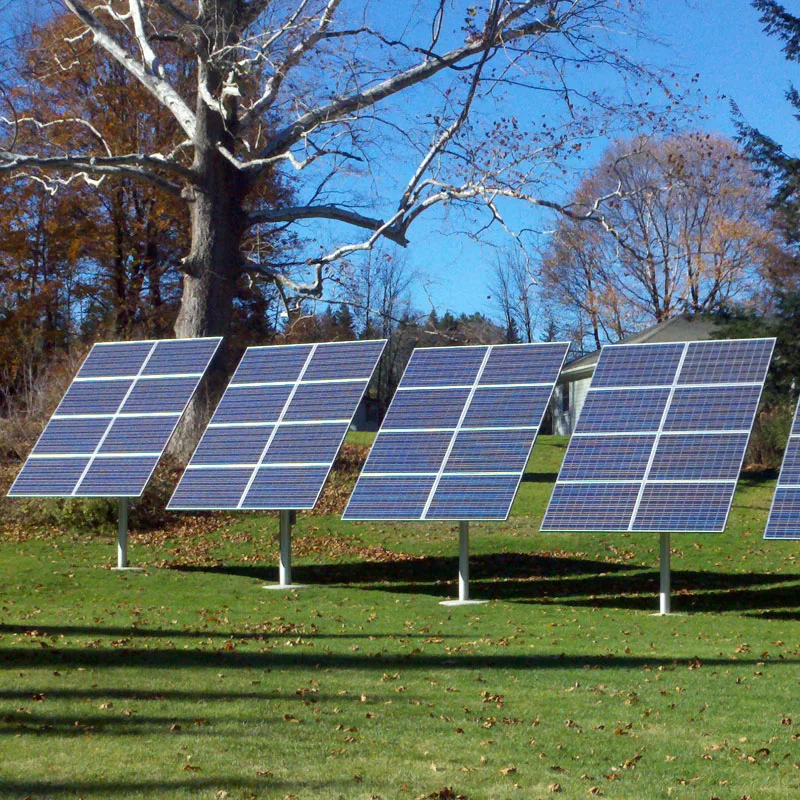

4KW HYS 8PV 78 LSD фотоэлектрических трекер кронштейн двухосевой системы Улавливателя солнечной энергии с Защита от солнца с двумя осями системы Улавливателя солнечной энергии с отслеживания солнца кронштейн
- Category: Solar Tracker >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600199245124):
Product Overview
Description
Power generation comparison
Product features

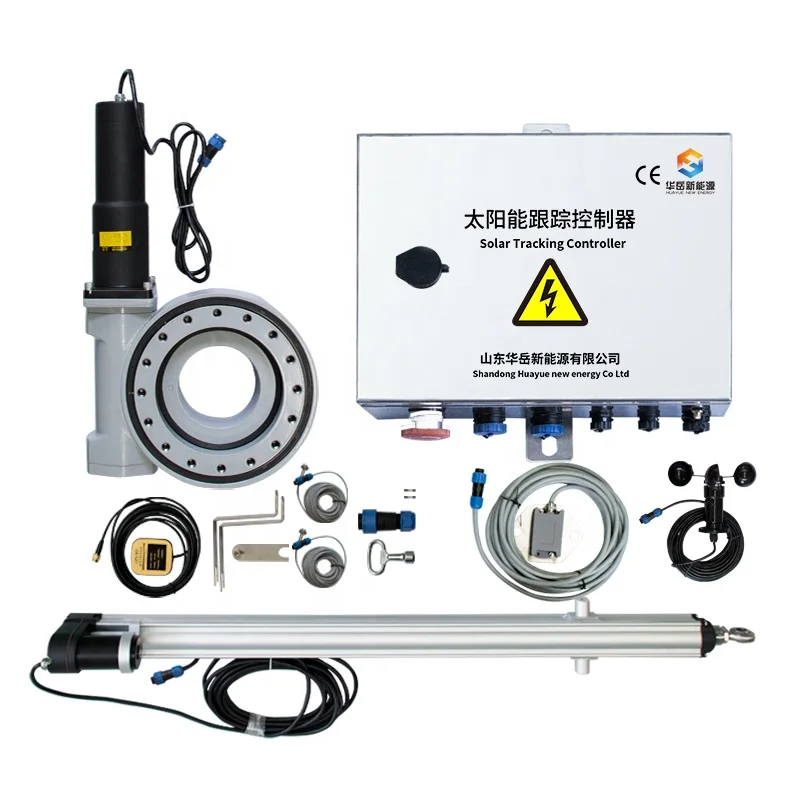

Optional accessories
Product Paramenters
HYS-8PV-78-LSD Dual Axis Solar Tracker Structure Parameters | ||||||
Solar Panel Type | 2132*1052mm | Installed Capacity | 4kw | |||
System Weight | ≈480kg/sets | Quantity of Solar Panels | 8P | |||
Solar Panels Arrangement | Horizontal arrangement | Ground Clearance | 400mm | |||
Area of Grid Structure (m²) | ≈18㎡ | Bracket Material | Hot dip galvanized steel | |||
Protection Wind Speed | 17 m/s | Snow Load | 0.5～1.6KN/㎡ | |||
Main Material | Q235B / Q355B | Galvanizing Thickness | ＞85um | |||
Fastener Material | 304 stainless steel | Mechanical Design Life (y) | ＞25 | |||
Design Code | ASCE7 EN1991 AS1170 GB50009-2012 | |||||
Foundation Form | Concrete | |||||
Extreme Wind Speed | 37 ~ 50M / S (ASCE7-10,other wind speeds can be customized) | |||||
Quality Assurance Period | The whole machine is guaranteed for 5 years (except for man-made damage and force majeure) | |||||
Working Temperature (℃) | General default configuration -30℃ ~ +70℃ special customized configuration -50℃ ~ +85℃ | |||||
Dual Axis Controller Parameters | ||||||
Control Algorithm | Astronomical algorithm + position sensor closed loop control | |||||
Controller Type | MCU | Core Control | MCU（32bit) | |||
Communication Protocol | RS485 | Gale Protection | have | |||
Night Return Mode | have | Backtracking Algorithm | have | |||
Anemometer | have | Protection Level | IP66 | |||
GPS | have | Rainwater Cleaning Mode | Optional | |||
Drive Protection | have | Snow Removal Mode | Optional | |||
System Voltage | DC24 | Driving Device | Slewing drive + Linear drive | |||
Driving Power (W) | 300W | Tracking Accuracy (°) | ≤1° | |||
Power Supply Mode | Self powered / external power supply | Azimuth Tracking Range (°) | -120 ° ~ + 120 ° / - 135 ° ~ + 135 ° (customizable) | |||
Daily Power Consumption (KWH) | ≤0.35kWh | Altitude Angle Tracking Range (°) | 0~60° | |||
System Power Supply | L+N(two-phase input) 100V~240V AC(wide voltage input) | |||||
Communication Protocol | RS485 | |||||
Network Communication Type | Bluetooth (customizable WiFi, 4G) | |||||
Protection Mode | Sensor protection + software protection | |||||
Details Images
Company Profile
About Us
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock, or it is 20-35 working days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
A: Generally solar tracker is 5-10 days if the goods are in stock, or it is 20-35 working days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below .
