WS 315 Portable TIG MMA Welder High Frequency Inverted DC 380V TIG welding machine
- Category: >>>
- Supplier: Shandong Hanqi Electromechanical Equipment Co. Ltd.
Share on (1600199668372):
Product Overview
Description
Products Description
Portable TIG MMA Welder High Frequency Inverted DC Welder
1. Upgraded Argon Arc Welder, TIG/MMA Dual Purpose Welder
2. It is widely used in hardware manufacturing, stainless steel door and window processing, household welding and other fields.
3. Inverted DC technology, beautiful shape
4. Small size, light weight, high efficiency and high load sustainability
5. Adjustable current, adjustable aftergas time and precise operation
6.Surrounding corner guard design, beautiful and generous, prevent collision
7. Portable design for mobile work
2. It is widely used in hardware manufacturing, stainless steel door and window processing, household welding and other fields.
3. Inverted DC technology, beautiful shape
4. Small size, light weight, high efficiency and high load sustainability
5. Adjustable current, adjustable aftergas time and precise operation
6.Surrounding corner guard design, beautiful and generous, prevent collision
7. Portable design for mobile work
Product Paramenters
Product Model: | WS 315A | |||
Product Description: | Constant Current Output/Inverter Energy Saving/Air Cooling/DC Output/Adjustable Current/Adjustable Backgas Time | |||
Scope of application: | Small hardware manufacturing / stainless steel doors and windows manufacturing / household kitchenware, furniture processing | |||
Rated Input Voltage: | 380V | |||
Rated input capacity: | TIG: | 7.9KVA | ||
MMA: | 13.1KVA | |||
Frequency: | 50-60Hz | |||
No-load Voltage: | 63V | |||
Load duration rate: | 40% | |||
Welding wire： | 1.6-2.0mm | |||
Insulation class: | Class F | |||
Protection level: | IP21S | |||
Output current: | TIG: | 10-260A | ||
MMA: | 15-260A | |||
Size and weight: | Product Dimension: | 485*200*360mm | ||
Poduct Weight: | 16.4kg | |||
Package Dimension: | 580*315*420mm | |||
Package Weight: | 20.7kg | |||

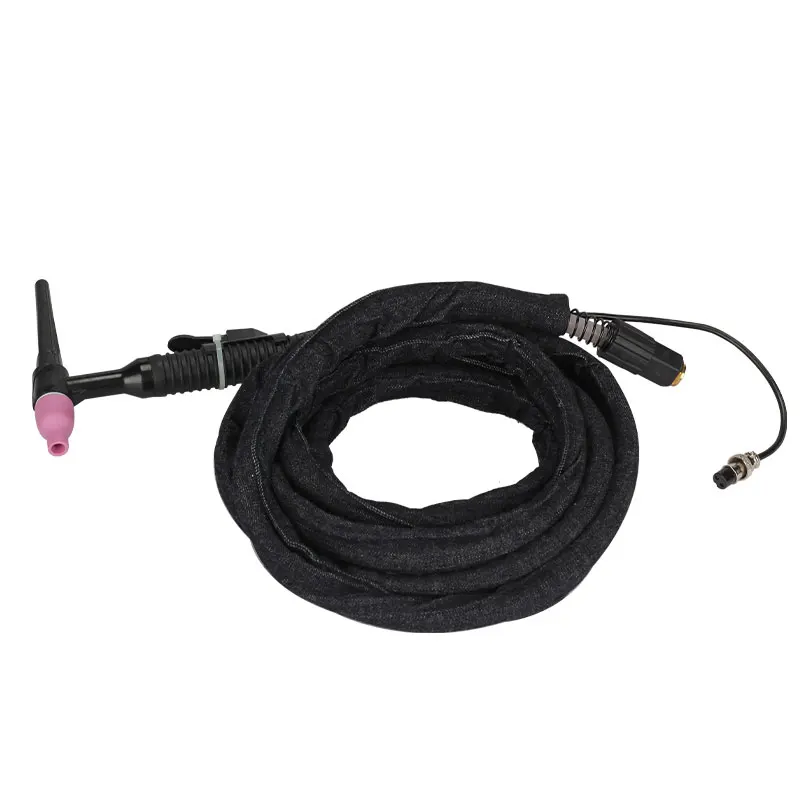

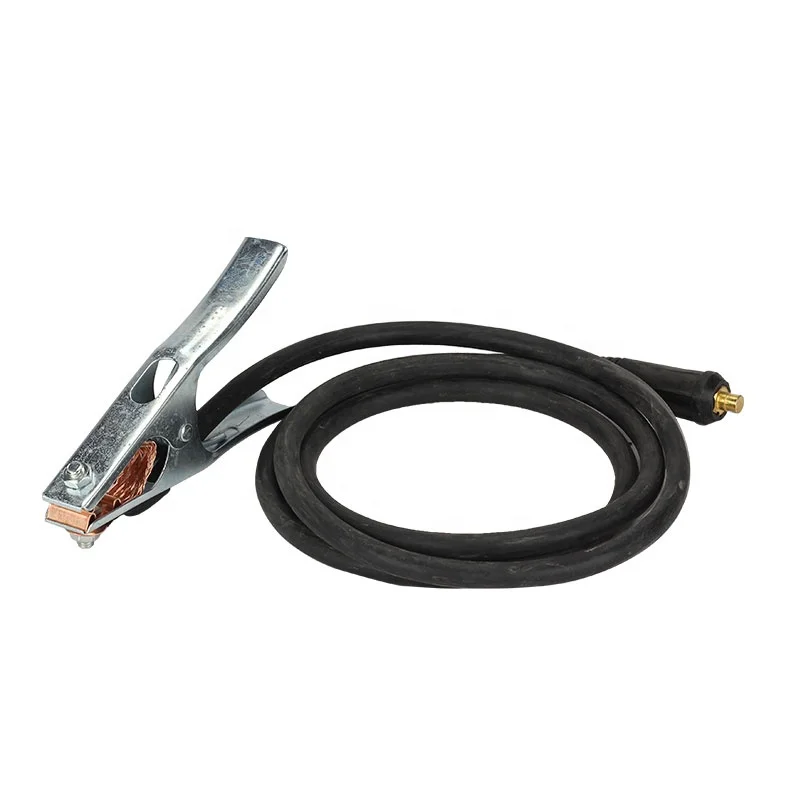

Accessories: | Standard accessories: | One 4m argon arc welding gun 1 set of 3M ground wire clamp 1 tungsten needle One hexagon wrench 1 quick plug 2 throat hoops | ||
Optional accessories: | Welding cap Argon gauge Fragile Parts | |||
Particular attention: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order | ||||
Details Images
Appearance details

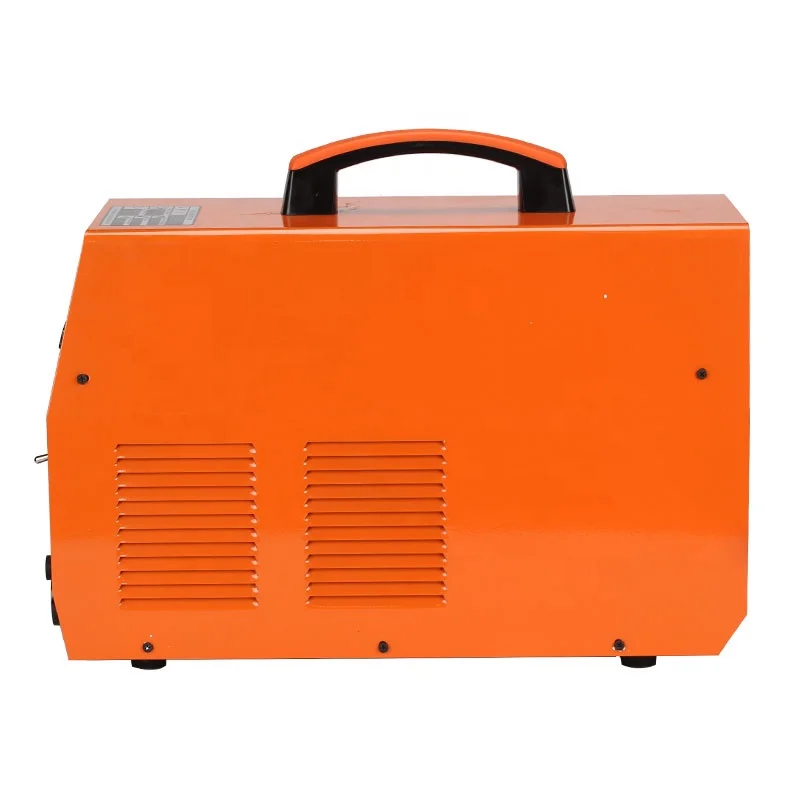

Portable design, suitable for mobile operation

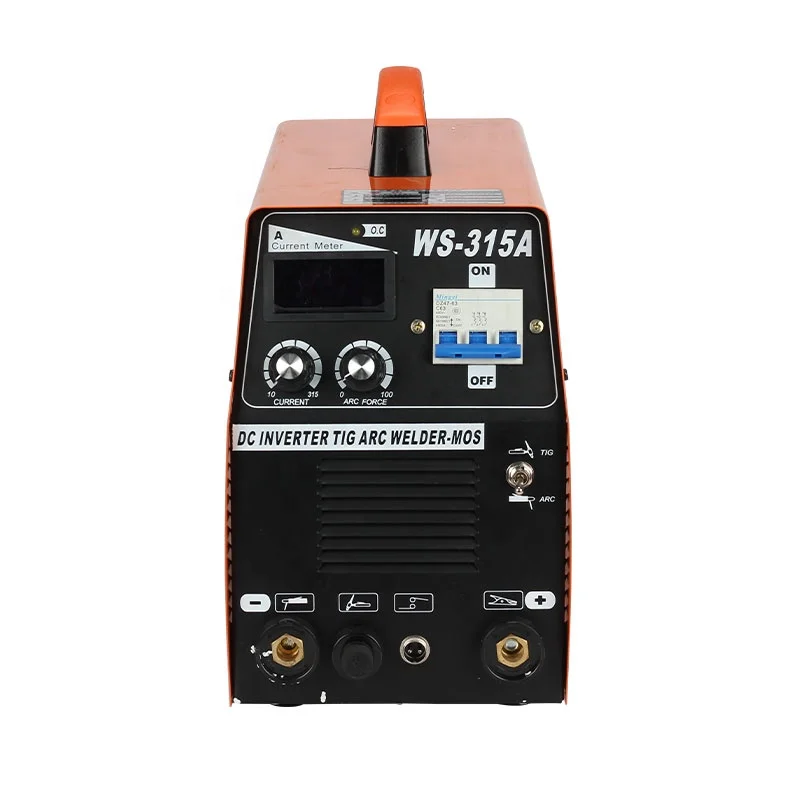

Front panel function
Adjustable current knob, more precise operation, adjustable rear air time button
Functional structure analysis

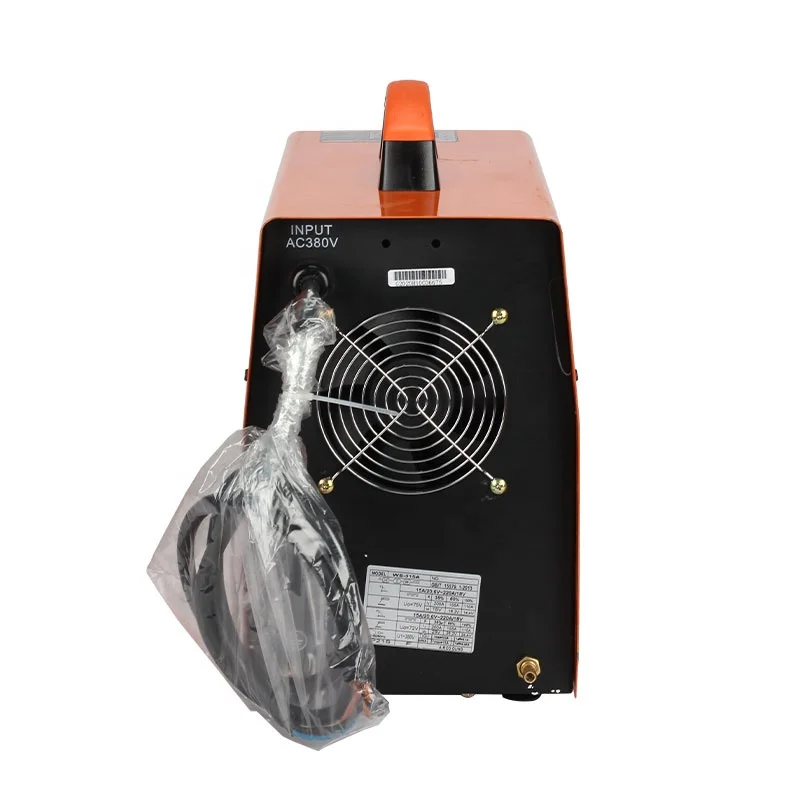

Built in IGBT module, large fan cooling faster, all copper transformer, more stable output
After-sale Service
Perfect after-sales service system
1. 24h online customer service, timely reply.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
