6000bph soda water beverage pet bottle filler beverage manufacturing bottling machinery for sale
- Category: >>>
- Supplier: Zhangjiagang Newlink Machinery Co. Ltd.
Share on (1600199709229):
Product Overview
Description
Products Description

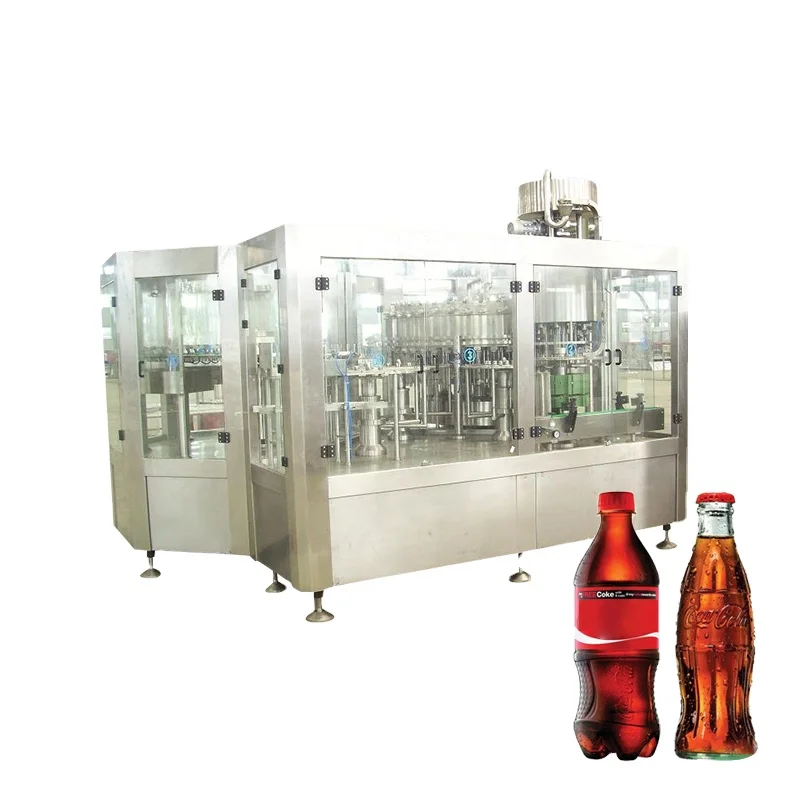

Bottle washing ,filling &capping machine
The machine is mainly used in the beverage filling operations. The three functions
of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The main contactor and electrical components apply Siemens. Frequency transducer applies EMERSON from America. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.
of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The main contactor and electrical components apply Siemens. Frequency transducer applies EMERSON from America. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.

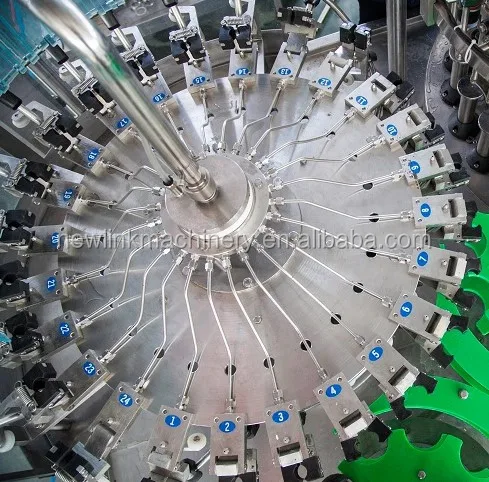

Washing part:
The bottle-rinsing system is composed of water distribution valve, bottle-holder, guiding rail and rotator plate. The outset of rinsing can be adjusted by adjusting the angles of water distribution valve. It is required that when the overturn of bottle is done entering the water curtain the water nozzle starts to spray water. The spraying position is set properly
Filling parts:
the position of filling must be adjusted by adding or decreasing the adjusting gasket to high or low the position respectively. There is an adjusting hole in the filling system. Rotate the adjusting handle in the adjusting hole to drive worm wheel system to rotate the four supporting bolts thus making the supporting plate for filling valves upwards or downwards, a
Capping parts:
The capping part will make the ordered caps by uscrambler twisted on the filled bottles,then transferred by conveyor chain to later process.Screw capping machine move back to the turntable through gear wheel, Making cover leave the hopper from the cap-outlet mouth under the action of centrifugal force, hopper were equipped with magnetic, making positive cap pass through bent slot device and the back cover continues to stay at hopper in the sciences, song groove clearance adjustable.

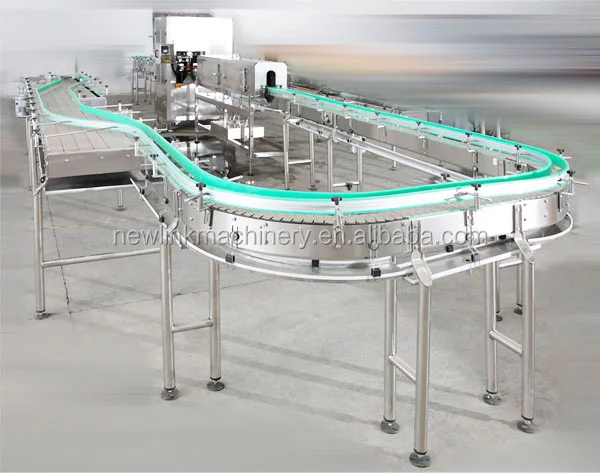

Bottle Conveyor System
Straight conveying system through the feet stand on the ground, the motor installed on the conveyor system side. Each motor with reducer and can adjust the speed. Filling the bottle, packaging via conveyor system platform, convenient and quick.
The main features
1, in addition to the guide rail, chain plate for plastics, nylon pieces, the others all is made of stainless steel (304).
2, through reducer, simple and convenient adjusting speed.
The main features
1, in addition to the guide rail, chain plate for plastics, nylon pieces, the others all is made of stainless steel (304).
2, through reducer, simple and convenient adjusting speed.
Product Paramenters
Model | Washing | Filling | Capping | Capacity(b/h)500ml | Motor power | Overall dimension(mm) |
parts | parts | parts | (KW) | |||
BFGF14-12-5 | 14 | 12 | 5 | 2000bph | 1.5KW | 2100x1400x2500 |
BFGF18-18-6 | 18 | 18 | 5 | 3000bph | 2.2KW | 2460x1720x2650 |
BFGF24-24-6 | 24 | 24 | 6 | 4000bph | 3KW | 3100x2100x2650 |
BFGF32-32-10 | 32 | 32 | 10 | 6000bph | 5KW | 3500x2500x2650 |
