Product Overview
Description

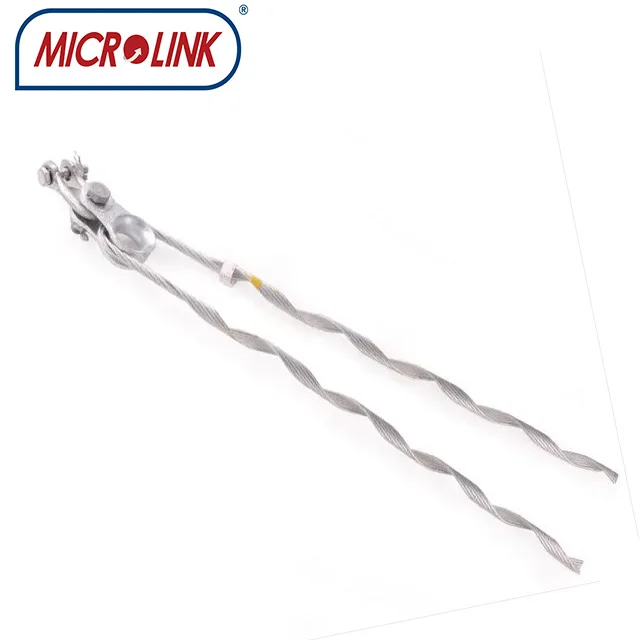

ADSS OPGW Cable Accessories Galvanized Helical Dead End Strain Clamp 5/16" 3/8" 1/2" 5/8" 7/8" Preformed Guy Grip Dead End
Product Description
Description
for transmission and distribution lines (like ADSS/OPGW cable etc), the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.

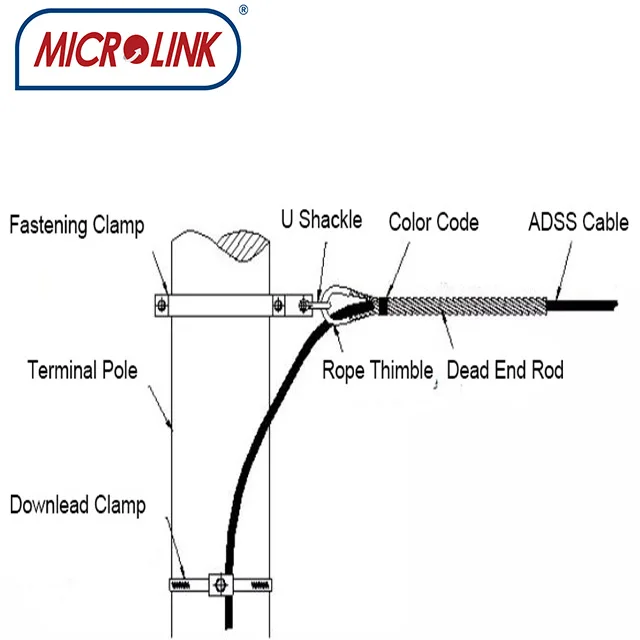

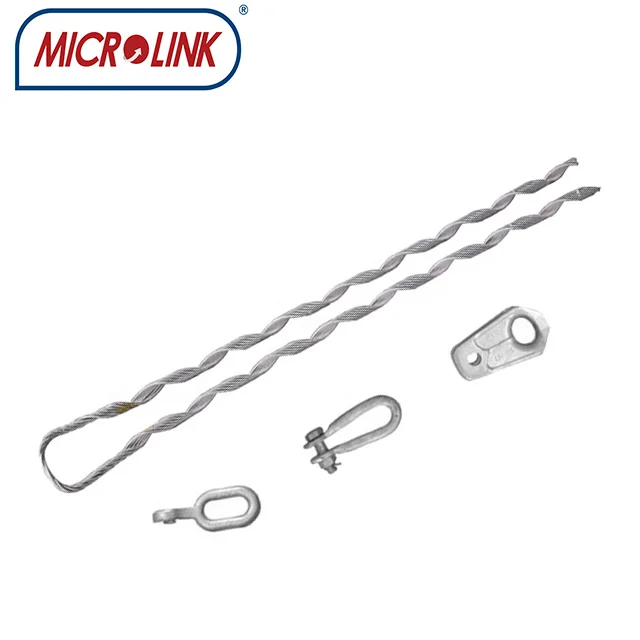

Structure & Materials
Shackle
Hot dip galvanized steel. Shackle is connected with Reinforcing Pole units.
Twisted Chain Link
Twisted Chain Link
Hot dip galvanized steel. Twisted Chain Link is intended for connecting U- Shackle and Clevis Thimble.
Thimble
Thimble
Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.
Armor Rods
Armor Rods
Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.

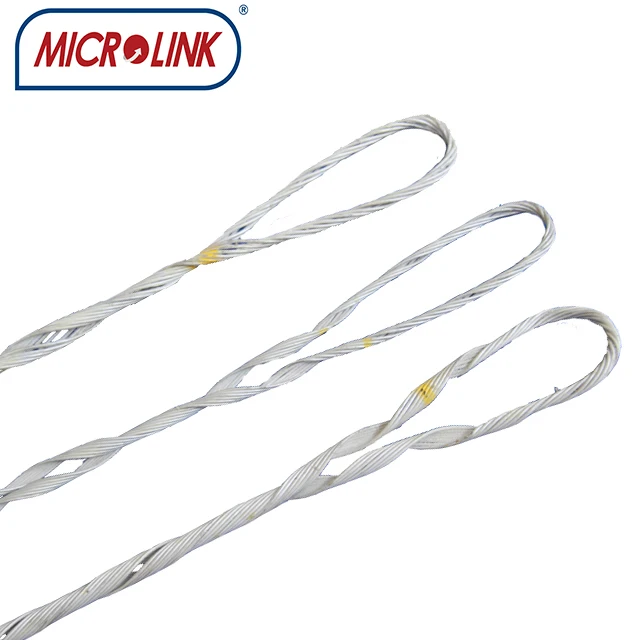

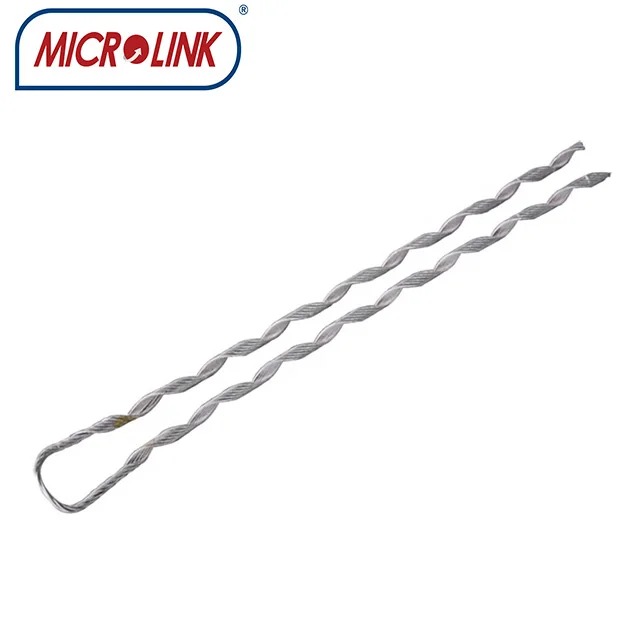

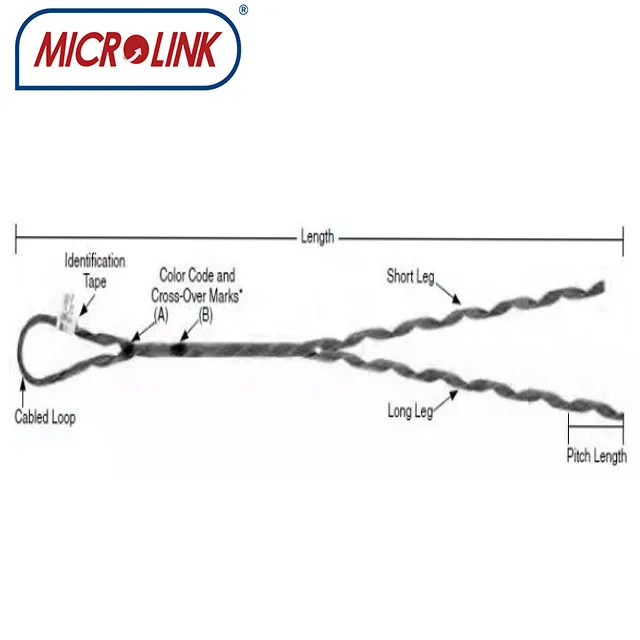

Preformed Dead End
Preformed Dead End
Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop, in order to increase gripping strength of Tension Clamps while decreasing side pressure.
Feature
High mechanical strength performance
Hot dip galvanized surface treatment against rust and corrosion
High tension strength

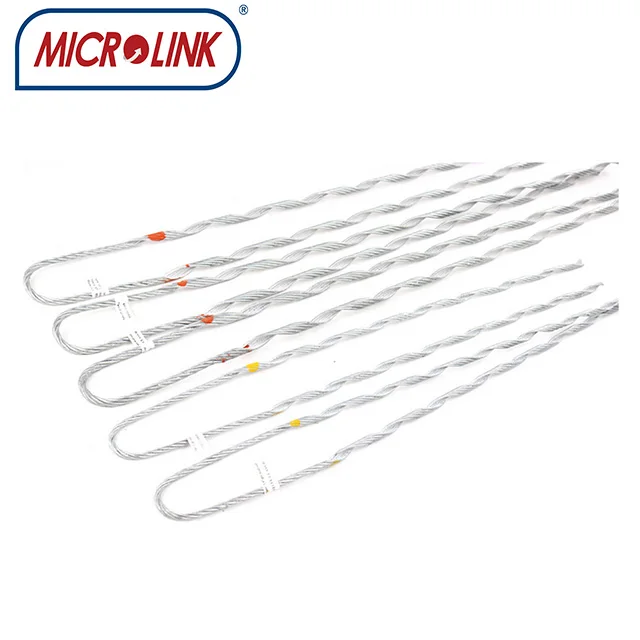

Color coded for easy identify
Abrasion and wear resistant
Abrasion and wear resistant
Reduce the obstacles caused by external impact
Wide range series for choise
Application
ADSS/OPGW etc overline fittings
DATESHEET
Art. No. | DIA Range | Standard | Length | Color Code | ||
mm | inch | DL/T763-2001 | mm | |||
MLGGD 032-033 | 3.02 ~3.38 | 1/8" | 320 | RED | ||
MLGGD 045-049 | 4.58~4.94 | 3/16" | 560 | BLUE | ||
MLGGD 054-057 | 5.40~5.75 | 560 | YELLOW | |||
MLGGD 062-066 | 6.20~6.60 | 1/4" | NL-25/G | 636 | GREEN | |
MLGGD 076-079 | 7.65~7.95 | 5/16" | NL-35/G | 790 | BLACK | |
MLGGD 089-093 | 8.93~9.30 | NL-50/G | 903 | RED | ||
MLGGD 093-097 | 9.35~9.71 | 3/8" | 903 | BLUE | ||
MLGGD 097~100 | 9.72~10.07 | 920 | YELLOW | |||
MLGGD 108-112 | 10.82~11.29 | 7/16" | NL-70/G | 1018 | GREEN | |
MLGGD 117-121 | 11.70~12.10 | 1050 | BLACK | |||
MLGGD 125-131 | 12.50~13.10 | 1/2" | NL-95/G,NL-100/G | 1335 | RED | |
MLGDD 139-146 | 13.91~14.60 | 9/16" | NL-120/G | 1464 | BLUE | |
MLGDD 146-152 | 14.61~15.20 | 1500 | YELLOW | |||
MLGDD 157-160 | 15.70~16.06 | 5/8" | 1560 | GREEN | ||
MLGDD 188-192 | 18.87~19.23 | 3/4" | 1780 | BLACK | ||

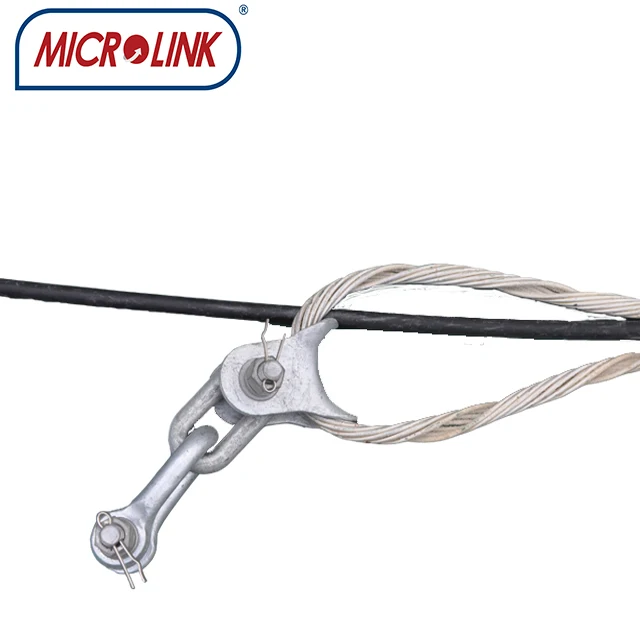

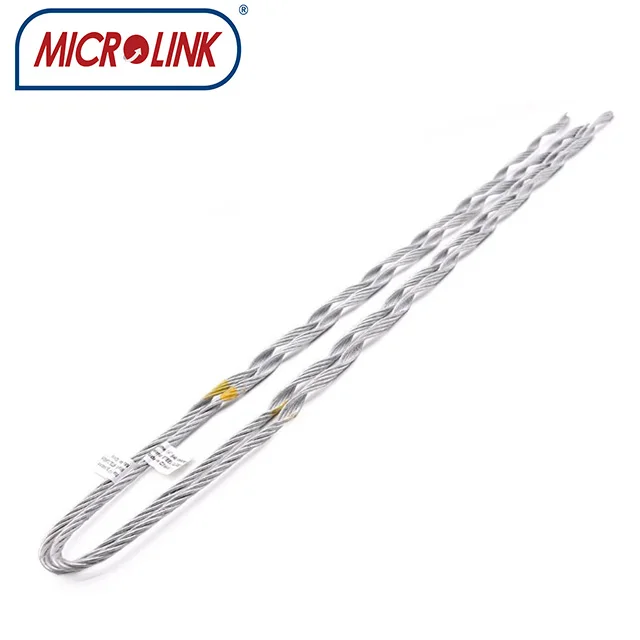

Detailed Images
