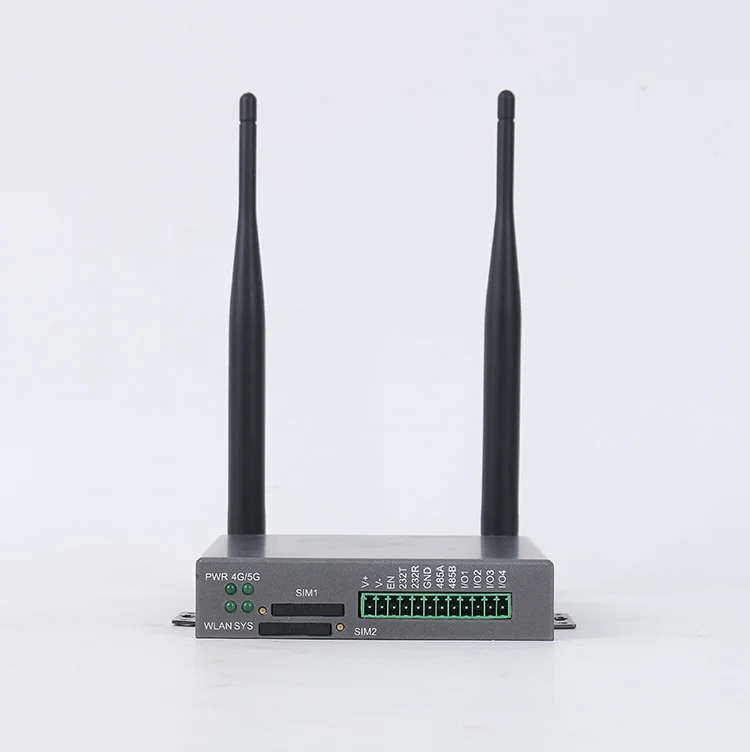

China Wholesale High Quality 300Mbps Control 4G Sim Sri Lankan Price Portable Wifi Battery Lan Router

Tech Specification

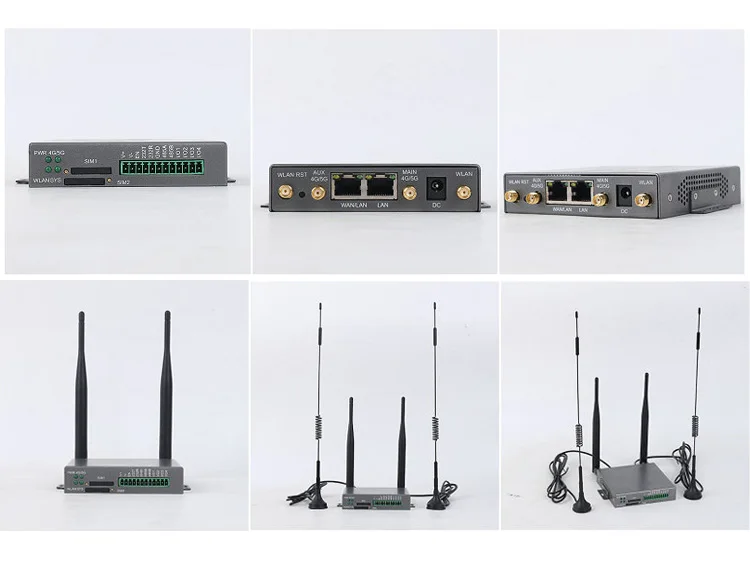

Picture	HYQ201W
H/W platform	CPU	QCA9531 650MHz
	RAM	DDR2 128MB
	Flash	16MB SPI NOR Flash
	2G/3G/4G	Optional Cellular Network(GSM/WCDMA/EVDO/TD-SCDMA/TDD-LTE/FDD-LTE )
		2G/3G/4G module is an optional accessory, and different modules support different standards. For example, in China, you can choose all Netcom modules (supporting China Mobile, China Unicom, and China Telecom), some modules that only support telecommunications, and some modules supporting both China Mobile and China Unicom.
WIFI	Standard	IEEE802.11 b/g/n
	Security	WPA-PSK/WPA-PSK2 encryption
		MAC Address Filter
		SSID Hidden
	Work Channel	2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
	Wireless Rate	2.4GHz: 300Mbps
	RF Power	802.11n:15dBm for OFDM mode
		802.11g: 17dBm for OFDM mode
		802.11b: 20dBm fro CCK mode
	Data transfer rate	802.11b: 1-11Mbps
		802.11g:6-54Mbps
		802.11n:MCS0-MCS23
	Reception Sensitivity	HT40-MCS7: -61dBm;
		HT20-MCS7:-64dbm;
	Transmission distance	100 meters without barrier
Supportable system	OpenWrt/LEDE,Qualcomm QSDK
VPN client	OpenVPN	Support
	PPTP	Support
	L2TP	Support
VPN sever	OpenVPN
System Management	Management method	WEB
	Upgrade backup	Support local and remote online firmware upgrade (optional); configuration file backup/import function
	Remote management	Support equipment management platform (need to be customized)
Bandwidth management	QoS	Bandwidth control function based on client IP or MAC
Virtual Server	Port Forward
	DMZ
Firewall	Block WAN ping packet
	Forbid UDP/TCP/ICMP flood attack
	Support IPsec,PPTP,L2TP Pass-Through
M2M	Console	Support MQTT/TCP protocol forward RS232/485 interface data to the server
DDNS	Support
Static Route	Support
System log	Support

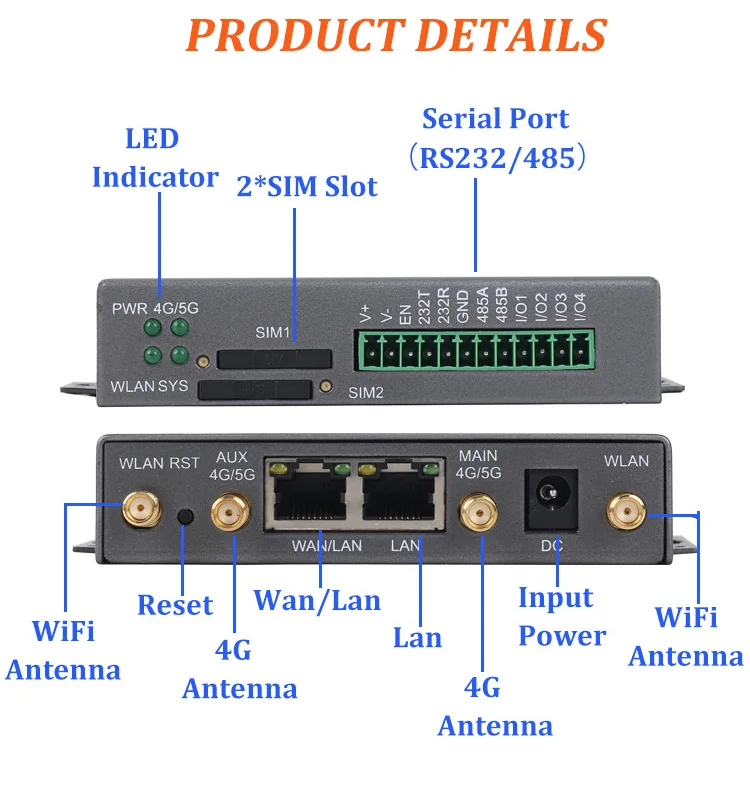

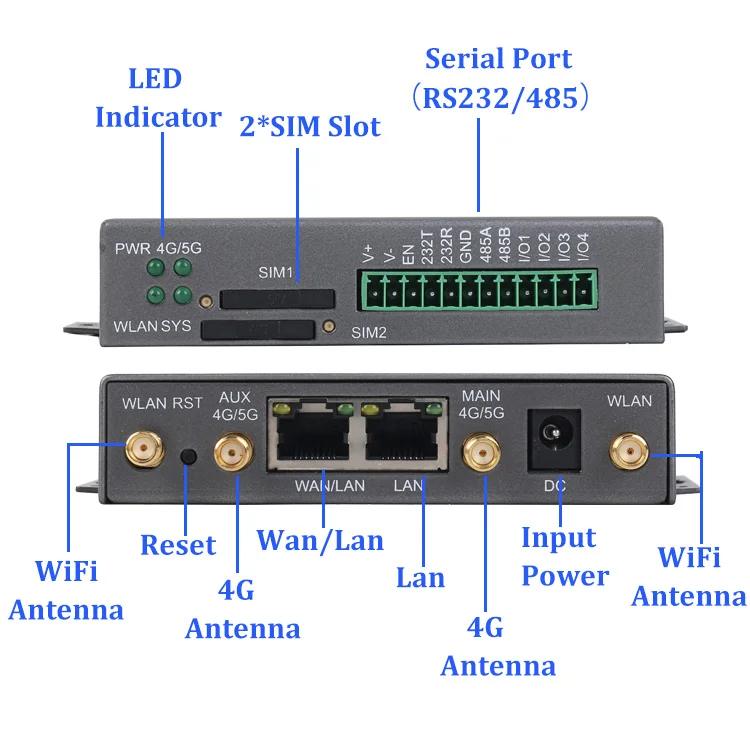

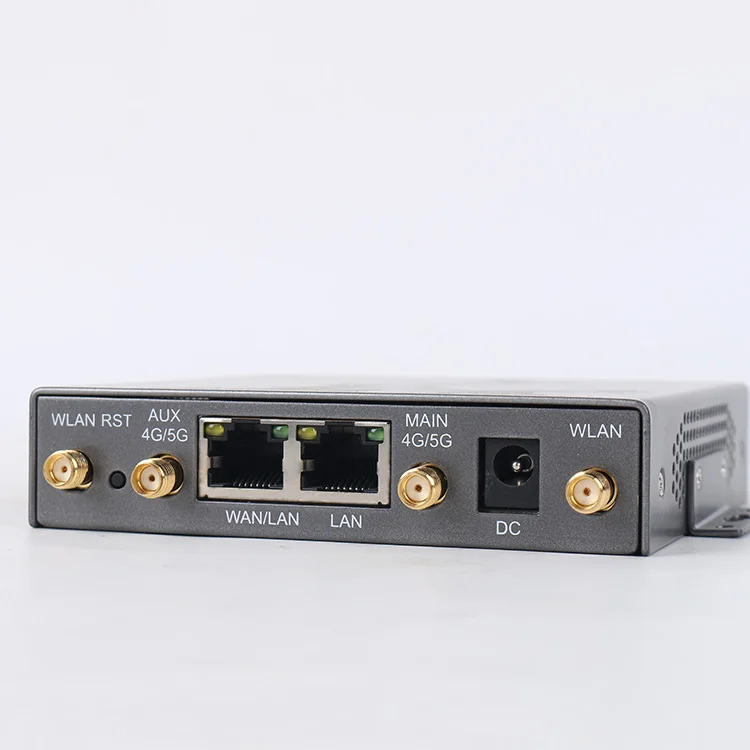

Ports	Ethernet	RJ45*2 10/100Mbps
		1*10/100M WAN port
		1*10/100M LAN port
		IEEE802.3/802.3u
	antennas	External WIFI N-Female antenna interface
		3G/4G antenna interface Main, AUX
	Power	Standard DC connector/3.5mm industrial terminal
	LED	Power LED
		System LED
		4G LED
		WLAN LED
	Cellular Module	No cellular Module by default, support can be customized module according to customer requirements: TDD-LTE,FDD-LTE,WCDMA,EVDO,TD-SCDMA

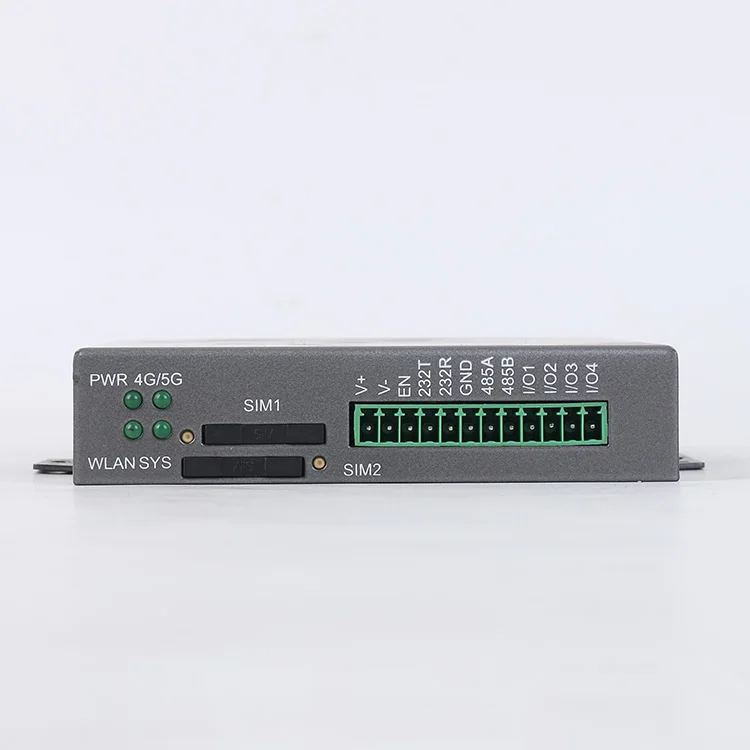

	SIM Slot	2* SIM slot Standard Card
	Button	1*Reset Button
Power	Power consumption	Max 10W
	Power	9-36V/1A DC input
Physical characteristic	Product Size	26.2cm*15cm*6.5cm(Lx Wx H)
	Net.Weight	450g
	Enclosure	Black Sheet Metal,Anti-rust, sun protection
Working Environments	Working Temperature	Operating Temperature:-40℃ ~ 85℃
		Storage Temperature:-45℃ ~ 90℃
	Working Humidity	Operating Humidity:10% ~ 90% RH non-condensing
		Storage Humidity: 5% ~ 90%RH non-condensing.
	Splash, Water, and Dust Resistant	Rated IP51

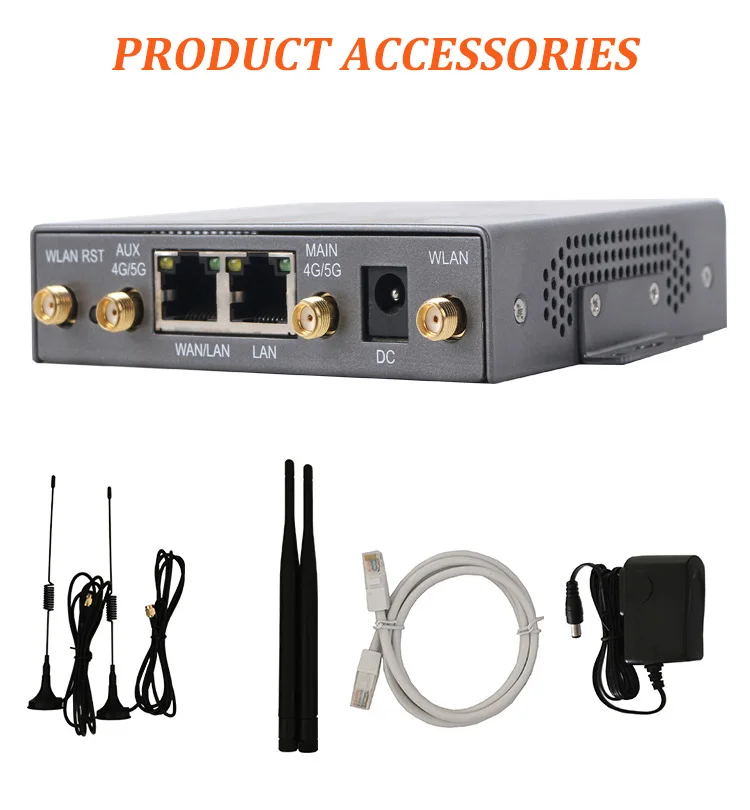

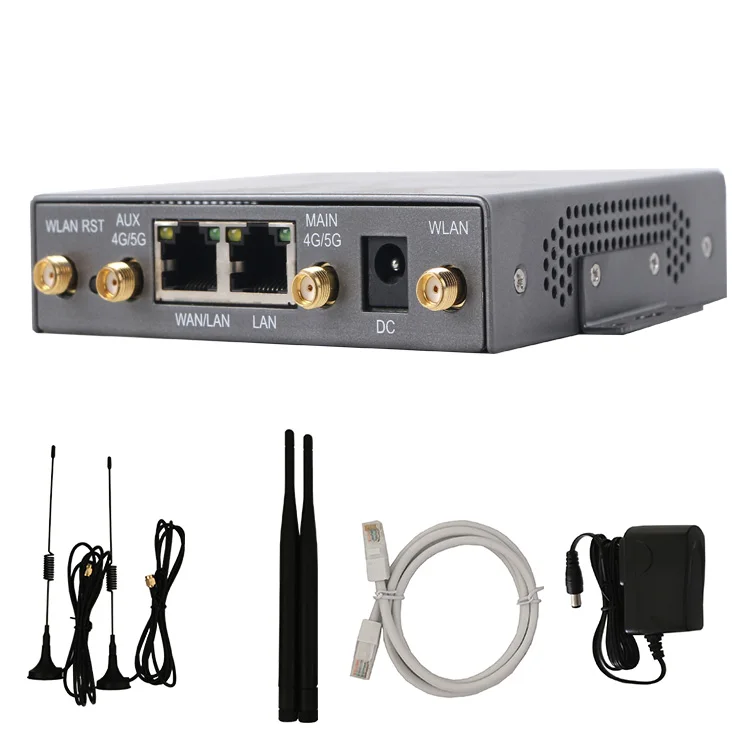

Package Content	Antennas	2G/3G/4G Antenna *2
		External WIFI N-Female antenna interface
	Power Adapter	DC12V/1A

1.What's your advantage?
A).Professional supplier on WIFI Router devices.
B).Low MOQ and Low price
C).On time delivery

2. Can you do the design for us?
Yes. We have professional R&D design team

3. How long can I expect to get the sample?
Within 3-7 working days after all the details accepted

4. What about the lead time for mass production?
Fastest delivery time within a week. Longest delivery time about 30 days.
It depends on our workshop production arrangements and the complexity of the product.

5. Can we visit your factory?
Of course. If you would like to visit our factory, please contact us to make an appointment.

6. Do you have accept OEM&ODM service ?
Yes ,We provide one step purchasing service including:

A).Flash customer's firmware

B).Products with customer's logo

C).Packing box with customer's logo

D).Customization labels
