Foundry lab unit for sand textural analysis, from manufacturer
The sand grain composition determination unit, model 01412, is intended for the determination of granulometric composition, fineness modulus and average grain size of molding sands using the vibration method. It is used in operations in soil laboratories of foundry workshops and central laboratories of enterprises.
Unit components

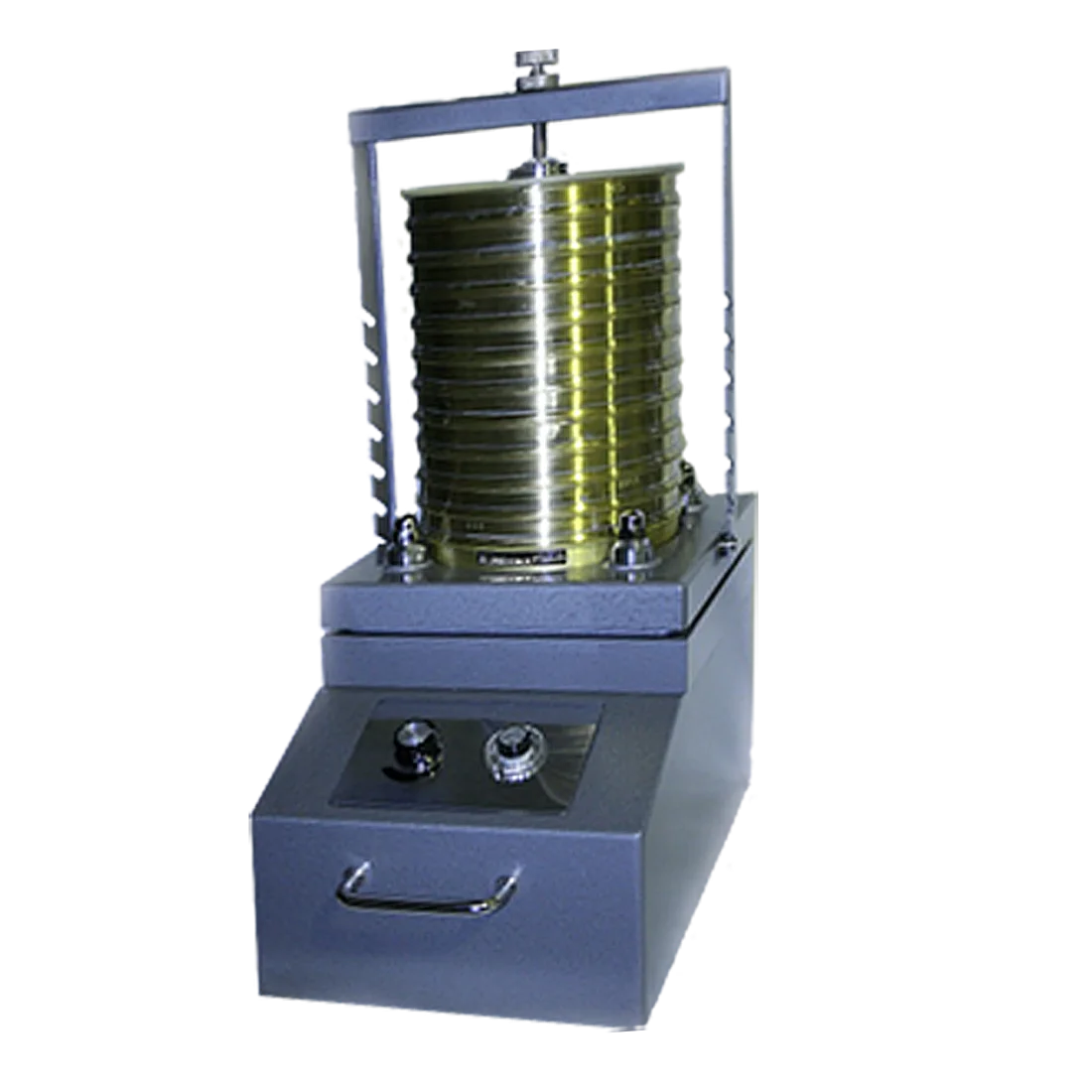

The unit consists of a housing which is intended for the assembling of all components of the unit. A vibration damper with an electromagnet is mounted inside the housing. A vibrator table is mounted to the upper part of the housing through which electromagnetic oscillations are transferred to the table with sieves. The sieves are mounted to the table with a clamping device.
Operation principle of the unit
The unit is controlled from a control panel with the following control elements: a toggle switch for the unit switching on/off, oscillation amplitude variation regulator, a time switch for screening duration setting. The 50 g weighed portion part (sand base) remaining after clay bond washing is dried out and placed onto the upper sieve screen. A basin is placed under the lower net, the upper one is closed with a cover. The assembled nest of sand testing sieves is installed onto the table and fixed. The unit is switched on by the toggle switch and is switched off automatically. After sieving, the whole tested sample is divided into twelve parts (11 sieves and one basin). Each part is weighed separately with accuracy of 0.01 g and the value is multiplied by two. Obtained values are expressed as a percentage of weighing remnants on each sieve in relation to the whole initial 50 g weighed portion.
Detailed Images
Packaging & Shipping
Packaging Details
Chipboard box
Port
Novorossiysk
Processing Time
5 days
FAQ
Is it possible to carry out a complex supply? Yes it is
Is the supply of related equipment from other Russian companies carried out under the contract? Yes
