Durable high productive moulding machine for making molds, from Russia
Jolt squeeze molding machines without half-molds turning with subsequent final squeezing. This machine is intended for manufacturing upper half-molds, and lower half-molds when using the canting device, in molding sections of foundry workshops of small-scale and serial production.

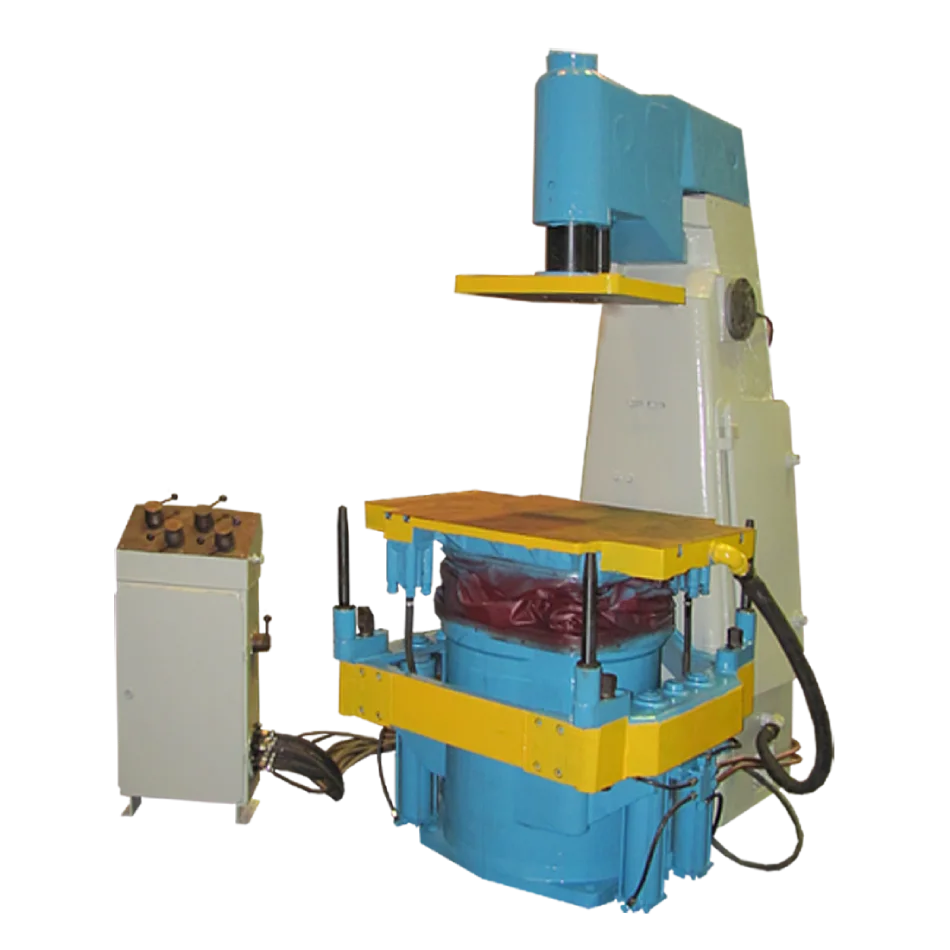

The range of jolt and jolt squeeze machines manufactured by our plant includes model 22112. This model is intended for manufacturing upper half-molds, and lower half-molds when using the canting device, in molding sections of foundry workshops of small-scale and serial production.
Field of application Casting shops forming rooms, small-scale and serial production plants.
Product design Main components: jolt squeeze mechanism, traverse, column, pneumatic equipment, lubrication system, control panel.
After installing of pattern and box equipment on machine table, filling frame is mounted, and mold box is filled with mixture. Pressing of "jolting" lever provides preliminary squeezing of mixture in mold box, then the filling frame is detached. After jolting, molding sand is filled into mold box. Further process operations are carried out in automatic mode. Operation mode lever is put into "automatic" position. Squeezing traverse is turned into operating position. Jolting and squeezing are performed simultaneously. After a period of time set for this operation the timing relay gives an instruction to stop simultaneous jolting and squeezing.
Injection cylinder and jolting table are lowered. When the squeeze piston is in the lower position a squeeze traverse is retracted in home position, vibration generator is turned on and drawing mechanism is lifted. Squeezed half-mold is divided from pattern by means of drawing mechanism pins. Half-mold is detached, pins are lowered into home position.
Detailed Images
Packaging & Shipping
Packaging Details
Chipboard box
Port
Novorossiysk
Processing Time
5 days
FAQ
Is it possible to carry out a complex supply? Yes it is
Is the supply of related equipment from other Russian companies carried out under the contract? Yes
About company
About company
Litmashpribor LLC is the oldest and one of the leading enterprises in Russia for the production of equipment and instruments for foundry production.
Thanks to the accumulated experience, our company can design and implement complex equipment for a specific customer. Our products are distinguished by their reliability and durability, as we use high-quality components from world brands and introduce new technologies in foundries.
Thanks to the well-coordinated work of our team, we manufacture products and provide services in the shortest possible time.
