mq 137 nh3 sensor module MQ8 methane cng gas sensor mq 4
- Category: >>>
- Supplier: Shenzhen Renyin Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (1600199809763):
Product Overview
Description
Product Description

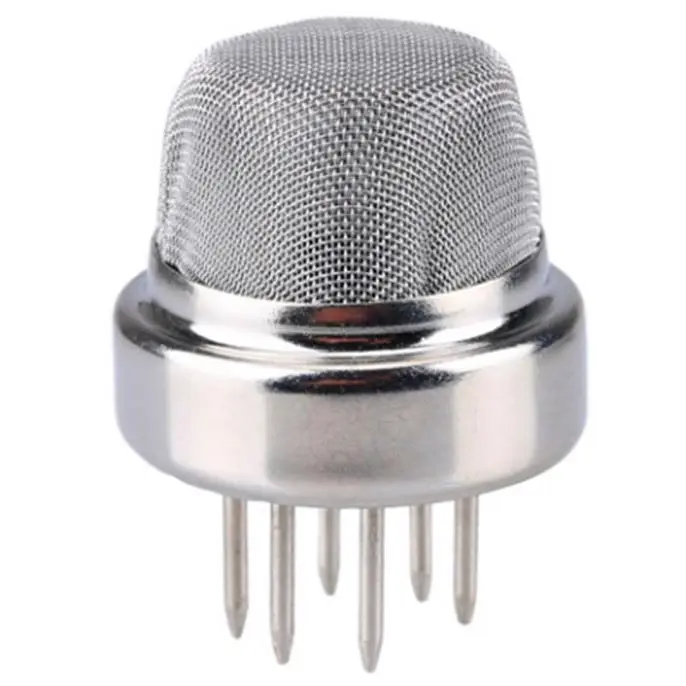

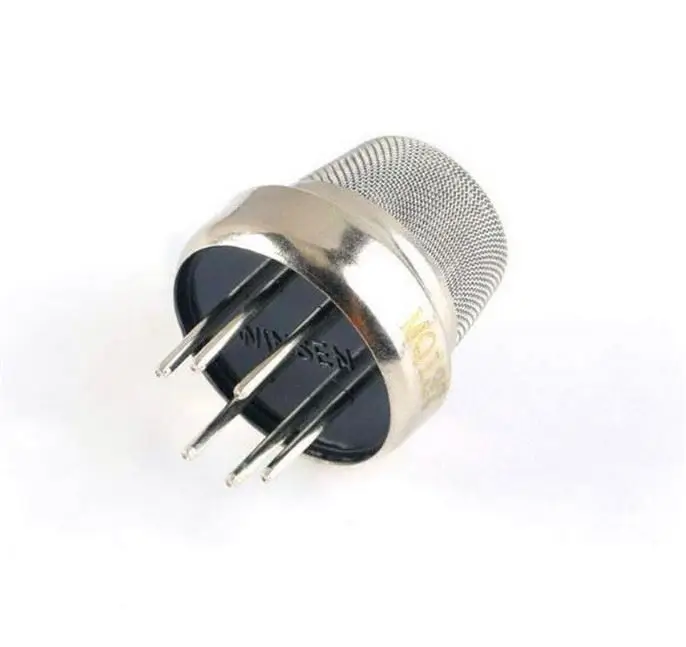

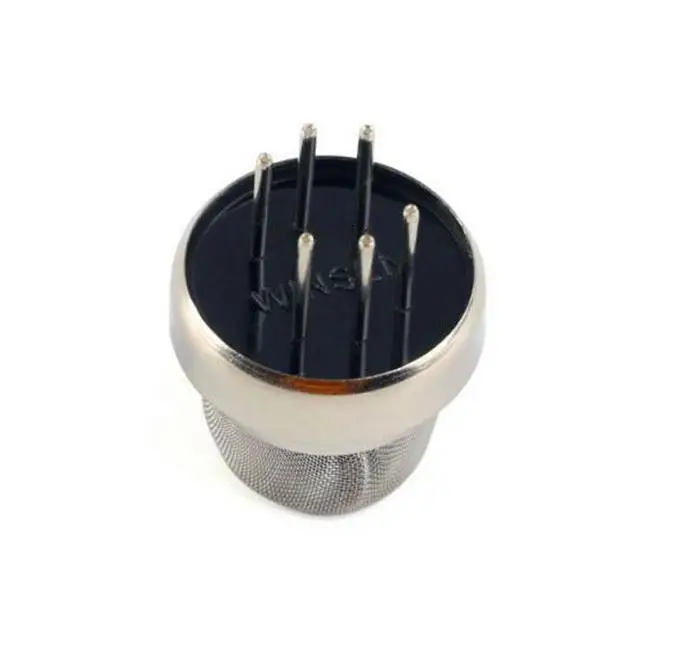

mq 137 nh3 sensor module MQ8 methane cng gas sensor - mq-4
MQ8 Parameter

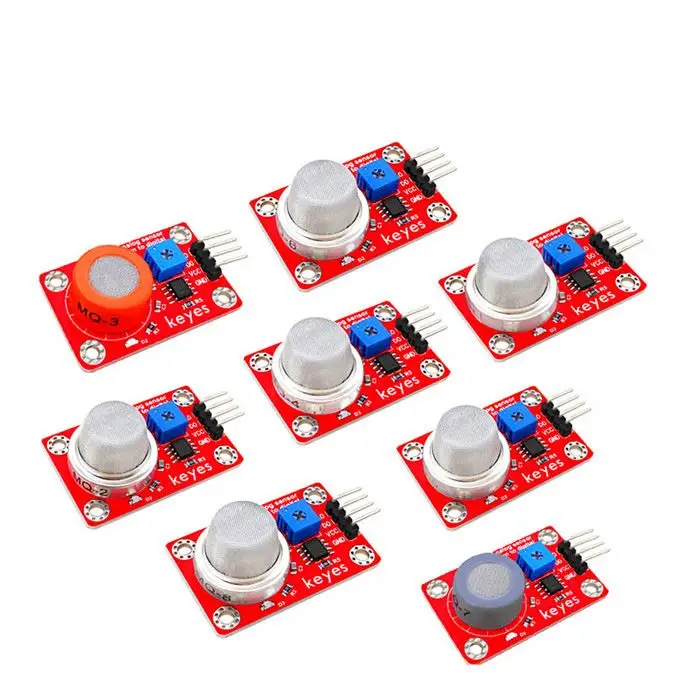

| gas sensor types | MQ-2 Smoke-sensitive sensor
MQ-3 alcohol sensor MQ-4 methane sensor MQ-5 LNG Natural Gas City Gas Sensor MQ-6 iso butane propane sensor MQ-7 carbon monoxide sensor module MQ-8 hydrogen sensor MQ-9 carbon monoxide flammable gas sensor MQ-135 Air Quality Detection Sensor |
 |
|||||
| gas sensor types2 | MQ131 Ozone Sensor (High Concentration Metal)
MQ131 Ozone Sensor (Low Thick Plastic Seal) MQ136 Hydrogen Sulfide Sensor (Metal) MQ137 Ammonia Sensor (Metal) MQ138 Formaldehyde Sensor (Metal) MQ139 Freon Sensor (Metal) MG811 CO2 Sensor (Metal) |
 |
|||||
|
size
|
32 (L) * 20 (W) * 22 (H)mm
|
||||||
| Product weight | 10g | ||||||
|
package
|
Anti-static bag
|
||||||

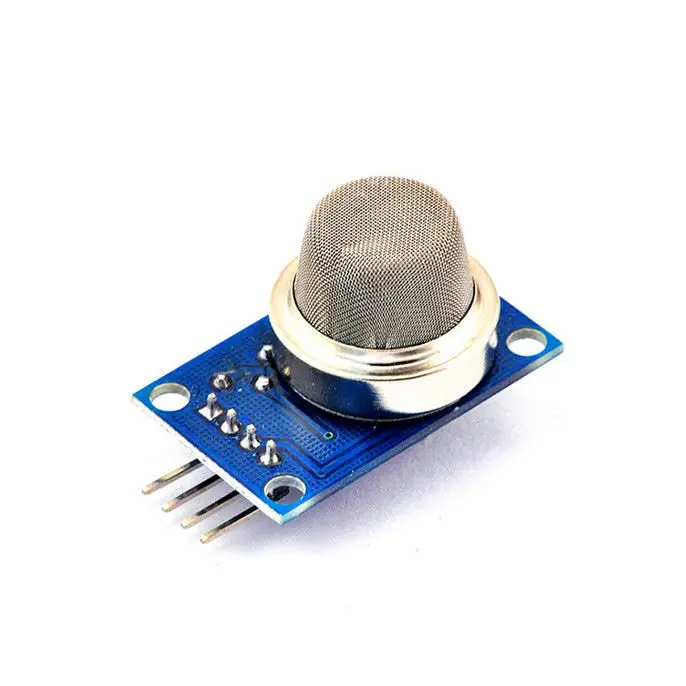

Module Features:
Using high-quality dual-panel design, with power indicator
and a TTL signal output instructions;
DO switching signal having (TTL) output and analog output AO;
TTL output valid signal is low. (When output low signal light,
can be directly connected microcontroller or relay modules)
Analog output voltage with the higher voltage, the higher
the concentration.
For carbon monoxide detector has good sensitivity.
There are four screw holes for easy positioning;
Product Dimensions: 32 (L) * 20 (W) * 22 (H)
Has a long life and reliable stability
Quick response and resume
Using high-quality dual-panel design, with power indicator
and a TTL signal output instructions;
DO switching signal having (TTL) output and analog output AO;
TTL output valid signal is low. (When output low signal light,
can be directly connected microcontroller or relay modules)
Analog output voltage with the higher voltage, the higher
the concentration.
For carbon monoxide detector has good sensitivity.
There are four screw holes for easy positioning;
Product Dimensions: 32 (L) * 20 (W) * 22 (H)
Has a long life and reliable stability
Quick response and resume
Electrical properties:
Input voltage: DC5V Power consumption (current): 150mA
DO output: TTL digital 0 and 1 (0.1 and 5V)
AO output: about 0.1-0.3V (relatively clean), the highest
concentration of voltage 4V
Special note: After the sensor is energized, needs to warm
up around 20S, measured data becomes stable, the sensor
fever is a normal phenomenon, because the internal electric
wire, if not normal hot
Input voltage: DC5V Power consumption (current): 150mA
DO output: TTL digital 0 and 1 (0.1 and 5V)
AO output: about 0.1-0.3V (relatively clean), the highest
concentration of voltage 4V
Special note: After the sensor is energized, needs to warm
up around 20S, measured data becomes stable, the sensor
fever is a normal phenomenon, because the internal electric
wire, if not normal hot
