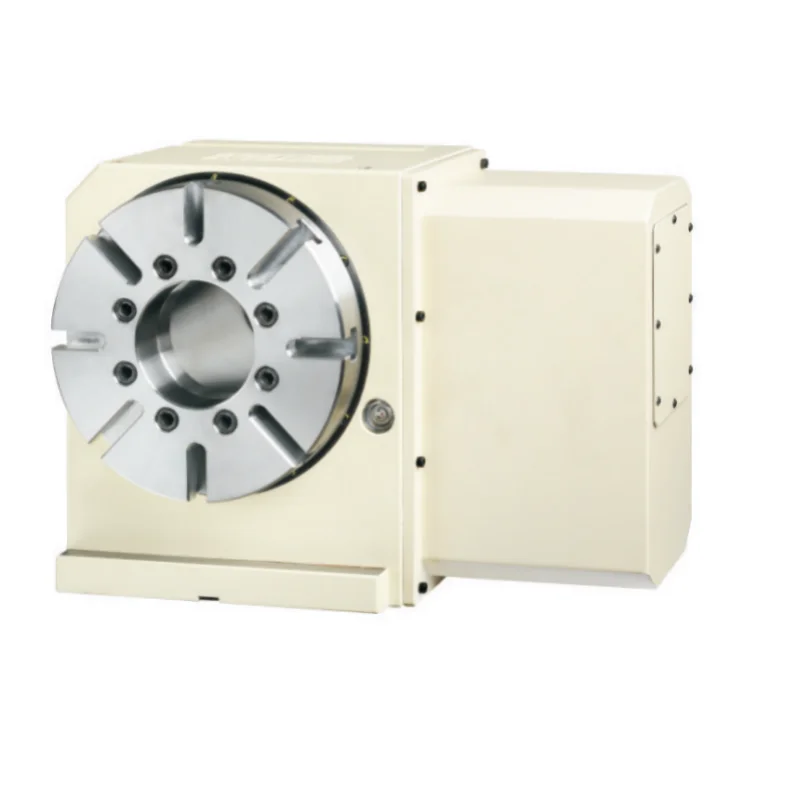

LEYO 4th axis cnc rotary cnc rotary table 4th axis
- Category: >>>
- Supplier: Dongguan Liyang Intelligent Technology Co. Ltd.
Share on (1600199854013):
Product Overview
Description
Specification
item | value |
Place of Origin | China |
Condition | New |
Applicable Industries | Consumer electronics, automobiles and locomotives, instruments and meters, electronic and electrical appliances, aerospace and machinery manufacturing industries |
After Warranty Service | Video technical support, Online support |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Brand Name | LEYO |
Warranty | 1 Year |
Free spare parts, Video technical support, Online support | |
Core Components | PLC, Bearing, Gearbox, Gear |
Diameter center | 170 mm |
Height of rotary table | 160 mm |
Central aperture front end | 55 mm |
T-slot width | 14H7 mm |
Key width | 18H7 mm |
Minimum angle setting unit | 0.001 deg |
Maximum number of turns | 80 rpm |
Total reduction ratio | 1:40 |
Segmentation accuracy | ±10 arc.sec |
Repeat accuracy | 4 |
Product Description
Model | Unit | LY-170 | LY-200 | LY-250 | ||
Diameter center | mm | φ170 | φ200 | φ250 | ||
Height of rotary table | mm | 160 | 160 | 210 | ||
Central aperture front end | mm | φ55 | φ65 | φ100 | ||
Central aperture Tail end | mm | φ40 | φ40 | φ100 | ||
Motor Standard Specification (straight axis motor) | FANUC αiF4 FANUCβiS8 MITSUBISHI HF104 | FANUC αiF4 FANUCβiS8 MITSUBISHI HF104 | FANUC αiF4 FANUCβiS8 MITSUBISHI HF154 | |||
T-slot width | mm | 14H7 | ||||
Key width | mm | 18H7 | ||||
Minimum angle setting unit | deg | 0.001 | ||||
Maximum number of turns | rpm | 80 | 80 | 60 | ||
Total reduction ratio | 1:40 | 1:40 | 1:50 | |||
Segmentation accuracy | arc.sec | ±10 | ||||
Repeat accuracy | arc.sec | 4 | ||||
Locking mode (oil pressure) | MPa | 3.0±0.5 | ||||
Maximum cutting torque (when brake is locked) | N.m | 330 | 450 | 1300 | ||
product weight | kg | 52 | 60 | 115 | ||
Load | kg | 100 | 120 | 180 | ||
kg | 200 | 260 | 360 | |||
kg | 200 | 220 | 360 | |||
Allowable load | N | 15500 | 18500 | 20500 | ||
N.m | 330 | 450 | 1300 | |||
N.m | 1100 | 1390 | 1800 | |||
Our customers
Our supplier
Packing & Delivery
Company Profile
Dongguan Leyo Intelligent Technology Co., Ltd is a CNC machine manufacturer, which is dedicatedto the design, production and sales of CNC machine. We have a number of high-level professional and technical personnel engaged in the production and research and development of CNC machine for a long ti-me, and have more than ten years of professional CNC machine manufacturing experience.
We have established close cooperation with world-class CNC system manufacturers such as Siemens, Mitsubishi, FANUC, LNC, SYNTEC,etc. And our main products are engraving machine, multi-head engraving machine, high-speed engraving and milling machine,multi-head engraving and milling machine, five axis high-speed engraving and milling machine, high-speed drilling and tapping center, five axis high-speed drilling and tapping center, machining center etc. It is widely used in aviation, electrical,electronic,communication, automobile, medical, handicraft, mold, mechanical parts, clothing, hand decoration and other fields. And they have the advantages of high rigidity, high precision and high efficiency. We also provide customized services, we can customize different machine according to customer’s demands.
Our company has superior geographical location , we are located in the “word factory” dongguan, 2 km away from Humen high speed railway station and 1 km from Dongguan International Convention and Exhibition Center. We sincerely welcome friends to visit and exchange views.
We have established close cooperation with world-class CNC system manufacturers such as Siemens, Mitsubishi, FANUC, LNC, SYNTEC,etc. And our main products are engraving machine, multi-head engraving machine, high-speed engraving and milling machine,multi-head engraving and milling machine, five axis high-speed engraving and milling machine, high-speed drilling and tapping center, five axis high-speed drilling and tapping center, machining center etc. It is widely used in aviation, electrical,electronic,communication, automobile, medical, handicraft, mold, mechanical parts, clothing, hand decoration and other fields. And they have the advantages of high rigidity, high precision and high efficiency. We also provide customized services, we can customize different machine according to customer’s demands.
Our company has superior geographical location , we are located in the “word factory” dongguan, 2 km away from Humen high speed railway station and 1 km from Dongguan International Convention and Exhibition Center. We sincerely welcome friends to visit and exchange views.
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways and tell us the specification you need so that we can offer you a quote.
2.Can you offer customized service?
-Yes.we can. We can customize the CNC machine according to your demands. And we also produce engraving machine, multi-headengraving machine, high-speed engraving and milling machine, multi-head engraving and milling machine, five axis high-speedengraving and milling machine, high-speed drilling and tapping center, five axis high -speed drilling and tapping center,machining center etc. If you need others, and change the specification or parts, please contact us.
3.What is your lead time?
2.Can you offer customized service?
-Yes.we can. We can customize the CNC machine according to your demands. And we also produce engraving machine, multi-headengraving machine, high-speed engraving and milling machine, multi-head engraving and milling machine, five axis high-speedengraving and milling machine, high-speed drilling and tapping center, five axis high -speed drilling and tapping center,machining center etc. If you need others, and change the specification or parts, please contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 working days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
4.What is your payment term?
-We will produce machine after receiving 50% of the payment for goods, and before delivery we need received the rest of money.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please contact with us before placing orders.
6.How do you make our business long-term and good relationship?
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
