DIN EN856 4SP 1/2 Inch Flexible Hose 4 Reinforced Layer Of Steel Wire Spiral
- Category: >>>
- Supplier: Tianjin Hoyite Rubber Products Co. Ltd.
Share on (1600200196319):
Product Overview
Description
DIN EN856 4SP 1/2 inch flexible hose 4 reinforced layer of steel wire spiral
HOYITE
Product Description

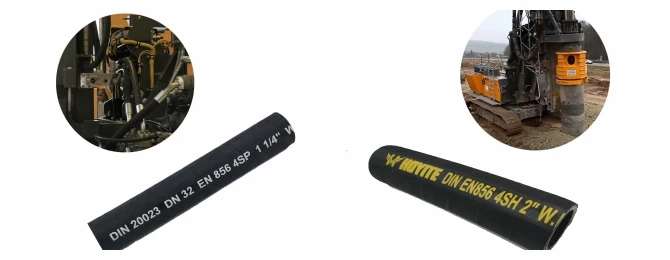

Application:
high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.

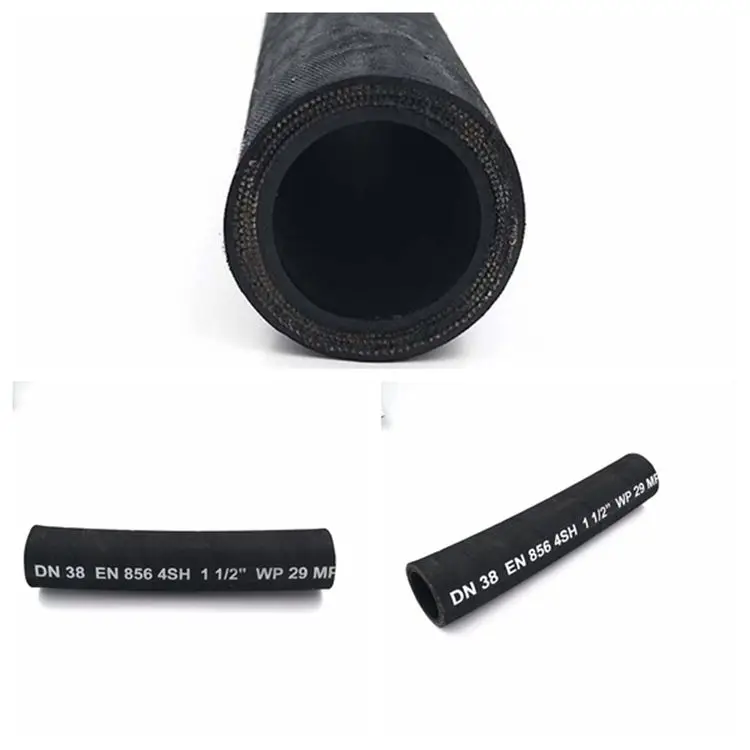

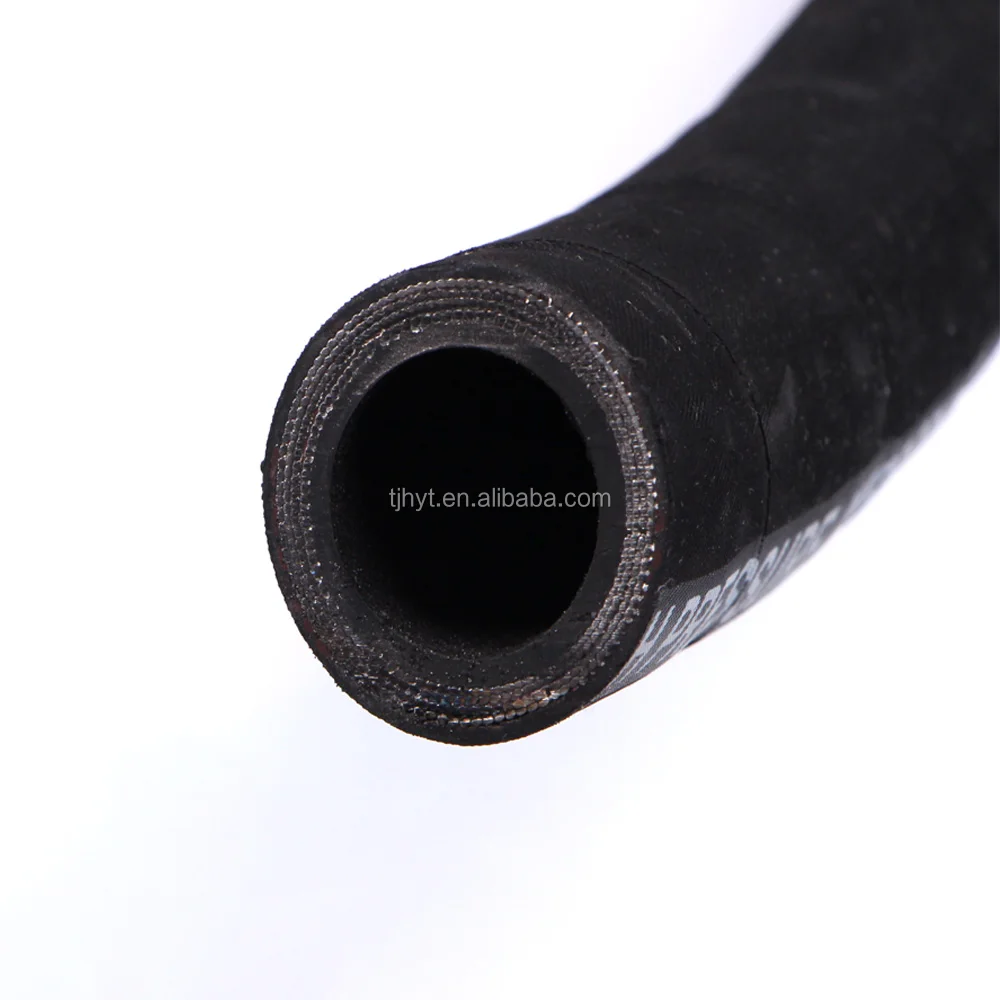

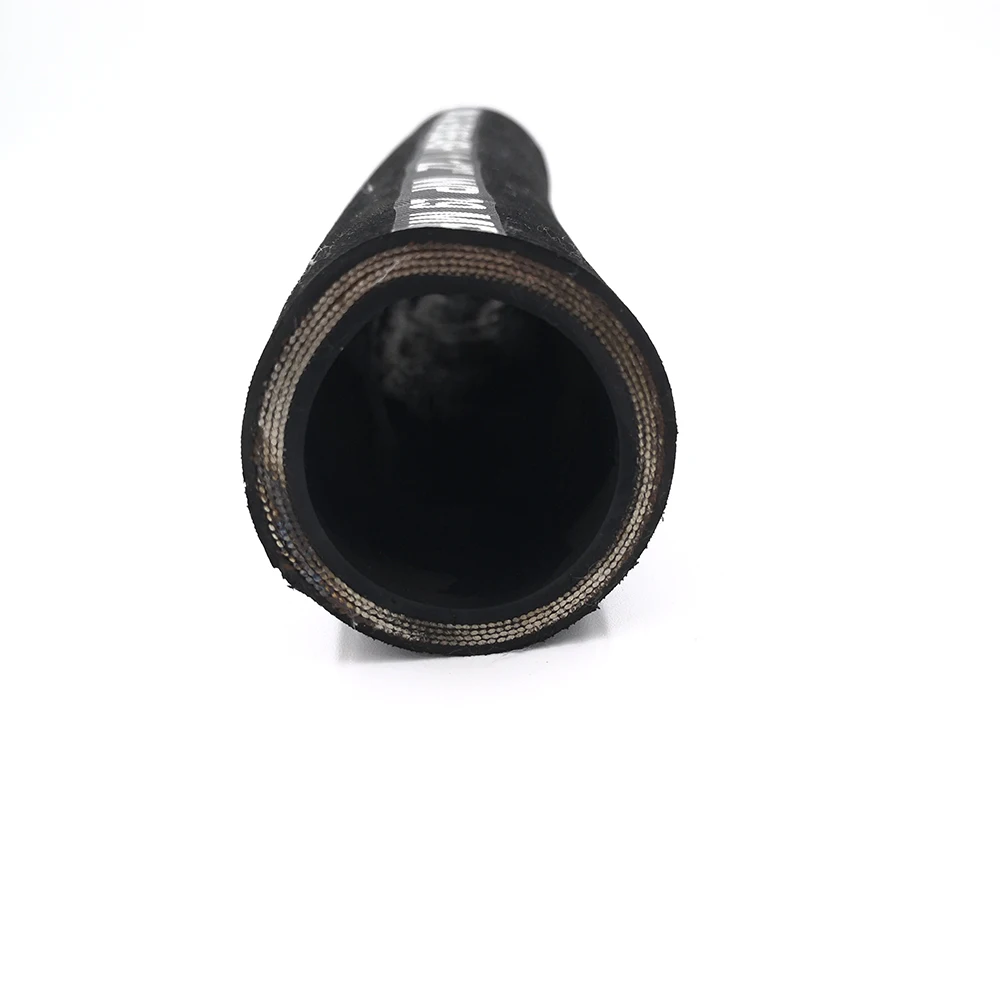

Construction:
INNER LAYER: oil resistant synthetic rubber
REINFORCED LAYER: four layers of steel wire spiraled
Outer LAYER: oil and weather resistant synthetic rubber
SURFACE: wrapped surface
REINFORCED LAYER: four layers of steel wire spiraled
Outer LAYER: oil and weather resistant synthetic rubber
SURFACE: wrapped surface
Details:
Brand Name: HOYITE
Product Name: DIN EN856 4SP 1/2 inch flexible hose 4 reinforced layer of steel wire spiral
Size: 1/2" (13 mm)
Material: synthetic rubber and high tensile steel wire
Color: black
Standard: DIN EN856 4SP
Length: 20/40/50/100 m/ROLL
Packing: woven bag
Working Pressure: 41.5 MPa
Min.Bend Radius: 230 mm
Size: 1/2" (13 mm)
Material: synthetic rubber and high tensile steel wire
Color: black
Standard: DIN EN856 4SP
Length: 20/40/50/100 m/ROLL
Packing: woven bag
Working Pressure: 41.5 MPa
Min.Bend Radius: 230 mm
Specification
DIN EN856 4SP 1/2 inch flexible hose 4 reinforced layer of steel wire spiral
Nominal Inner Diameter (inch) | Inside Diameter(mm) | Reinforced Layer Outside Diameter(mm) | Outside Diameter(mm) | Maximum Working Pressure(MPa) | Min.Bend Radius(mm) |
3/8 | 10 | 18.1 | 22 | 44.5 | 180 |
1/2 | 13 | 21 | 25 | 41.5 | 230 |
5/8 | 16 | 24 | 29 | 35 | 250 |
3/4 | 19 | 29 | 33 | 35 | 300 |
1 | 25 | 36.1 | 40.9 | 28 | 340 |
1-1/4 | 32 | 47 | 52.4 | 21 | 460 |
1-1/2 | 38 | 53.4 | 58.8 | 18.5 | 560 |
2 | 51 | 66.3 | 71.4 | 16.5 | 660 |

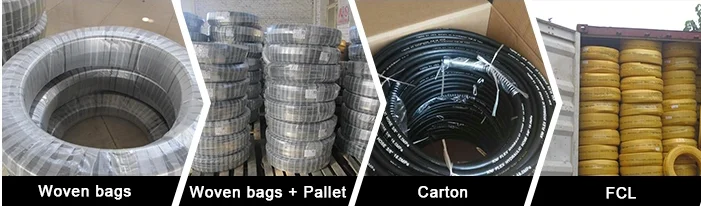

Packing & Delivery
"DIN EN856 4SP 1/2 inch flexible hose 4 reinforced layer of steel wire spiral" will be packaged like this:
1.In woven bag, pallet, Carton Packaging, Wooden Cases or Special Request.
2.Woven Belt 20 meters/roll, 50 meters/roll,100 meters/roll
3.If you need other packaging like wooden box and pallet,please contact us.

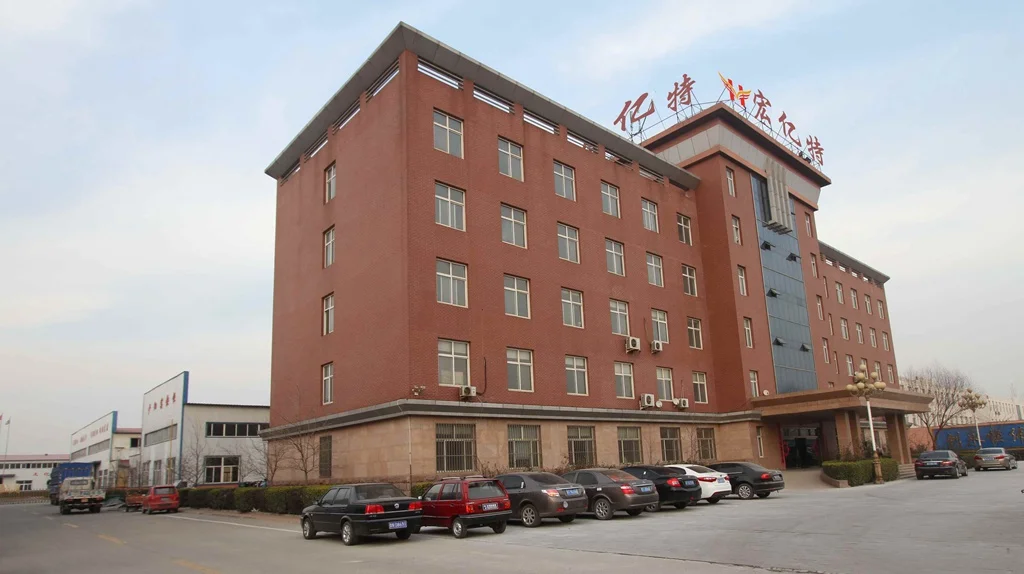

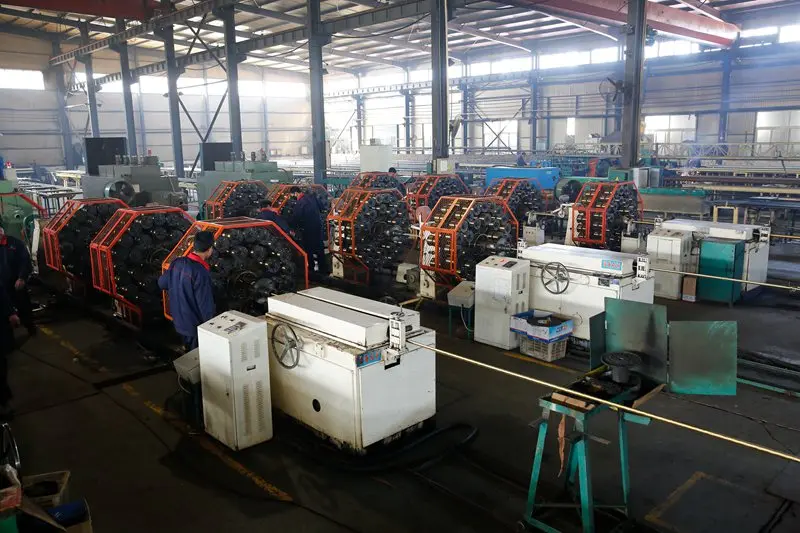

Company Profile
The company is located in China's largest industrial base in Tianjin, is a professional manufacturer of the production of high-voltage wire braided hose , high pressure hose winding wire , metal hose , oil drilling hose , large diameter mud suction and drainage hose , steel wire frame curtain fabric reinforced rubber hose , steel wire reinforced polyethylene composite pipe , marine oil ultrahigh-pressure hose , floating hose,hose crimping machine, cutting machine, skiving machine and rubber hose fitingis series, consisting mainly of high-tech enterprises · Products are widely used in engineering machinery , oil drilling , iron and steels melting , coal mining , vehicle , ship equipment , the port river dredging and chemical industry and other fields.

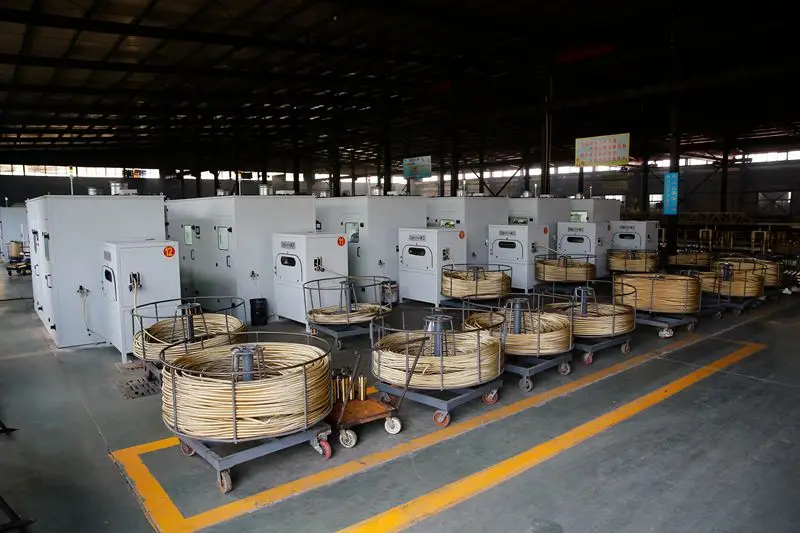

Through years of hard work , the company has been growing and developing since establishment in 2001.At present the existing staff is 1260 , including more than 80 engineering and technical personnels. It has 6 branch factories , an R&D center and a test center . The company covers an area of 82368 square meters , and its construction area is 51886 square meters . The registered capital is 122,080,000 yuan. The fixed assets reaches 120 million yuan . Our annual sales income is 350 million yuan , with annual exports reaching more than $,000,000. The existing equipment is more than 100 , and testing equipment is over 30.It has the capacity of annually producing 10,000,000 meters of various kinds of rubber hose.
We use perfect equipment, advanced technology, developed skills and management to serve our customers. We have obtained high praises from steel, mining, electronic and machine fitting companies.
Through years of hard work , the company has been growing and developing since establishment in 2001.At present the existing staff is 1260 , including more than 80 engineering and technical personnels. It has 6 branch factories , an R&D center and a test center . The company covers an area of 82368 square meters , and its construction area is 51886 square meters . The registered capital is 122,080,000 yuan. The fixed assets reaches 120 million yuan . Our annual sales income is 350 million yuan , with annual exports reaching more than $,000,000. The existing equipment is more than 100 , and testing equipment is over 30.It has the capacity of annually producing 10,000,000 meters of various kinds of rubber hose.
We use perfect equipment, advanced technology, developed skills and management to serve our customers. We have obtained high praises from steel, mining, electronic and machine fitting companies.
FAQ
1. Do you produce smooth or cloth wrapped cover?
Both, we can produce both cover, which depends on customer's request.
Both, we can produce both cover, which depends on customer's request.
2. Do you produce embossed marking?
Yes, we do provide embossed and printing markings with different color.
Yes, we do provide embossed and printing markings with different color.
3. Can you produce product with my own brand?
Yes, we have been offering OEM services for 20 years.
Yes, we have been offering OEM services for 20 years.
4. Does your product have different color hose?
Yes, we currently provide black, grey, red, blue and yellow.
Yes, we currently provide black, grey, red, blue and yellow.
5. How long does my order take to be delivered?
It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
