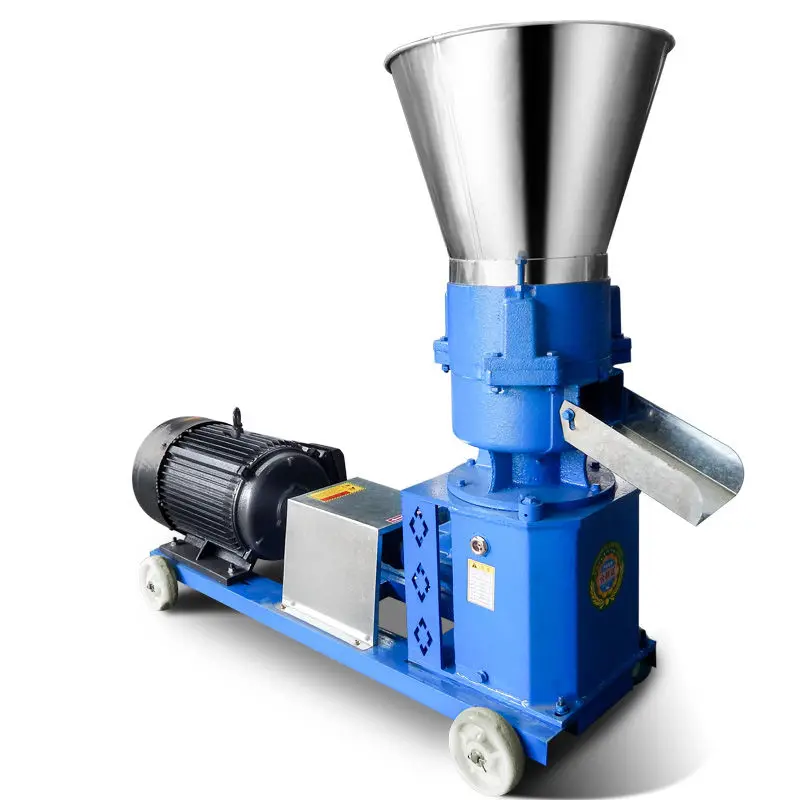

Household animal feed pellet machine, pellet mill, feed grinder

Product Overview

Description

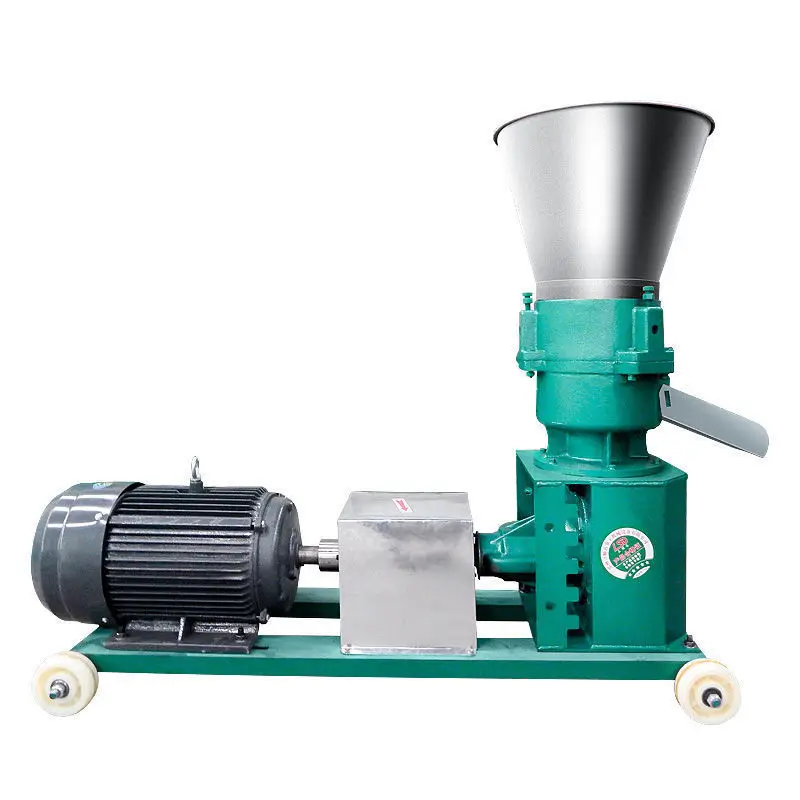

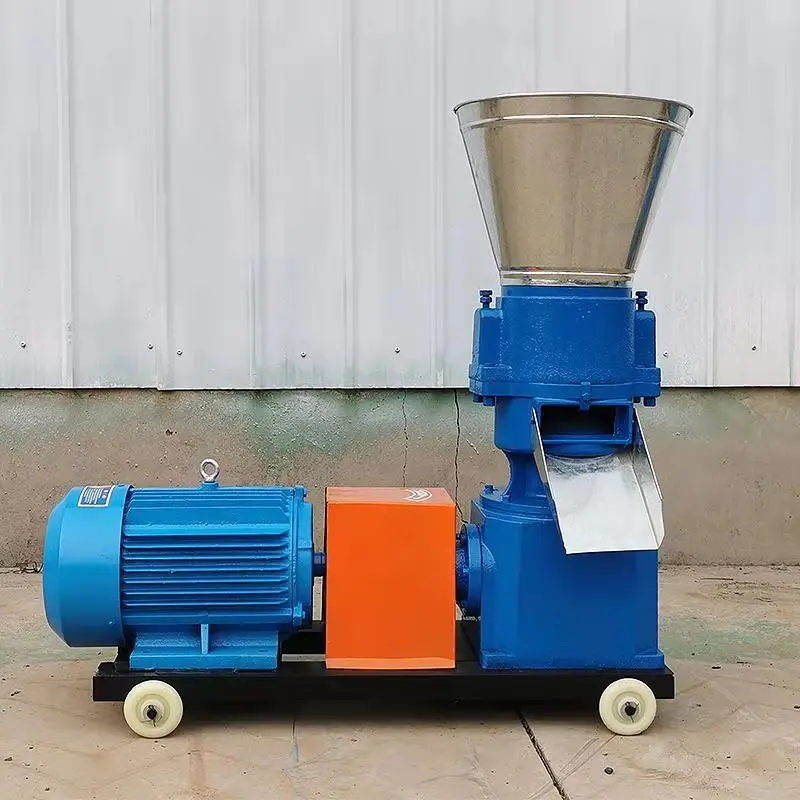

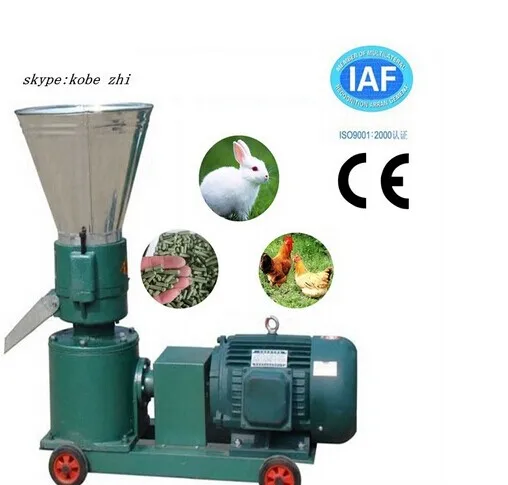

Small feed particle machine
Small feed particle machine, also known as small home feed particle machine.

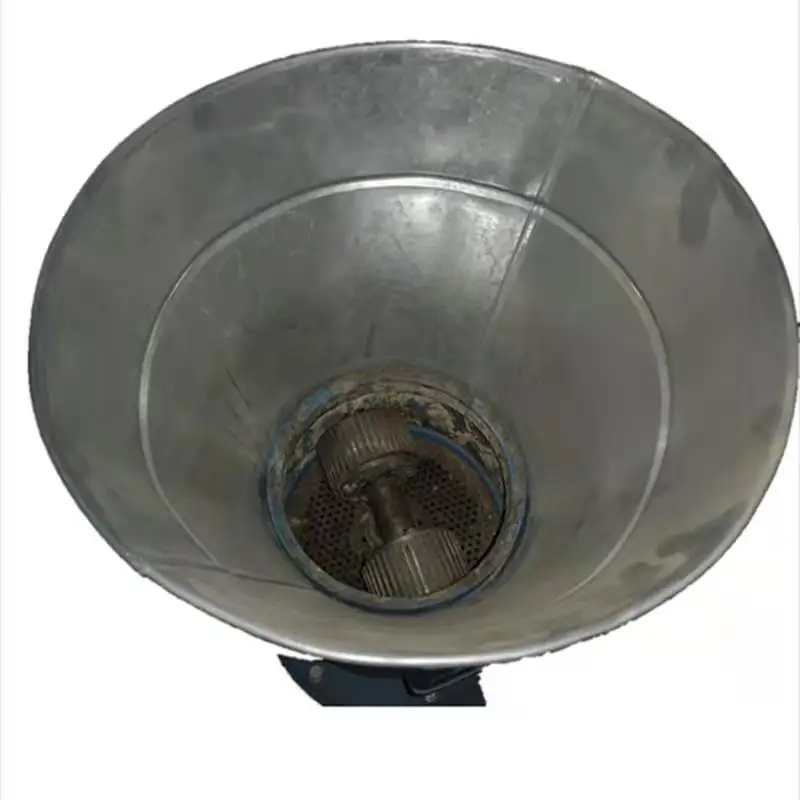

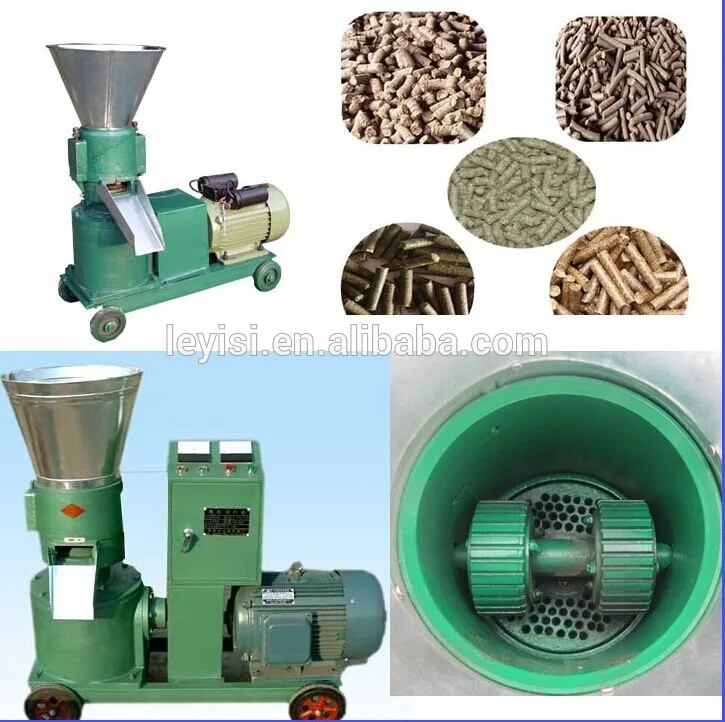

Yield 100-3000 kg / h, in a circular motion as a principle, template, roll made of high quality steel with a special treatment, spindle and flat die under the action of friction, drive roll rotation, the material between the roll and the template temperature gelatinization, protein denaturation coagulation, discharge from the die hole pressure roller extruder, the granules were sent by the rejection of trays outside the machine, through the incision adjustable length particles.



Type	HP	Capacity(kg/h)
JHP-120	6-8	80-120
JHP-150	8-12	150-200
JHP-200	15-18	200-300
JHP-250	20-24	300-500

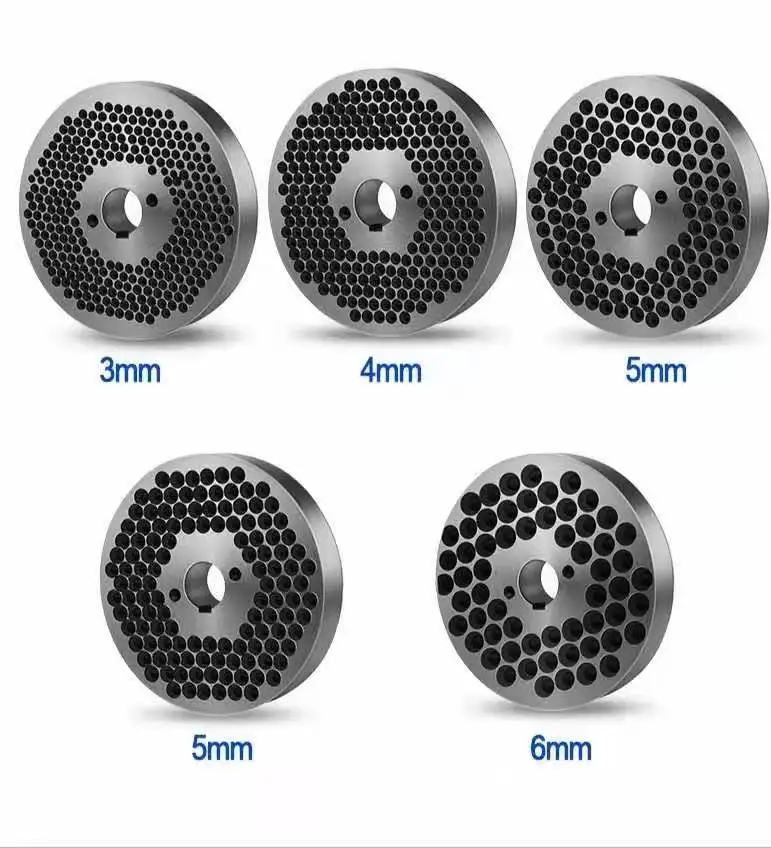

Type	Power (kw)	Pellet size(mm)	Capacity(kg/h)	Dimension(mm)	Weight(kg)
JH-120	3	2.5-6	80-100	750*300*850	70
JH-150	4	2.5-6	150-200	800*320*900	100
JH-200	7.5	2.5-6	250-300	920*390*960	120
JH-250	15	2.5-8	300-400	1150*420*1160	200





Type	HP	Capacity(kg/h)
JHP-120	6-8	80-120
JHP-150	8-12	150-200
JHP-200	15-18	200-300
JHP-250	20-24	300-500









1.One advantage: increased pressure roller after the bearing to increase and enhance the ability to withstand pressure.
2.Advantage two: increase the pressure after the round, so the temperature of extrusion friction bearings easily transferred to the room, to ensure that work at low temperature bearing grease does not overflow.
3.Three advantages: increased pressure roller after, can pinch roller can repair 2-3 times, to extend the service life, reduce production costs, increase profit margins of the project.
4.Four advantages of the model pressure roller with multiple uniform, smooth operation, while increasing the suppression area, improve production efficiency.
5.Advantage of five, has observed granulation chamber door, ready to check the ease of maintenance and repair.

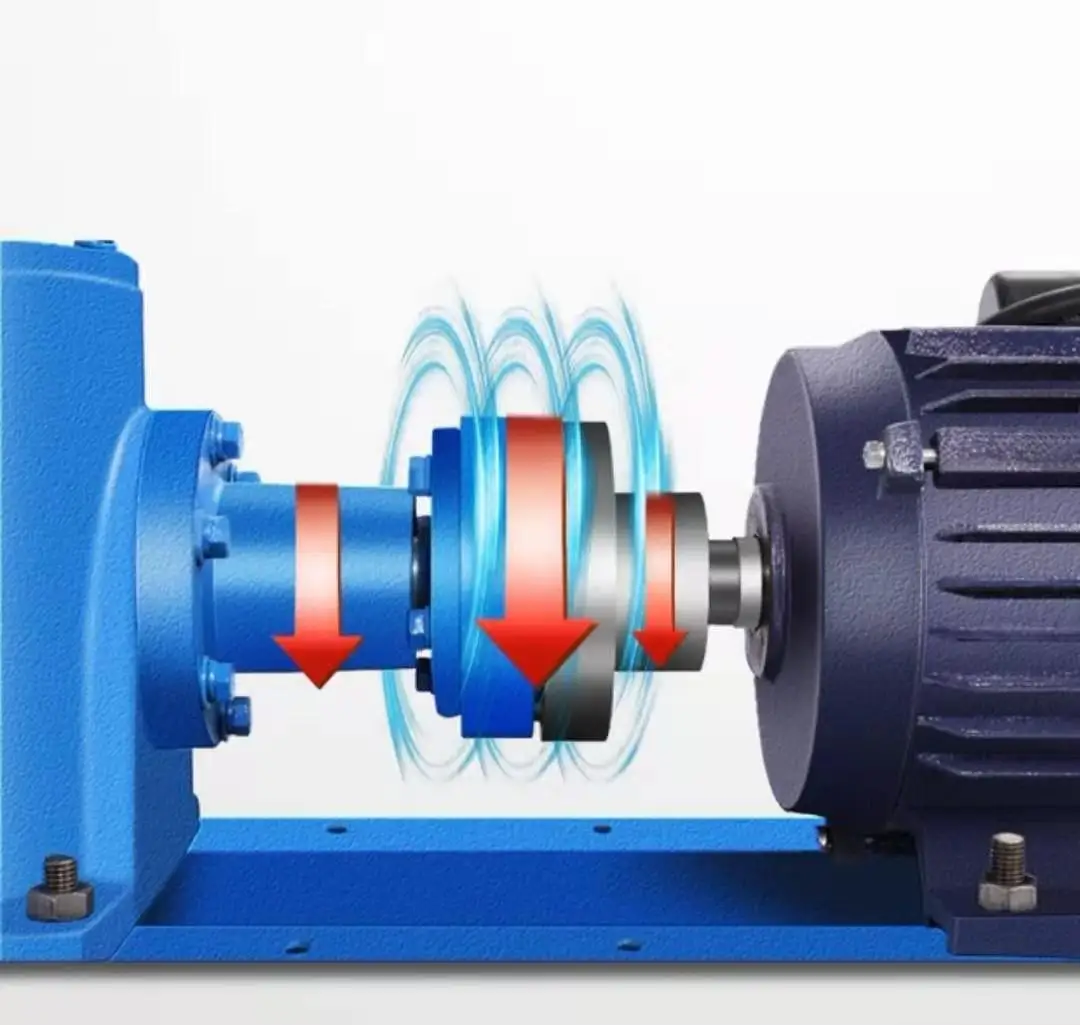

Small feed particle machine does not require the use of shaft driven belt can make the particles, the use of High-Tech, led many advanced than the original belt, the machine do not need to add any water particles, it is dry dry-out kind. The time of manufacture, we have for the small size farming use, the particles can be made at the same time save a long time, more than six months is not a problem. But also play a role in the process of sterilization operation. The maximum temperature of 75 degrees, you can kill microbial strains, but also will not affect the material.
Templates and pressure roller particle machine uses high alloy wear-resistant material refined, has a long life, reasonable structure, strong and durable.
