Product Overview
Description
Product Description

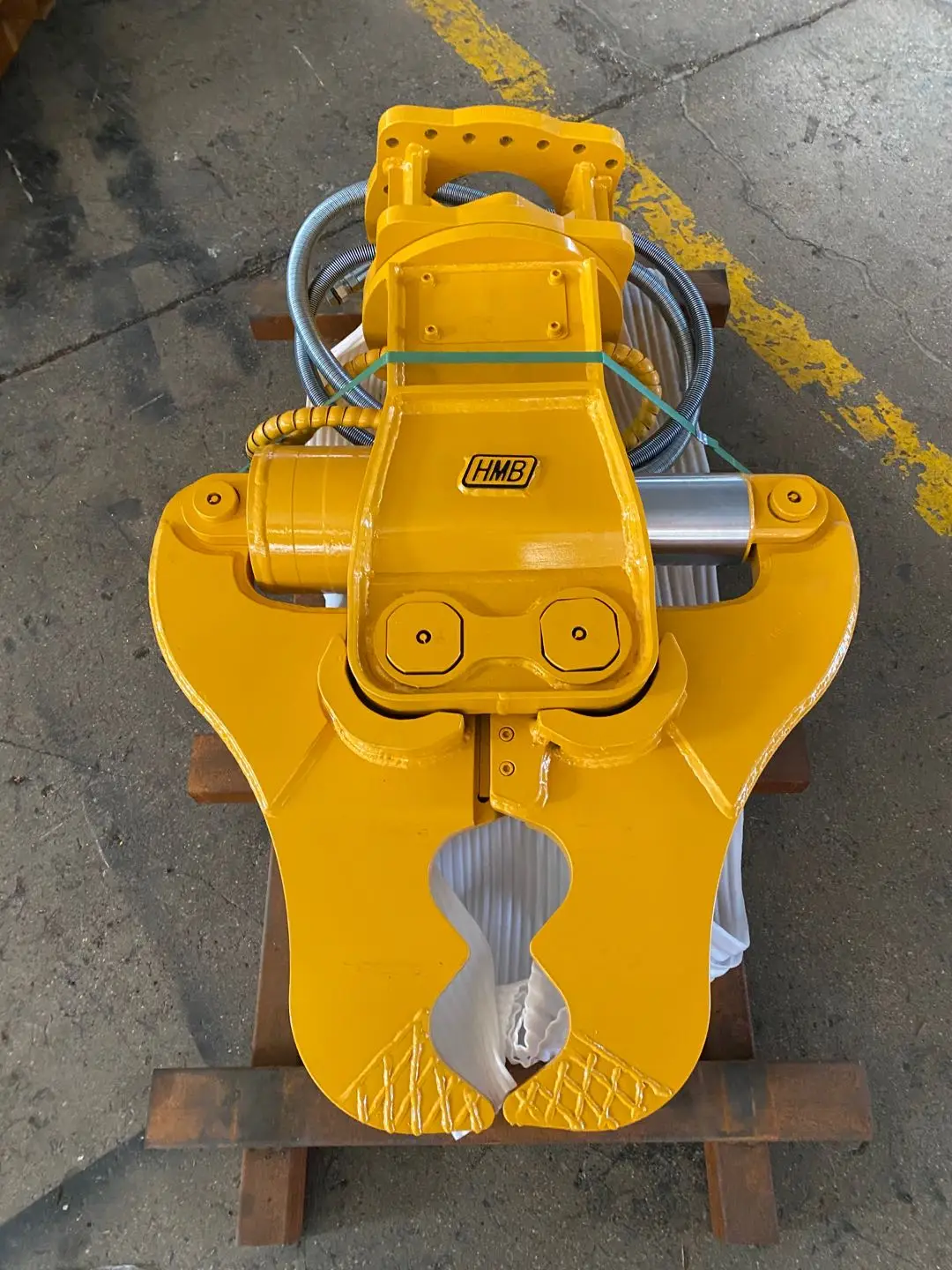

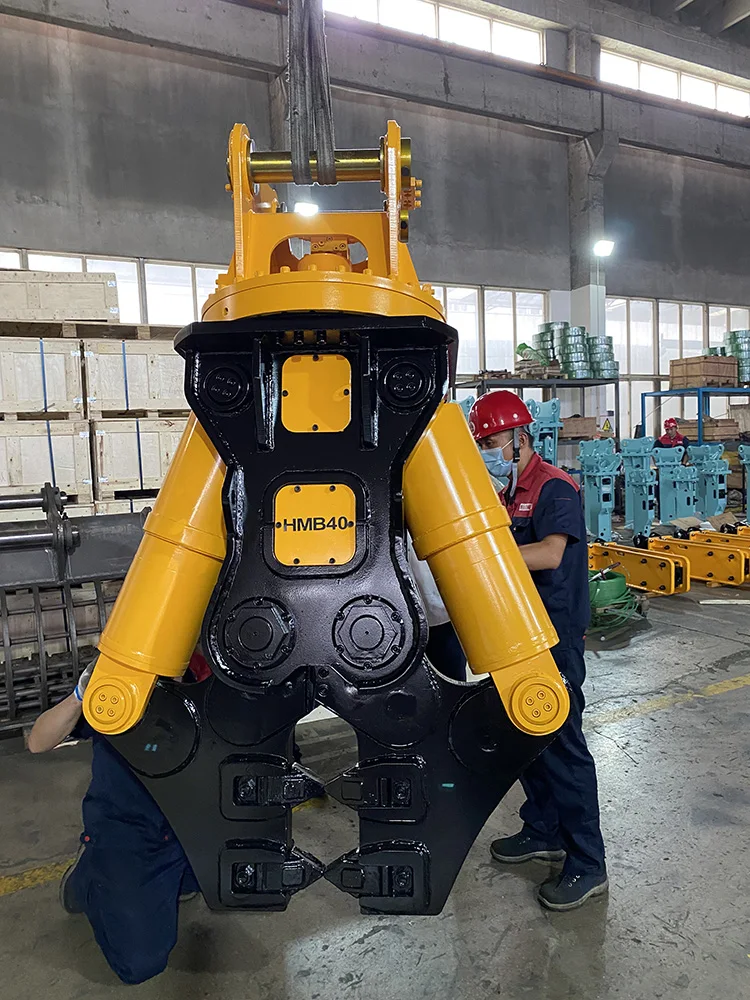

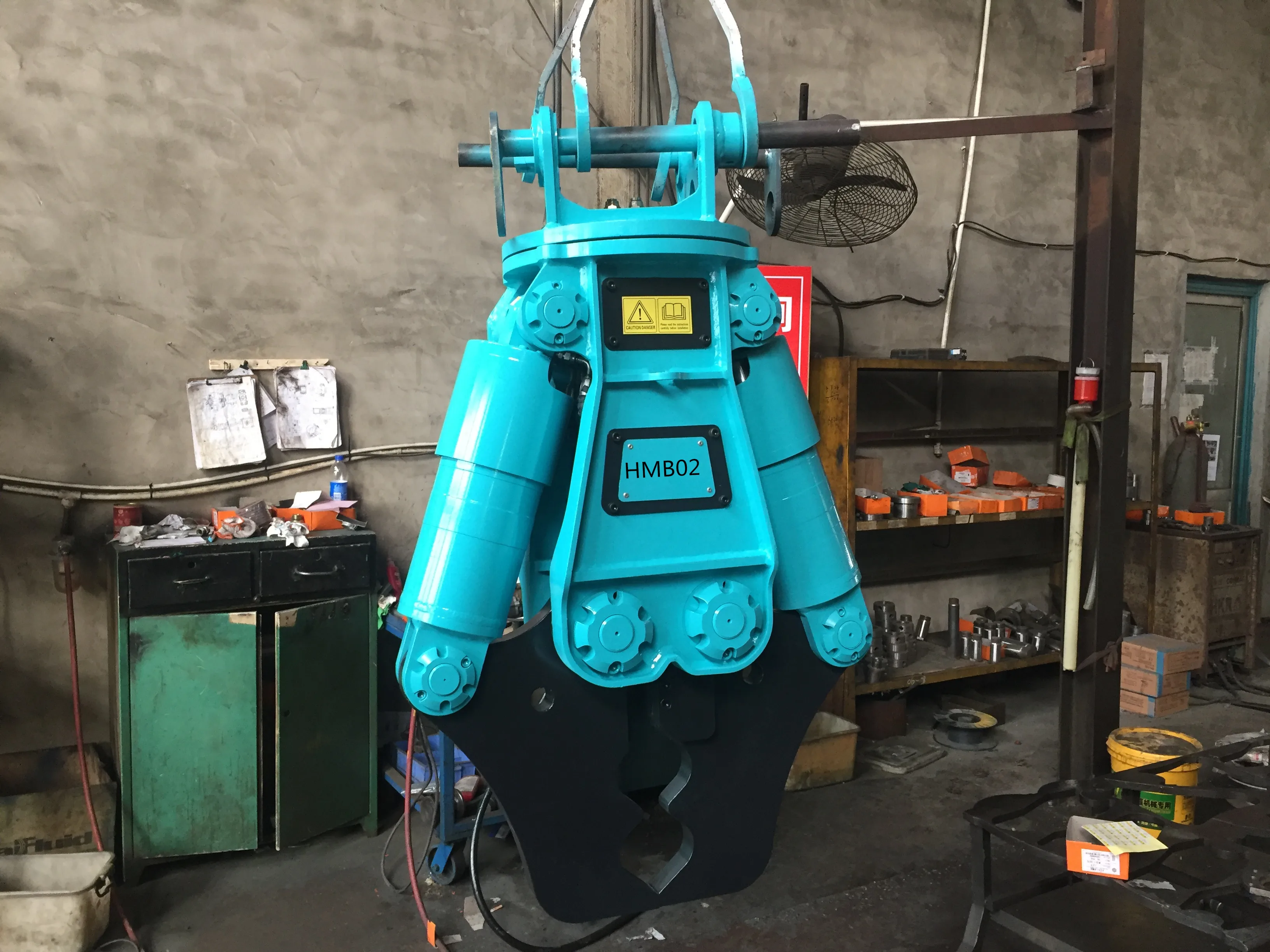

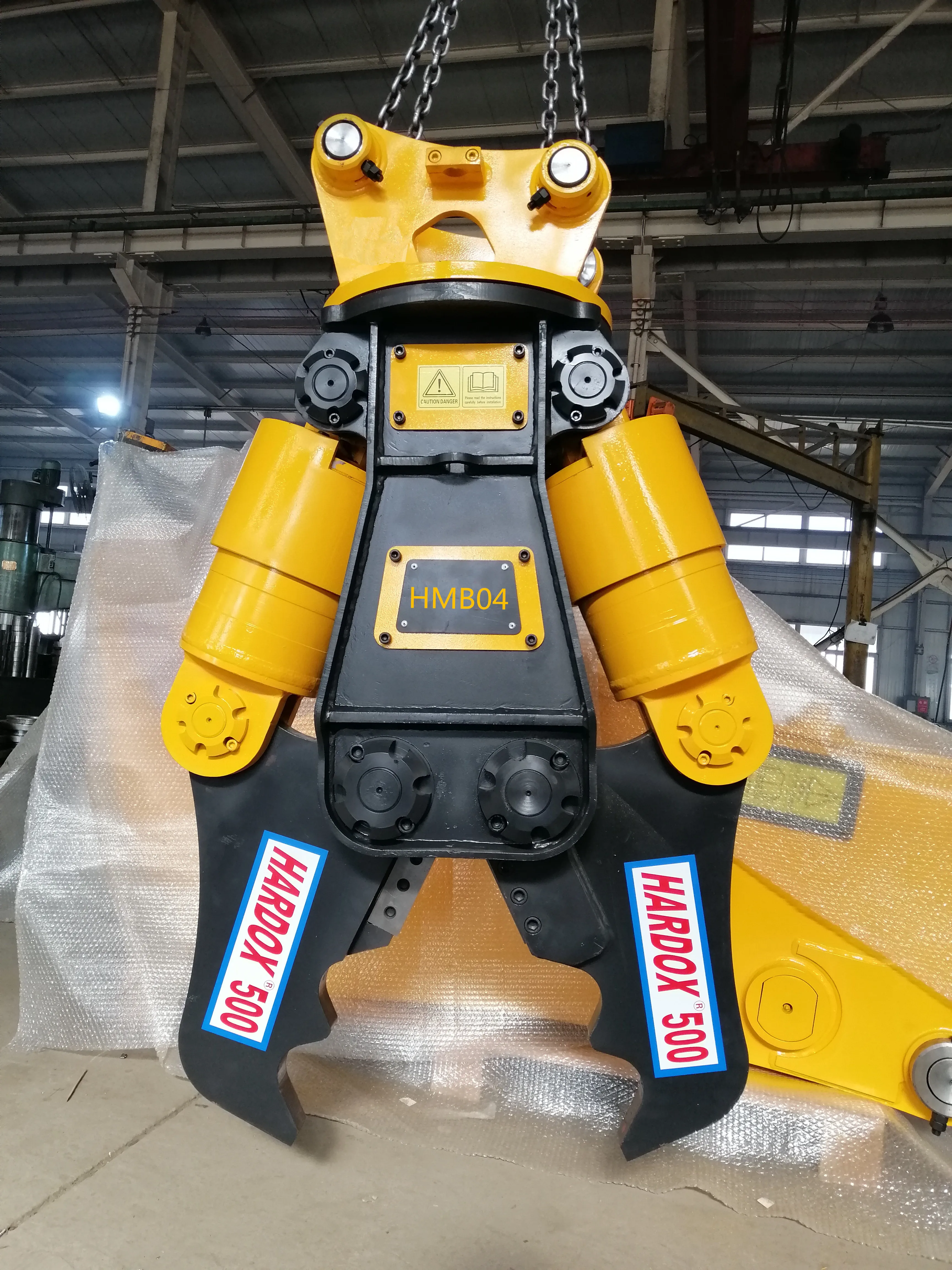

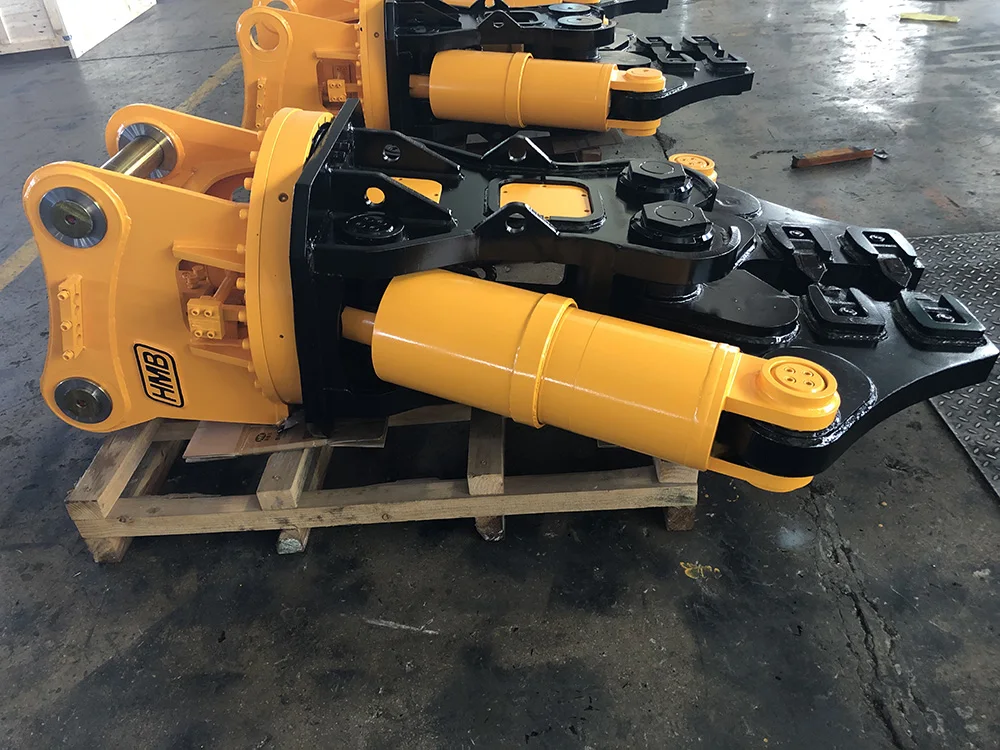

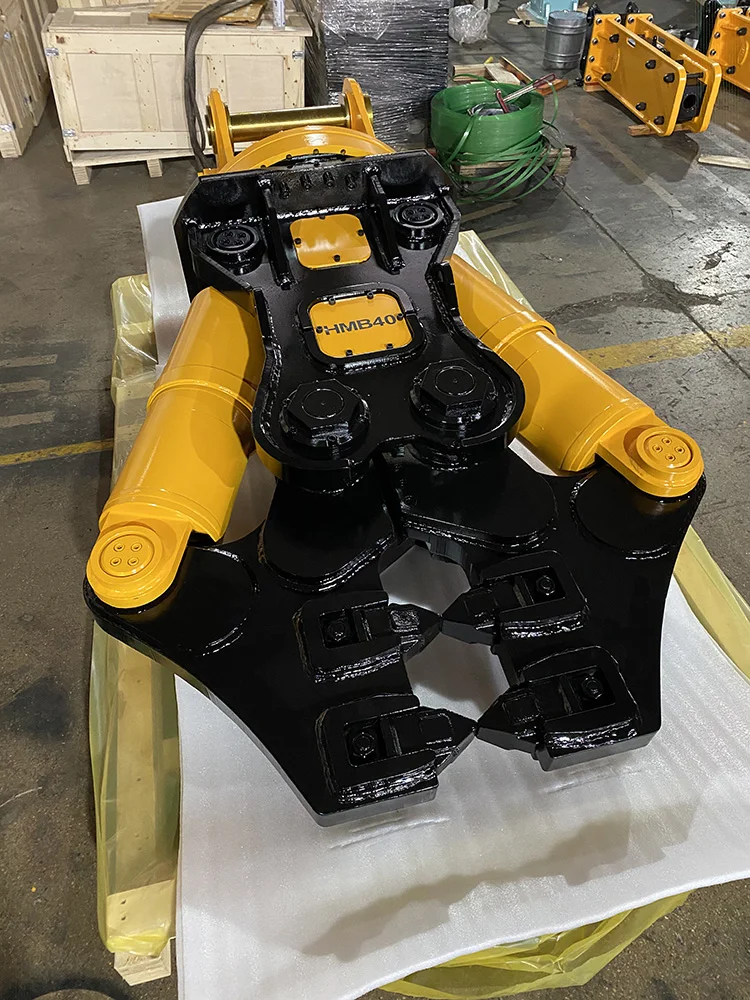

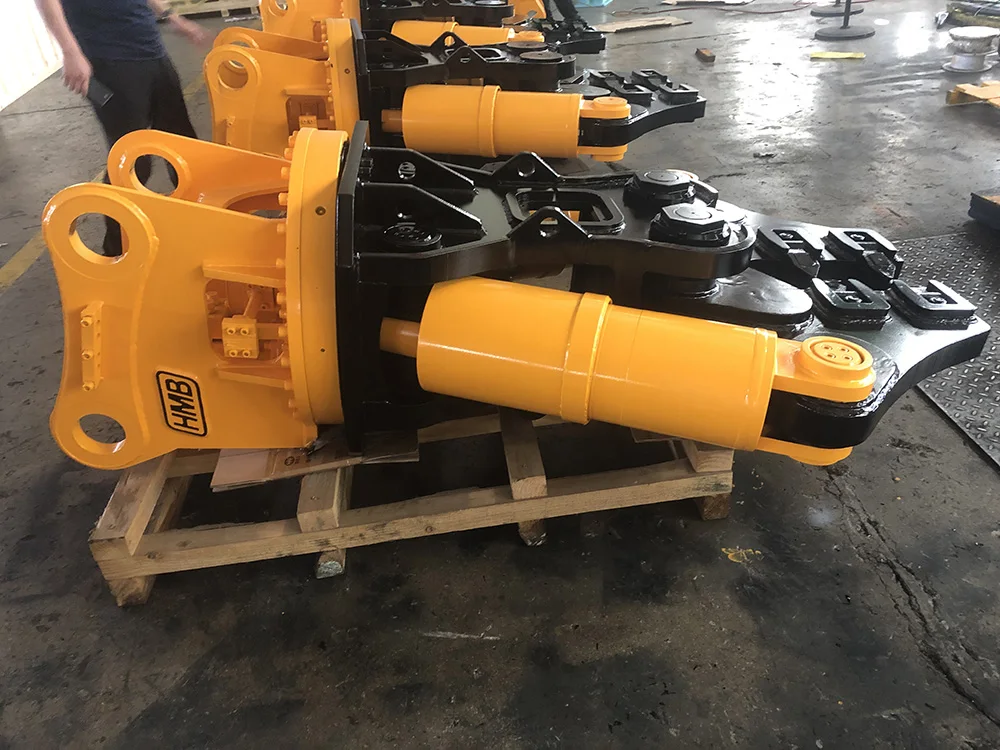

Double cylinders hydraulic shear
scrap steel
MainFeatures
1.The adoption of special slewing support provides stable perfomance.
2.The shear uses imported HARDOX400 steel material,with double-layer wear -resisting protection,high strength amd long service life.
3.The strcution is optimized by design and hai large shear.
Concrete
1.The adoption of special slewing support provides stable perfomance.
2.The shear uses imported HARDOX400 steel material,with double-layer wear -resisting protection,high strength amd long service
life.
3.It is suitable for the concrete construction that will be crushed.
Model | unit | HMB04G | HMB06G | HMB08G | HMB10G | HMB14G | |||
Dead-weight | kg | 620 | 1413 | 2200 | 2977 | 4052 | |||
Max.opening | Mm | 335.5 | 540 | 500 | 660 | 801 | |||
Height | Mm | 1521 | 2050 | 2380 | 2600 | 2700 | |||
width | Mm | 864 | 1175 | 1370 | 1600 | 1700 | |||
the active length of blade | Mm | 286 | 348 | 486 | 578 | 736 | |||
rotation mode | 360°Ball Colliding Rotation | 360°Hydraulic | |||||||
pressure | Bar | 235 | 300 | 320 | 320 | 320 | |||
root crushing force | Ton | 81*2 | 138*2 | 171*2 | 330*2 | 387*2 | |||
Middle Crushing Force | Ton | 50*2 | 80*2 | 102*2 | 189*2 | 218*2 | |||
fore-end crushing force | Ton | 32*2 | 53*2 | 78*2 | 127*2 | 174*2 | |||
suitabe for the excavator | Ton | 5-8 | 15-18 | 20-25 | 28-35 | 35-50 | |||
Concrete
Model | HMB04H | HMB06H | HMB08H | HMB10H | HMB14H | |||
Dead-weight | 620 | 1345 | 2164 | 3060 | 4052 | |||
Max.Openting | 540 | 650 | 950 | 1100 | 1200 | |||
Height | 1419 | 1888 | 2374 | 2480 | 2700 | |||
Width | 884 | 1175 | 1360 | 1540 | 1700 | |||
Rotation Mode | 360°Ball Colliding Rotation | 360°Hydraulic | ||||||
Pressure | 235 | 300 | 320 | 320 | 320 | |||
Root Crushing Force | 81*2 | 120*2 | 168*52 | 288*2 | 375*2 | |||
Middle Crushing Force | 44.5*2 | 66*2 | 78*2 | 125*2 | 174*2 | |||
Fore-end Crushing Force | 25*2 | 40*2 | 56*2 | 90*21 | 118*2 | |||
suitable for the excavator | 5-8 | 15-18 | 20-25 | 28-35 | 38-50 | |||
Why Choose HMB
Company Introduction
Located in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 8 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
Other products for Your Reference
If you want to know about other products, you can click on the picture above.
Packing&Shipping
Exhibition Show
FQA
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
