1 15KG Small laboratory precious metal induction melting furnace for gold silver copper
- Category: >>>
- Supplier: Wenzhou Shuangming Electrical Technology Co. Ltd.
Share on (1600200315304):
Product Overview
Description
Product Description

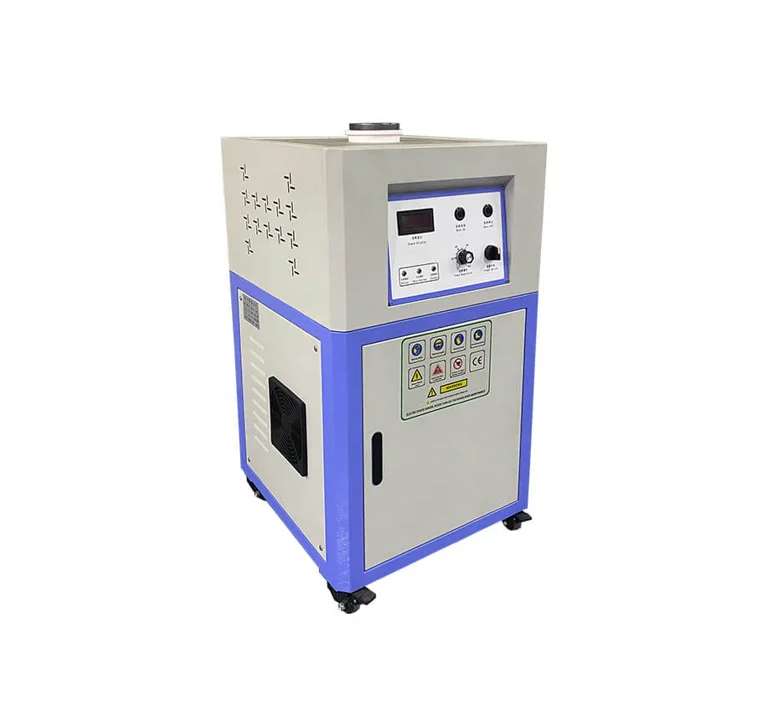

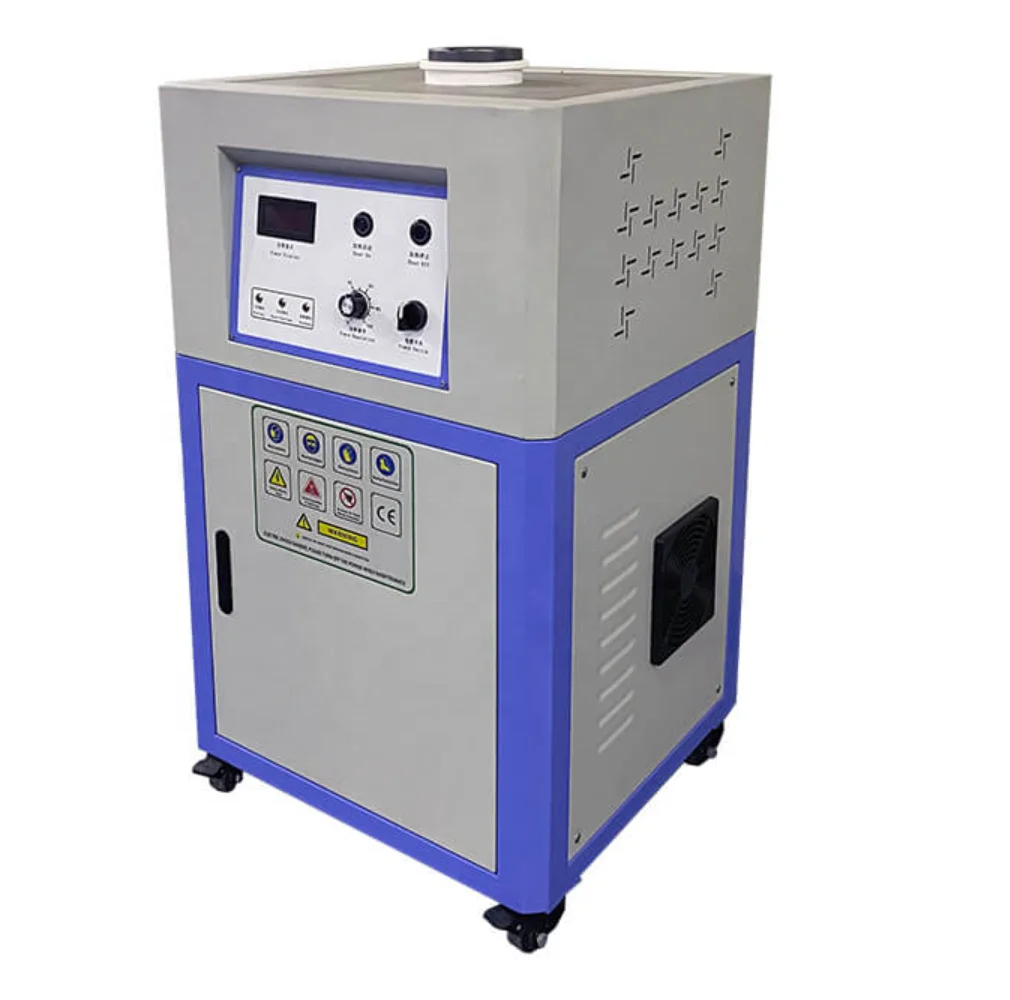

1-15KG Small laboratory precious metal induction melting furnace for gold silver copper

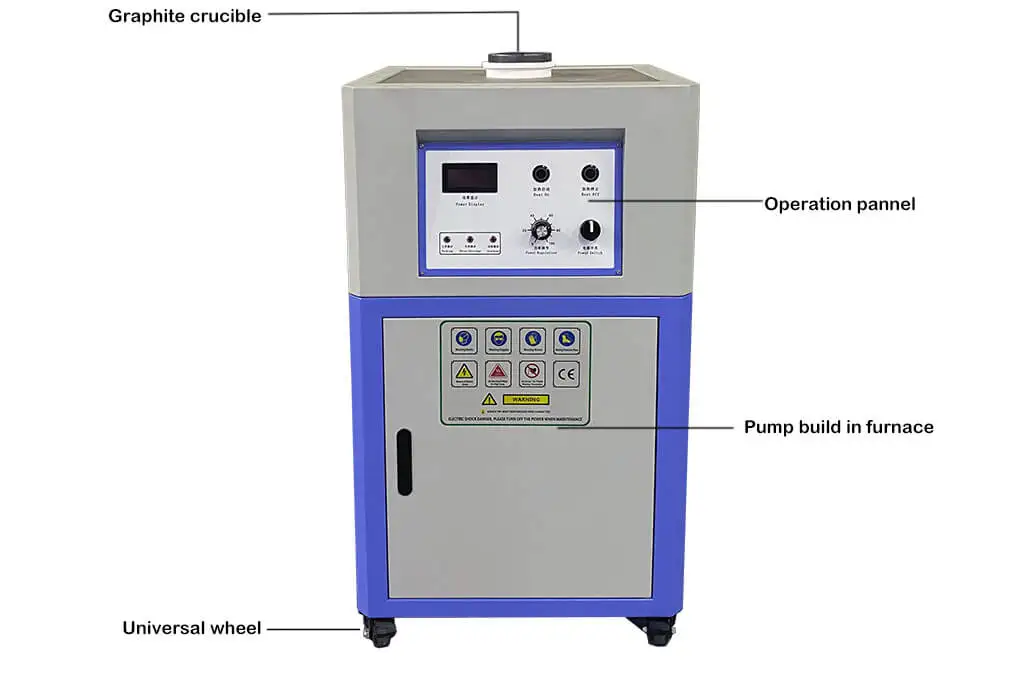

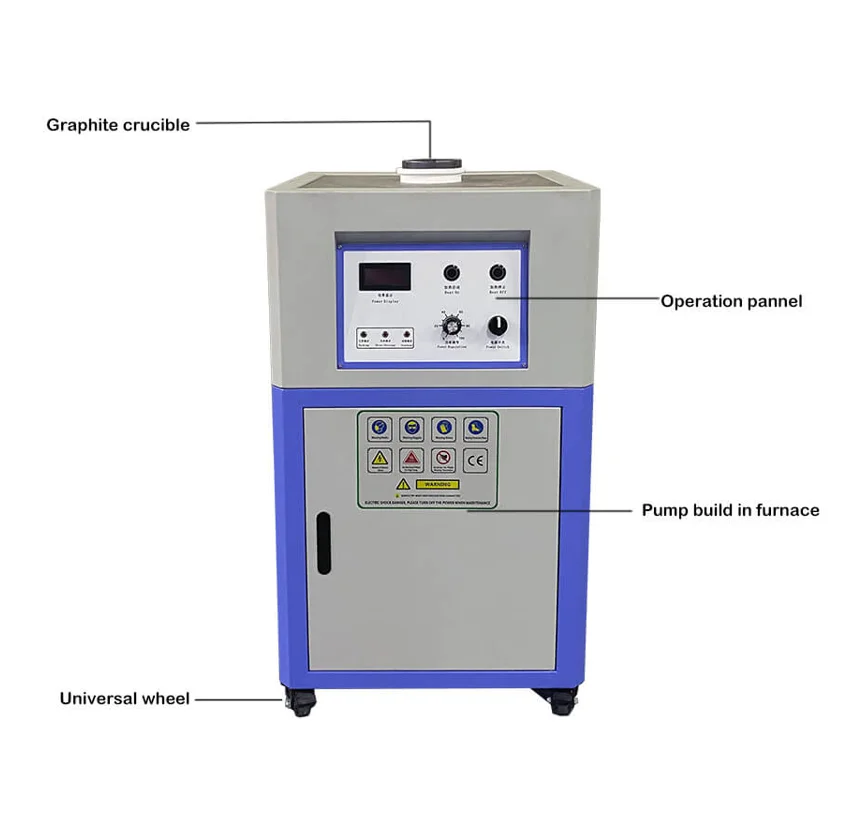

CDOCAST Small laboratory precious metal induction melting furnace is special designed for melting gold, silver, copper, with a capacity from 4kg-15kg. We have designed this model to be a one-piece structure, in which the furnace and the power supply will be integrated into one cabinet, which greatly increases the ease of operation and makes the furnace smaller in size.
This gold melting machine is equipped with crucible tongs, graphite molds, and high-temperature gloves, when melt finish, the worker just needs to remove the crucible containing the molten metal with the crucible tongs, pour it into the custom-made graphite mold, and then cool and fix it into shape.
The Gold melting machine is designed with a water pump inside, so the user only needs to prepare a bucket of water to keep the machine running if it is not required to work continuously for long periods of time, If the Gold melting machine has to work continuously for a long period of time during the day, we recommend using a water chiller in combination in order to extend the lifetime of our machines.
This gold melting machine is equipped with crucible tongs, graphite molds, and high-temperature gloves, when melt finish, the worker just needs to remove the crucible containing the molten metal with the crucible tongs, pour it into the custom-made graphite mold, and then cool and fix it into shape.
The Gold melting machine is designed with a water pump inside, so the user only needs to prepare a bucket of water to keep the machine running if it is not required to work continuously for long periods of time, If the Gold melting machine has to work continuously for a long period of time during the day, we recommend using a water chiller in combination in order to extend the lifetime of our machines.
Parameter
Model number | CDO-FL26 | CDO-FL27 | CDO-FL28 | CDO-FL29 | CDO-FL30 | ||||
Applicable metal | Gold, Silver, Copper, Brass, Bronze, and their alloys | ||||||||
Voltage | 3P, 380V, 50/60Hz | ||||||||
Power | 15kw | 20kw | 20kw | 25kw | 25kw | ||||
Max capacity | Gold: 4 kg Silver:2kg | Gold: 5kg Silver:2.5kg | Gold: 6kg Silver:3kg | Gold: 8 kg Silver:4kg | Gold: 10 kg Silver:5kg | ||||
Melting time | 2-5 min | 3-6 min | 3-6 min | 5-8 min | 5-10min | ||||
Max temperature | 1800℃ | 1800℃ | 1800℃ | 1800℃ | 1800℃ | ||||
Cooling way | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | ||||
Weight | 72 kg | 75 kg | 78 kg | 78 kg | 78 kg | ||||
Dimension(LWH) | 500*500*860 | 500*500*860 | 500*500*860 | 500*500*860 | 500*500*860 | ||||
Water pump | Equipped | Equipped | Equipped | Equipped | Equipped | ||||
Crucible Size(mm) | Crucible：Φ85*Φ60*136.5 Sleeve：Φ100*Φ80*136 | Crucible：Φ100*70*135 Sleeve：Φ120*Φ90*135 | Crucible：Φ105*70*155 Sleeve：Φ120*Φ94*153 | Crucible：Φ115*Φ78*183 Sleeve：Φ132*Φ106*180 | Crucible：Φ125*Φ90*183 Sleeve：Φ143*Φ112*182 | ||||

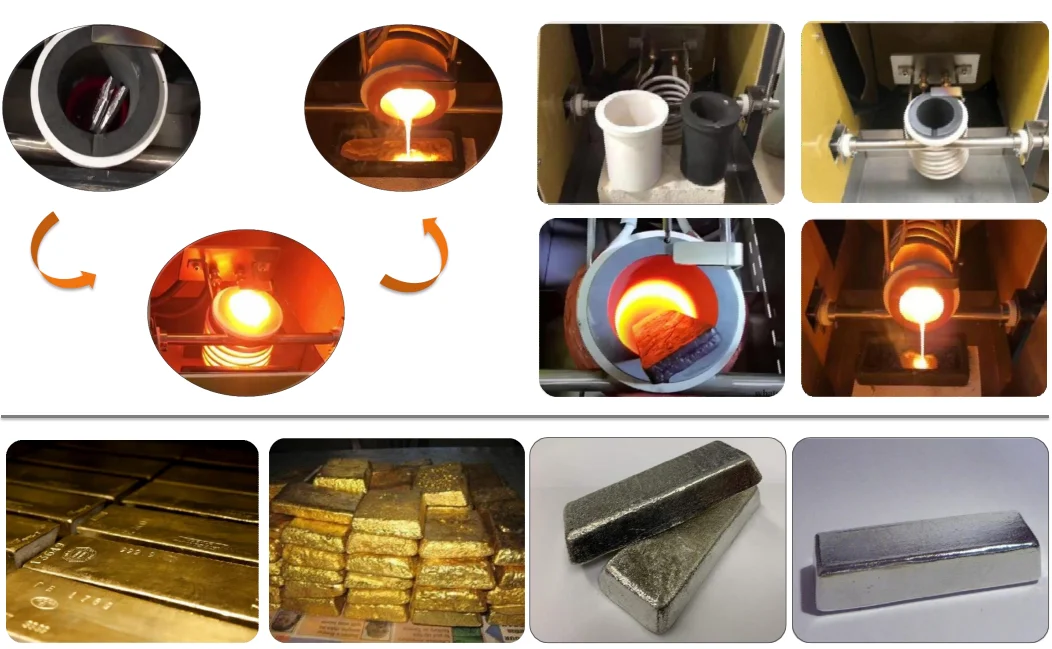

Application
Related Products
Please click here to see more products!
Factory Photo
Customer Photos
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
