SUNTECH High Quality High Efficiency Fabric Rolling and Measuring Machine
- Category: Textile Finishing Machines >>>
- Supplier: Zhejiang Strength Machinery Co. Ltd.
Share on (1600200324087):
Product Overview
Description
Product Description

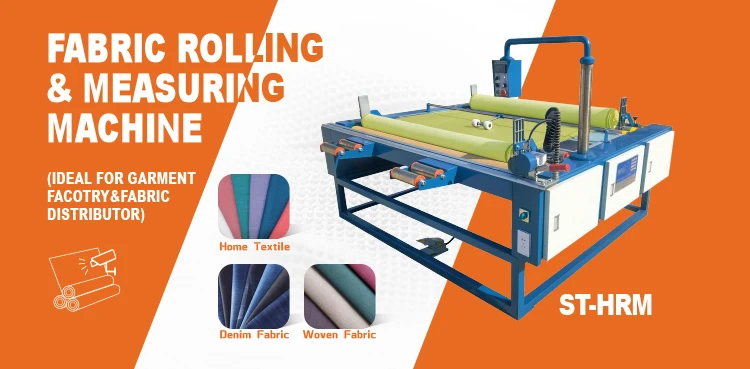

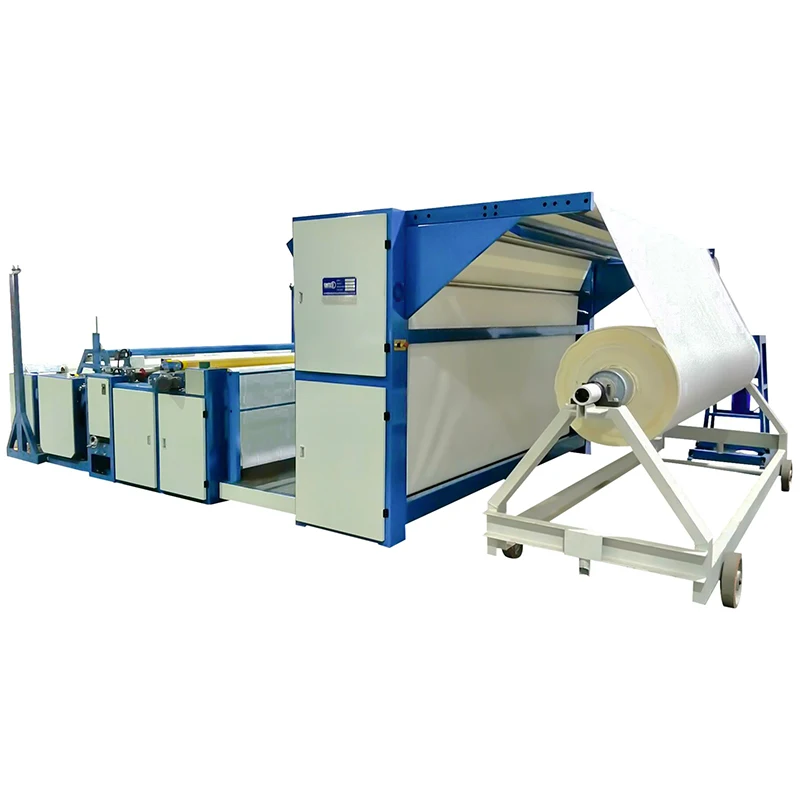

Suntech Fabric Rolling & Measuring Machine (Ideal For Garment Factory & Fabric Distributor)
ST-HRM Horizontal Fabric Rolling Machine is used to handle a wide range of rolled fabrics, which is specially designed for garment factory & fabric distributor. This machine can be used for fabric inspection, measuring, rolling and cross cuting purpose.
Technical Specifications
Speed: | 0-90m/min |
Fabric Width: | 1.6-4.0 meters |
Standard Roll Diameter: | 500mm |
Dimensions(L*W*H): | 2000*1700*865mm(For model ST-HRM-160 only) |
Weight: | 600kgs(For model ST-HRM-160 only) |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Main Technical Features
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Full Width Fabric Inspection- with fixed flat inspection screen.
●Full Width Fabric Inspection- with fixed flat inspection screen.
●Sturdy Roll Cradle for the coming fabric roll unwinding.
●Consistent Roll Output - Roll Hardness adjustable.
●Movable wheels.
●Foot Switch for easy Stop/Start controlling.
●Linear Fabric End Cutter- Optional.

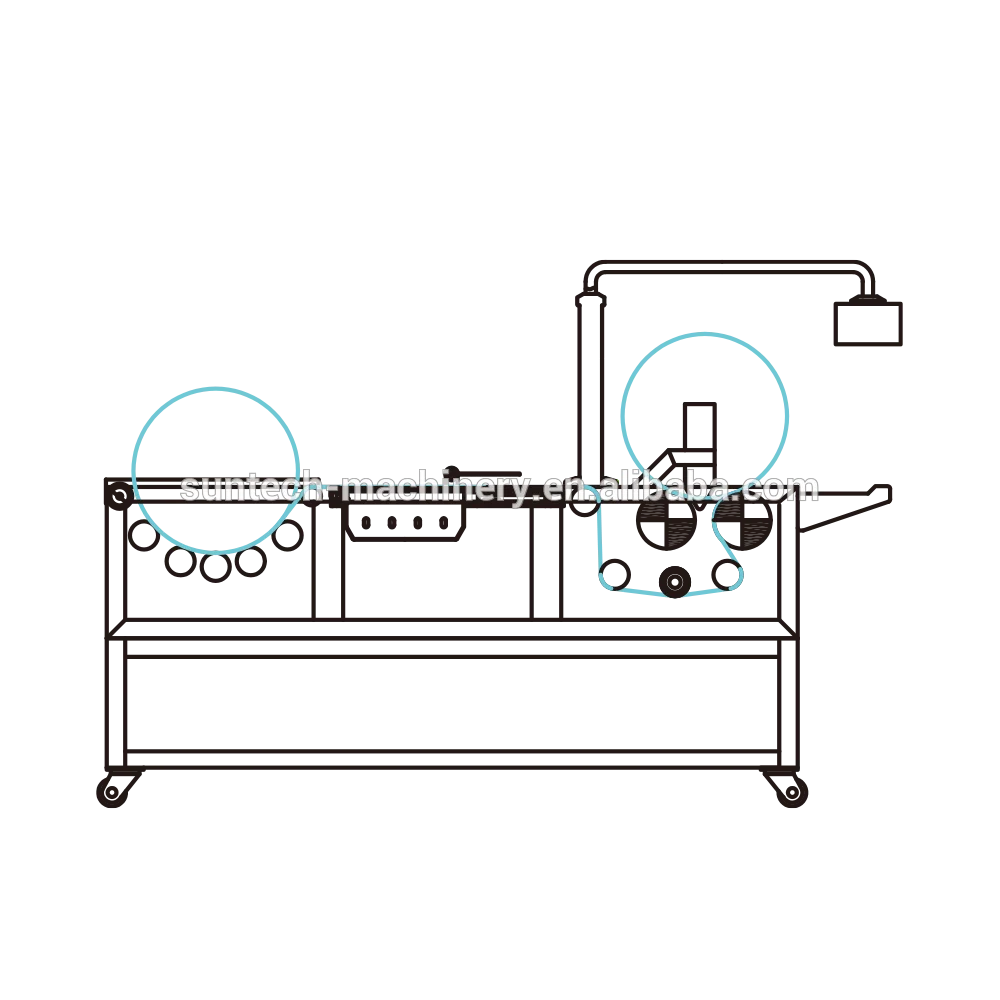

Machine Drawing
Details Images

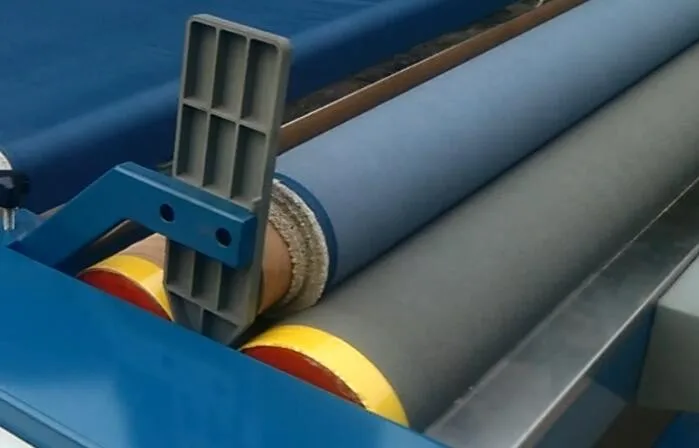

Twin Rewinding Roller
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight)
through the hand-wheel.
Digital Counter Meter
Meter(M) and Yard(YD)can be chosen to read out.
Also the Digital Counter Meter also have the pre-set function. Means if you need 100 m, you pre-set the length on the counter
meter. When arrives 100m, the machine will stop automatically
Rolling speed can be adjusted by the button on operation screen.
Also the Digital Counter Meter also have the pre-set function. Means if you need 100 m, you pre-set the length on the counter
meter. When arrives 100m, the machine will stop automatically
Rolling speed can be adjusted by the button on operation screen.
Full width cutting at the end of processed roll, fast and accurate.

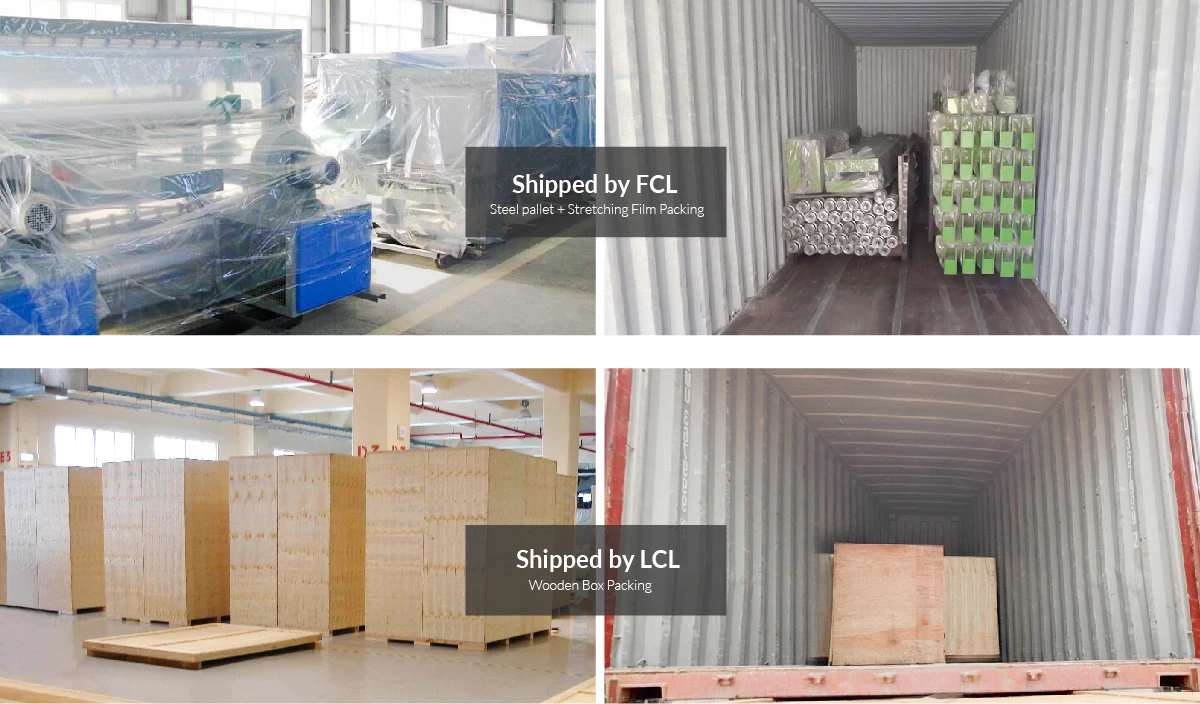

Product packaging

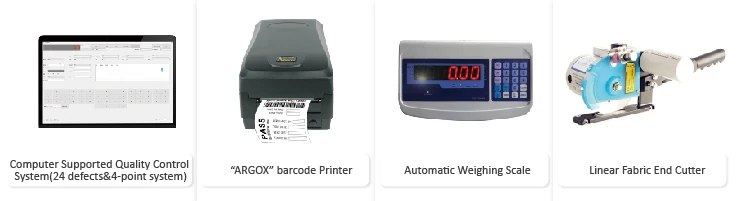

Options
Related products

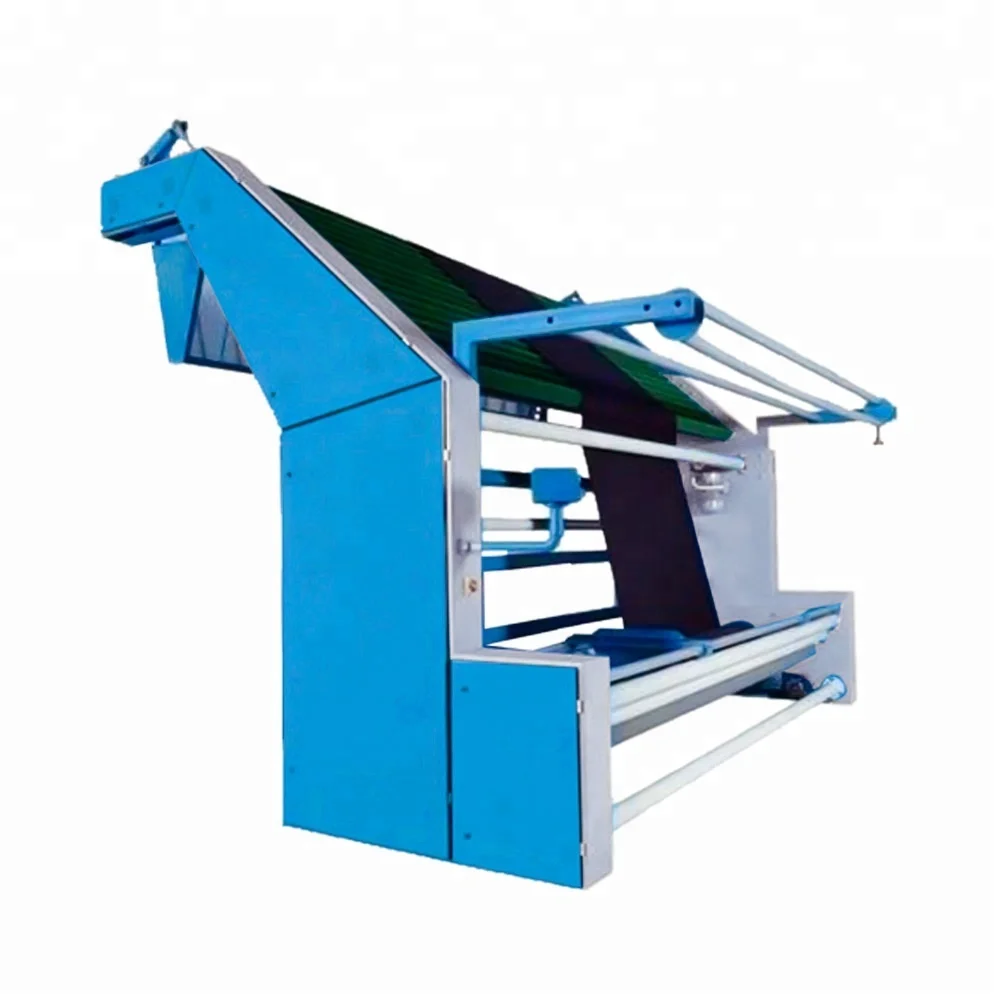

ST-BM-01 BATCHIN MACHINE
ST-FRM-VI AIR TYPE STEEM FABRIC RELAXING MACHINE

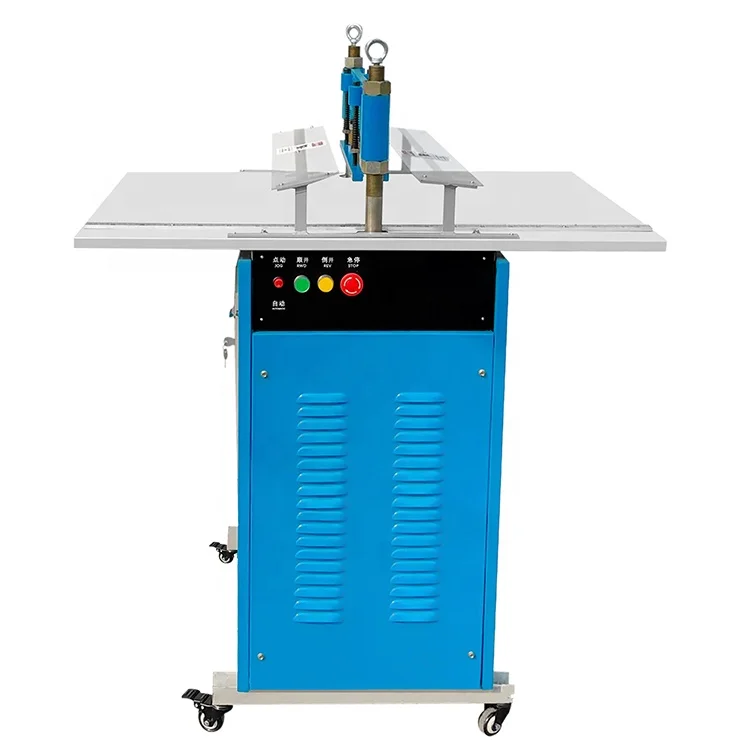

ST-MSCM ELECTRIC TYPE FABRIC SAMPLE CUTTING MACHINE
