Gloex Vertical Agricultural Products Packaging Machine Tomato Onion Potato Packing Machine
- Category: >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (1600200328248):
Product Overview
Description
APPLICATION
This machine is applicable for packing powder, granule, liquid or other irregular solidity in form of pillow pouch or gusset pouch, with different patterns of sealing, and different styles of cutting, which include processes of dosing, film-pulling, filling, pouch-making, sealing and cutting off, the detail application description as following table:
Applicable Pouches | One of the following scenarios can be selected for one machine: 1) Pillow / Flat Pouch 2) Gusset Pouch |

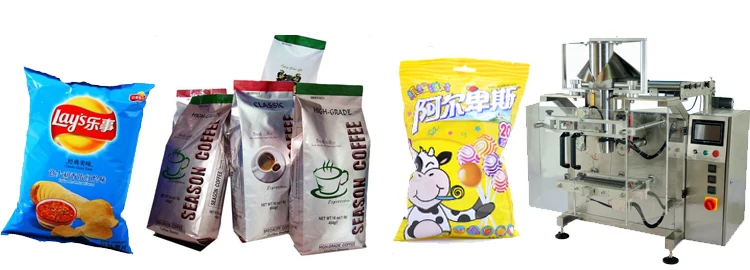

Applicable Products | Powder, Granule, Liquid or other irregular solidity such as coffee bean or powder, juice, candy, popped food, roasted seeds or nuts, etc |
FEATURES
• Stainless steel 304 structure and surface
• Double PLC & HMI Control, More stable operation, Easy for parameter setting and troubleshooting
• Simple changing of pouch former, to adapt different pouch size requirement
• Intelligent temperature controlling configuration, ensure the artistic and neat sealing
• Configure with packaging film pre-pulling device, to enable stable pouch making
• No film no filling, and easy to change the packaging film

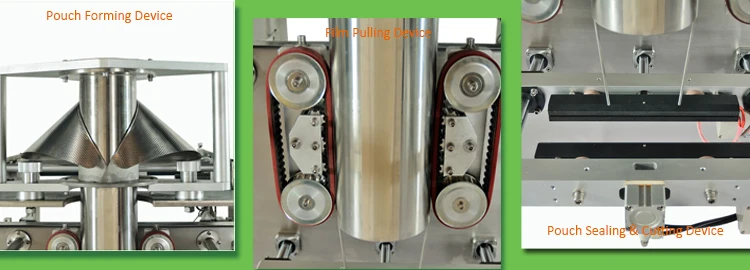

WORKING PROCESSES
The working processes include:
1) The machine pull laminate packaging film to the pouch forming devices,
2) Go through the vertical sealing plate, the dosing device dose the product into the pouch,
3) Horizontal sealing and cutting off.
TECHNICAL SPECIFICATION
Catalogue/1R-xxx-x | 620 | 620-D | |
Max Film Width-mm | 620 | 620 | |
Pouch Size-Length ‘mm | 70-300 | 70-300 | |
Pouch Size-Width ‘mm | 50-300 | 50-300 | |
Max Packing Speed –Pouches/min | 60 | 100 | |
Power Consumption-KW | 3.0 | 3.5 | |
Power Requirement | 220V 50/60HZ | ||
Vertical Sealing Method | Servo Motor | Servo Motor | |
Horizontal Sealing Method | Pneumatic | Servo Motor | |
Compress Air Requirement | 0.6 Mpa | 0.6 Mpa | |
Compress Air Consumption | 0.4m3/min | 0.2m3/min | |
Approximate Net Weight -kg | 500 | 540 | |

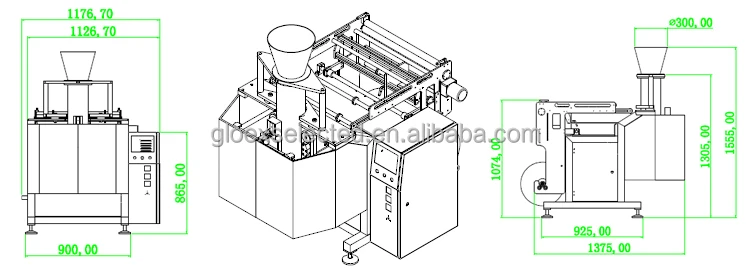

Dimension ( ‘mm ) | 1310*1130*1300 | 1310*1130*1300 | |
ADVANTAGES

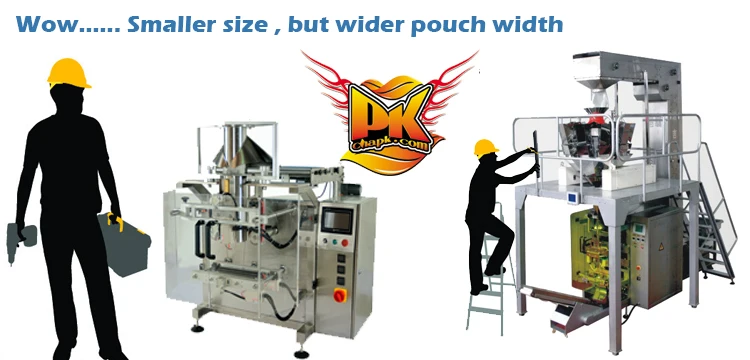

1) Smaller size , flexible for space adaption
2) Easy for material Loading
3) Wider range of pouch width, up to 620mm for packaging film.
2) Easy for material Loading
3) Wider range of pouch width, up to 620mm for packaging film.
