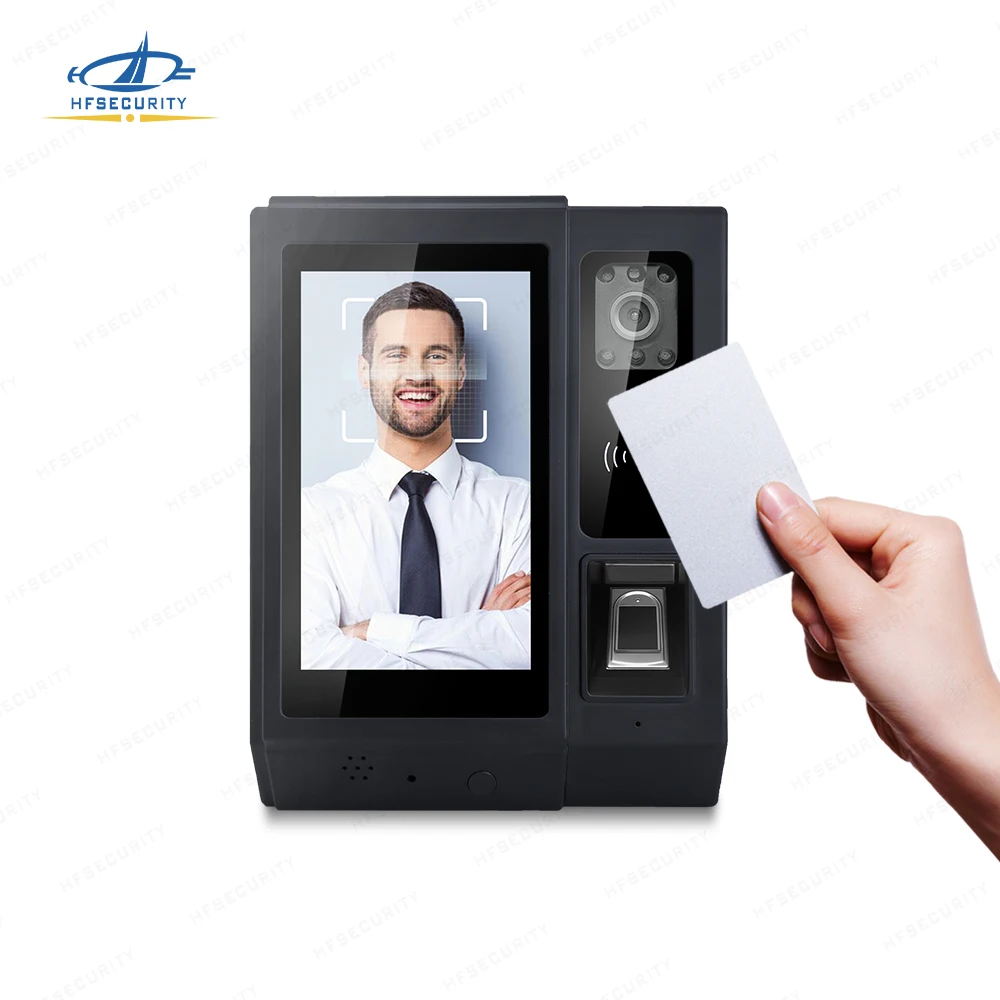

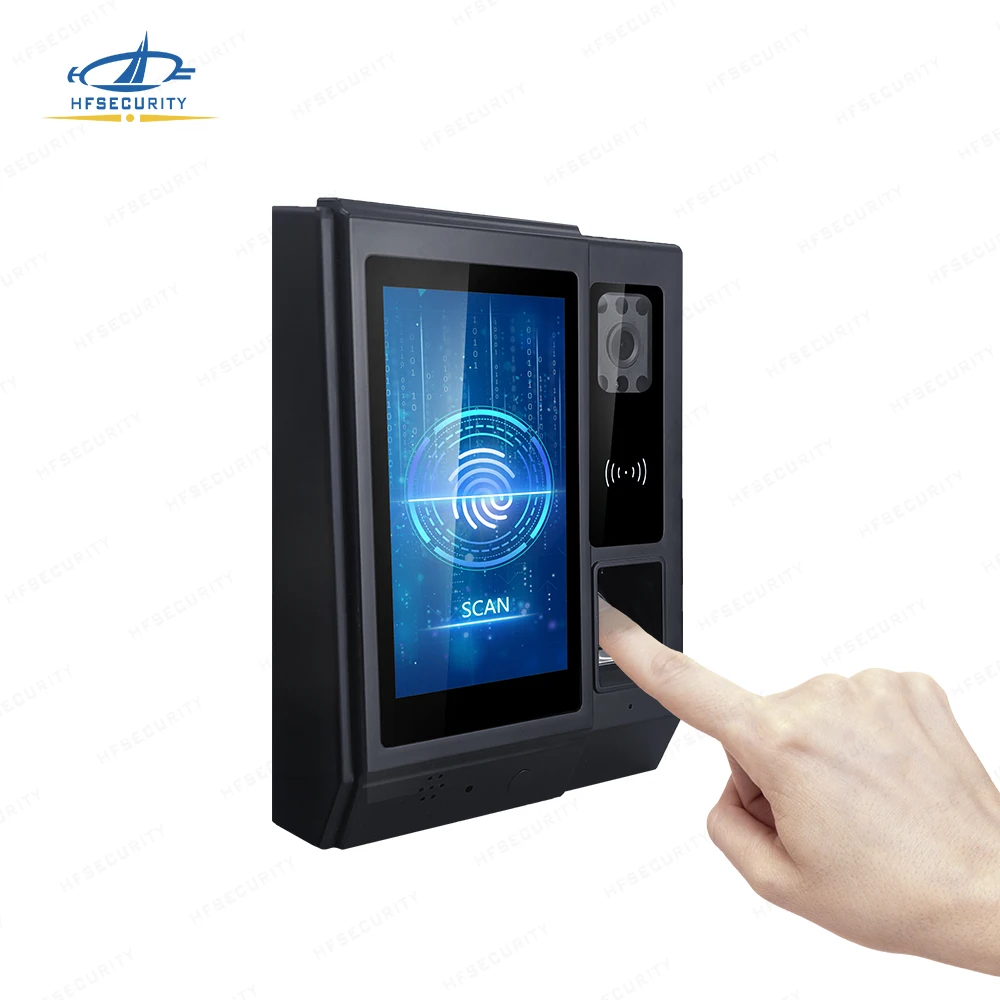

HFSecurity A5 Biometric Android Fingerprint Time Attendance System GPRS WIFI NFC Card Free SDK JAVA C#
- Category: >>>
- Supplier: Shenzhen Bio Technology Co. Ltd.
Share on (1600200344437):
Product Overview
Description
HFSecurity A5 Android Fingerprint Time Attendance System NFC RFID Card Access Control System Free SDK JAVA C#
HF-A5 is one of best selling Android time attendance and access control device in HFSecurity. 5" touch screen
communication by Ethernet, 3G,WIFI and BT, with fingerprint and RFID card recognition. You can check real time data in software, also we will offer free SDK for further development and 3rd part access control door lock function.
It's widely use for company, government, banking, education, etc.
Hardware | ||
Device Dimension | 175(L)×78(W)×27(H)(mm) | |
RAM/ROM | 2GB / 16GB | |
Storage Capacity | 16G can add 32GB SD card | |
Communication | WIFI, BT, TCP/IP( POE support), 3G, GPS | |
Bar-code | Support one-dimensional, two-dimensional bar code (optional) | |
RFID Card | Supports 125KHZ ID card, and 13.56MHZ Mifare/NFC Card | |
Camera | Front 5MP camera | |
Screen | 5.0 inches, 1280*720; Optional protection screen glass | |
OTA function | Support ( Can update firmware & app remotely via OTA function ) | |
Battery | Lithium-polymer battery 4000mah, 3.7v | |
Operating temperature range | -20 ° C to + 70 ° C | |
Certification | CE, ISO9001, GSM TAC certificated | |

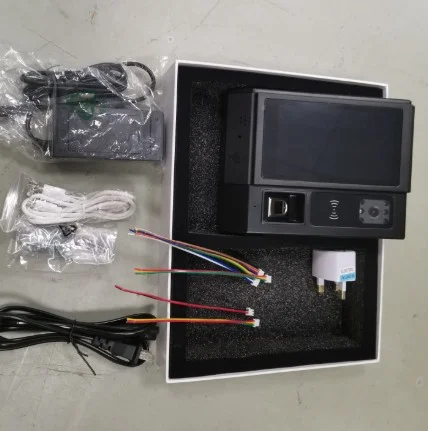

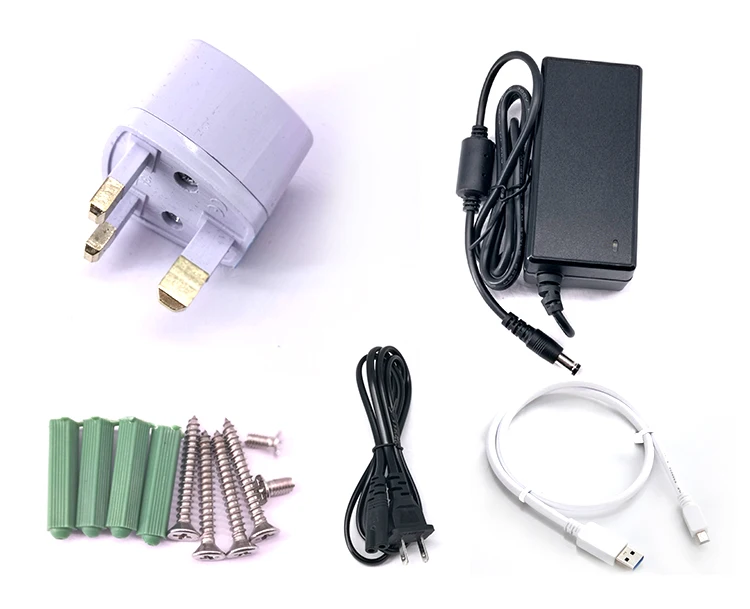

Package Accessories | Device bag, Screw driver, adapter, USB cable | |
OS | Standard Android 6.0 | |
Processor | Quad-core 1.5GHz | |
SDK | For free, come with sample package | |
Customized | OEM/ODM, LOGO, Different function | |
Fingerprint Sensor | ||
Image Size | 256 * 288 pixel | |
Image Resolution | 500DPI | |
Image Standard | BMP, JPG, WSQ | |
Fingerprint Standard | Support ISO 19794-2 & ANSI378 template standard | |
Communication | ||
Data link(1 SIM Card) | 2G: GSM CDMA 850/900/1800/1900 MHz; | |
3G: WCDMA 2100/1900/900/850MHz ( Can do customization according to clients country details) | ||
WIFI | Yes | |
TCP/IP | Ethernet (TCP/IP) connection | |
Details Images

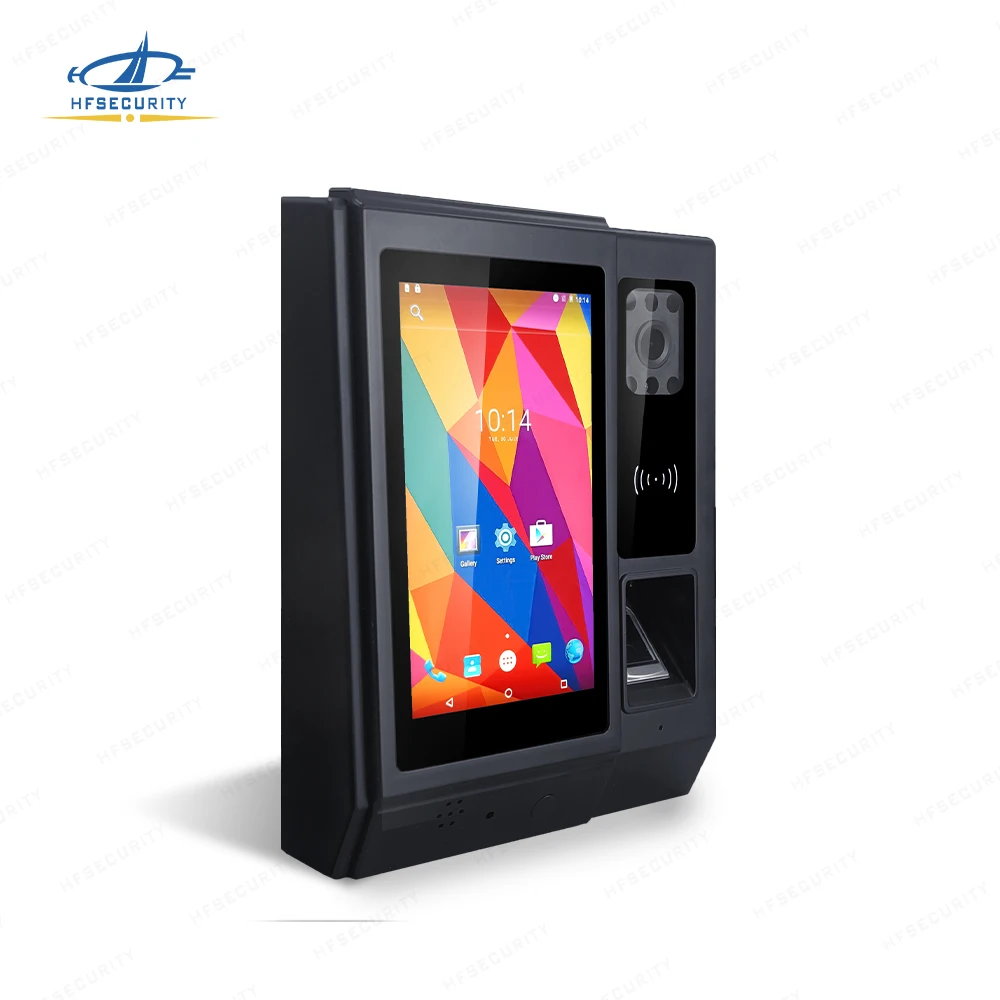

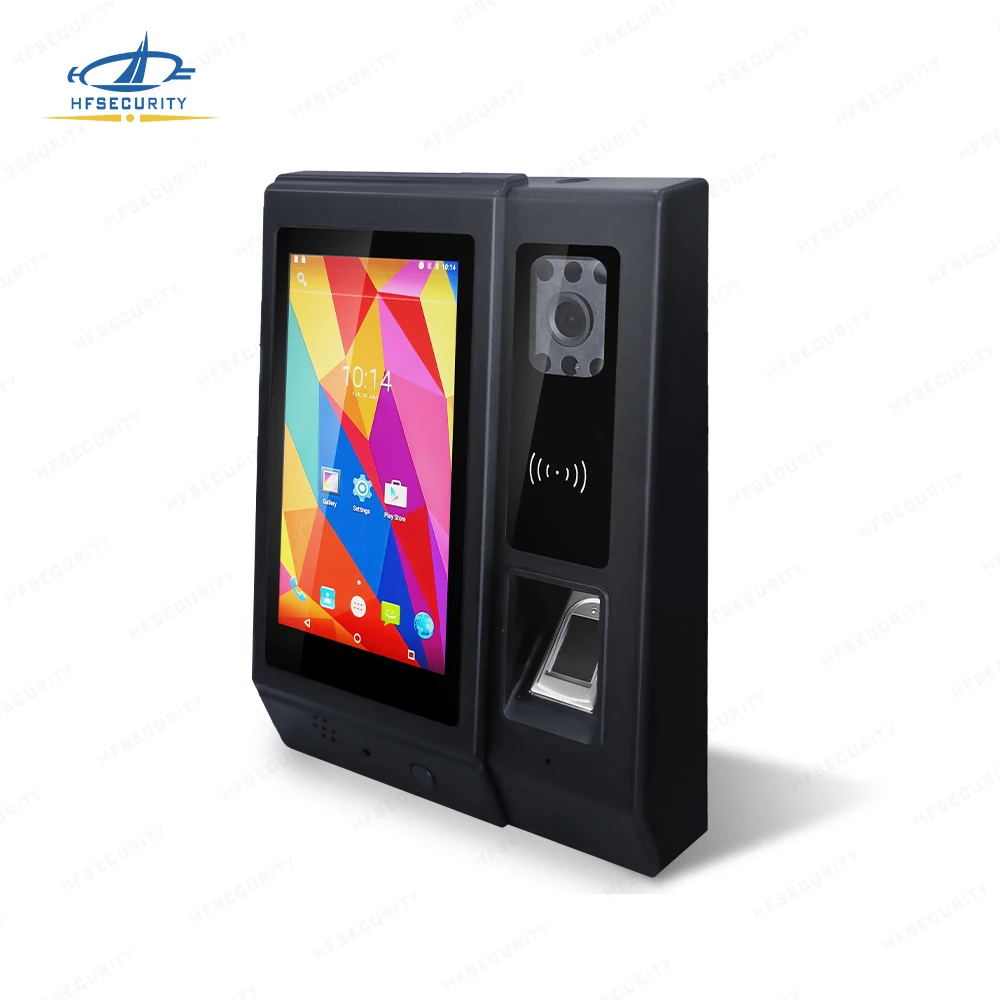

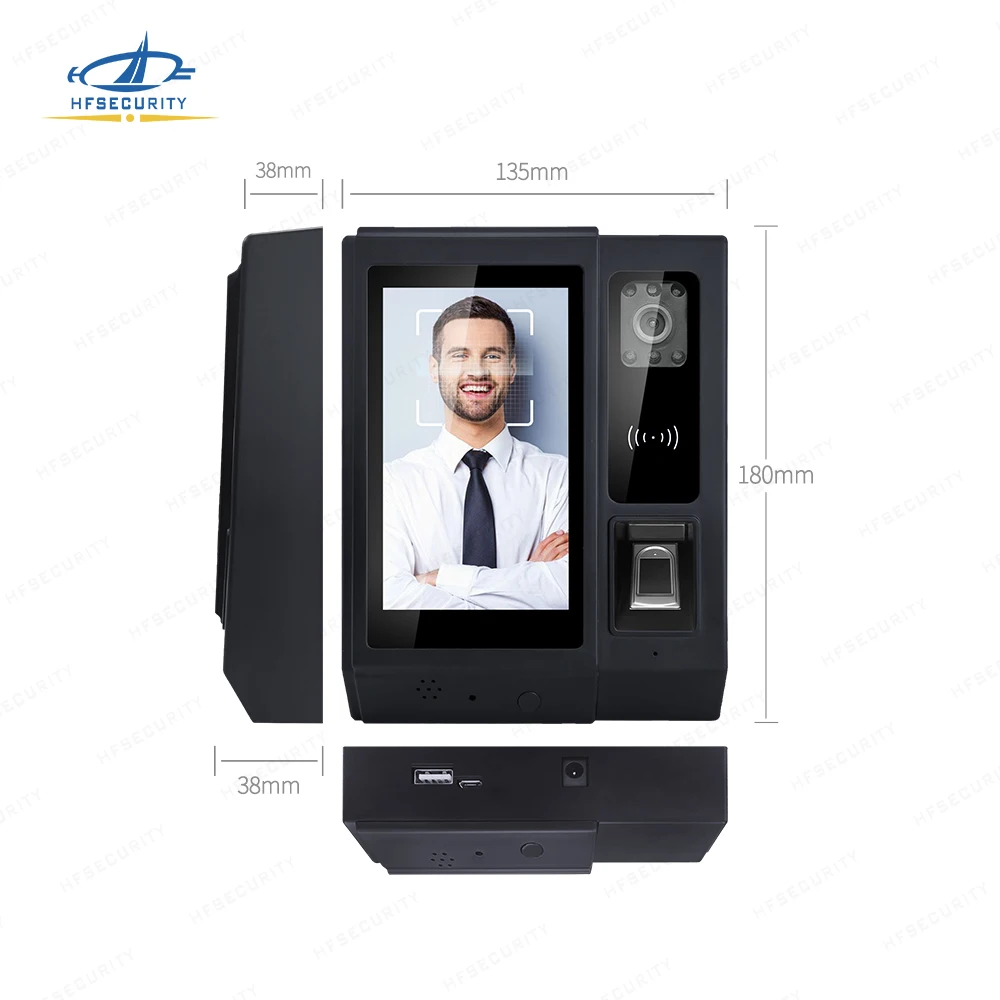

A5 Android Fingerprint Time Attendance Access Control System
Rugged Fingerprint Reader
Front Side
Fingerprint Reader
IR camera( support do face verify)
NFC/Mifare/ID card reader
5'' Touch Screen
Reset hole

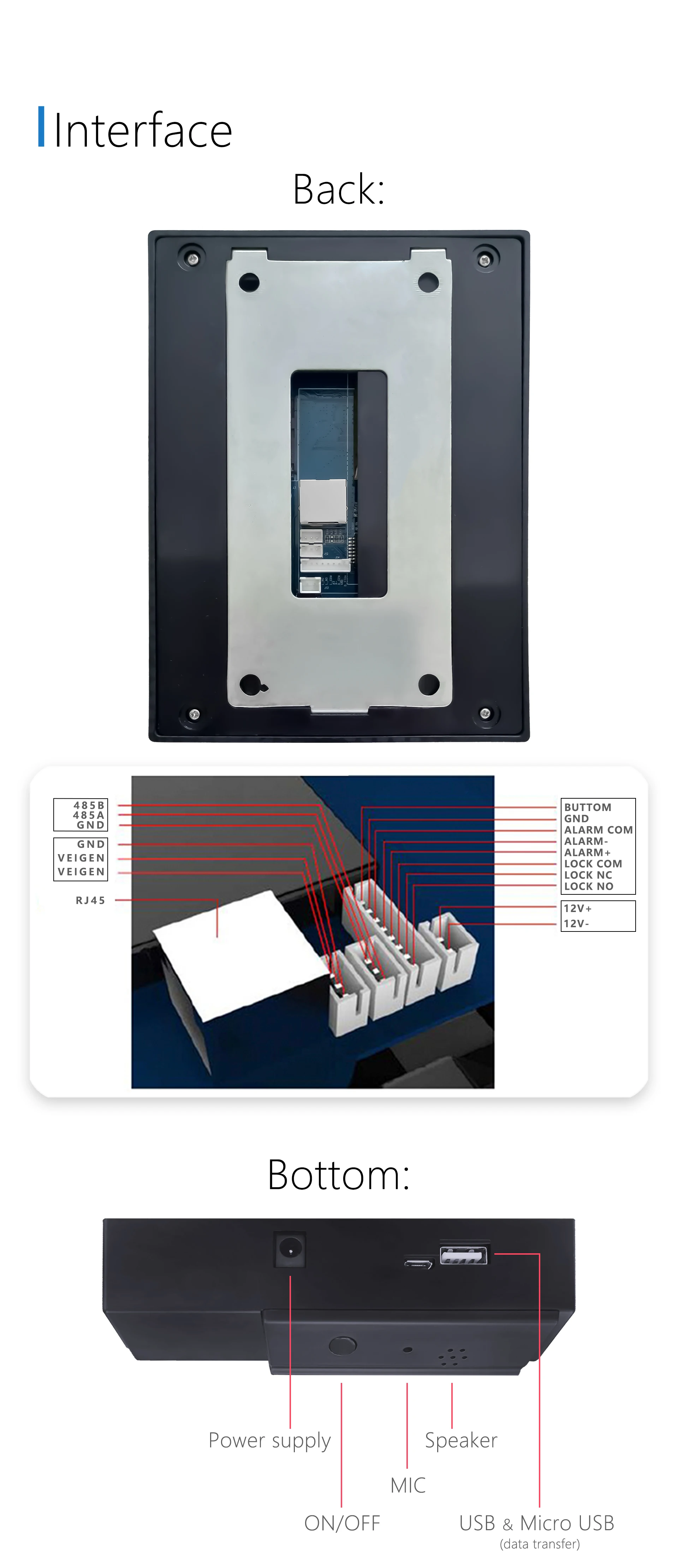

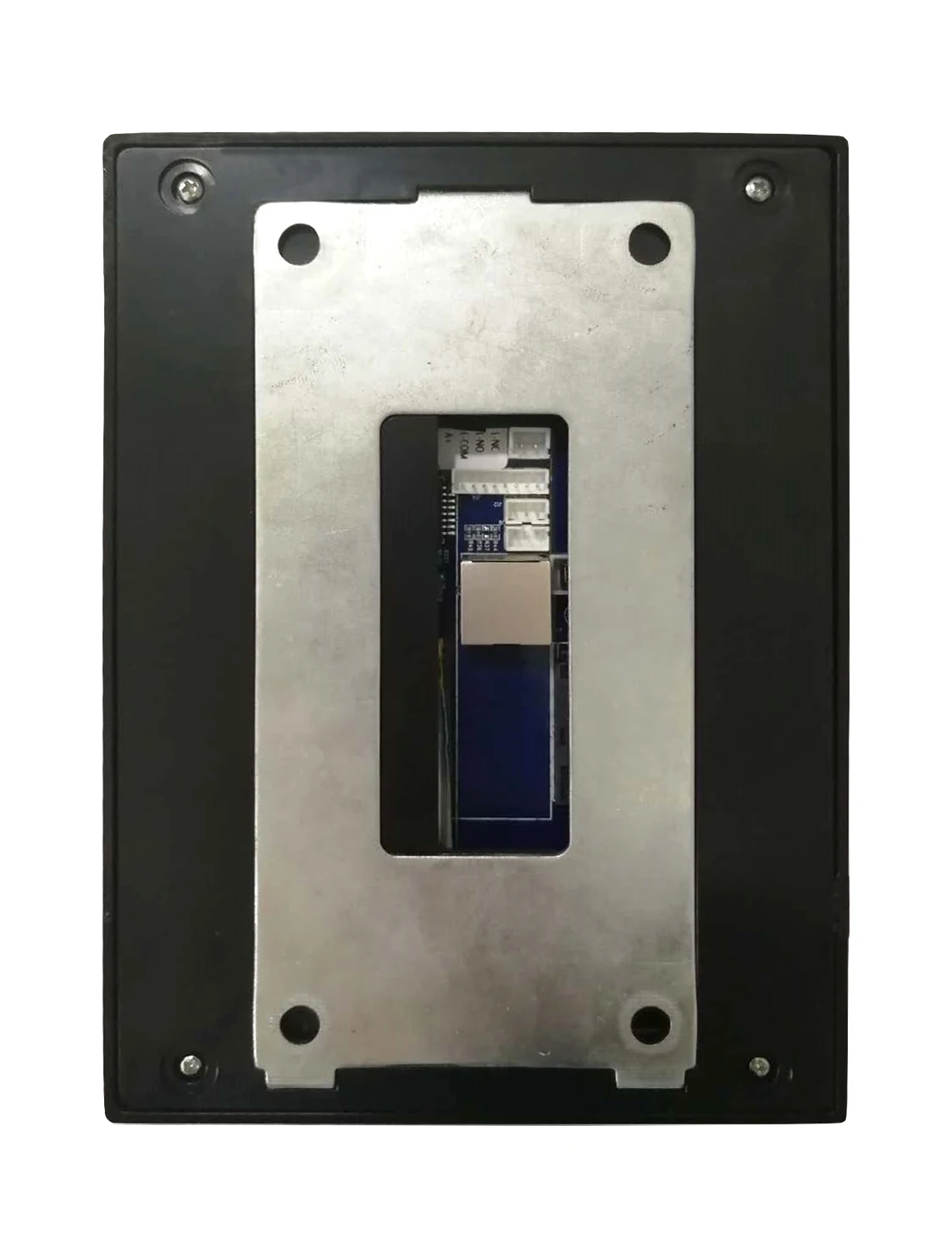

Back Side
Wall-mounted shift
RS232/485 connect cable
RJ45 cable ( with POE)
SIM Card slot ( 3G)
Build in battery( 4000mAh)

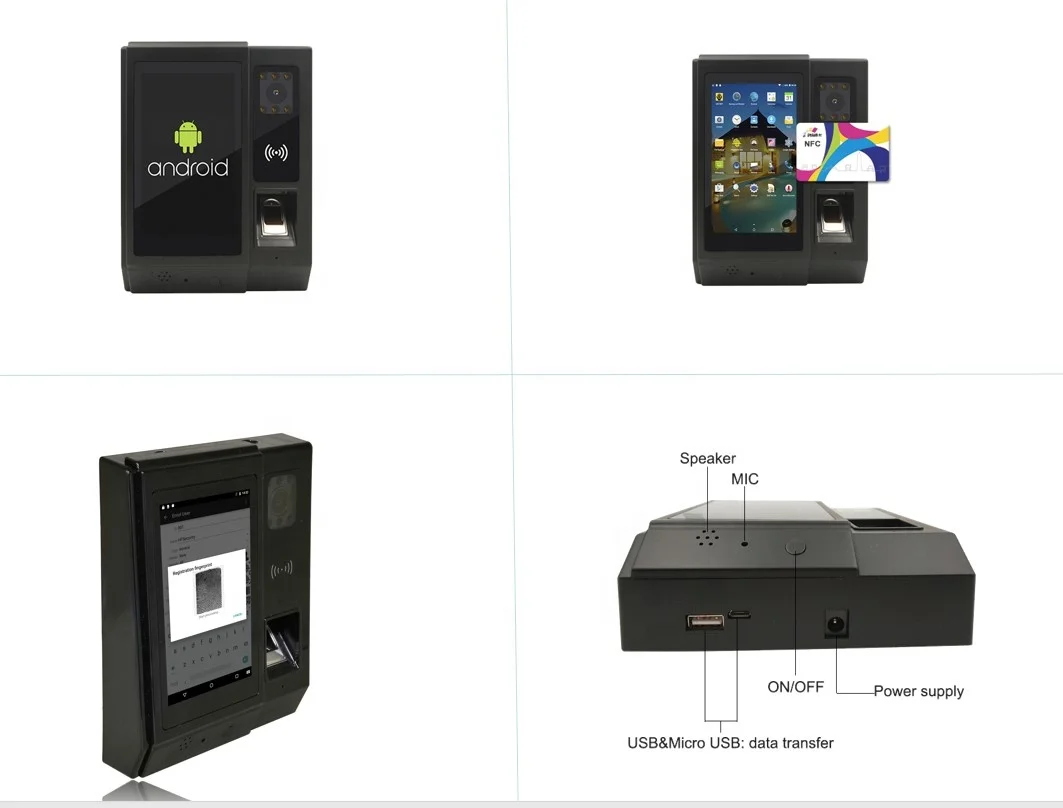

Button side
USB2.0 Communication cable
Micro USB Communication cable
DC Charger
Power button
Speaker & MIC
Product Usage

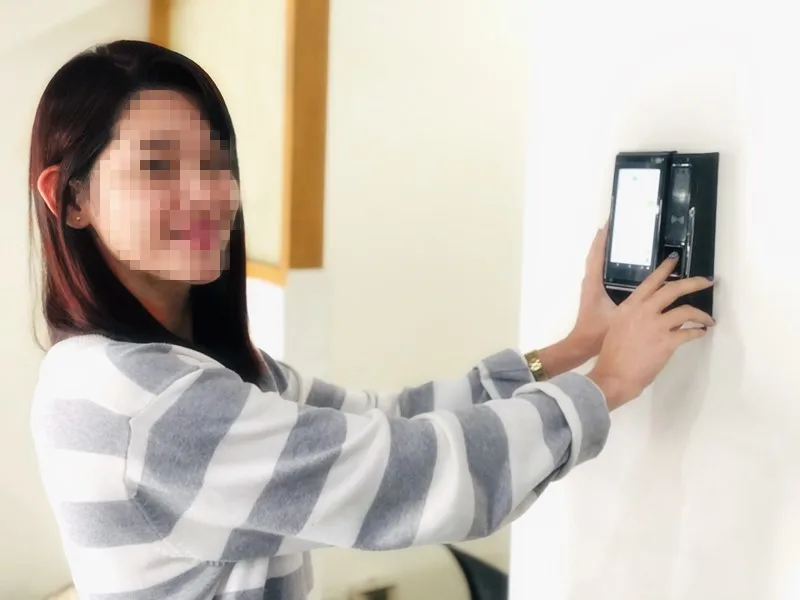

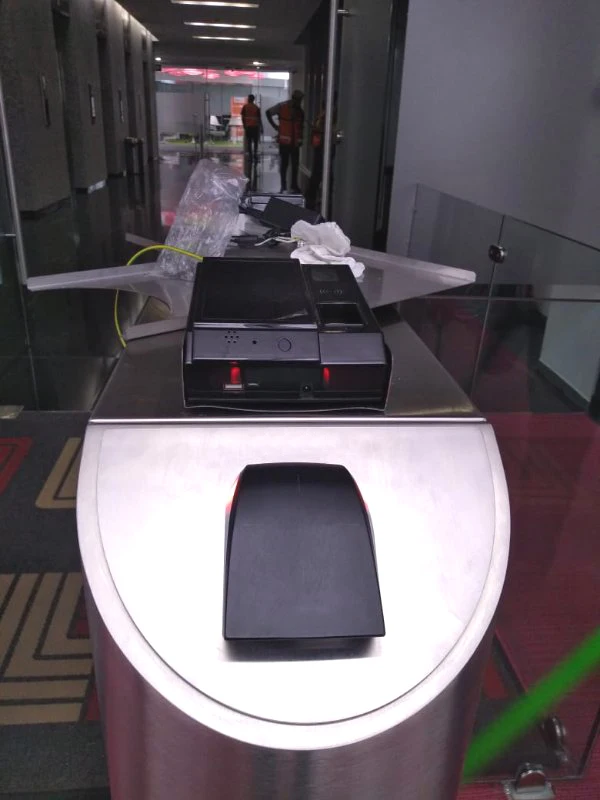

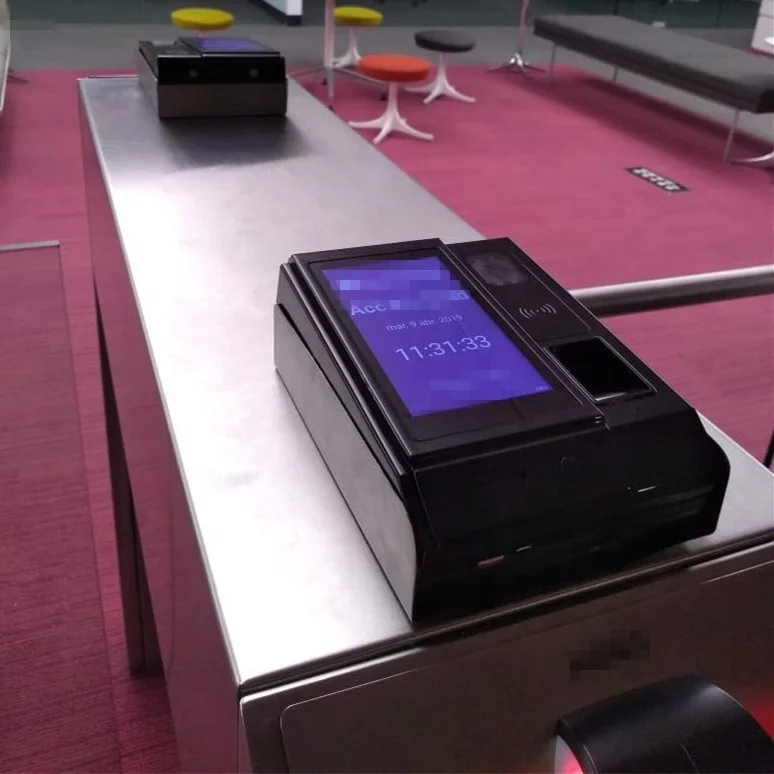

A5 Android Fingerprint Time Attendance for Office Staff Management
A5 come with ready demo and SDK, for your further development and system integrate(HR, Payroll etc).
Staff press finger and there will have the attendance records send to cloud server/software, and the door will open at same time. Administrator can calculate the salary based on attendance records.

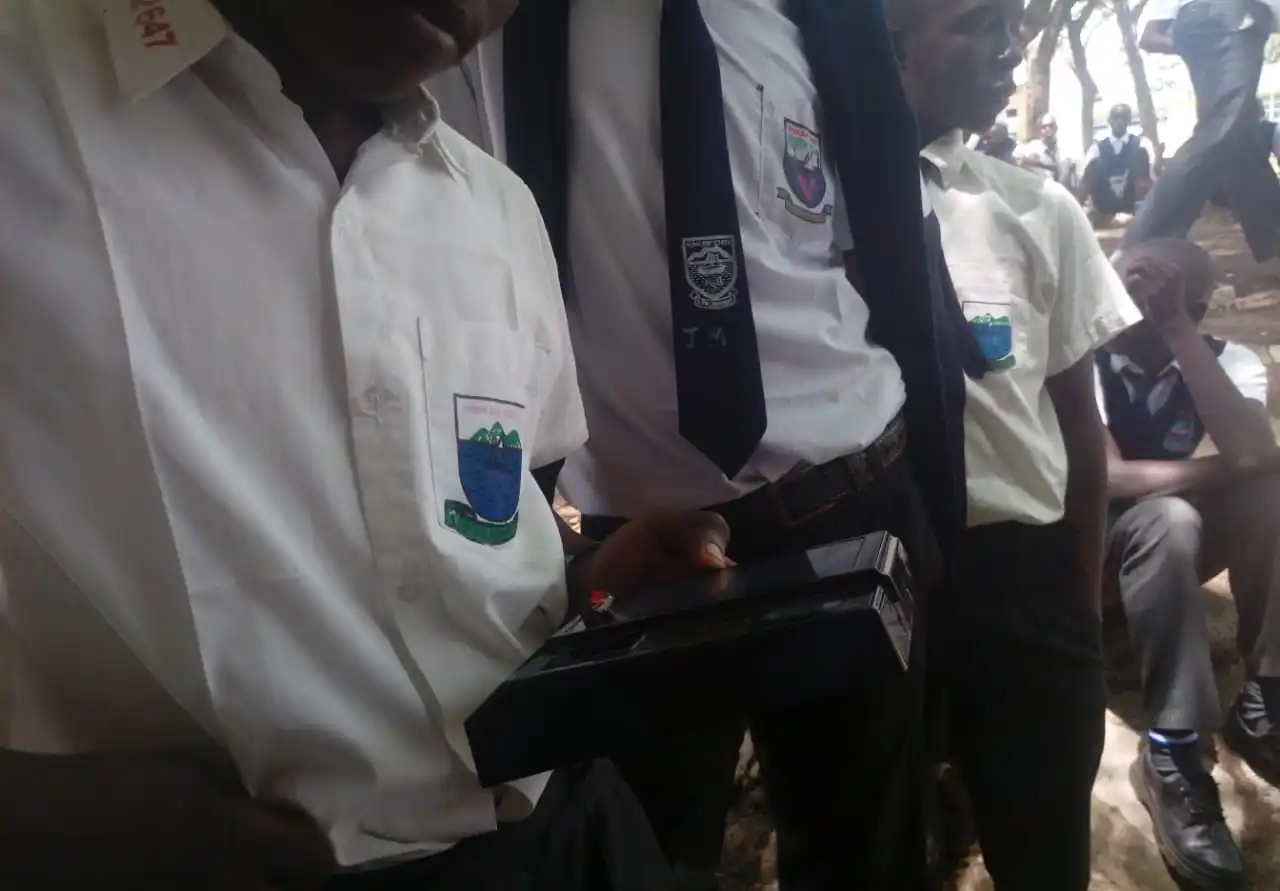

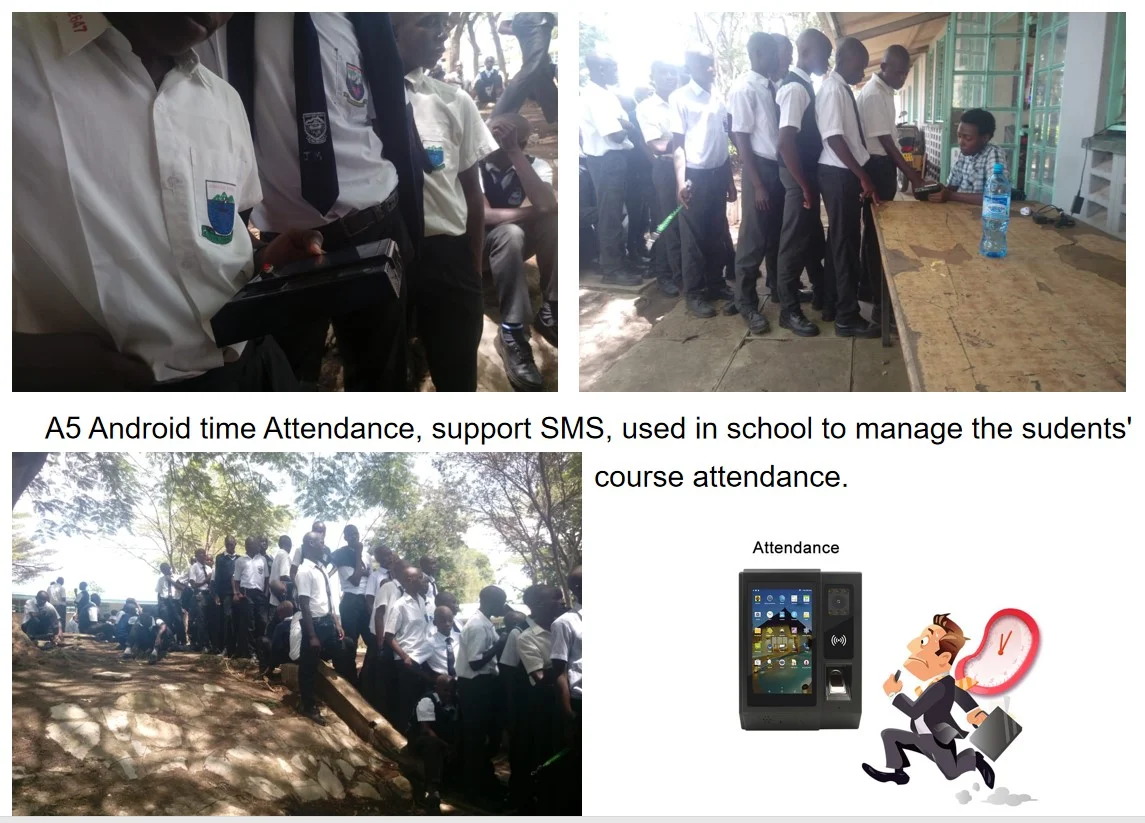

A5 Fingerprint Time Attendance SMS function for Africa school
When students arriving school, they need press finger to check attendance, and at the same time, here will have a SMS message send out to their parents, that parents will know when their kids arrived school to ensure all children stay in safe
Related Products

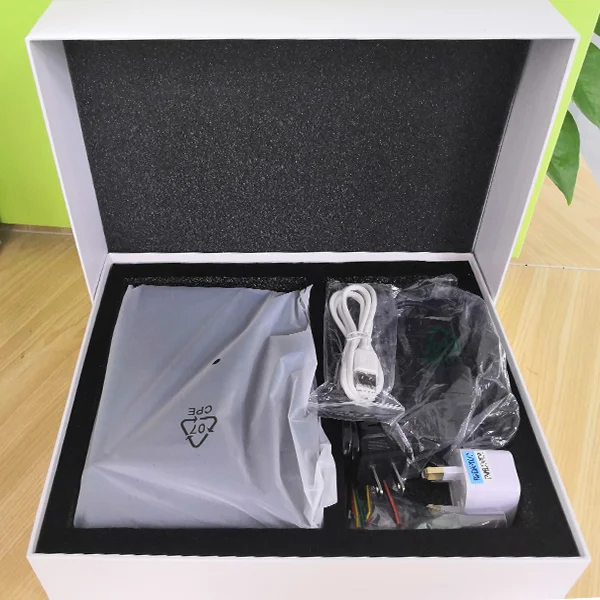

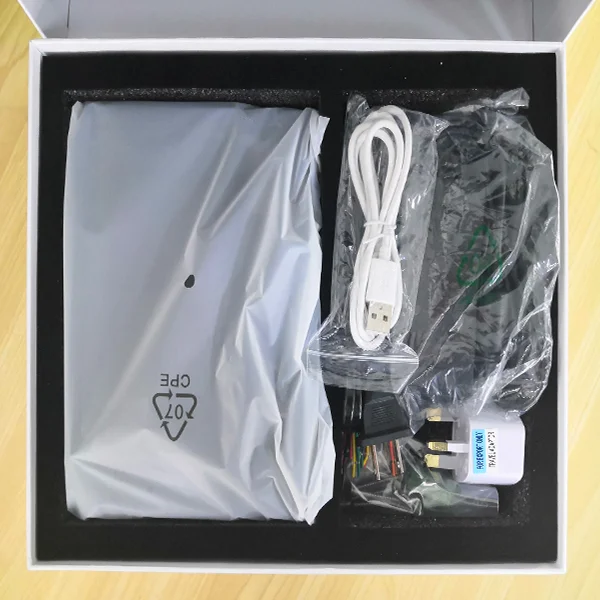

Packing&Shipping
Single Box Size: 27*19*6cm /2kg
Bulk quantity package: 18pcs/CTN, 60*36*30cm / 24KG
Whole solution offer with 1 year warranty and lifetime technical support
Company Introduction
HFSecurity are the leading global biometric products and solutions supplier, where we have high quality products and all-round services. We succeed to help our clients to take part in the Angola's presidential election and Nigeria president election projects, Kenya election projects and other government project bids. We also provide biometric verification solution to Venezuela medical system, Peru ATM system etc.
FAQ
Q: How many years does HFSecurity working on overseas market?
A: Over 16 years( We do have 3 Alibaba shop, which start at 2008, 2012 and 2020)
Q: What is the MOQ for A5?
A: MOQ=2pcs ( Different quantity different price, buy more and save more)
Q: What is the warranty for A5?
A: 1 year warranty and lifetime technical support( Same for all HFSecurity Patent solution)
Q: Can I customized my own LOGO or start flash on A5?
A: Yes, HFSecurity as Biometric manufacturer since 2005, everything is flexible , we support do ODM/OEM
Q: How many new design does HFSecurity R&D each year
A: Normally we push 2-3 days to market each year, if you have any special Biometric solution needs, welcome to discuss OEM /ODM.
