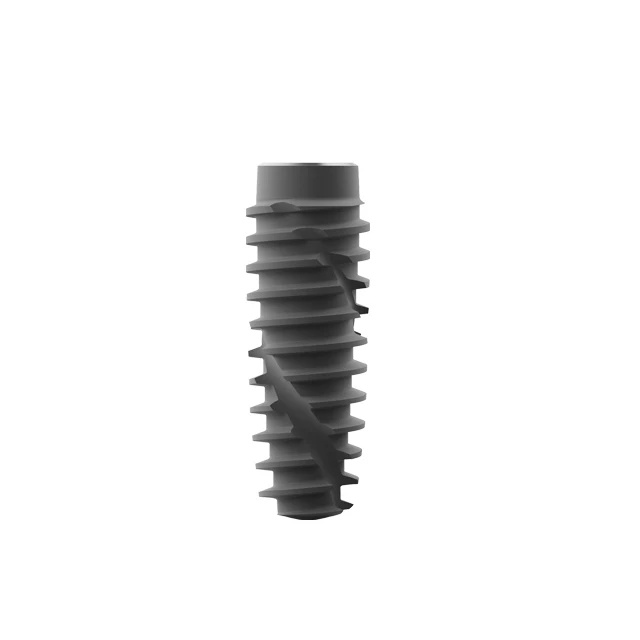

The ISY+ implant is highly versatile thanks to its particular morphology, and obtains excellent results in terms of ease of insertion and primary stability in any bone quality, ranging from cortical bone to the very soft one.
It is particularly suitable for early or immediate positioning after extraction or loss of natural teeth and for implant sites with newly formed bone.
The unique configuration of the threads profile offers, together with the morphology of the implant core and its surgical procedure, in addition to an excellent primary stability, a great BIC (Bone-to- Implant-Contact) value, thus making Sharpy the ideal implant for immediate loading procedures in post-extraction implant sites or in area with newly formed bone.
The thread, with variable depth and wide distance from the implant core: It is characterized by the presence of deep longitudinal grooves (2 up to Ø 4.1 implant, 3 in the larger diameters) which grants strong penetration features to the thread itself in the patient’s bone, contributing positively to increase the primary stability and avoiding the risk of unfastening of the implant, especially in situations of low bone density.
ISY+ has a morse-taper implant-abutment connection, with a conical portion at 11° (the same of Dentsply Astra connection), with a dodecagon configuration, which performs the function of prosthetic index, especially for single restorations: compared to the connection with an hexagonal positioning index, it allows to achieve better performance of mechanical resistance, especially during implant insertion; moreover, it offers a greater flexibility for the prosthetic rehabilitation, useful in cases of single elements with tilted implants (typically in the frontal areas); it guarantees full compatibility with other implant systems already in the market and therefore a full accessibility with the most common cad-cam systems available.
Specification
ITEM
VALUE
Properties
Implant Materials & Artificial Organs
Implantation Equipments
Brand Name
BIOTEC S.r.l.
Model Number
ISY+ IMPLANT
Place of Origin
Italy
Licence Number
UNI EN ISO 13485
Connection
morse-taper implant-abutment
Feature
longitudinal grooves 2 up to 4.1 implant, 3 in the larger diameters
Transport
at room temperature without restrictions either by ship or by air
Packaging
on demand at the request
Packing & Delivery
Transport
at room temperature without restrictions either by ship or by air
Packaging
all the products presented are available with packaging on demand at the request of the Customer (Private Label)
Company Profile
VISION & MISSION
The energy generated by a smile is what leads and motivates us: working with a smile, for a smile, is something that comes from deep within, that arises from our dna.
OUR VISION
Implanting trust, smile again
OUR MISSION
By combining cutting-edge technologies and biology,BIOTEC S.r.l. mission is to offer affordable and personalized implant-borne solutions thereby sustainably improving the daily life of dental patients. Together with leading professionals,BIOTEC S.r.l. strives to become a reference in replacing missing teeth with trusted implant solutions in order to improve oral health around the globe.
THE ONLY PARTNER YOU NEED IN MODERN IMPLANTOLOGY
For over 20 years, we have been providing professionals in Implantology with our exclusive know- how, creating certified and high-quality medical devices. All internal productive processes are subject to the most accurate and detailed inspection procedures performed by our highly specialized personnel.
Superior reliability, customized services and enviable quality/price ratio guarantee our partners’ needs absolute satisfaction.
Certifications
MADE IN ITALY, USED GLOBALLY
We constantly ensure that the quality of our products and services meet the high expectations of our customers and their patients. Specialized professionals are taking care to offer comprehensive solu- tions in applied research, engineering, education and related activities.
Our brand is a solid promise of quality, we are certified UNI EN ISO 9001, UNI EN ISO 13485 and MDD 93/42/EEC Annex II and subsequent amendements and additions, and is therefore authorized to apply the CE Mark on its products.
