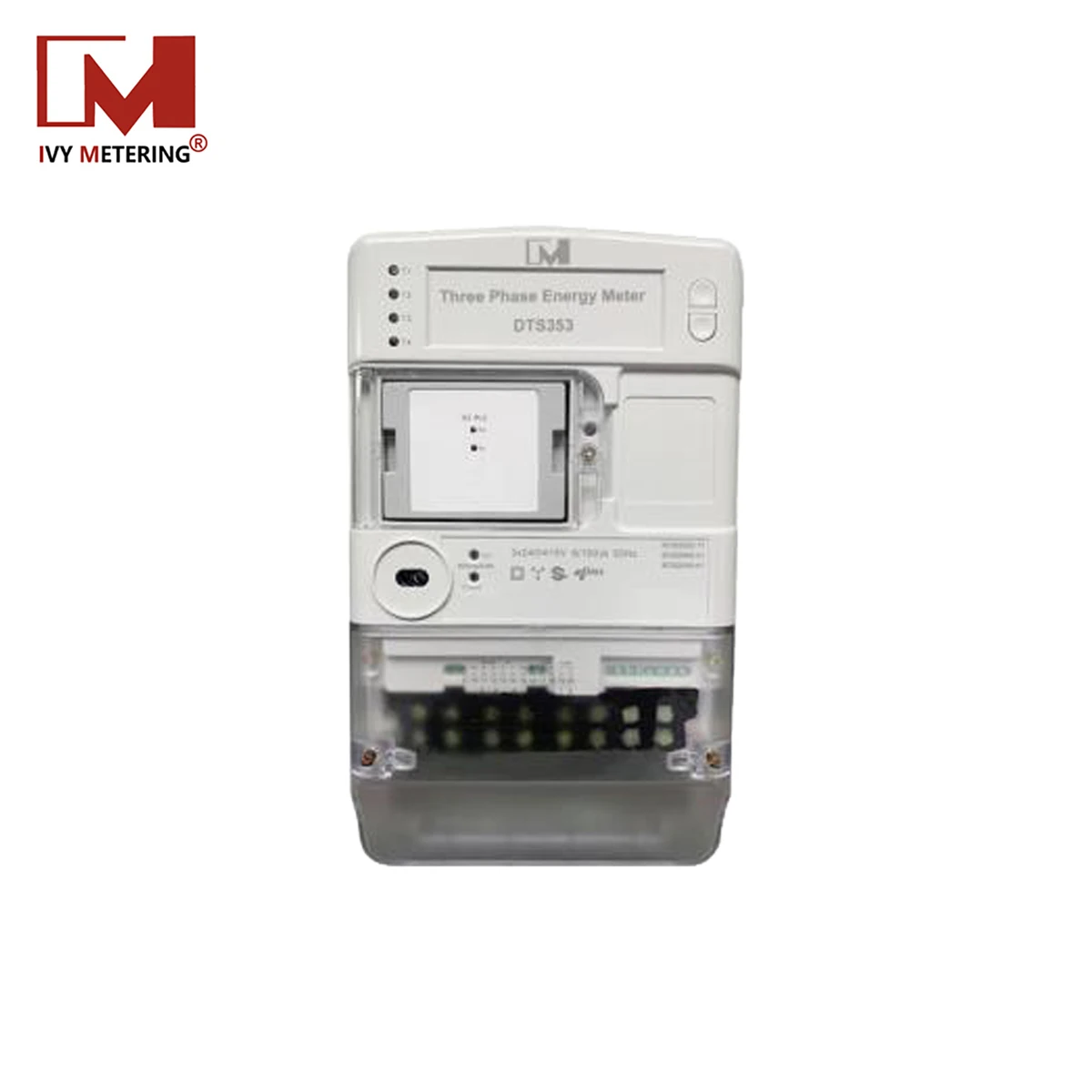

3 phase smart meter dlms gprs plc rs485three phase meter venezuela dlms
- Category: >>>
- Supplier: Shanghai Ivy-Metering Electronic Technology Ltd.
Share on (1600200406944):
Product Overview
Description
Type | 3 Phases 4 Wires Energy Meter | |
Voltage | 3*240/415V | |
Current | 5(100)A, direct type | |
Frequency | 50Hz | |
Accuracy Class | Active Cl.1.0 Reactive Cl.2.0 | |
Starting Current | Class 1:40mA Class 2: 50mA | |
Over-voltage rating | Withstand 420V for 48 hours | |
Measurement | Each phase and neutral current measurement | |
Alarm | PF; voltage dip/Low voltage; Temperature near terminal block | |
Tamper inputs | Meter cover open; Terminal cover open; Communication module cover open; Strong magnetic field tamper | |
Communications | RS485 & IR(always present) Plug-in module:PLC (G3)/GPRS/LoRa Protocol: DLMS | |
Tariff | Multi-tariff | |
Maximum demand | Configurable integration period-with auto reset on the 1st of every month. Manual reset must also be possible via secure short code method. MD to be part of scroll display | |
Load management | Support second configurable load limit threshold that becomes active during configurable periods |
Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
contact with our sales team.
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
