4 way wireless remote controller 7A RX 715 relay switch receiver
- Category: >>>
- Supplier: 5C Electronics Co. Ltd.
Share on (1600200411391):
Product Overview
Description
Products Description

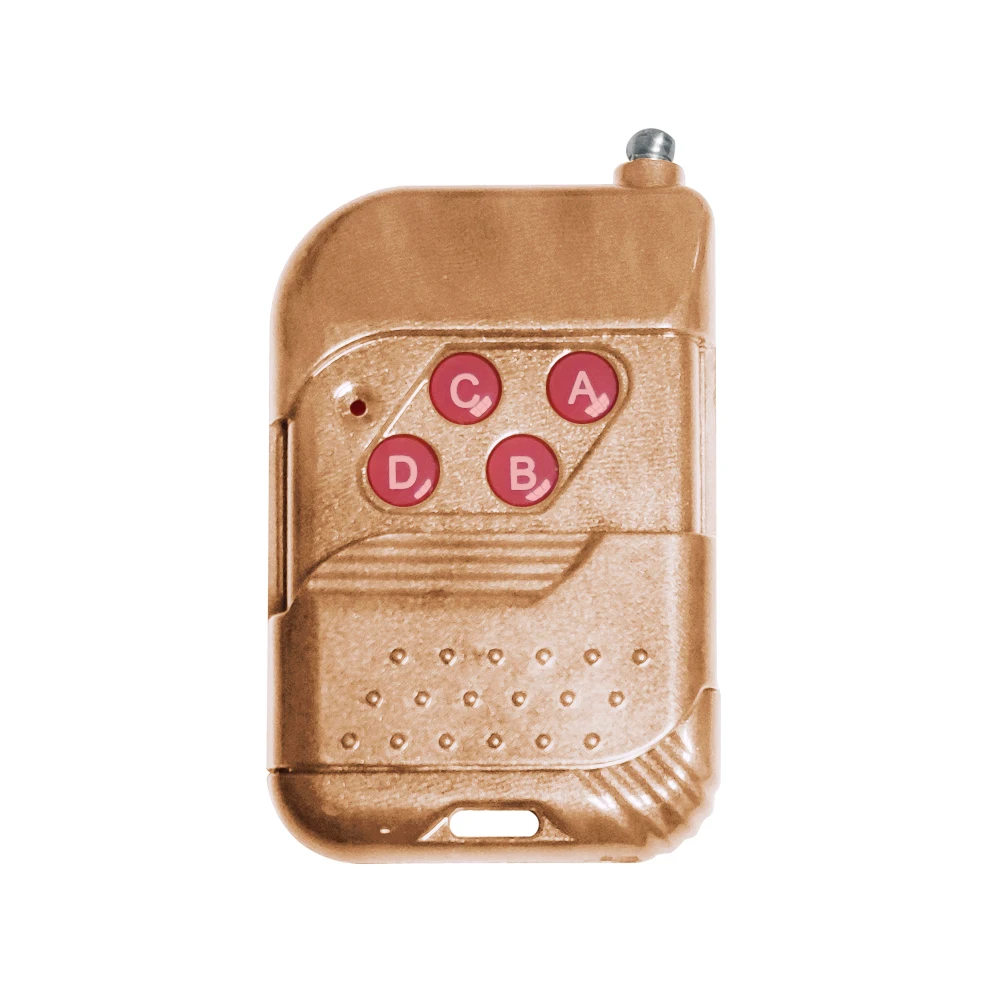

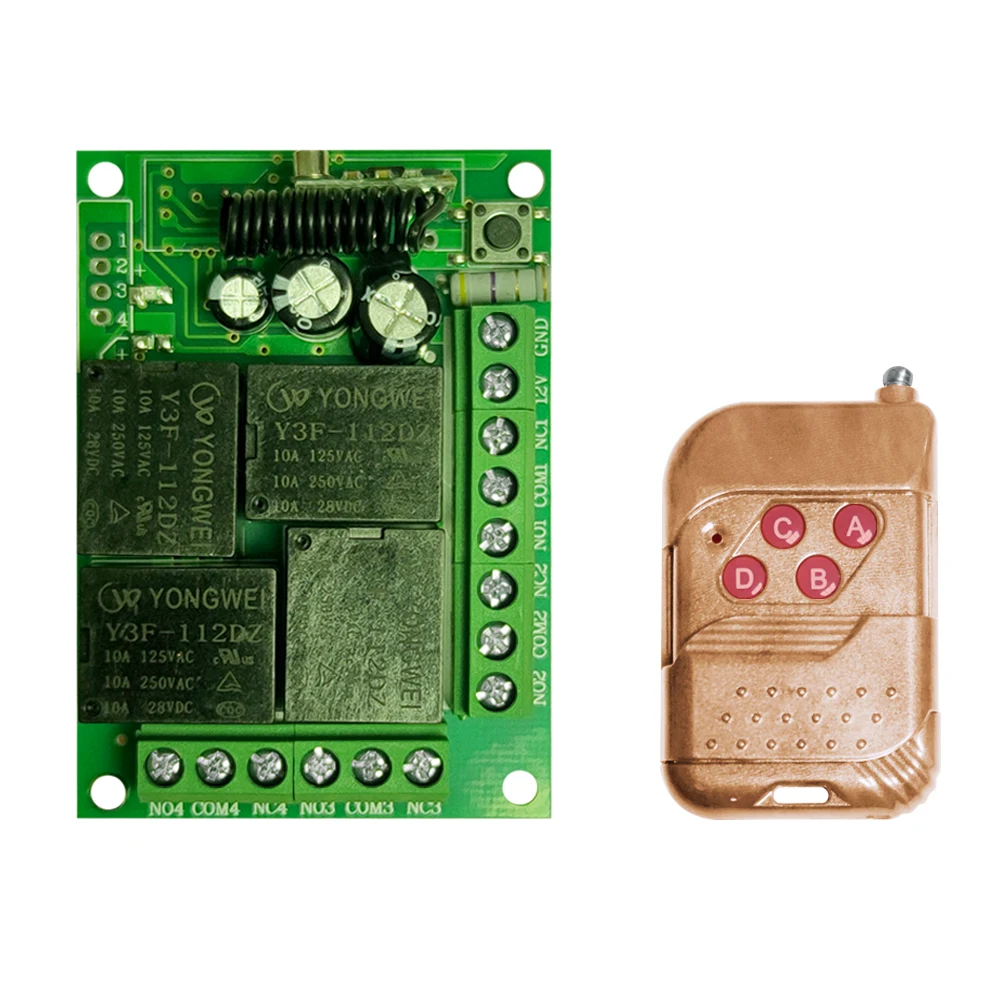

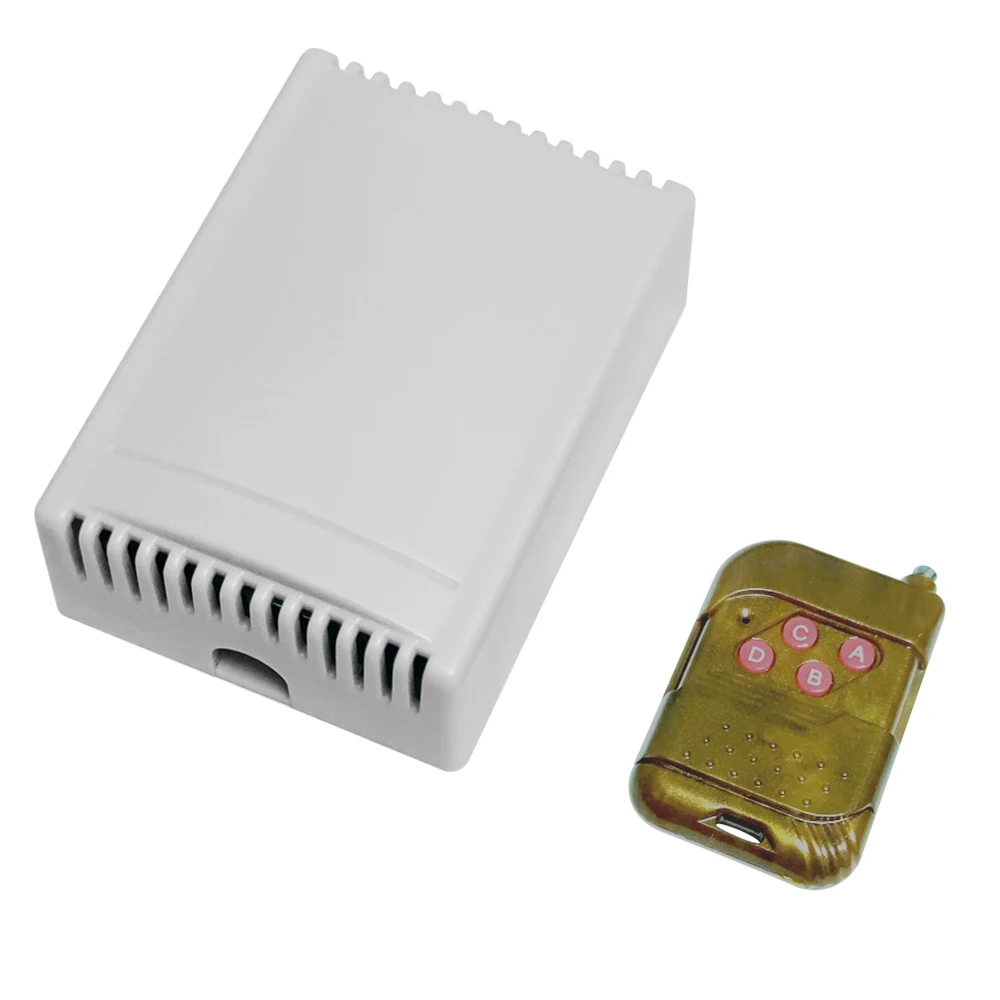

4 way wireless remote controller 7A relay switch receiver RX-715
Features
1、RX-715 is wireless RF remote controller relay switch ;2、It can be used to connect with lights, air conditioner, pump etc. and control by wireless remote control
3、It base on RF 433MHz。
Parameters
* Power Working voltage：DC12V
* Max. load：7A
* Output port：4 way
* Wireless chip：EV1527
* Wireless frequency： 433MHz
* Coding：learning code
* Working model：toggle
* Transmit distance：100M in open area
Coding instruction
1、Press the learning button for 2 sec. , LED lights ON,
2、Press the remote control, LED will flash quickly, means learning successfully ;
3、Press the learning button for 5 sec. , will clear the learned remote controls
* Power Working voltage：DC12V
* Max. load：7A
* Output port：4 way
* Wireless chip：EV1527
* Wireless frequency： 433MHz
* Coding：learning code
* Working model：toggle
* Transmit distance：100M in open area
Coding instruction
1、Press the learning button for 2 sec. , LED lights ON,
2、Press the remote control, LED will flash quickly, means learning successfully ;
3、Press the learning button for 5 sec. , will clear the learned remote controls
