Small miniature zinc alloy pillow block bearing UP000 KP000 MUP004 seat fixed seat
- Category: Pillow Block Bearings >>>
- Supplier: Shandong,Huafei,Bearing,Co.,Ltd.
Share on:
Product Overview
Description
Product Specification
Bearing Selection :
Bearing size selection is mainly based on the requirement of load, service life and reliability. Basic rated load is a technical index used to evaluate bearing capacity. Basic rated load includes basic rated dynamic load and basic rated static load. Bearing when it rotates (n > 10 rpm) is characterized as the basic rated dynamic load C. Bearing when it rotates statically or slowly or oscillates (n ≤ 10 rpm) is characterized as the basic rated static load Cor. Outer spherical ball bearings are centripetal ball bearings, which mainly bear radial force. Therefore, it is characterized by the radial basic rated dynamic load Cr and the radial basic rated static load Cor. The values of the radial basic rated dynamic load Cor and the radial basic rated static load Cor are shown on the product's outline dimension table. Usually, life calculation is an important basis for selecting rolling bearings. Life generally refers to the fatigue life of bearings. When the bearing is used correctly, that is, the load is moderate, the installation is correct and the lubrication is good. The damage of the bearing is mainly caused by the fatigue spalling of the rolling surface caused by alternating contact stress, which is impossible to avoid completely. However, different mechanical uses require different requirements for bearings, which require the bearings to maintain a certain performance during the specified period. After a period of working time, the
noise and vibration increase, the wear and tear result in the decrease of accuracy, and the aging of grease will lead to the failure of the bearing, or can not meet the requirements of this kind of machinery. The life before failure is called noise life, wear life and grease life. In addition to the above-mentioned service life, the reasons why bearings can no longer be used include sintering, fracture, crack, jam, seal failure, etc. These should be regarded as bearing failures. The failure originates from improper selection of bearings, poor mechanical design, installation, use, maintenance and other errors, which should be different from the service life of bearings
Bearing size selection is mainly based on the requirement of load, service life and reliability. Basic rated load is a technical index used to evaluate bearing capacity. Basic rated load includes basic rated dynamic load and basic rated static load. Bearing when it rotates (n > 10 rpm) is characterized as the basic rated dynamic load C. Bearing when it rotates statically or slowly or oscillates (n ≤ 10 rpm) is characterized as the basic rated static load Cor. Outer spherical ball bearings are centripetal ball bearings, which mainly bear radial force. Therefore, it is characterized by the radial basic rated dynamic load Cr and the radial basic rated static load Cor. The values of the radial basic rated dynamic load Cor and the radial basic rated static load Cor are shown on the product's outline dimension table. Usually, life calculation is an important basis for selecting rolling bearings. Life generally refers to the fatigue life of bearings. When the bearing is used correctly, that is, the load is moderate, the installation is correct and the lubrication is good. The damage of the bearing is mainly caused by the fatigue spalling of the rolling surface caused by alternating contact stress, which is impossible to avoid completely. However, different mechanical uses require different requirements for bearings, which require the bearings to maintain a certain performance during the specified period. After a period of working time, the
noise and vibration increase, the wear and tear result in the decrease of accuracy, and the aging of grease will lead to the failure of the bearing, or can not meet the requirements of this kind of machinery. The life before failure is called noise life, wear life and grease life. In addition to the above-mentioned service life, the reasons why bearings can no longer be used include sintering, fracture, crack, jam, seal failure, etc. These should be regarded as bearing failures. The failure originates from improper selection of bearings, poor mechanical design, installation, use, maintenance and other errors, which should be different from the service life of bearings

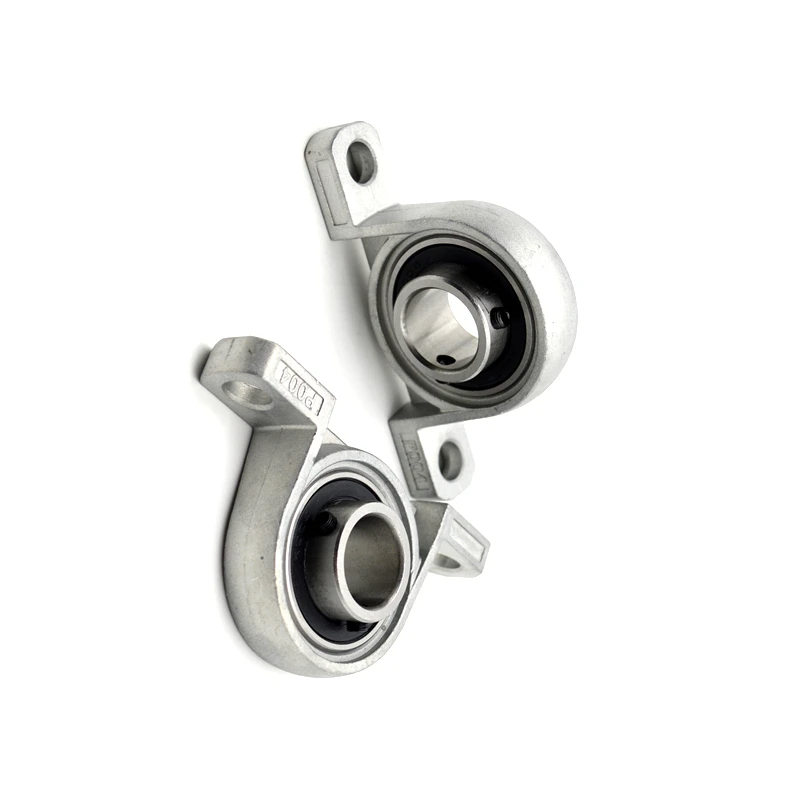

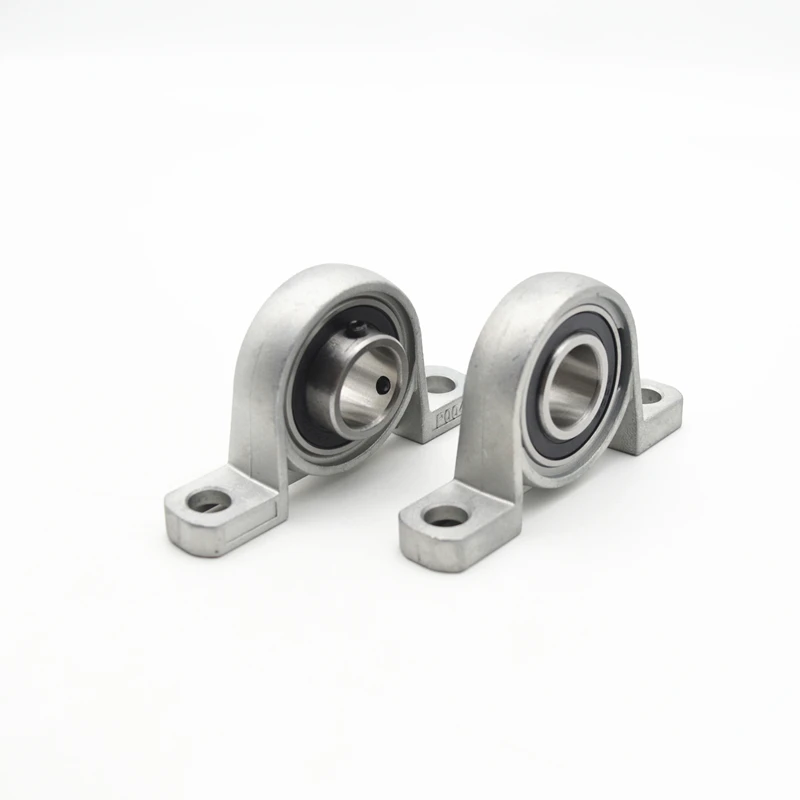

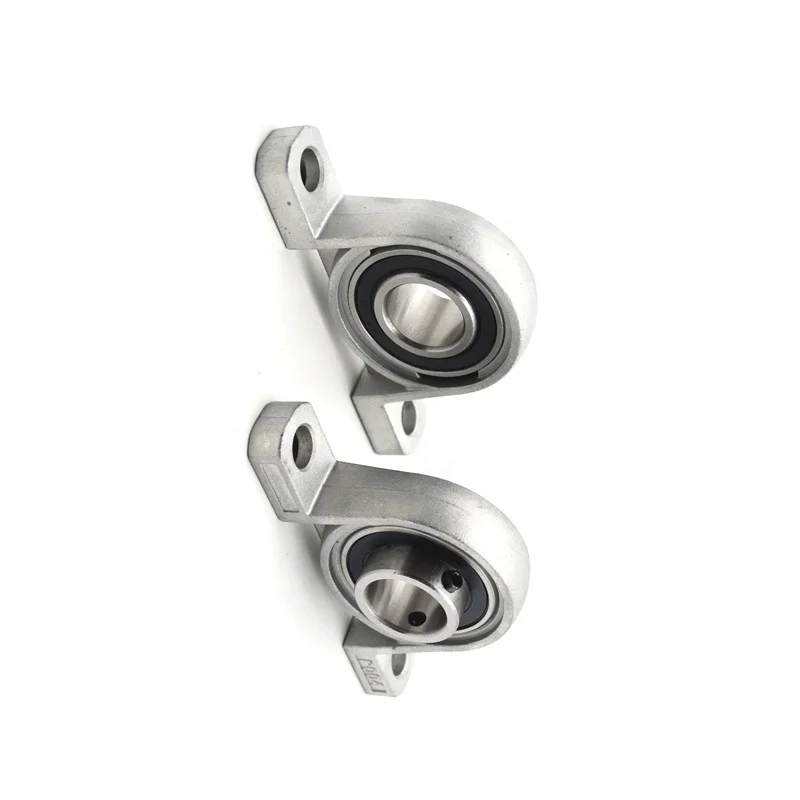

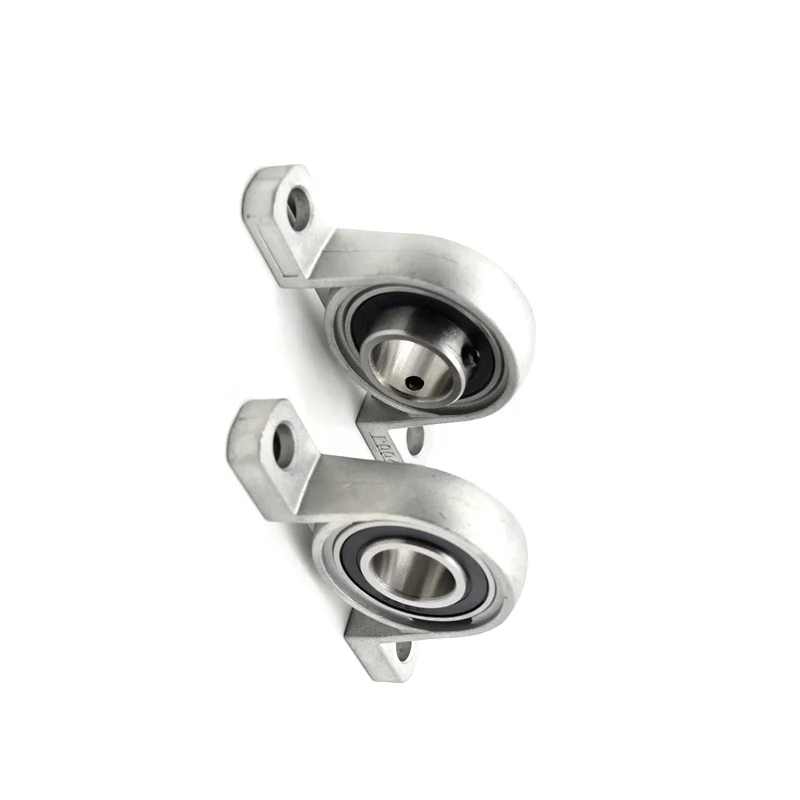

zinc alloy pillow block bearing
带座轴承型号 Bearing Unit No | 轴径 Bore Dia | 外形尺寸（毫米） Dimensions（mm） | |||||
d | h | L | J | A | |||
mm | |||||||
UP000 | 10 | 18 | 67 | 53 | 16 | ||
UP001 | 12 | 19 | 71 | 56 | 16 | ||
UP002 | 15 | 22 | 80 | 63 | 16 | ||
UP003 | 17 | 24 | 85 | 67 | 18 | ||
UP004 | 20 | 28 | 100 | 80 | 20 | ||
UP005 | 25 | 32 | 112 | 90 | 20 | ||
UP006 | 30 | 36 | 132 | 106 | 26 | ||
UP007 | 35 | 40 | 150 | 118 | 26 | ||
KP08 | 8 | 15 | 55 | 42 | 13 | ||
KP000 | 10 | 18 | 67 | 53 | 16 | ||
KP001 | 12 | 19 | 71 | 56 | 16 | ||
KP002 | 15 | 22 | 80 | 63 | 16 | ||
KP003 | 17 | 24 | 85 | 67 | 18 | ||
KP004 | 20 | 28 | 100 | 80 | 20 | ||
KP005 | 25 | 32 | 112 | 90 | 20 | ||
KP006 | 30 | 36 | 132 | 106 | 26 | ||
KP007 | 35 | 40 | 150 | 118 | 26 | ||
Product Faces
Products Description
Features | Benefits |
Low friction | Consistency of roller profiles and sizes |
Long service life | This facilitates mounting, dismounting and also maintenance inspection routines |
reduce stress peaks at the roller ends | supports the formation of a hydrodynamic lubricant film |
Long service life | By applying a preload, a rigid bearing application can be achieved. |
Sales points:
1. cheap price with good quality, good sales in the market.
2. we use the good quality grease make sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in bearing or send your design sample to us, we can do the customizaton for you.
2. we use the good quality grease make sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in bearing or send your design sample to us, we can do the customizaton for you.
Specifications:
Product name | zinc alloy pillow block bearing |
Model Number | UP000 KP000 MUP004 |
ID*OD*W(mm) | d20 |
Applicable Industries | Automotive.tractor.construction Machinery.rolling Mill |
Material | Chrome Steel GCR15 |
Place of Origin | Shandong,China |
Precision Rating | P0,P4,P6 |
Sample | Available |
Brand Name | OEM |
Feature | Low noise, less vibration, high precision and long life |
Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. |
Application | Mining operations, paper mills, oil fields, marine industry, steel,electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. |
Why Choose Us
The Bearings we supply for customer
including:
radial bearing
thrust-bearing
needle bearing
fluid lubricated bearing
Non - lubricated bearing
Deep Groove Ball Bearings
self-aligning ball bearing
cylindrical roller bearing
self-aligning roller bearing
Thrust and thrust angular contact ball bearings
Thrust and thrust spherical roller bearing
Needle roller bearings or cylindrical roller bearings
We Will offer you
Our advantages
1.High quality
2.Reasonable price
3. Good service
4.On time delivery
5.For the l Bearings Strict quality control
We will offer you
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and Bearings designs
3.In-time communication on the technical points
4.In-time Bearings test and sample delivery
5.In-time Bearings delivery.
including:
radial bearing
thrust-bearing
needle bearing
fluid lubricated bearing
Non - lubricated bearing
Deep Groove Ball Bearings
self-aligning ball bearing
cylindrical roller bearing
self-aligning roller bearing
Thrust and thrust angular contact ball bearings
Thrust and thrust spherical roller bearing
Needle roller bearings or cylindrical roller bearings
We Will offer you
Our advantages
1.High quality
2.Reasonable price
3. Good service
4.On time delivery
5.For the l Bearings Strict quality control
We will offer you
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and Bearings designs
3.In-time communication on the technical points
4.In-time Bearings test and sample delivery
5.In-time Bearings delivery.
Packing & Delivery
Payment terms
Payment terms
A. T/TB.D/P
B. D/A
C. Paypal
D. Western union
Package
A. tube package + outer carton + pallets
B. single box + outer carton + pallets
C. tube package + middle box + outer carton + pallets
D. According to your request.
Payment terms
A. T/TB.D/P
B. D/A
C. Paypal
D. Western union
Package
A. tube package + outer carton + pallets
B. single box + outer carton + pallets
C. tube package + middle box + outer carton + pallets
D. According to your request.

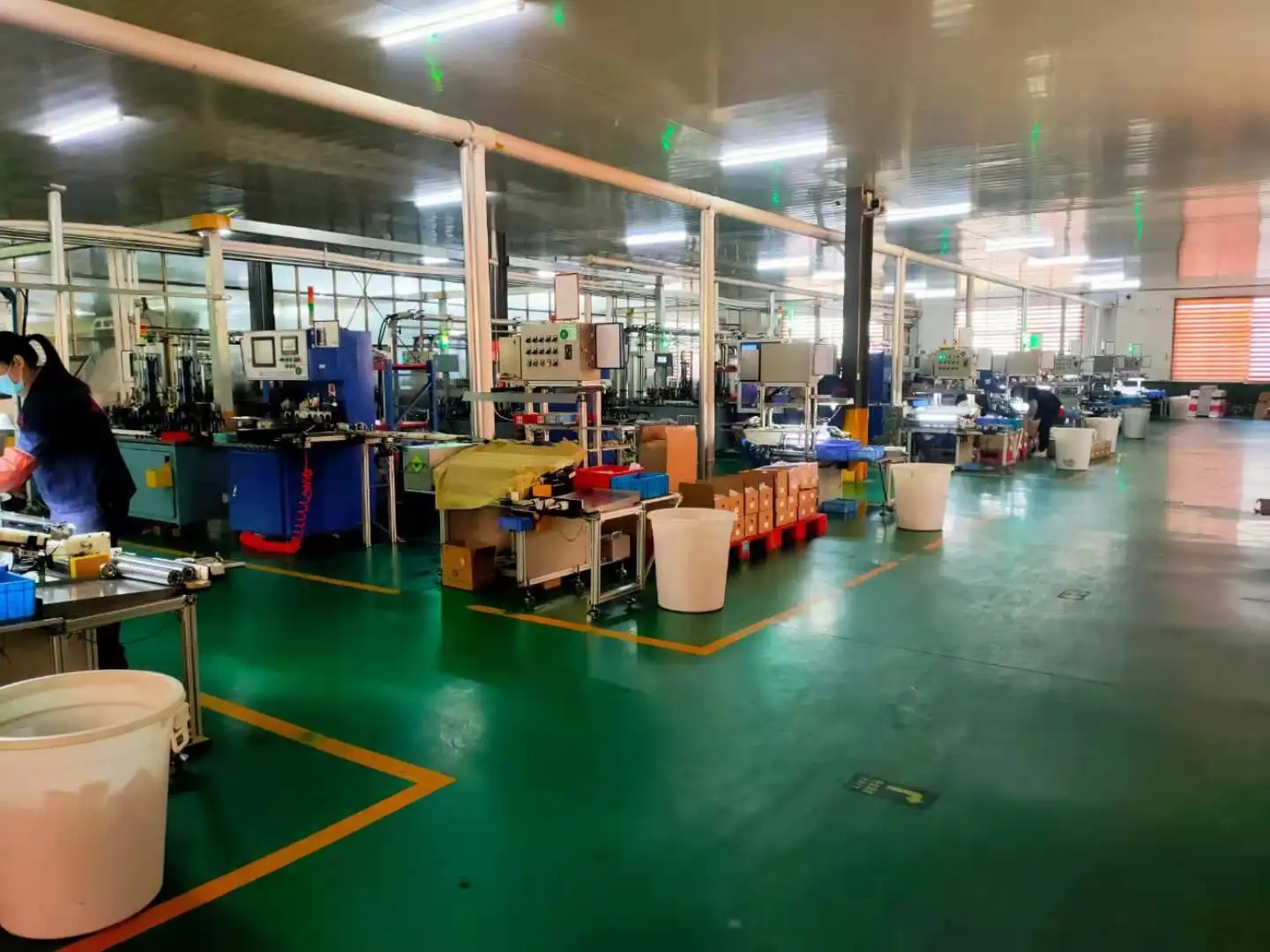

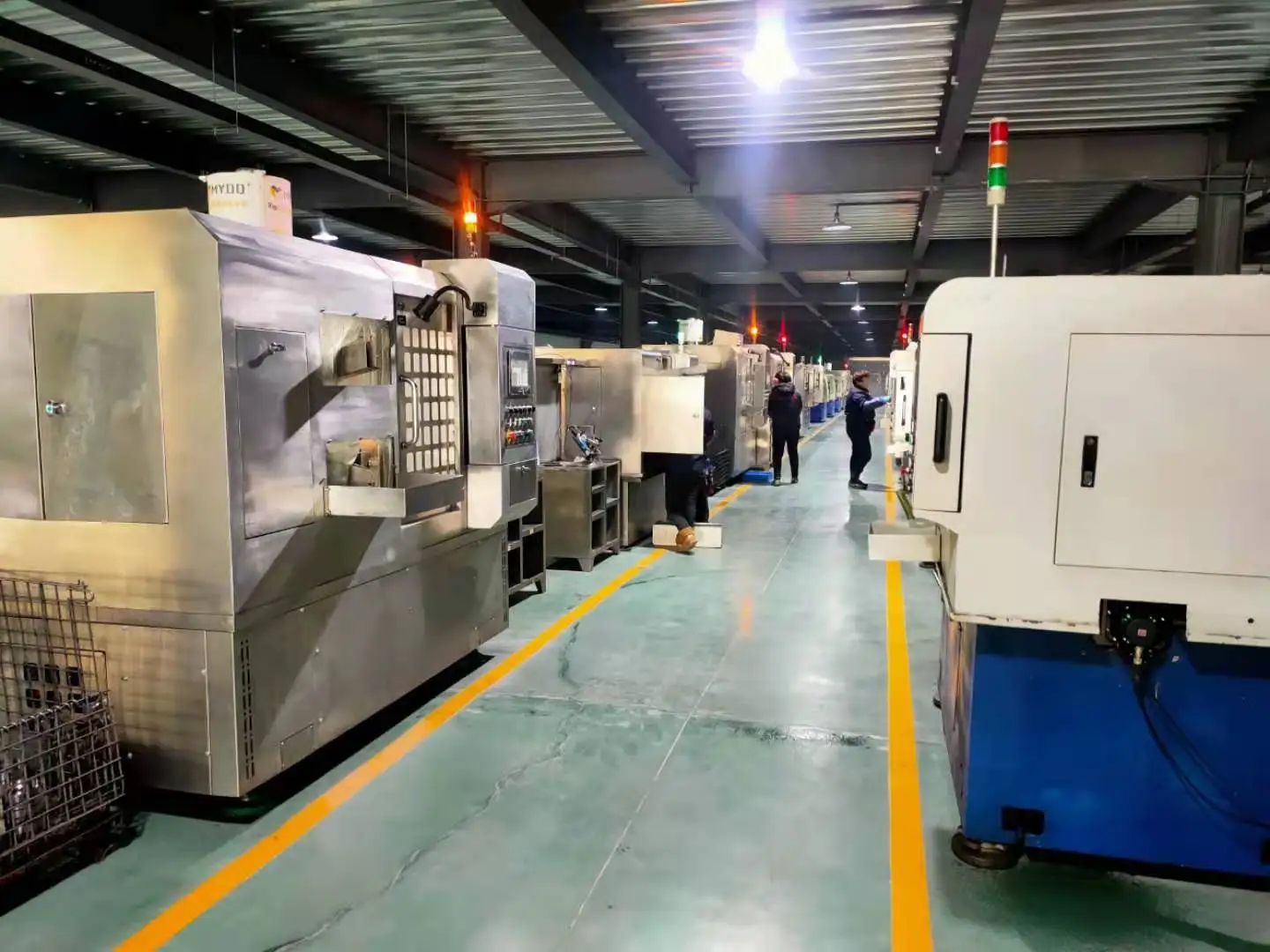

Company Profile
More about the company：
Shandong，Huafei bearing Co., Ltd. has established a professional sales network to help customers get products information at the
first time. we are supplier and manufacturer from jinan shangdong China , We integrate R&D,production and export of bearings. We
constantly strive for research and innovation development
first time. we are supplier and manufacturer from jinan shangdong China , We integrate R&D,production and export of bearings. We
constantly strive for research and innovation development
adhere to the concept of "survival of high quality", and provide excellent service for customers. Our employees receive professional training. The annual production capability is more than 500 million units. Our company has strong technical strength,excellent processing equipment and complete testing equipment to ensure quality of bearings.
FAQ
Q:Will you send me free samples?
A: Yes, samples is free ,but the freight cost has to be pay by you
Q:If you don"t see the tape of bearings I need ,what should I do ?
A: we have too much bearing series number .sometimes ,we are unable to put them all an Alibaba .Just send the inquairy to us and we will send you the detail of your bearings
Q:Why is your bearing price higher than others?
A: If you compare our bearing with Shandong price,our price is defiantly higher .However ,if you compare the quality with price
,our bearing value is most cost-effective for you to use .
Q:What the MOQ of your company ?
A:MOQ is 1 pcs
Q: What is your main product ?
A: Our main product including all kinds of ball bearings and roller bearings .Such as Deep Groove Ball Bearing ,Spherical Roller Bearing ,Needle Roller Bearing ,Tapered Roller Bearing...
Q: Where is your port of shipment located?
A:Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
A: Yes, samples is free ,but the freight cost has to be pay by you
Q:If you don"t see the tape of bearings I need ,what should I do ?
A: we have too much bearing series number .sometimes ,we are unable to put them all an Alibaba .Just send the inquairy to us and we will send you the detail of your bearings
Q:Why is your bearing price higher than others?
A: If you compare our bearing with Shandong price,our price is defiantly higher .However ,if you compare the quality with price
,our bearing value is most cost-effective for you to use .
Q:What the MOQ of your company ?
A:MOQ is 1 pcs
Q: What is your main product ?
A: Our main product including all kinds of ball bearings and roller bearings .Such as Deep Groove Ball Bearing ,Spherical Roller Bearing ,Needle Roller Bearing ,Tapered Roller Bearing...
Q: Where is your port of shipment located?
A:Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
If you have any other questions, please contact us
