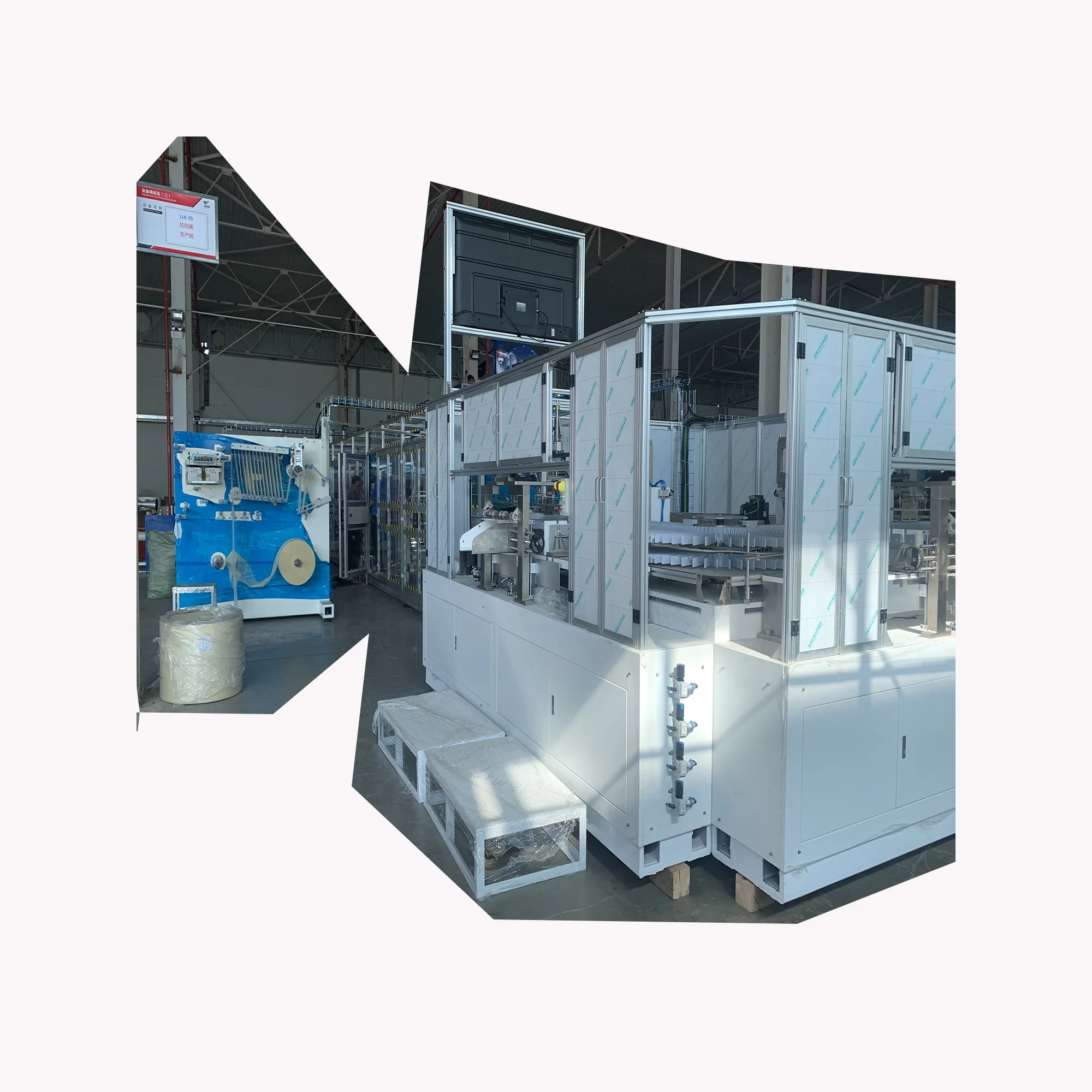

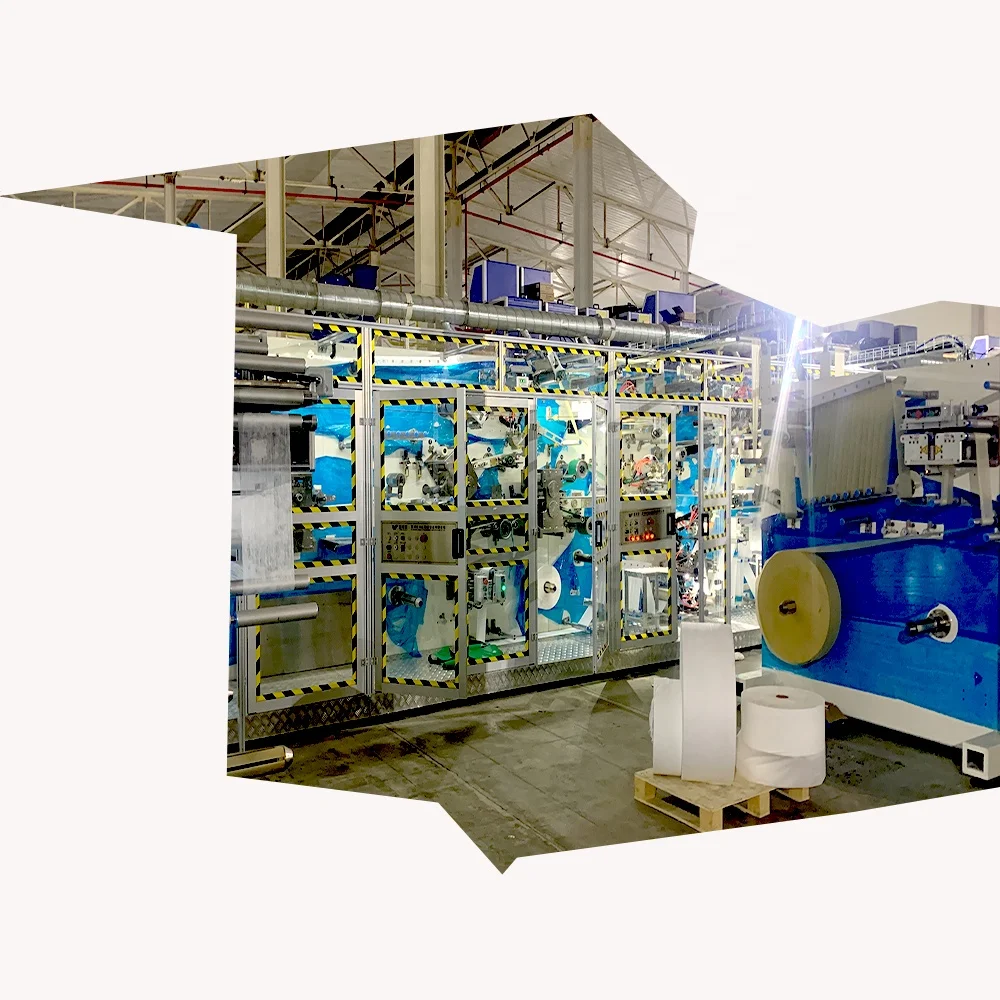

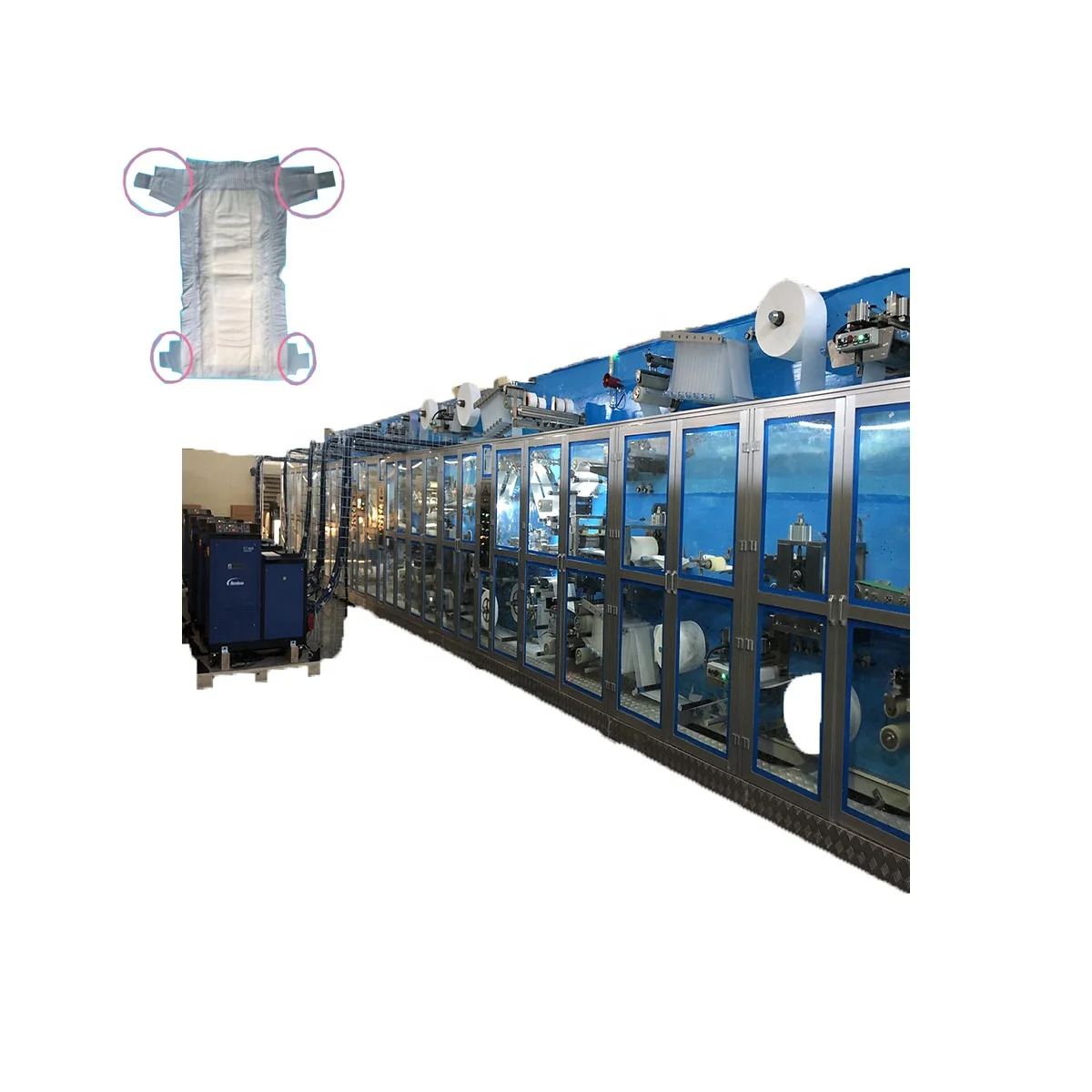

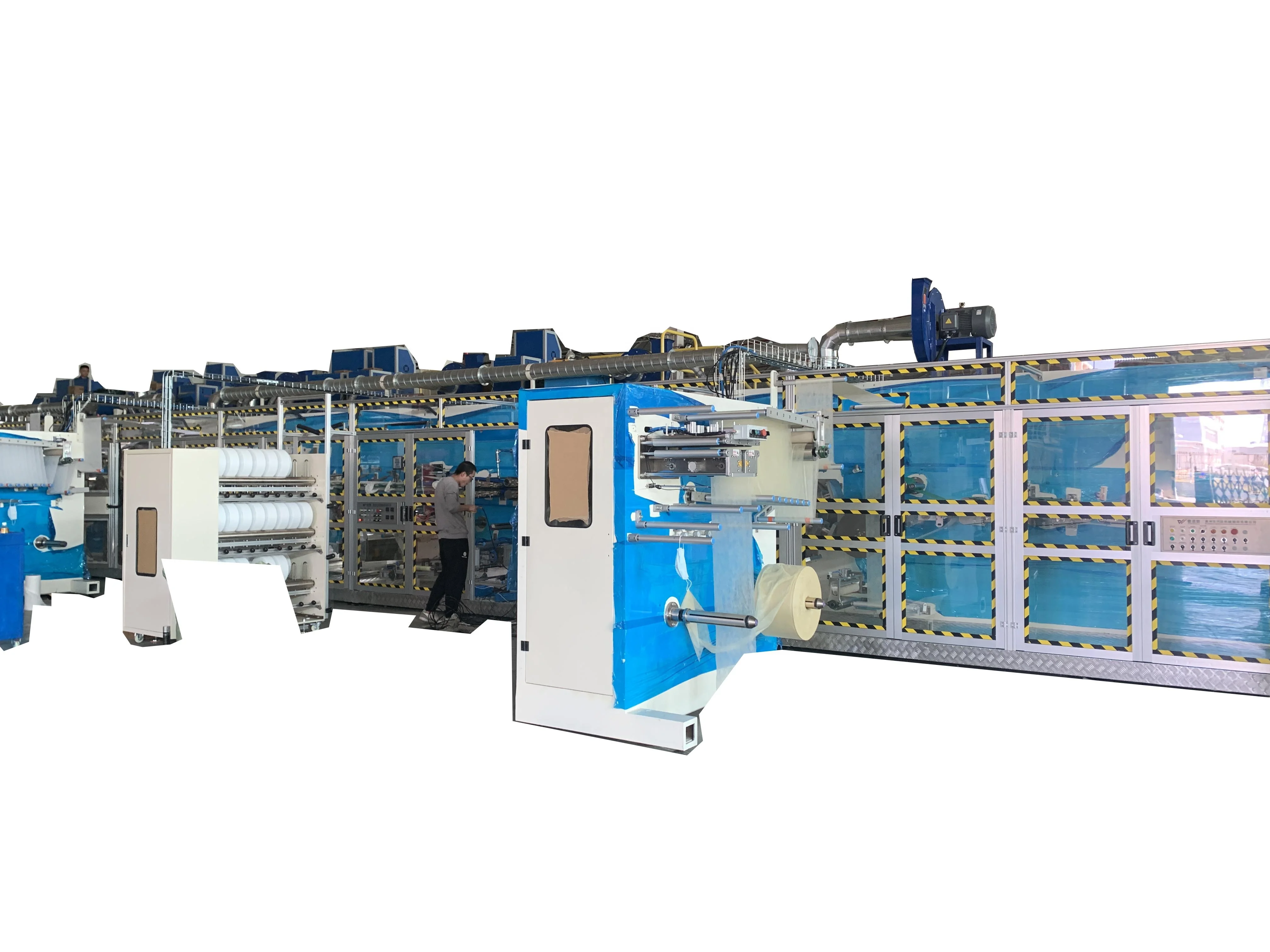

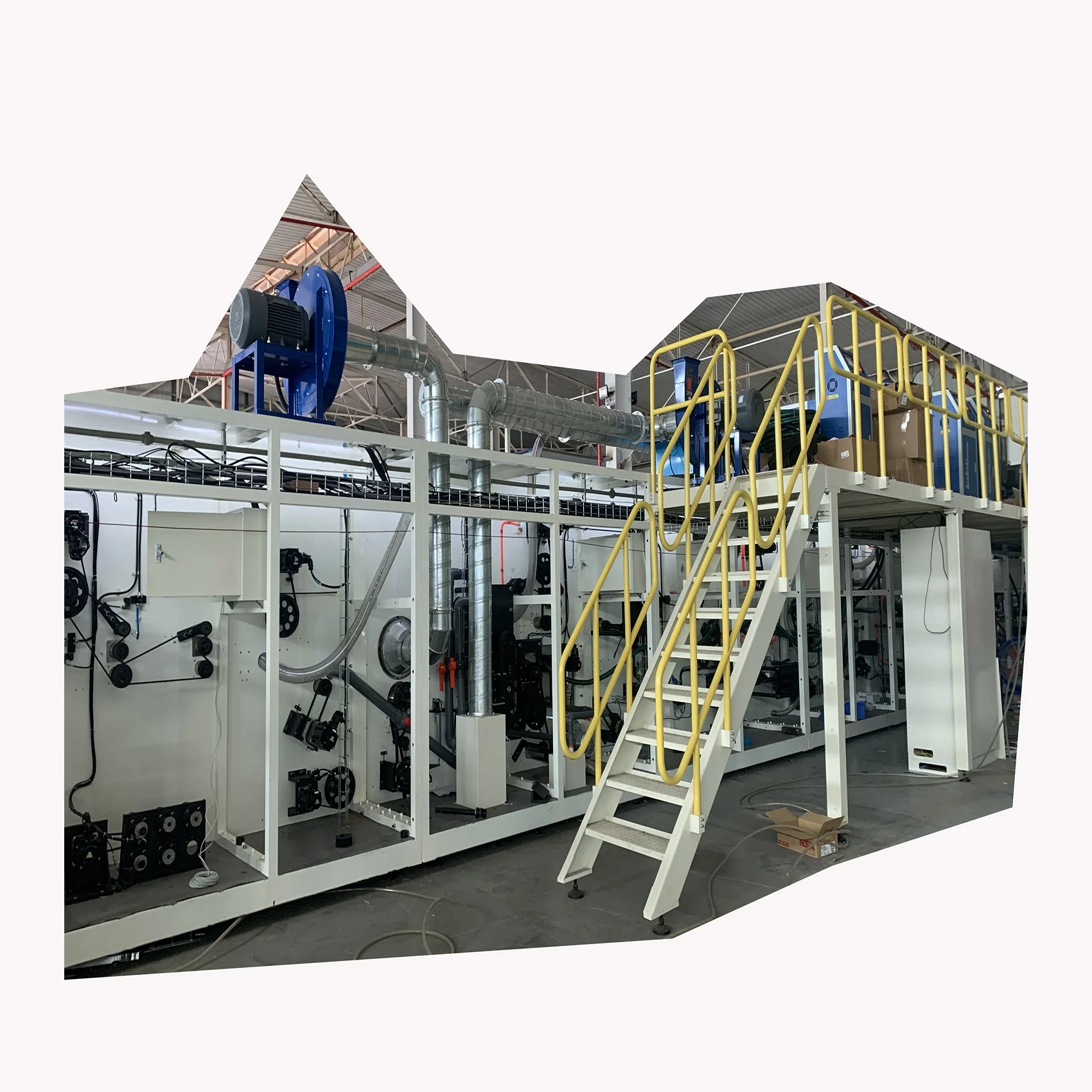

Making Machine Price Manufacturer Of Disposable Diapers Children
- Category: >>>
- Supplier: Quanzhou Xingyuan Machinery Manufacture Co. Ltd.
Share on (1600200487232):
Product Overview
Description
Products Description
Machine frame structure and main characters
(1)Reasonably solid square steel frame: Panel 30mm thick, adopt specular paint, 6 surfaces processing, solid cage with 60 * 60mm square steel in module design, the base frame with square tube 120mm × 120mm, 18mm thick bottom plate, 6 surface processing also ,widening after gearbox for repair. Spliced type main board by screw, make sure the high efficiency .
(2)Glue applicators put on the 2nd platform, shorten the glue supply distance.
(3)The main air suction bucket is installed with negative pressure display; the air scoop driven wheel is installed with quick fixture to facilitate the removal of the belt; the lower side of the conveyor belt above the material is installed with support plate to prevent the polymer and foreign matters from falling and polluting the lower material (the belt specification is labeled for maintenance).
(4)The back doors of the machine has sound proof foam
Design speed | 600 Pcs/minute（M size） | installation capacity | ≥260KW | ||
Working speed | 500 Pcs/minute（M size） | Total weight | About 80 tons | ||
Qualified rate | ≥ 97% (exclude the wastage due to the glue applicators and materials splicing joint) | Machine size | 28×8×5 M(L×W×H) | ||
Efficiency | ≥ 85% | Product size | S-M-L-XL size | ||
Servo System
(1)All servo motors unified controlled by PLC, realize the precious adjustment of each driving unit.
(2)Each servo motor running condition can be shown and revised through touchable screen.
(3)Do not need to change any transmission part to change product’s size.
(4)Machine can remotely controlled, change parameters according to client’s request, can adjust the size of all raw materials.
(5)It can delete the difference of mechanical running in time and guarantee the qualified rate.
Detection system
(1)Raw materials connection joint auto detection, auto rejection.
(2)Raw materials breaking auto alarm and auto stop.
(3)Lycra breaking auto detection and auto rejection.
(4)Detection switch shelf is convenient to adjust.
Driving system
(1)Single button starts up one by one to reduce the power network impact.
(2)Without blower start up and glue applicator start up, machine cannot start up. Also this function can be shield.
Material supplying control unit
(1)It adopts servo to control wood pulp supplying amount. The supplying amount can be set on the touchable screen.
(2)SAP supplying adopts servo motor control, uninterrupted supplying. The supplying amount can be adjusted and shown on the touchable screen. Shortage alarm.
(3)Tension of lycra controlled by servo motor, it can set on touchable screen.
Packing & Delivery
Bag sealing machine packing is wooden base and stretch film.
Company Profile
DNW is located in Binjiang Nanan Quanzhou machiney and equipment industrial area,is professional engaged in researching ,development,production,sales and service of hygiene product equipment ,and now already is an excellent Manufacturer of Household Paper Equipment.
Our product including:baby diaper production line(I &T shape diaper,baby pants,full elastic waistband diaper),adult diaper production line(adult diaper,adult pants),sanitary napkin&panty liner production line ,under pad production line,disposable breast pad production line.
Our product including:baby diaper production line(I &T shape diaper,baby pants,full elastic waistband diaper),adult diaper production line(adult diaper,adult pants),sanitary napkin&panty liner production line ,under pad production line,disposable breast pad production line.
FAQ
1. who are we?
We are based in Fujian, China, start from 2014,sell to Southeast Asia(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Baby Diaper Machine,Adult Diaper Machine,Sanitary Pad Machine,Under pad Machine
4. why should you buy from us not from other suppliers?
Management Idea:Take the customer as the focus of attention, take the market demand as the direction
supply a station service,from raw material,calculate cost,machine to management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
We are based in Fujian, China, start from 2014,sell to Southeast Asia(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Baby Diaper Machine,Adult Diaper Machine,Sanitary Pad Machine,Under pad Machine
4. why should you buy from us not from other suppliers?
Management Idea:Take the customer as the focus of attention, take the market demand as the direction
supply a station service,from raw material,calculate cost,machine to management.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
