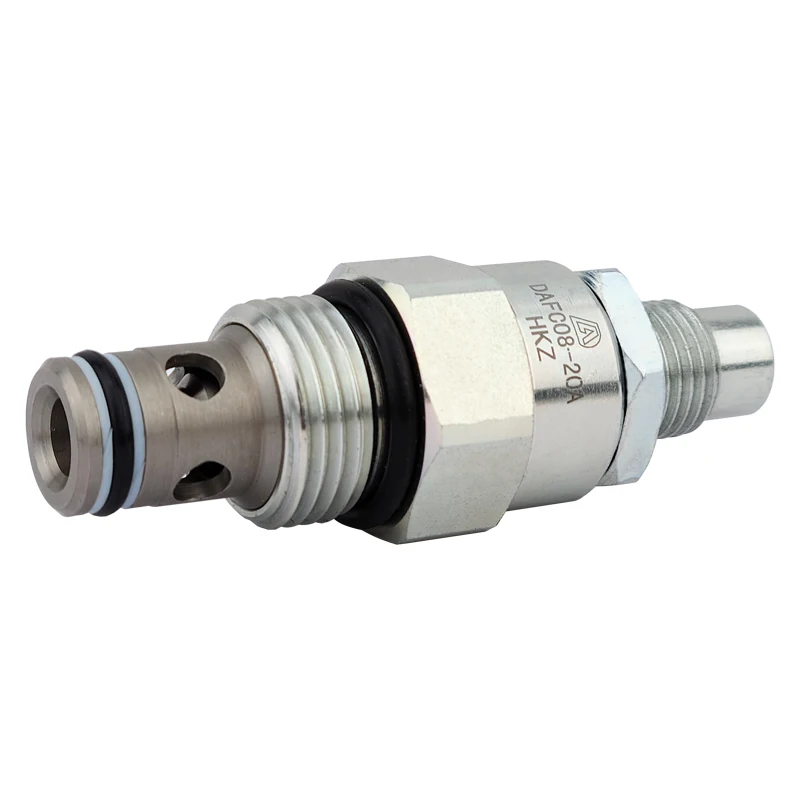

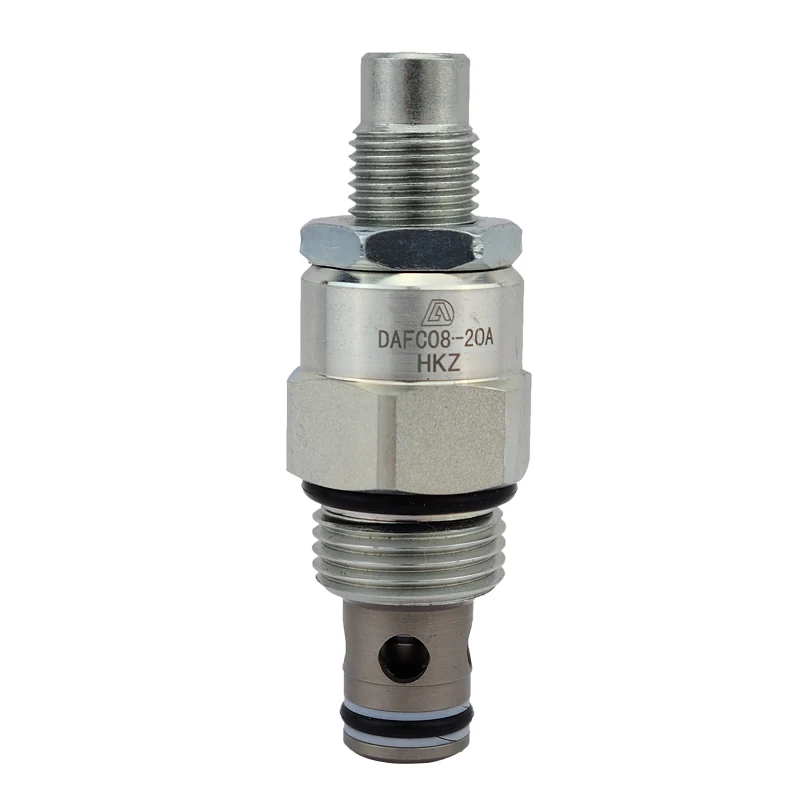

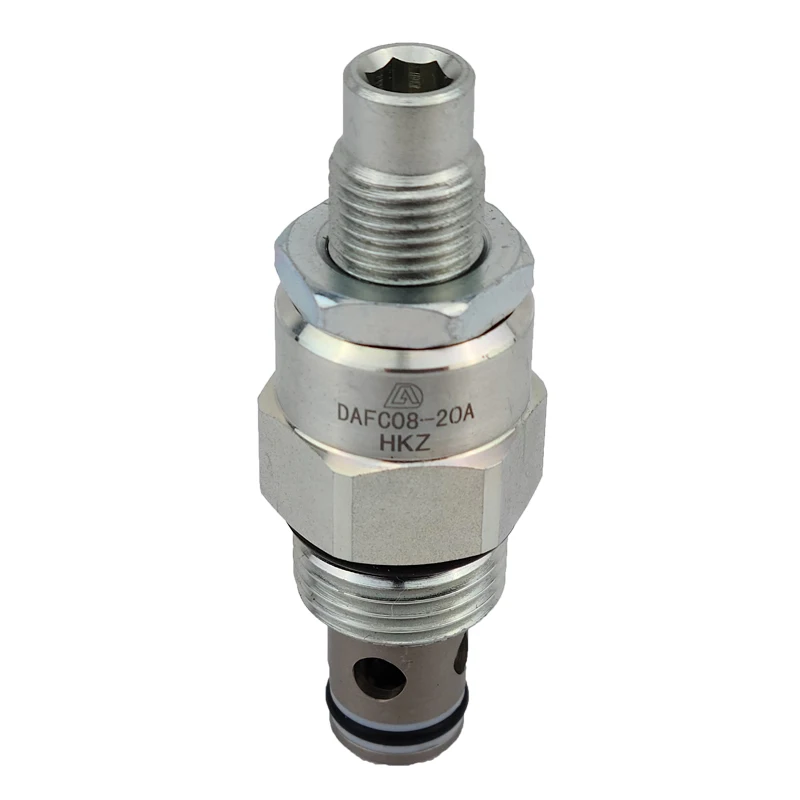

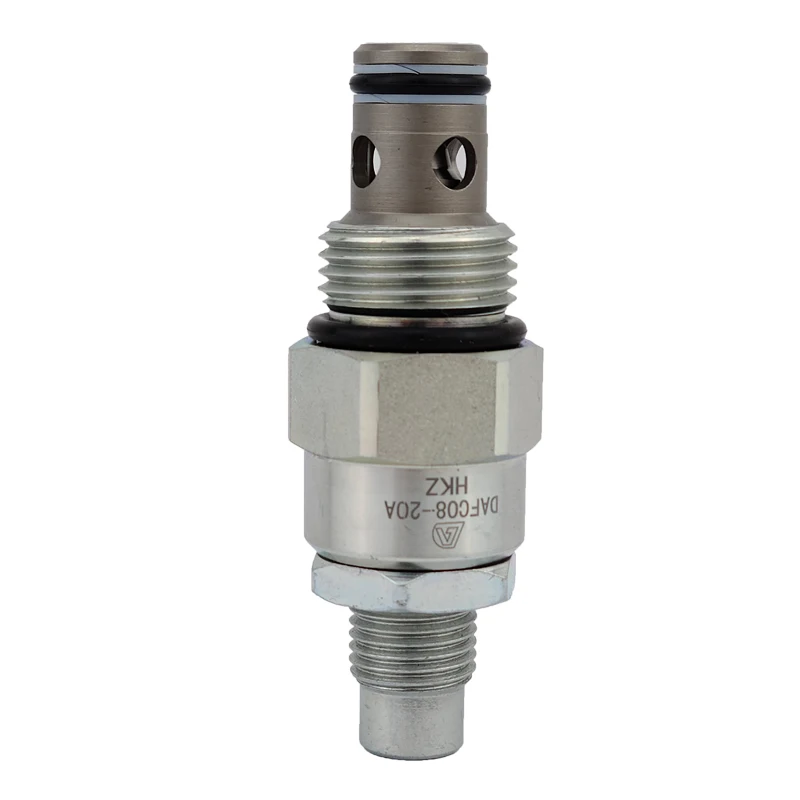

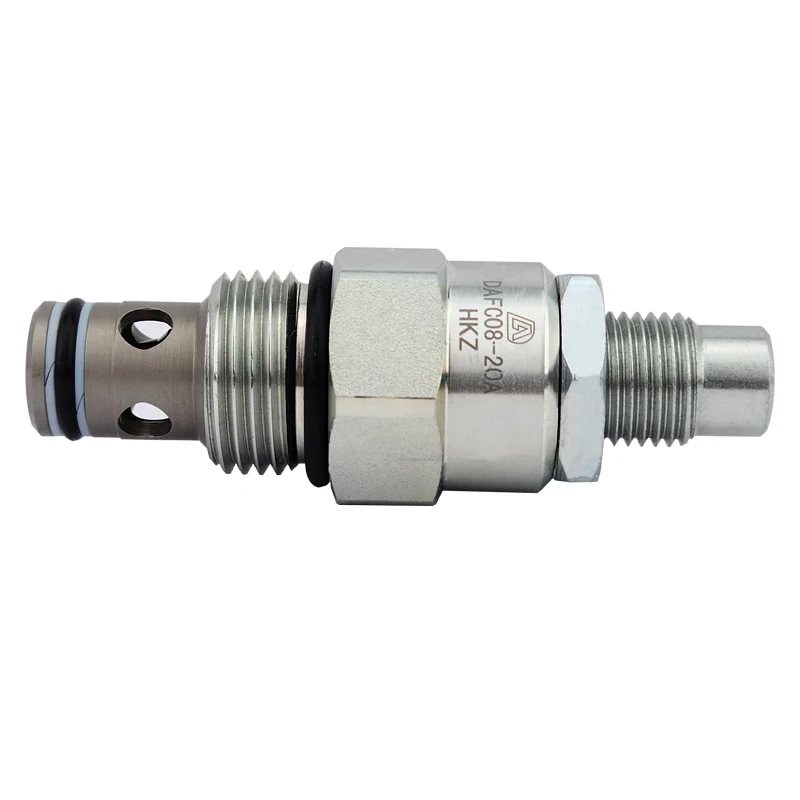

DAFC08 20 Hydraulic Cartridges Flow Control Valve Mass Flow Controller water flow control
- Category: >>>
- Supplier: Zhejiang Da Control Technology Co. Ltd.
Share on (1600200527818):
Product Overview
Description
Specification Description
DESCRIPTION
A screw-in, cartridge-style, variable orifice, hydraulic flow control valve with reverse flow check.
OPERATION
The DAFC08-20 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.
FEATURES
* Adjustments cannot be backed out of the valve.
* Desired settings may be locked down.
* Desired settings may be locked down.
* Hardened parts for long life.
* Industry common cavity.
* Aluminum knob option.
* Positive shut-off.
* Linear adjustment.
RATINGS
Operating Pressure：240 bar (3500 psi)
Flow: 22.7 lpm (6gpm) nominal at 7 bar (100 psi) at full open 3.0 turns
Internal Leakage: 0.50 cc/minute (10 drops/minute) max. at shutoff
Adjustment Torque Required: 0.34 Nm (3 inch-pounds) at 7 bar
(100 psi); 4.50 Nm (40 inch-pounds) at 207 bar (3000 psi)
Temperature: -40 to 120° C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T08-2E; See page 297.
Flow: 22.7 lpm (6gpm) nominal at 7 bar (100 psi) at full open 3.0 turns
Internal Leakage: 0.50 cc/minute (10 drops/minute) max. at shutoff
Adjustment Torque Required: 0.34 Nm (3 inch-pounds) at 7 bar
(100 psi); 4.50 Nm (40 inch-pounds) at 207 bar (3000 psi)
Temperature: -40 to 120° C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T08-2E; See page 297.
Name of Product | Cartridge Flow Control |
Model No. | DAFC08-20 |
Material | Alloy Steel |
Place of Origin | Zhejiang, China |
