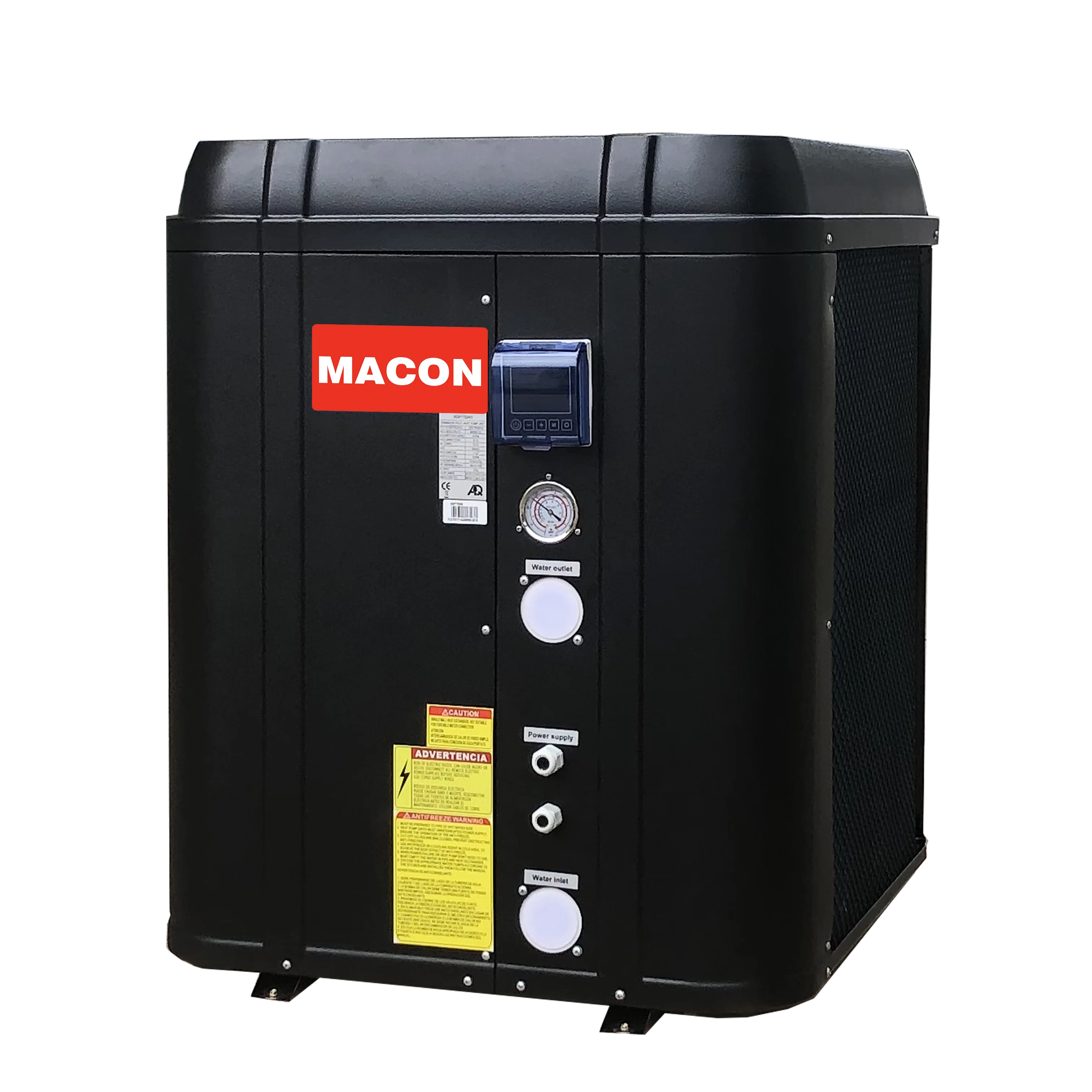

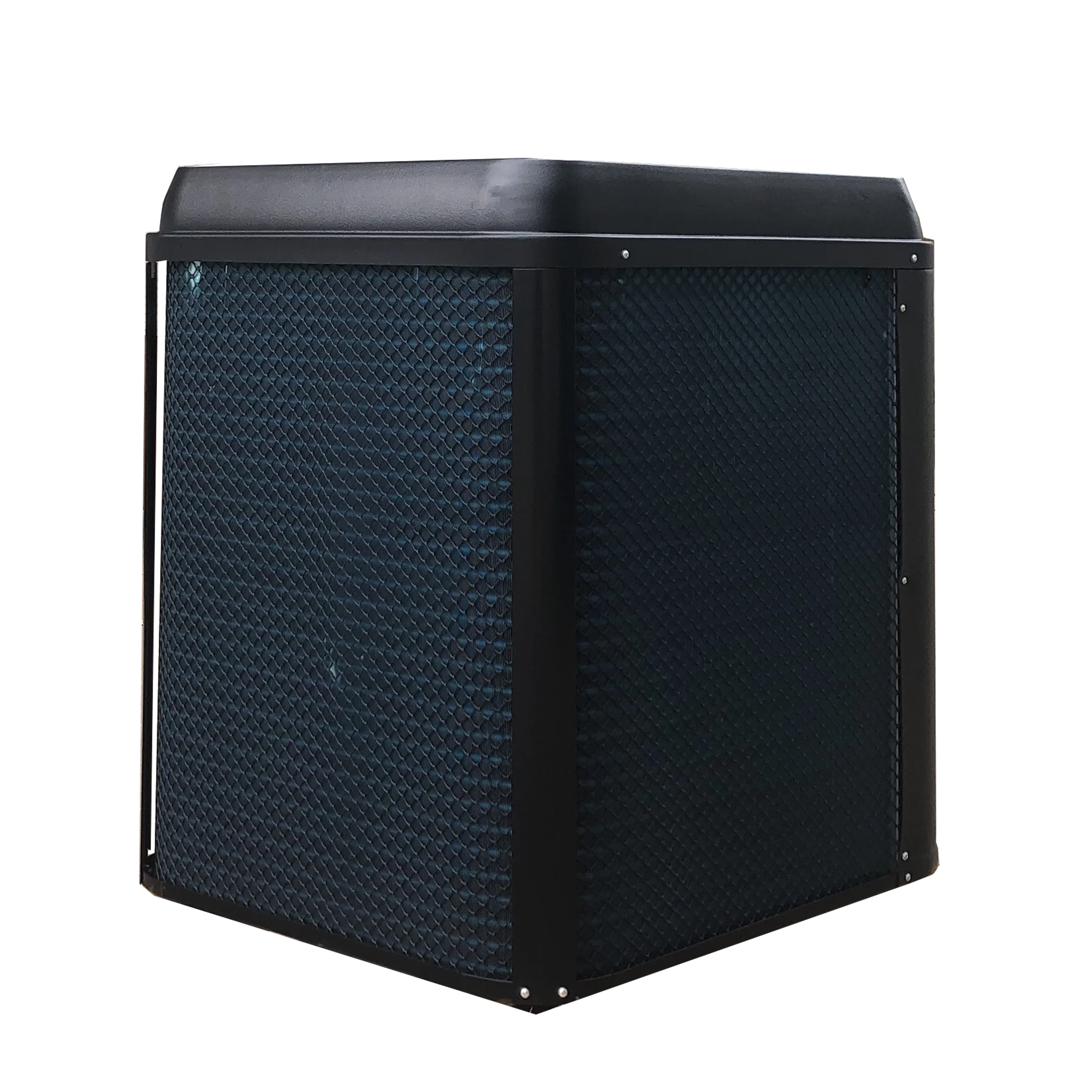

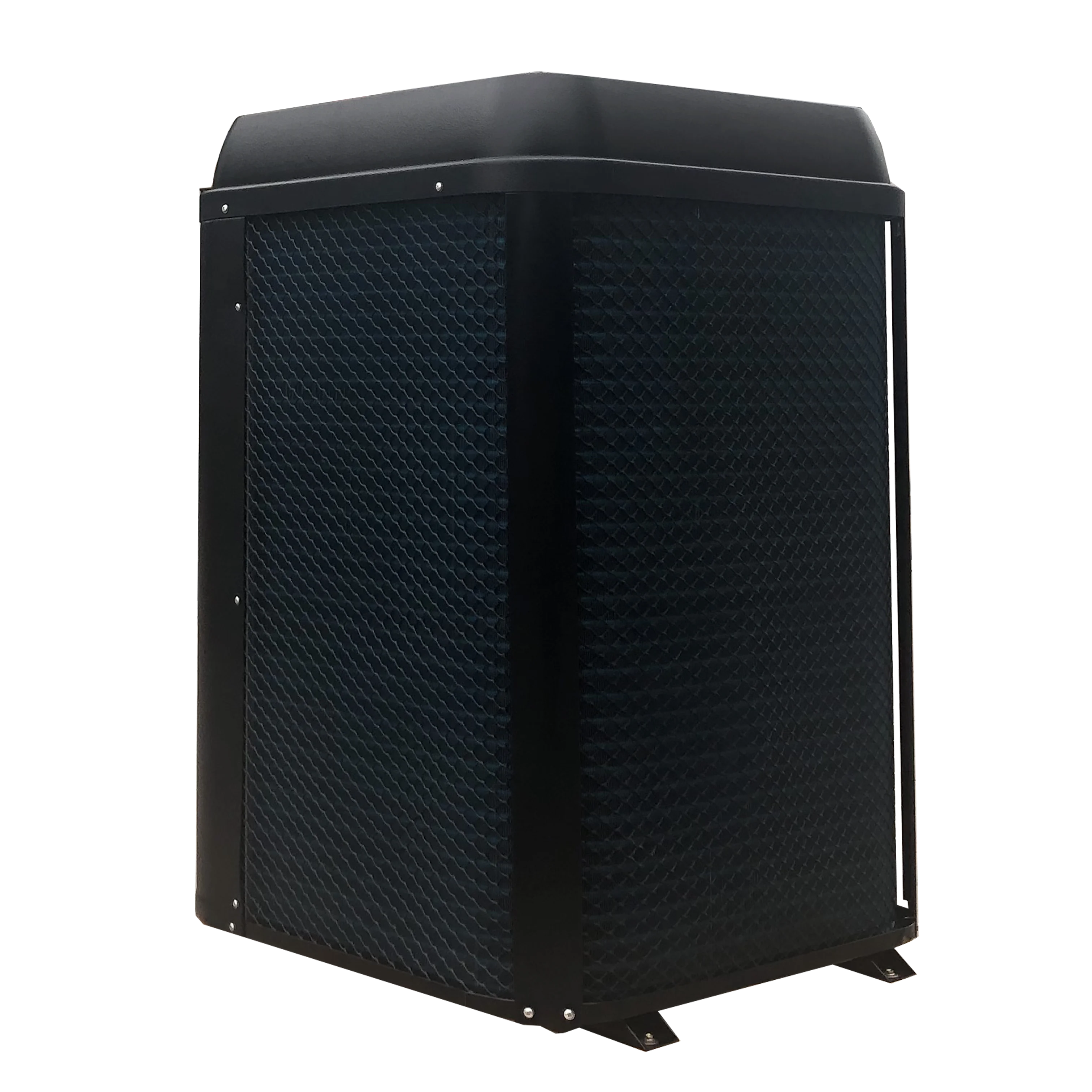

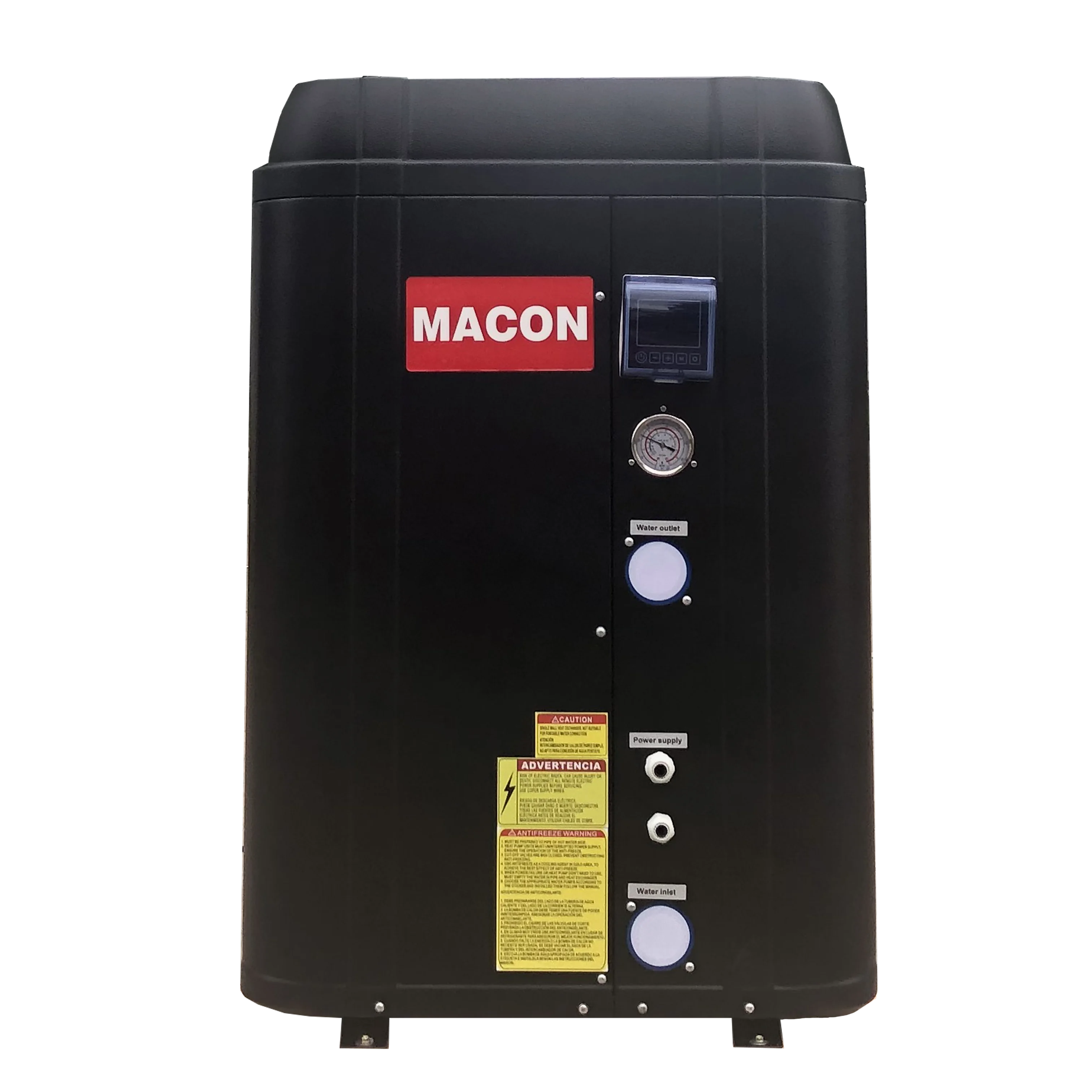

1. Full DC inverter technology Macon DC inverter swimming pool heat pump use full inverter technology, DC inverter compressor and inverter fan motor, the working frequency will change according to ambient temperature and water temperature, so the unit works at best performance. 2. Low noise design The compressor is equip with low noise muffler button, and we choose low noise fan motor. All the copper pipe and the cabinet will design for low noise. 3. High COP Macon DC inverter pool heat pump have high COP to 18 4. Wifi control Macon swimming pool heat pump have wifi control, so you can control the pool heat pump anywhere. 5. Wide working temperature range Inverter swimming pool heat pump can work at -20°C~43°C 6. Eco-friendly refrigerant With R32 refrigerant in Europe, it is no pollution to environment. 7. Multi-protection Macon pool heater with water flow switch prection, compressor protection, anti-freezing protection, which makes your unit works safety.
Specification
Model
MALCRW140ZB1
MALCRW140ZB1
MALCRW121ZB1
MALCRW101ZB1
MALCRW94ZB1
Power
V/PH/Hz
220/1/50
220/1/50
220/1/50
220/1/50
Heater Type:
Heat Only
Heat Only
Heat Only
Heat Only
Heat Only
Performance
kW Input:
7.07
6.01
5.1
5.1
4.67
BTU Output, Standard Rating Conditions 80/80/80 :
140000.00
121000.00
101000.00
101000.00
94000.00
COP, Standard Rating Conditions 80/80/80:
5.80
5.90
5.80
5.80
5.90
BTU Output 80/80/63 :
132000
115000
95000
95000
88000
COP 80/80/63 :
5.6
5.7
5.6
5.6
5.7
BTU Output 80/50/63 :
93000
80000
70000
70000
62000
COP 80/50/63 :
4.00
4.00
4.15
4.15
4.10
Model Specifications
Pipe Size:
1-1/2" FIP
1-1/2" FIP
1-1/2" FIP
1-1/2" FIP
1-1/2" FIP
Mode:
Heat Only
Heat Only
Heat Only
Heat Only
Heat Only
Refrigerant Type:
R-410A
R-410A
R-410A
R-410A
R-410A
Display Controls:
Digital
Digital
Digital
Digital
Digital
Thermostat:
Dual - Pool & Spa
Dual - Pool & Spa
Dual - Pool & Spa
Dual - Pool & Spa
Dual - Pool & Spa
Compressor:
Scroll
Scroll
Scroll
Scroll
Scroll
Heat Exchanger:
Titanium
Titanium
Titanium
Titanium
Titanium
Electrical Specs
Maximum Breaker Fuse Size:
60 Amps
60 Amps
60 Amps
60 Amps
60 Amps
Recommended Fuse Size :
50 amps
50 amps
50 amps
50 amps
40 amps
Hertz:
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
Phase Type :
Single Phase
Single Phase
Single Phase
Single Phase
Single Phase
Voltage:
208~230V
208~230V
208~230V
208~230V
208~230V
Minimum Circuit Ampacity / Max Breaker:
42.1
41.8
38.2
38.2
40.2
Pool Water Flow
Flow Rate: Min/Max:
30/70 GPM
30/70 GPM
30/70 GPM
30/75 GPM
30/75 GPM

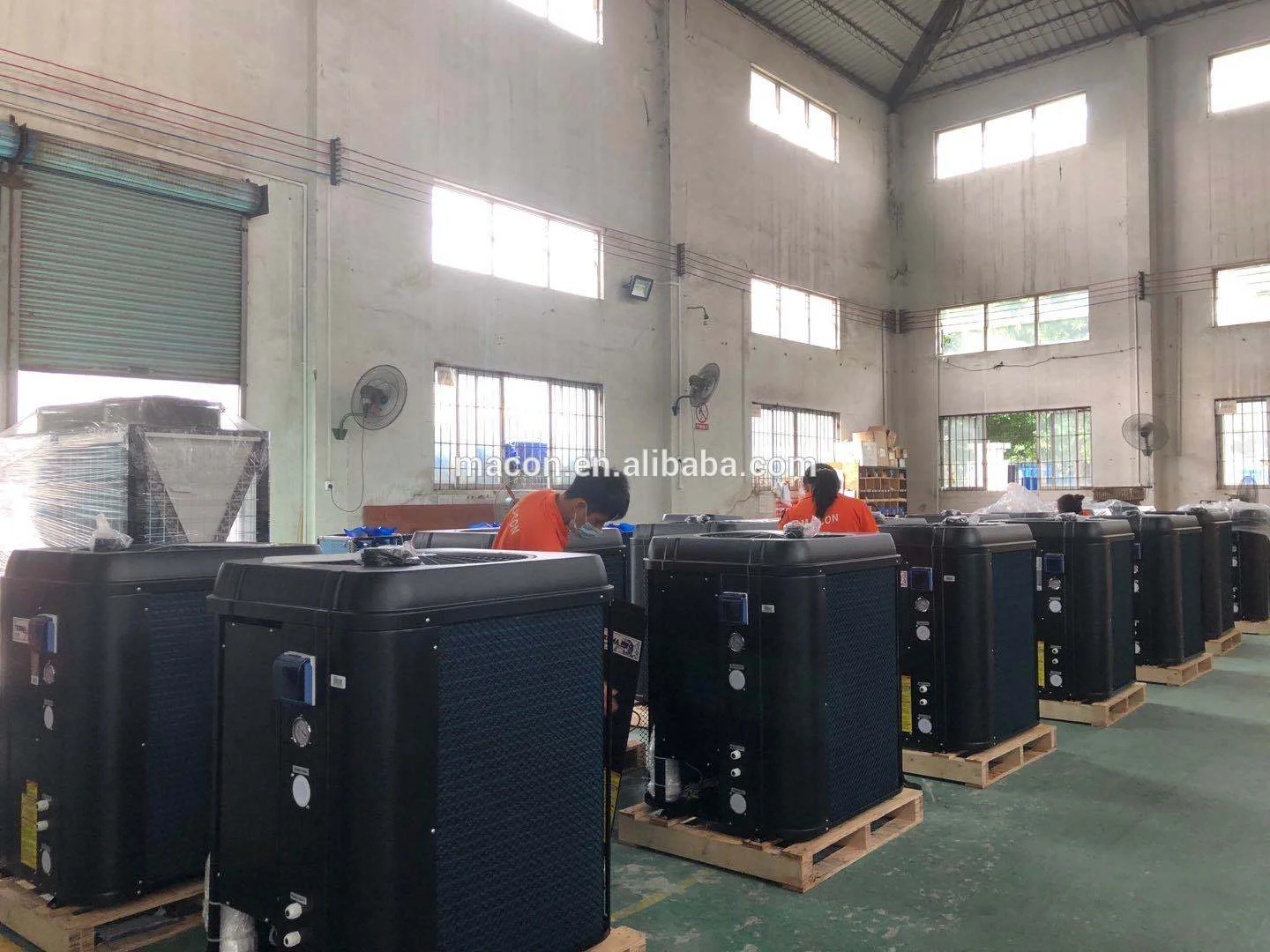

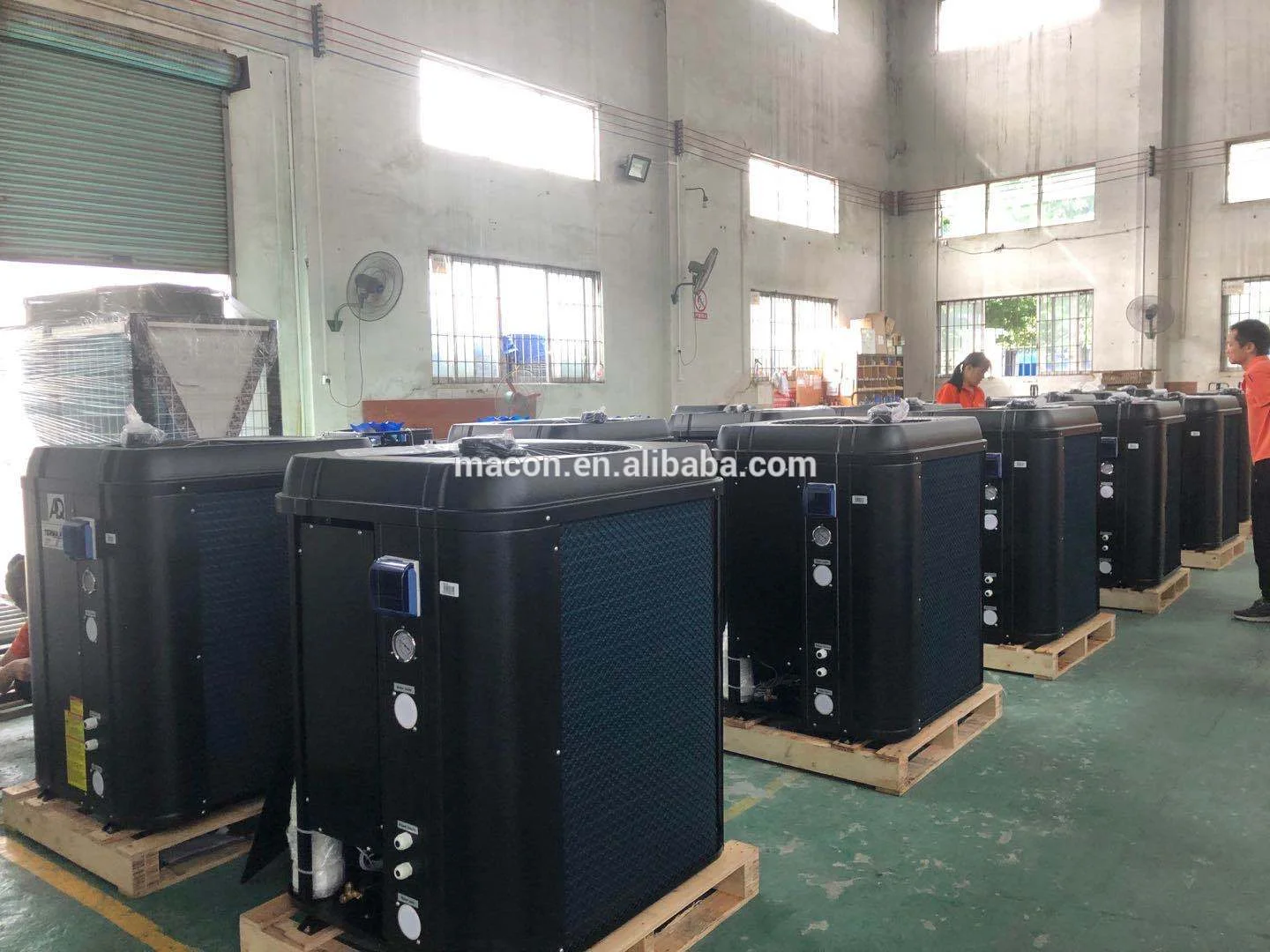

Production picture
Company Profile
Certifications
FAQ
Q: Do you provide OEM or ODM service? A: Yes. We can produce Macon standard products under customer's brand, or modify the products to satisfy customer's personalized requirements, or work together with customer to design and produce a totally new products.
Q: What support do you offer to Customers? A: We can provide product certification requirements for local markets, product catalogs, Installation and user manuals and co-exhibit with the customers in leading industry exhibitions.
Q: How long can I get the feedback after sending the inquiry? A: Usually you will get feedback within 30 minutes during the office hours and 12 hours after office hours.
Q: What’s the payment terms? A: Normally 30% TT in advance and 70% TT before delivery. Other payment terms are negotiable.
Q: How long is the production lead time? A: Usually the production lead time will be 30 days once order confirmed. Sometimes we have a few stock for quick delivery.
