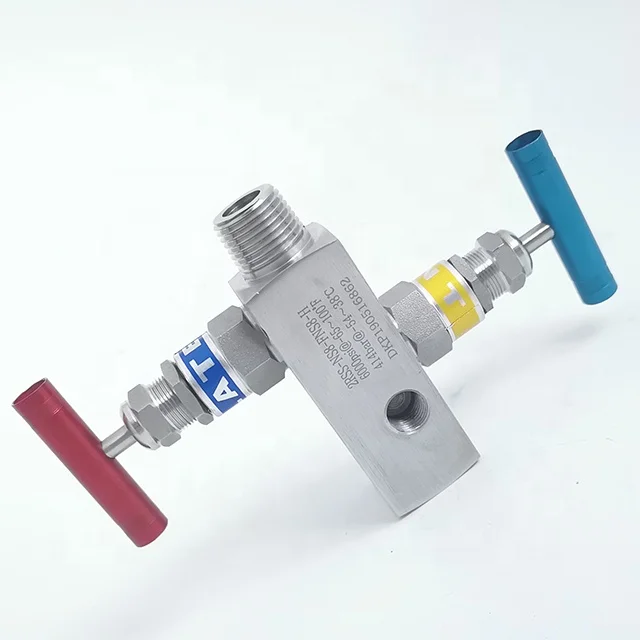

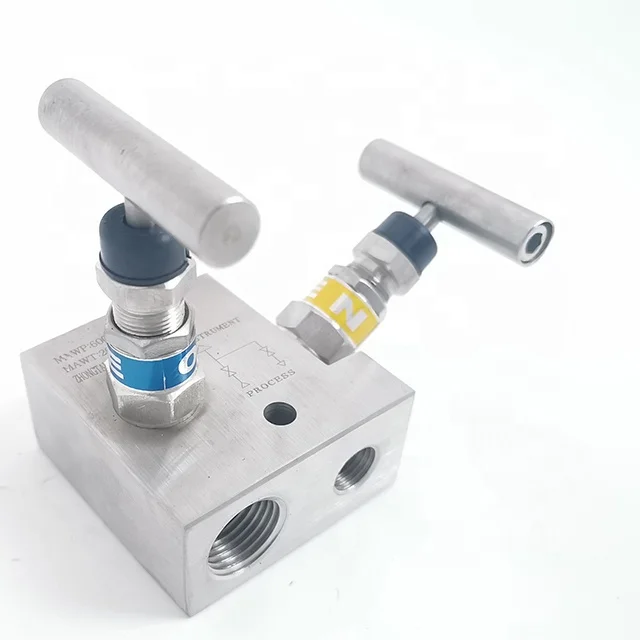

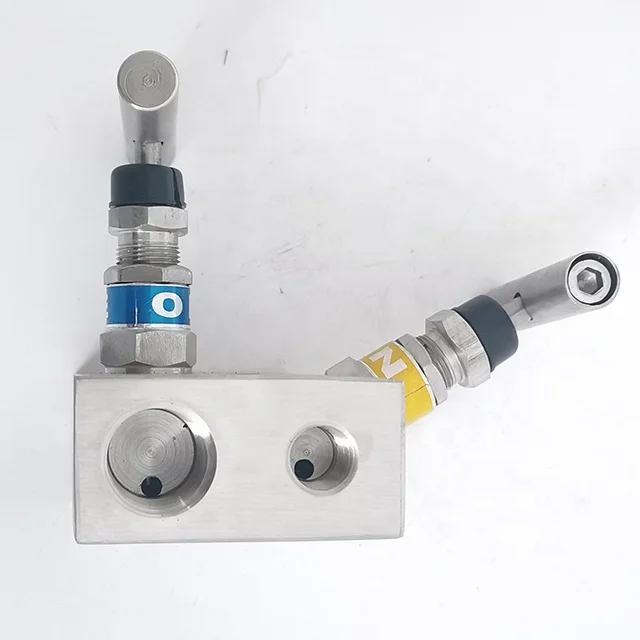

Double Block Female NPT Flange valves 2 Way Manifolds
- Category: >>>
- Supplier: Shanghai Aomu Mechanical And Engineering Co. Ltd.
Share on (1600200567924):
Product Overview
Description
Specification
Item | Value |
Standard | ANSI B16.34, ASME, GB |
Working Pressure | 414bar@25°C / 116bar@648°C |
Temperature Rating | 648°C with Graphite packing(G) |
Inlet&Outlet Size | Inlet 1/2 Female NPT |
Orifice Size | Inlet 1/2 Female NPT |
Material | SS316, SS304, Duplex Stainless Steel 2205, Monel, Hastelloy, Titanium, Inconel Alloy |
Features
①Working pressure up to:
Stainless steel: 2D,2R,3D,3R,5D,5R up to 6000 psig(414bar)
2DH,2RH,3DH,3RH,5DH,5RH up to 10000 psig (690 bar)
Alloy C-276: 2D,2R,3D,3R,5D,5R up to 6000 psig (414 bar)
②Working temperature:
PTFE packing:-65℉ to 450℉(-54℃ to 232℃)
Graphite packing:-65℉ to 1200℉(-54℃ to 649℃)
③Orifice:0.157"(4.0mm)

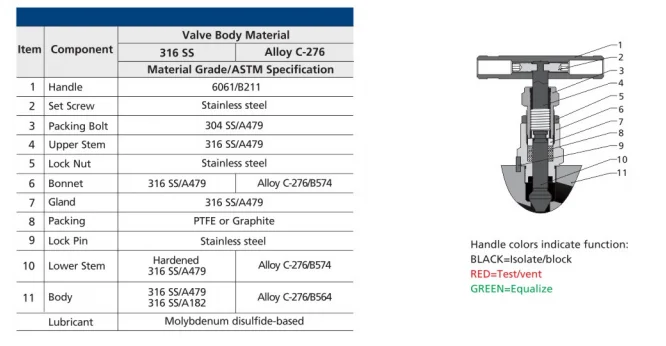

④Two-piece stem design:Upper stem threads cold rolled and hardened lower stem for high strength and smooth operation
⑤Upper stem thread lubricant isolated from system media
⑥Linear instead of rotary motion of the rising,non-rotating stem minimizes packing abrasion and reduces the friction between the seat and the tip
⑦Safety back seating seals in fully open postion
⑧Steady and durable fastening of the handle by double lock-pins
⑨Each 2D/2R/3D/3R/5D/5R Series manifold leak tested with Nitrogen or compressed air at the maximum working pressure,each 2DH/2RH/3DH/3RH/5DH/5RH Series manifold leak tested with water at 1.1 times the maximum working pressure
1. who are we?
We are based in Shanghai, China, start from 2017,sell to Domestic Market(30.00%),North America(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

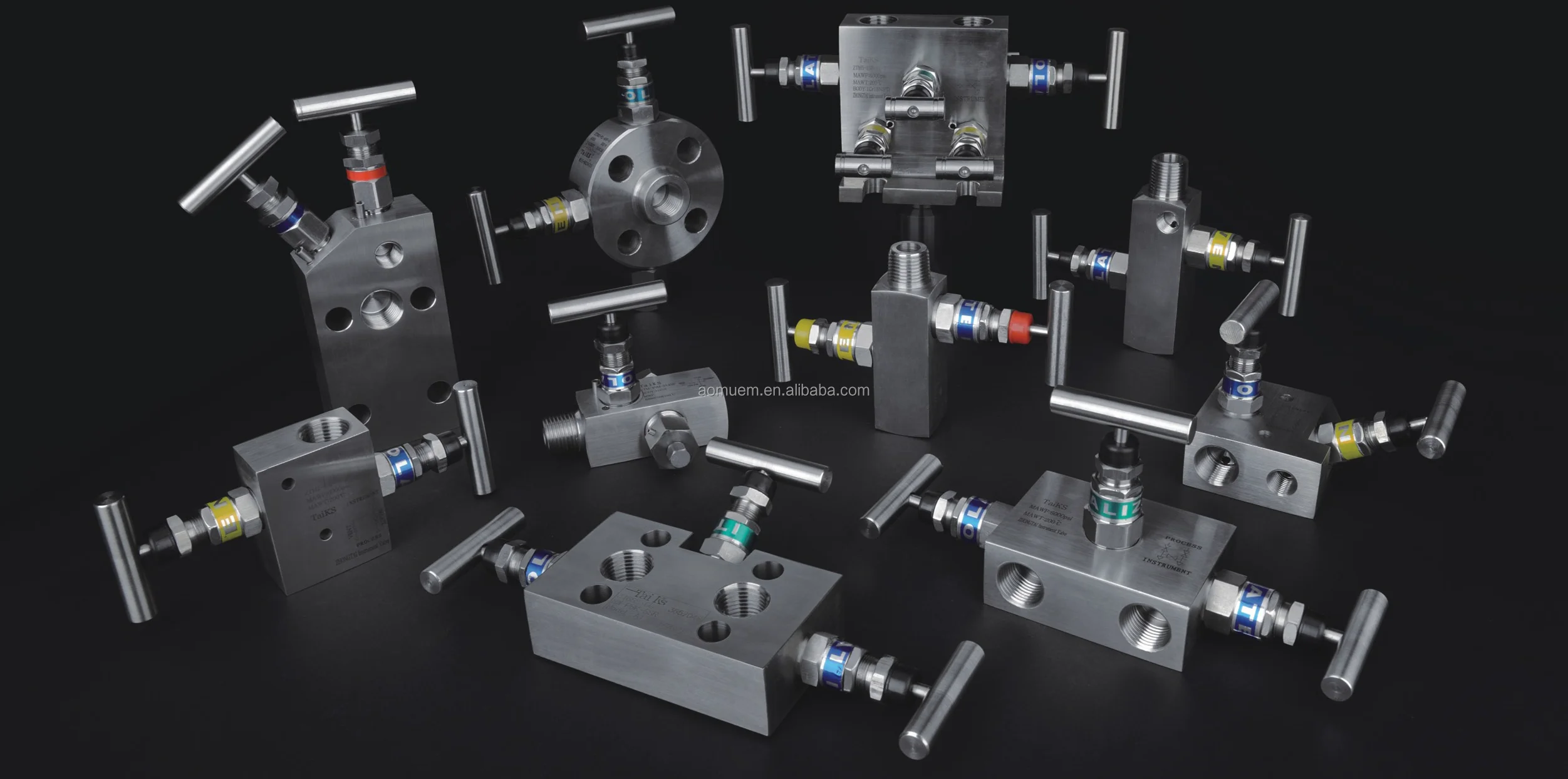

Needle Valve,Ball Valve,Manifold,Stainless Steel Coil,Stainless Steel tube
