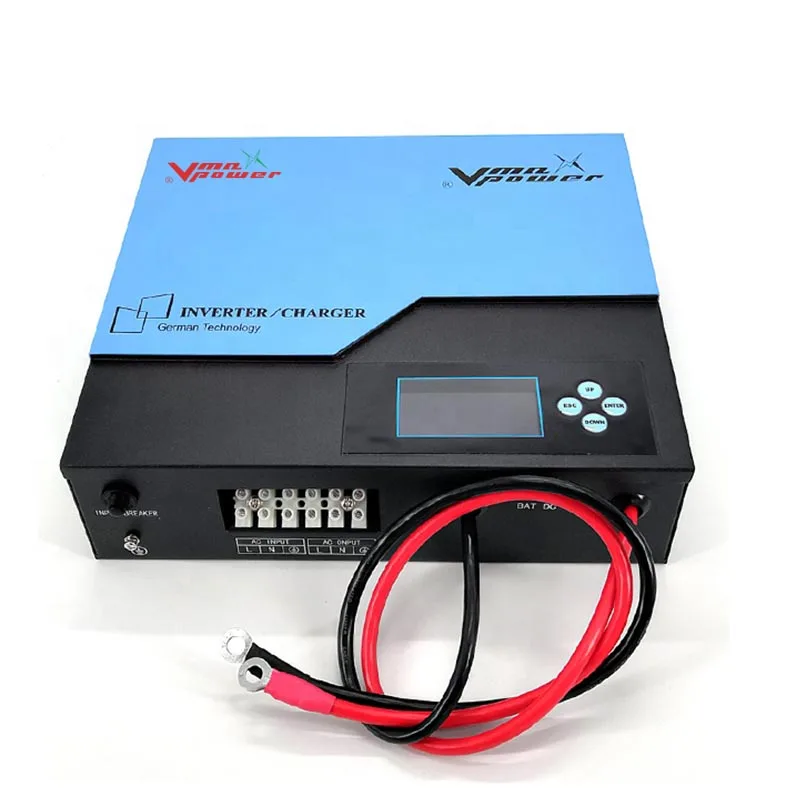

Vmaxpower 220V 3000W ac/dc inverter argon velder micro industrial panel mount micro hydro generator inverter wifi
- Category: >>>
- Supplier: Beijing Multifit Electrical Technology Co. Ltd.
Share on (1600200583152):
Product Overview
Description
Specification
Technical Data | ||||||||
Item No. | VMI-D 3000W | VMI-D 4000W | VMI-D 5000W | VMI-D 6000W | ||||
Nominal AC OutputOptinal 220V/110V | 220V/200-240V 120V/105V-132V | |||||||
Nominal frequency | 50Hz/60Hz | |||||||
Continuous AC power for 3 hours 25℃ | 3000W | 4000W | 5000W | 6000W | ||||
Continuous AC power 25℃ | 450W | 720W | 900W | 1200W | ||||
Nominal AC current/Max. AC current(peak) | 2.0A/6.0A 1ms 3.75A/11.25A 1ms | 3.27A/9.8A 1ms 6.0A/18.0A 1ms | 4.1A/12.3A 1ms 7.5A/22.5A 1ms | 5.1A/14.3A 1ms 8.5A/32.5A 1ms | ||||
THD Oupt voltage | ≤3% | |||||||
Power factor | 0.9 | |||||||
AC Input voltage/range | 220V/200-240V 120V/105V-132V | |||||||
AC input frequency | 50Hz/60Hz | |||||||
Battery voltage/range Optional | 12V/10-16V | |||||||
Max. battery charging current/continuous charging current at 25 ℃ | 30A/10-30A/50A | |||||||
Battery type/Battery capacity | Lead acid 100-1000Ah | |||||||
Charge control mode | 3 stage | |||||||
Max. Efficiency | 85% | |||||||
Self-consumption with no load | 0.7A | 0.8A | 1.0A | 1.2A | ||||
Self-consumption with no load/standby/for LCD type only | 0.1A | |||||||
Transfer time | ≤4ms | |||||||
Dimension | 31X27X9CM | |||||||
Net weight kgs | 5.5 | 7.5 | 9.5 | 11.5 | ||||
IEC60529 protecting degree | IP20 | |||||||
Noise emission | ≤30dB(1M) | |||||||
Warranty | 2 years | |||||||
Certificate | CE/ISO9001 | |||||||

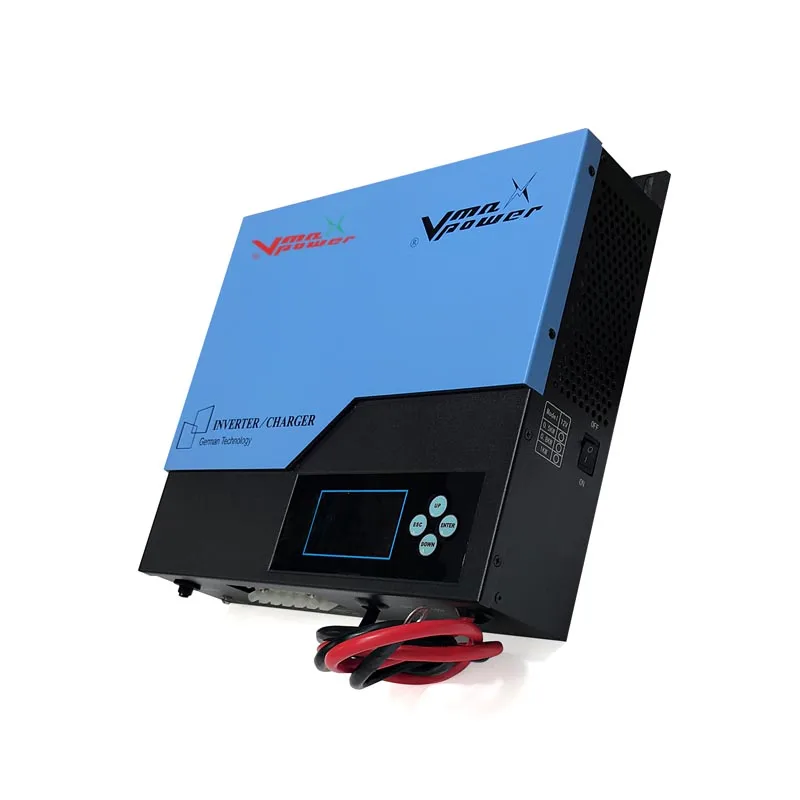

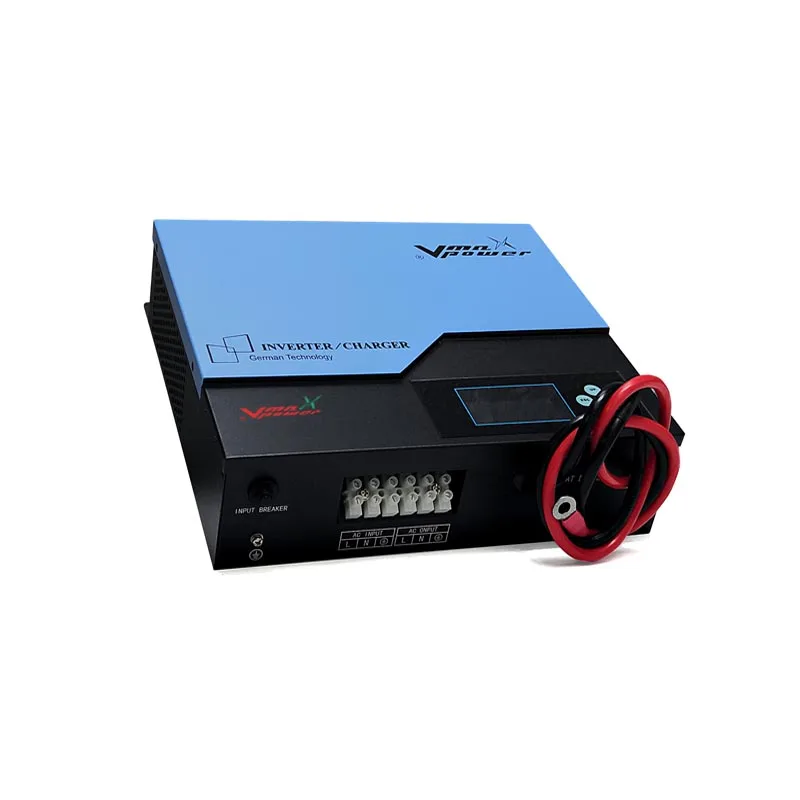

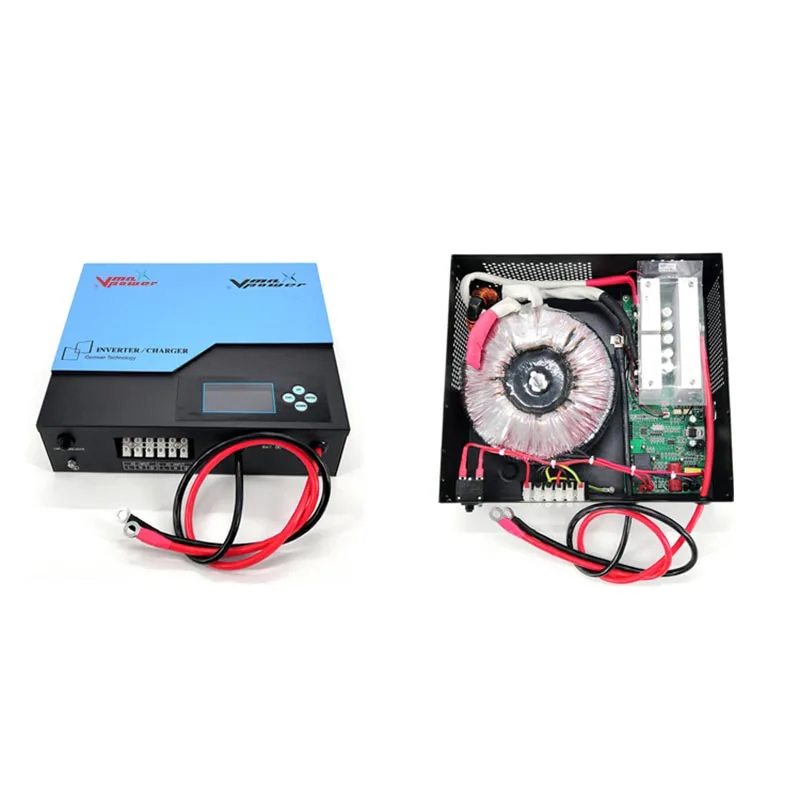

Product Images
Certifications
Product Description
Product Characteristic
USB Output and Mobile charge
High Efficiency/Energy Saving
Low self-Consumption below 1.2A.It can reach zero at energy saving mode.
Make sure the load capacity is above 200W.or the inverter can not be restarted automatically
Leading energy saving technology
With the AVR function.AC voltage fluctuated is within +-5%
Pure sine wave
Extreme overload capacity and super load capacity
Working Appliance:Air-conditioners.refrigerators.water pumps.TV.Light.fans and other
household appliances and office appliances etc.

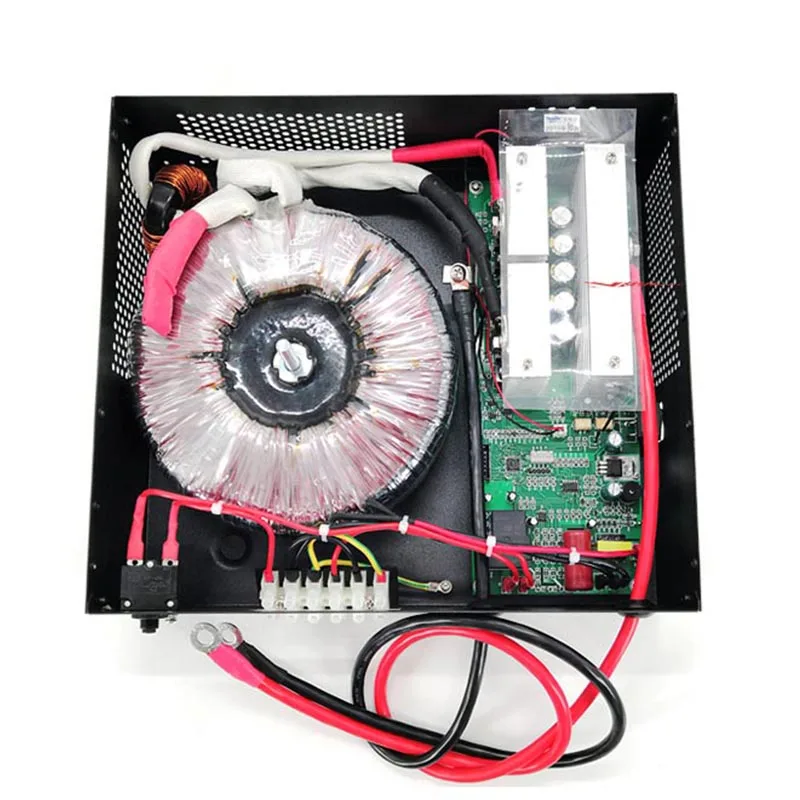

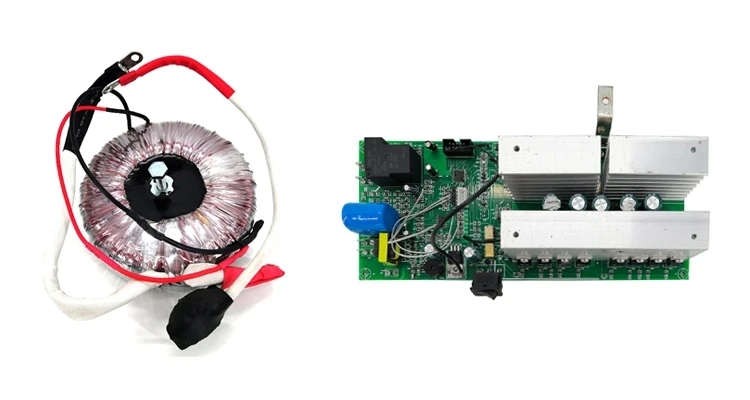

Durable. LF transformer technology design.it is suitable for the poor working conditions
or where the grid power is not stable
LCD display /Digitized Display optional
DC reverse polarity protection
USB Output and Mobile charge
High Efficiency/Energy Saving
Low self-Consumption below 1.2A.It can reach zero at energy saving mode.
Make sure the load capacity is above 200W.or the inverter can not be restarted automatically
Leading energy saving technology
With the AVR function.AC voltage fluctuated is within +-5%
Pure sine wave
Extreme overload capacity and super load capacity
Working Appliance:Air-conditioners.refrigerators.water pumps.TV.Light.fans and other
household appliances and office appliances etc.
Durable. LF transformer technology design.it is suitable for the poor working conditions
or where the grid power is not stable
LCD display /Digitized Display optional
DC reverse polarity protection
Performance Characteristic
CPU Technology control Big Charging current. up to 70Amp.
LCD display /Digitized Display optional：Grid powe.battery.AC output.Fault.Saving.
Low voltage.Charging.
Charging curren.Battery capacity.
Intelligent battery management for maximum battery life
Automatically switch between the grid and inverter mode
Transfer time is below 4 ms if the grid power are cut off
220V/110V AC 50/60Hz is optional
It can work with the generator
Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will
protect by itself at temperature ≥100℃
Packing & Delivery
Company Profile

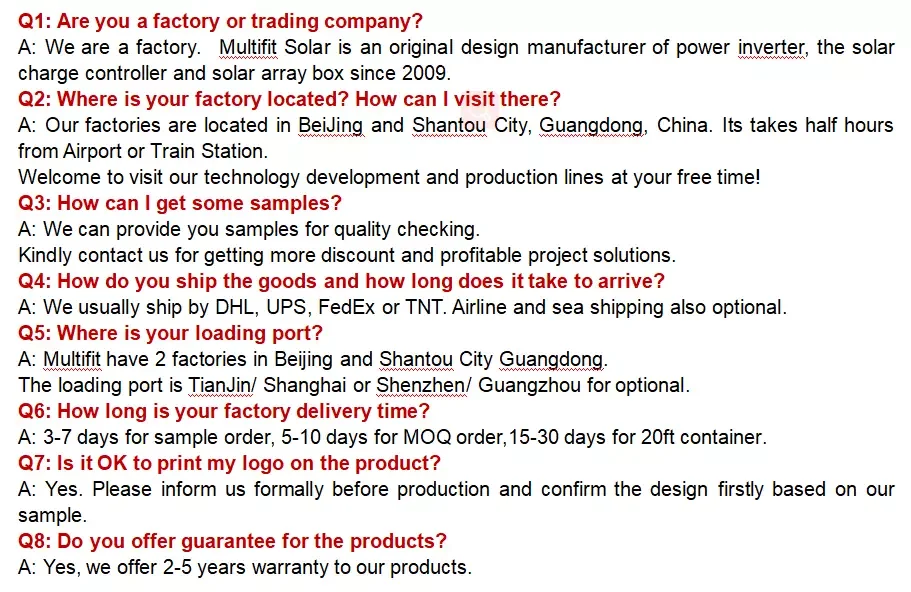

FAQ
