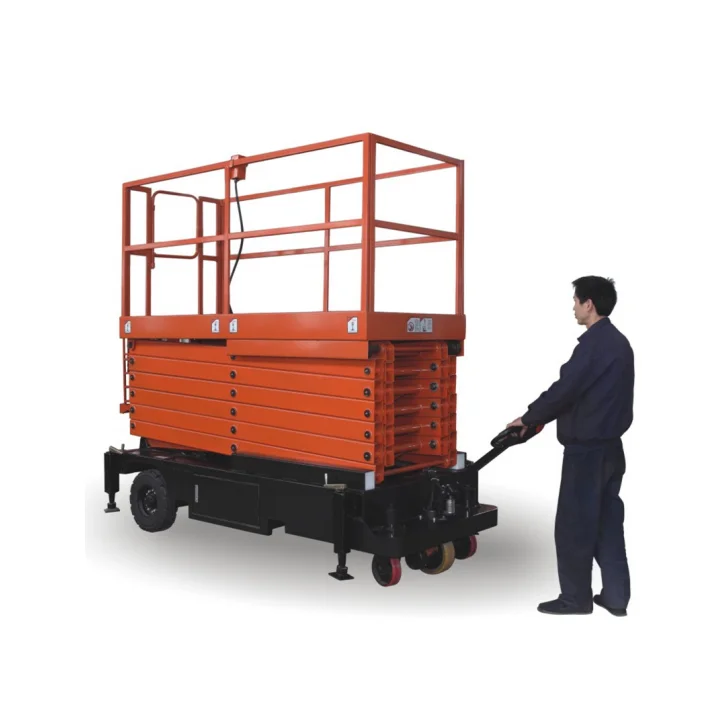

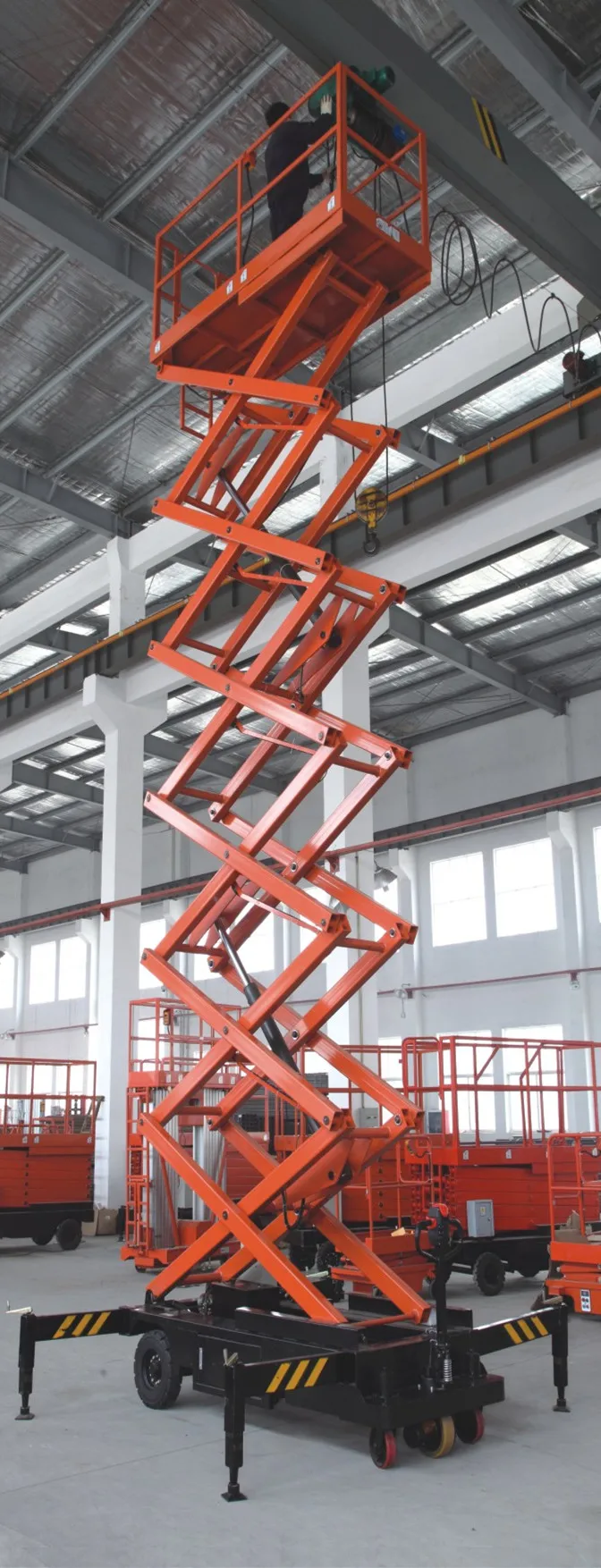

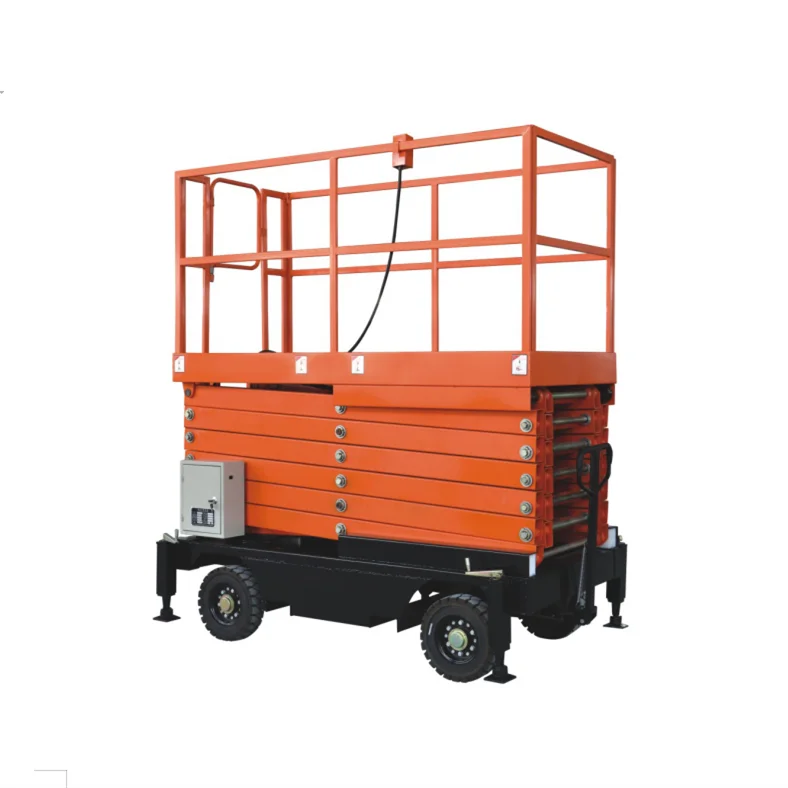

WELIFTRICH Aerial Work Platform 500KG 7200MM Scissor type For Roof Repair Cargo Picking Workplatform weliftrich china
- Category: >>>
- Supplier: Wuxi Welift Machinery Co. Ltd.
Share on (1600200728697):
Product Overview
Description
Product Description
Parameters
| Model Number | Unit | SJY0.5-6 | SJY0.5-8 | SJY0.5-10 | SJY0.5-12 | |
| Max.Platform Height | mm | 6000 | 8000 | 10000 | 12000 | |
| Min.Platform Height | mm | 1050 | 1175 | 1300 | 1425 | |
| Platform Size | mm | 2270×1150 | ||||
| Lift Rated Capacity | kg | 500 | ||||
| The Developed Dimentions of Legs |
mm | 2700×2200 | ||||
| Elevating Time | s | 50 | 50 | 80 | 80 | |
| Electromotor Power | kw | 2.2 | 2.2 | 3 | 3 | |
| Voltage | DC | v | 24 | |||
| AC | v | 220 | 220 | 220 | 380 | |
| Overall Length | mm | 2540 | ||||
| Overall Width | mm | 1300 | ||||
| Overall Height | mm | 1730 | 1855 | 1980 | 2105 | |
| Overall Net Weight | kg | 1280 | 1460 | 1870 | 2050 | |
