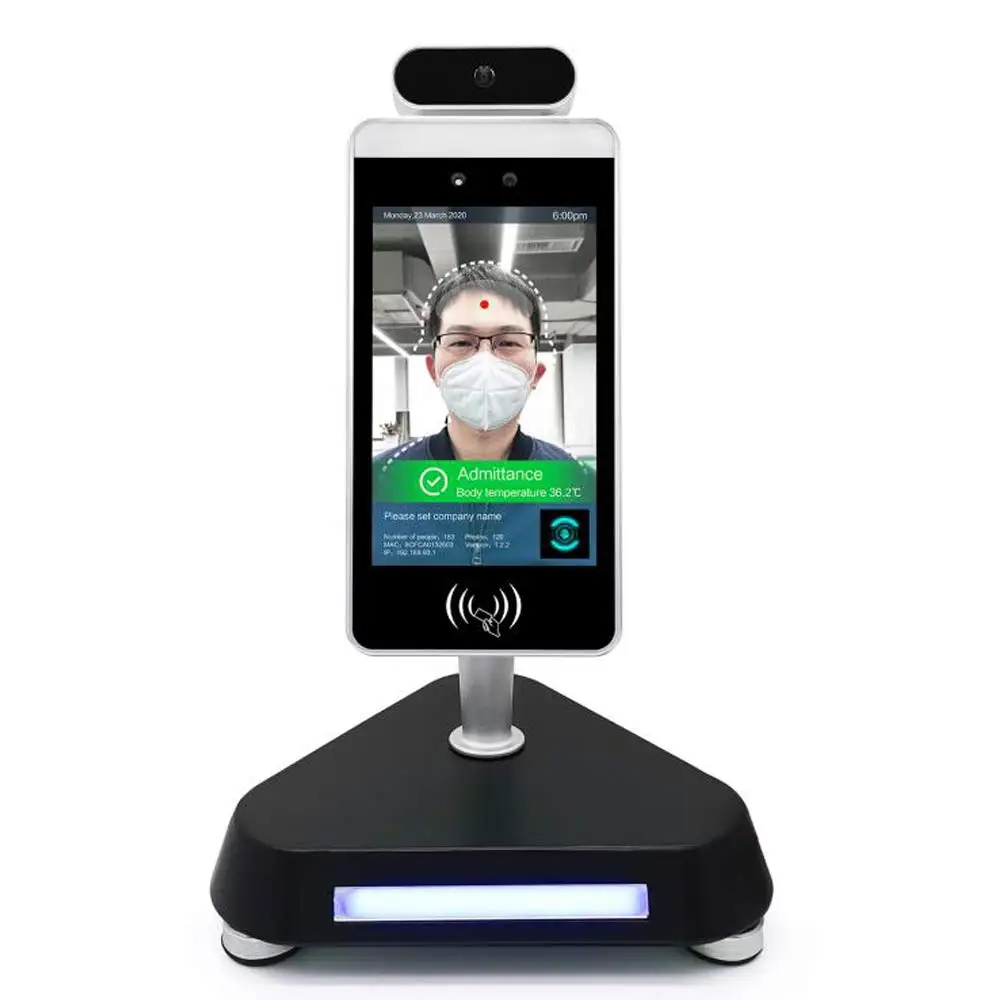

Scan A QR code/face recognition body temperature measuremen scanner with access control card reader System
- Category: >>>
- Supplier: Dongguan Bangdeda Technology Co. Ltd.
Share on (1600200766120):
Product Overview
Description
Product Paramenters
System | CPU | RK3288, Quad Core,Cortex A17,1.8G |
RAM | 2GB | |
ROM | 8G | |
Operating System | Android7.1 | |
Screen | LCD display | 8inch LCD |
Resolution | 800*1280 | |
Contrast | 800:1 | |
Brightness | 250 cd/m2 | |
Touch Screen | Non-touch（ Touch optional） | |
screen ratio | 16:9 | |
Network | WiFi | 802.11b/g/n |
Ethernet | 100M / 1000M RJ45 Port | |
Bluetooth | Bluetooth4.0 | |
Camera | Resolution | 2 million pixels |
Type | Binocular wide dynamic camera | |
aperture | F2.4 | |
Focusing distance | 50-150cm | |
White balance | Auto | |
flash | NIR: 850nm infrared LED light | |
Interface | USB Hostx | USB Host 2.0 *1 |
USB-OTG | USB-OTG *1 | |
Wired network interface | Ethernet interface | |
Serial interface | 1 RS232 serial port | |
Relay output | 1 door open signal output | |
Wiegand Interface | Wiegand 26/34 , one in & one out | |
Upgrade button | Support Uboot Update button | |
Power jack | DC input | |
Function | 1: N face recognition | support |
1: 1 face comparison | support | |
Recognition distance configuration | support | |
Device upgrade remotely | support | |
UI interface configuration | support | |

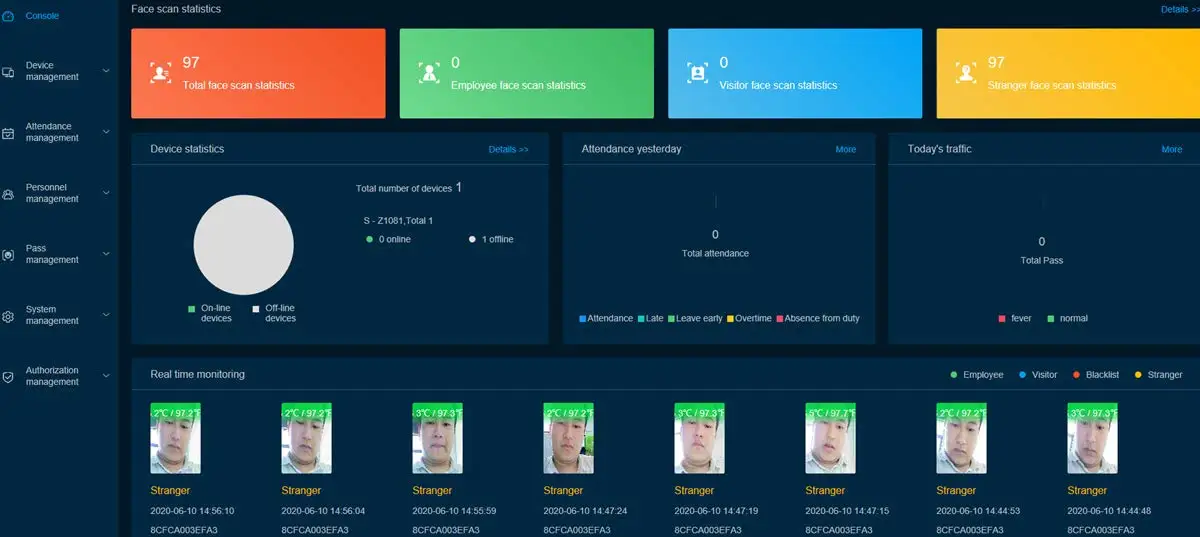

Device interface | Interfaces include device management, personnel / photo management, record query, etc. | |
Deployment method | Support public cloud deployment, privatization deployment, LAN use, stand alone use | |
Mask recognition | support | |
Can connect with thermal printer | Temperature and portrait can be printed out to be a gate pass | |
Human body temperature detection | support | |
Temperature detection distance | 1m（ The best distance is 0.5 meters） | |
Temperature measurement accuracy | ≤ ±0.3℃ | |
Temperature measurement range | 10℃ ~42℃ | |
Visitor's body temperature is normally | sreulpepas oertd directly | |
Body temperature over temperature alarm | Support (temperature alarm value can be set) | |
Media Player | Video format | H.264,VP8,RV,WMV,AVS,H.263,MPEG4,etc |
audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |
Image Format | JPG,BMP,PNG,etc. Support rotation / slide show / Picture zoom function | |
Other | Speaker | 1.5W/4R |
Microphone | support | |
Card reader | support | |
OSD language | Multi language supported. | |
Operating temperature | 0-40 degree | |
General parameters | power supply | DC12V 3A |
Operating temperature | 0℃ ~40℃ | |
Storage temperature | -20℃ ~60℃ | |

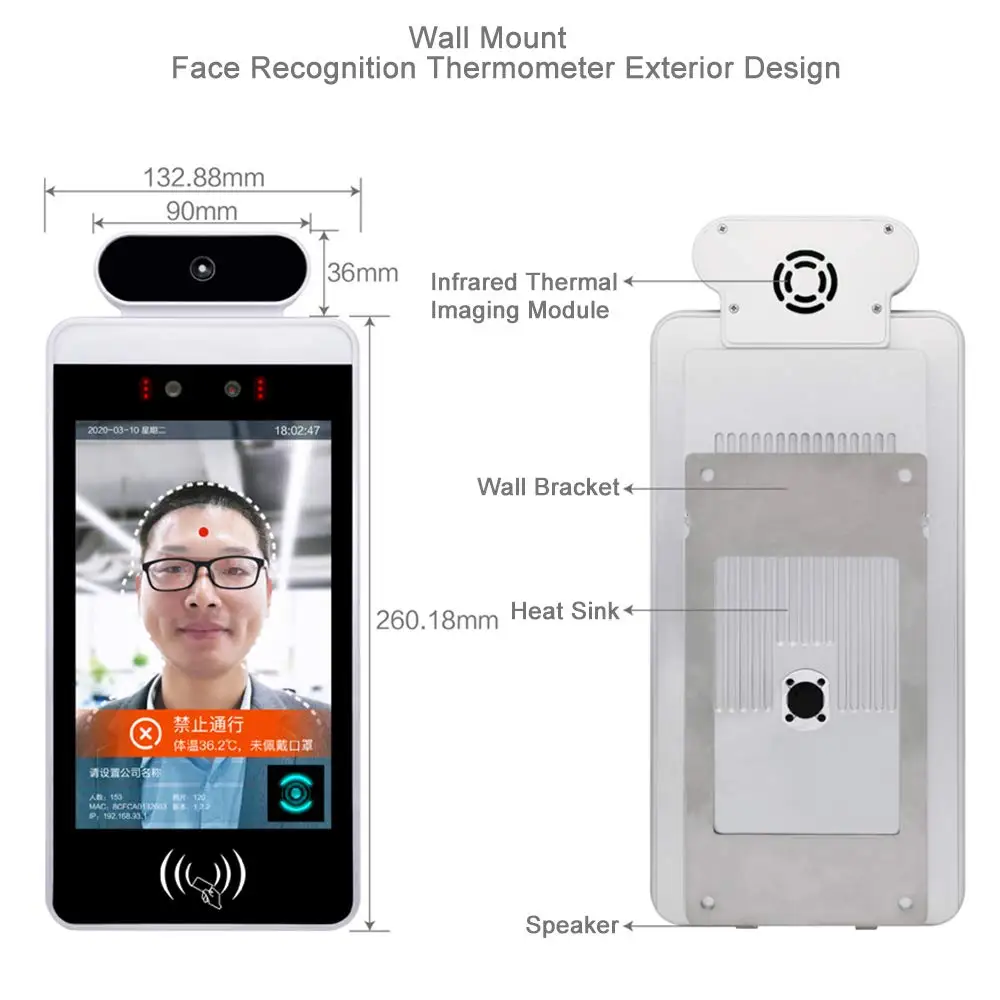

Installation method | wall mount / floor stand (optional) | |
Power consumption | 13.5W(Max) |
Details Images
Features:
Touchless Temperature Screening
Full-body temperature check scan and alarm to inform.
Facial Recognition
Infrared facial recognition with high accuracy rate.
Mask Detection
Prohibit visitors not wearing or improperly wearing masks.

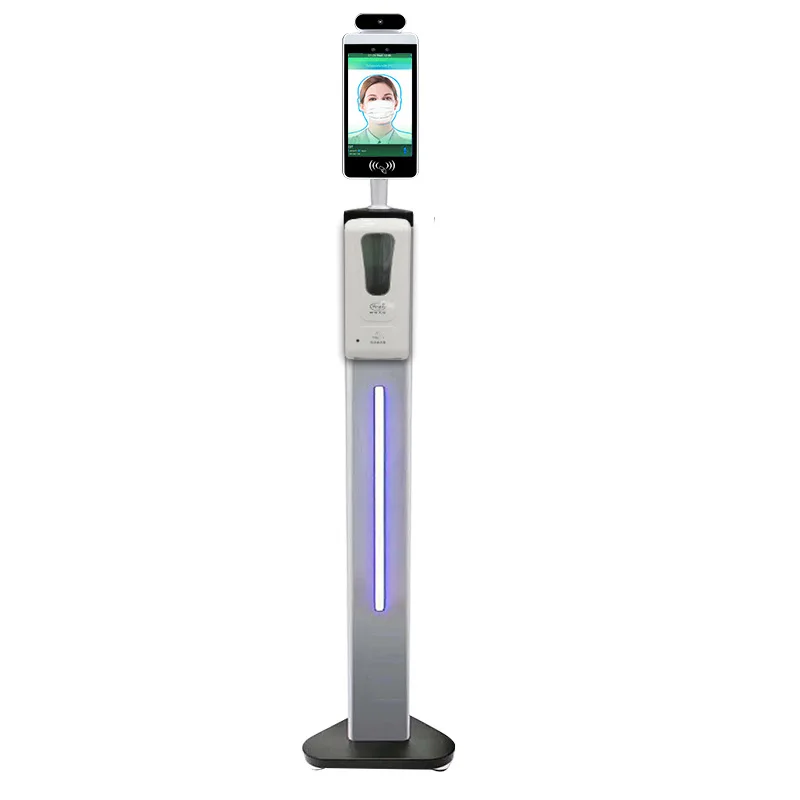

Hand Sanitizing
Excellent space where you can install hand sanitizer.
Wi-Fi-enabled
Wireless connectivity allows for real-time data checks and hardware mobility.

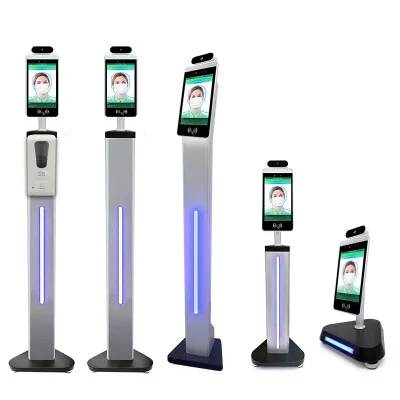

Multiple form selection
