DC FUSE 1500VDC SOLAR PV FUSE feeo dc fuse
US $2.50-$6.80

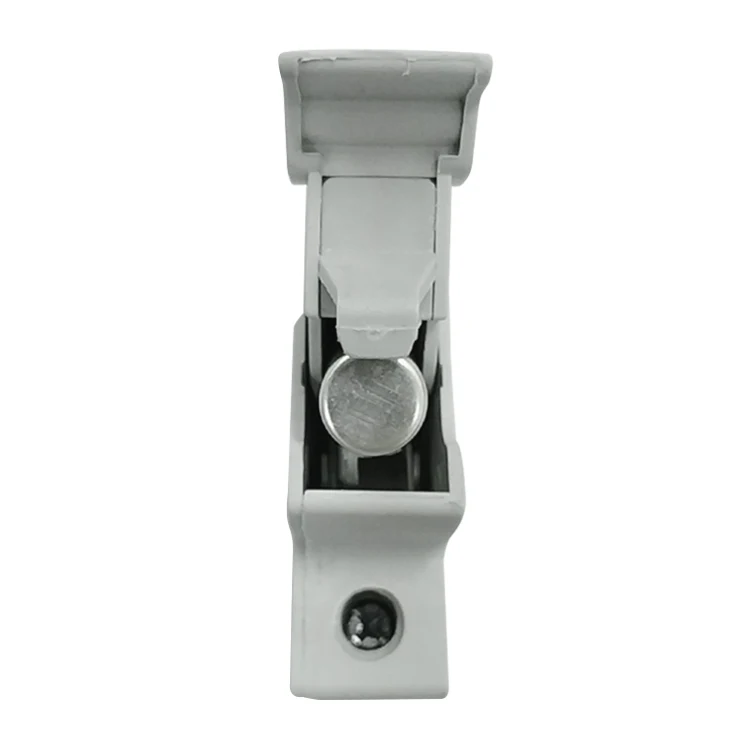

DC 1000v Low Voltage 15a to 25a Solar PV Fuse Holder Base
- Category: Fuses >>>
- Supplier: Wenzhou,Laiwo,Electric,Technology,Co.,Ltd.
Share on:
Product Overview
Description

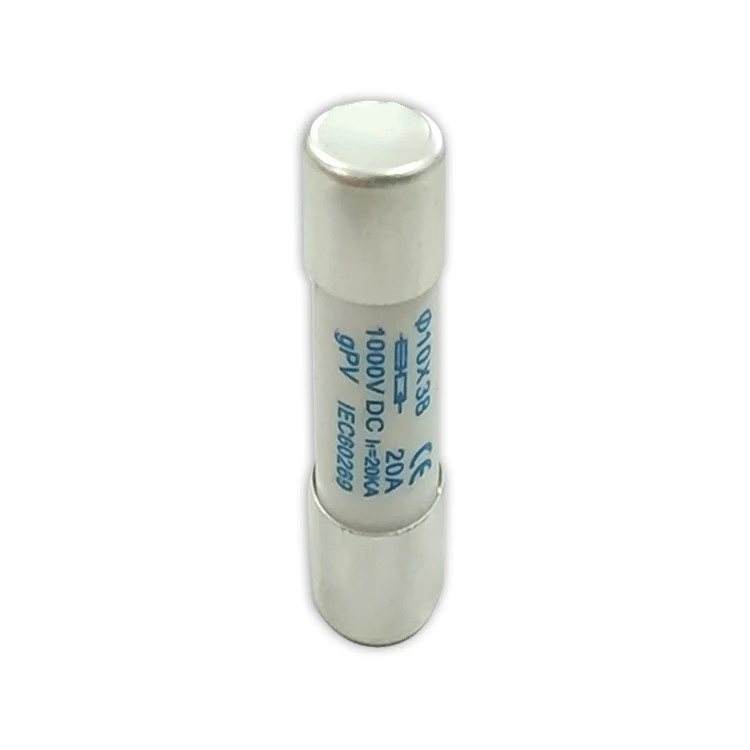

Photovoltaic Fuse
This series of fuse is suitable for solar photovoltaic power generation system, rated voltage to 1500V, rated current to 63A,
used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for over current
protection, and photovoltaic panels,and batteries connected in series and parallel, to charge variable flow system for short
circuit breaking protection, in photovoltaic station and inverter rectifier system for short- circuit breaking protection,as well
as photovoltaic power generation system,inrush current and short circuit fault voltage for quick break protection, rated breaking
capacity to 10~ 50kA,products confirms to IEC 60629.1 and 60629.6.
used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for over current
protection, and photovoltaic panels,and batteries connected in series and parallel, to charge variable flow system for short
circuit breaking protection, in photovoltaic station and inverter rectifier system for short- circuit breaking protection,as well
as photovoltaic power generation system,inrush current and short circuit fault voltage for quick break protection, rated breaking
capacity to 10~ 50kA,products confirms to IEC 60629.1 and 60629.6.
Structure
Fuse link is made of pure silver (or made of silver strings), welding low tin and encapsulated in the melt tube made of high-
strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected
with contacting terminals by spot welding Fuse base suppressed by the plastic casing fitted with contacts and contains the fusion
pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and
convenient device, use security, beautiful appearance, etc.
strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected
with contacting terminals by spot welding Fuse base suppressed by the plastic casing fitted with contacts and contains the fusion
pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and
convenient device, use security, beautiful appearance, etc.
Part No. | Description | Function Class | Rated Voltage (v) | Breaking Capacity(KA) | Weight(g) |
FUPV10-1A | 1A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-2A | 2A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-3A | 3A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-4A | 4A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-5A | 5A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-6A | 6A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-8A | 8A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-10A | 10A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-12A | 12A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-15A | 15A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-16A | 16A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-20A | 20A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-25A | 25A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-30A | 30A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
FUPV10-32A | 32A 10.3*38 Photovoltaic Fuse | gPV | DC 1000 | 20 | 8 |
