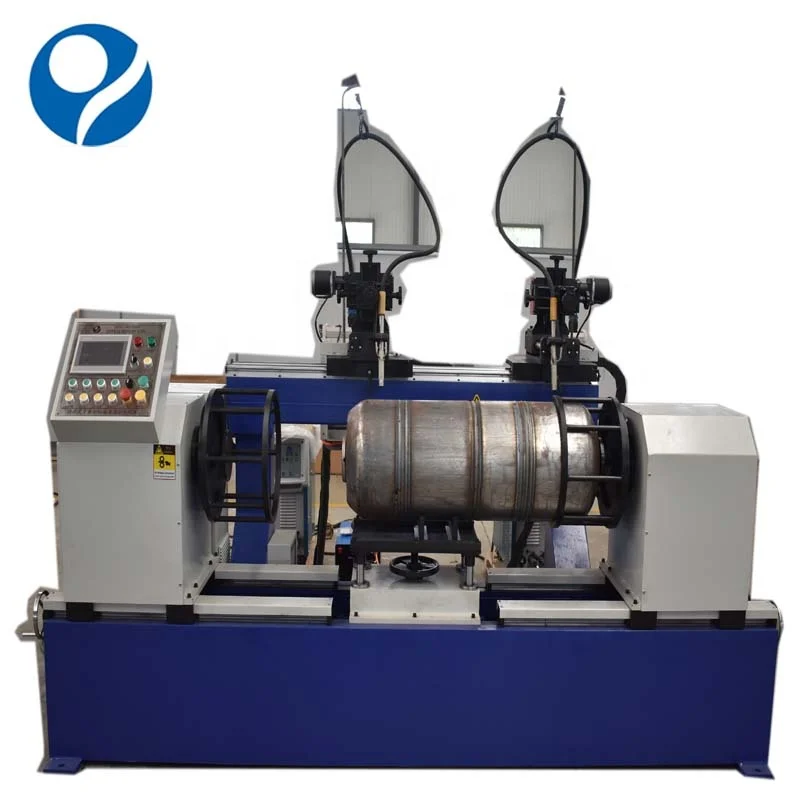

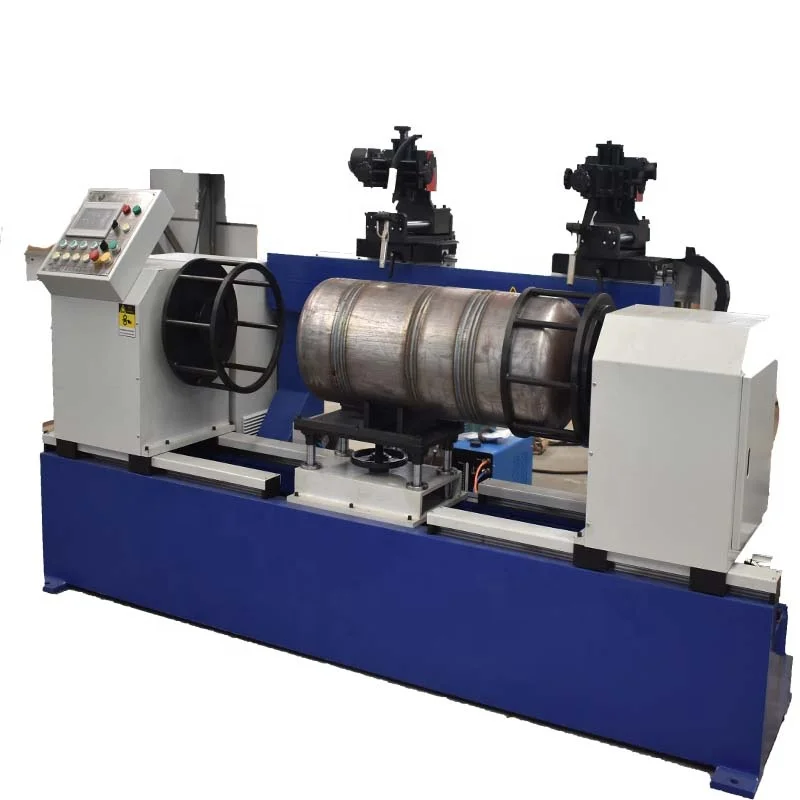

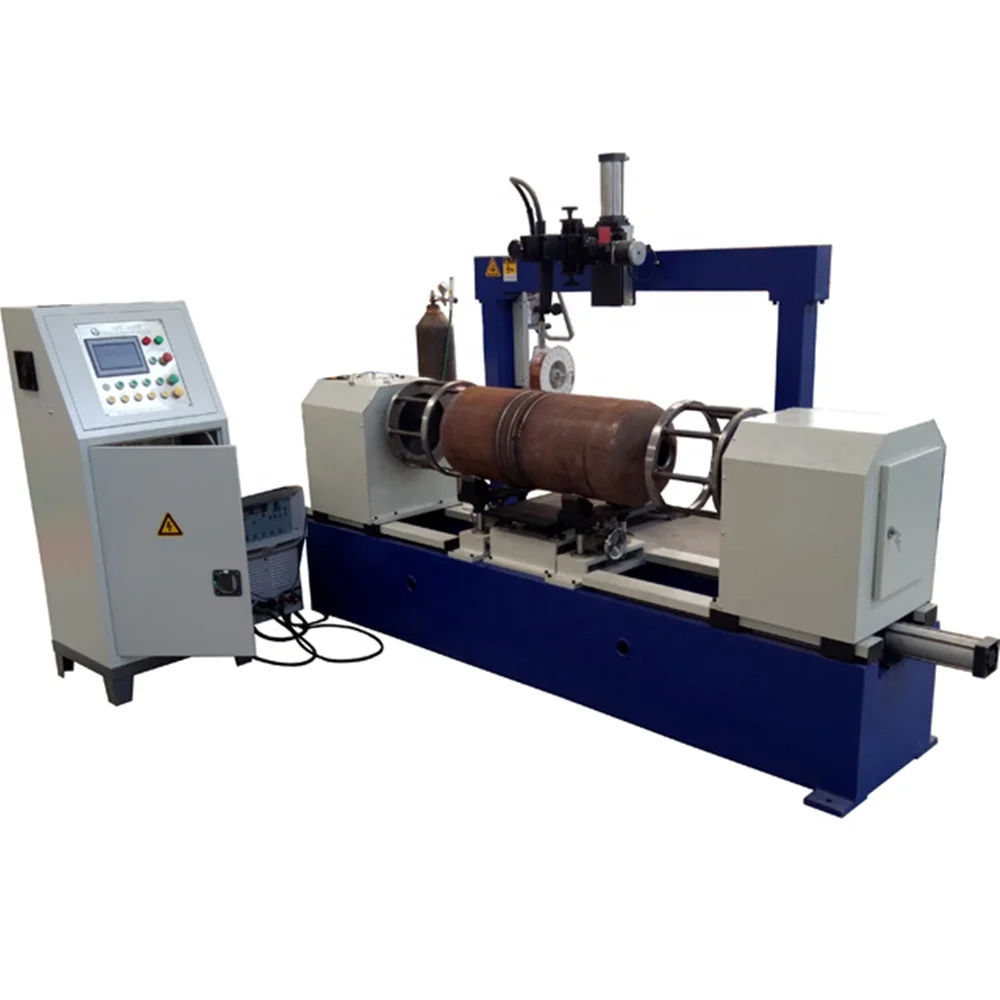

China Welding Machine Manufacture LPG LNG Tank Automatic Girth Seam Welding Machine for pressure vessel

China Welding Machine Manufacture LPG LNG Tank Automatic Girth Seam Welding Machine for pressure vessel

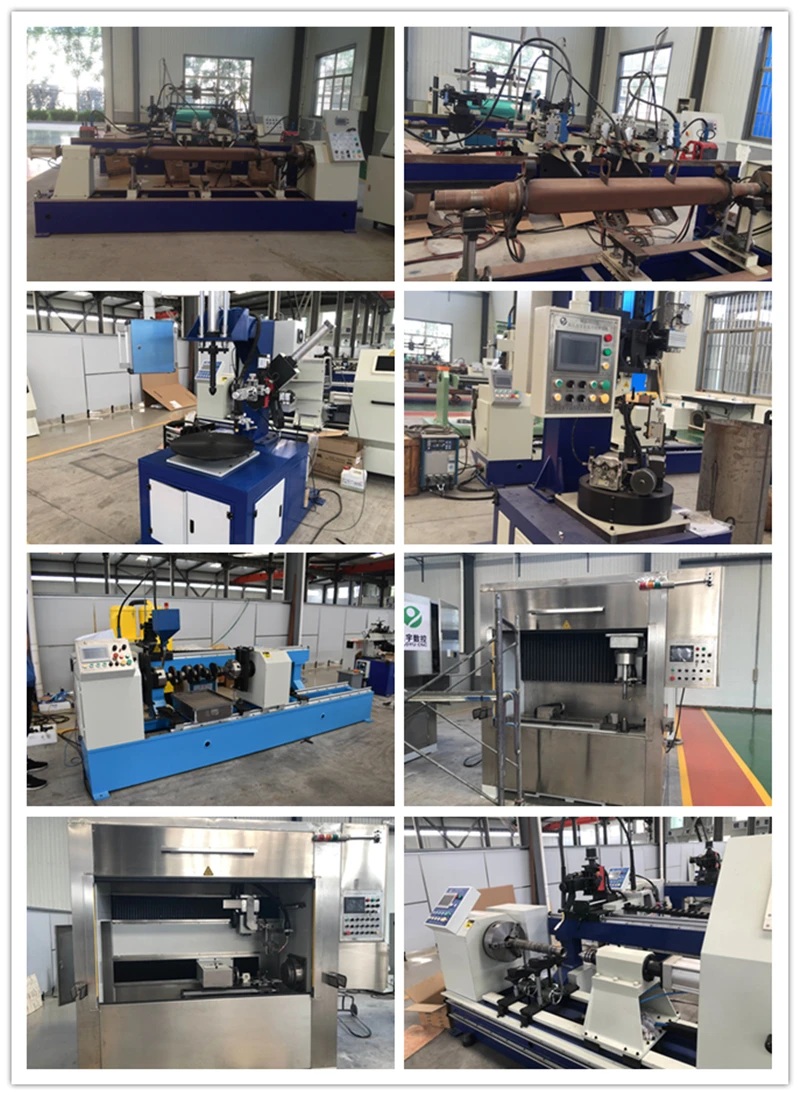

More work video of our automatic welding machine from our YOUTUBE :

 https://www.youtube.com/channel/UCGF5rEGxH4hRZrrG3BbbKcg

A. Design Task

1. Perform the automatic welding for the circular seams on the pressure vessel tank.

2. Join dome and body by manual welding advance.

3. Ensure the location dimensions of the workpiece uniform, positioning automatically, convenient and reliable to use, welding quality meets the requirements, clamping fast and convenient.

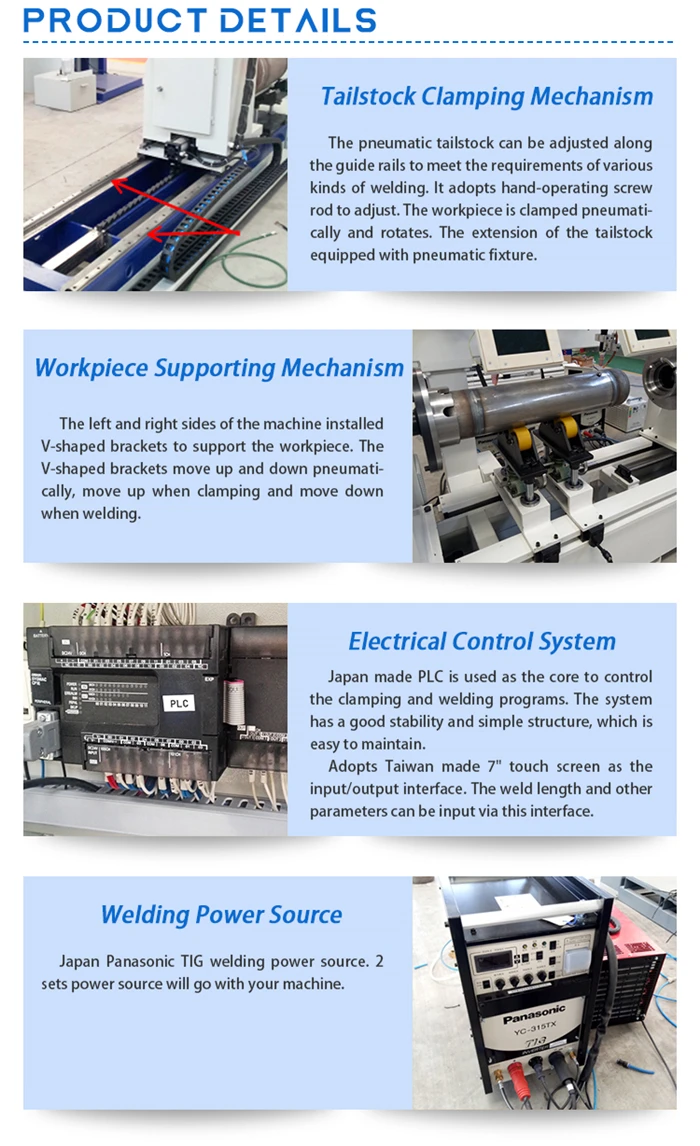

B. Basic Design

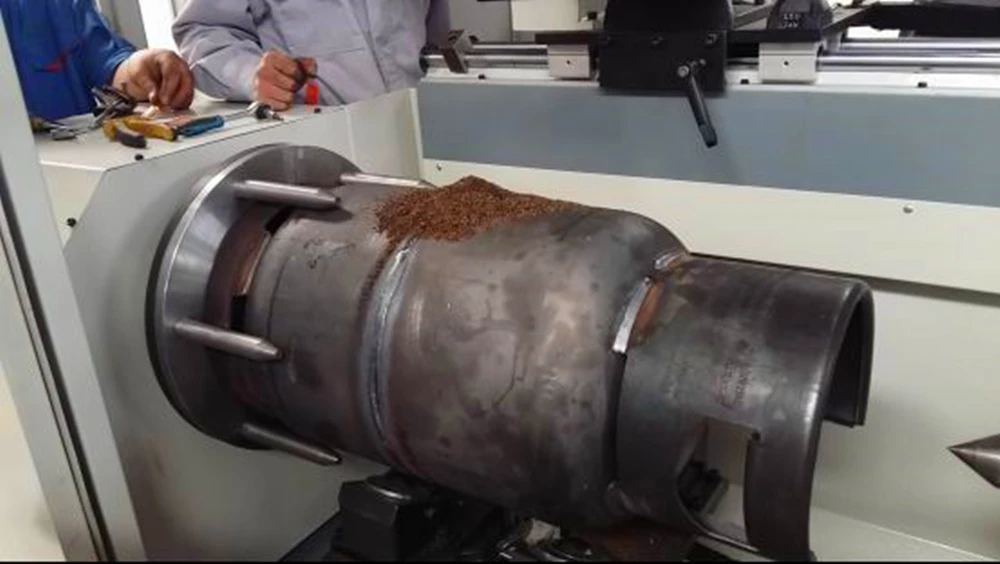

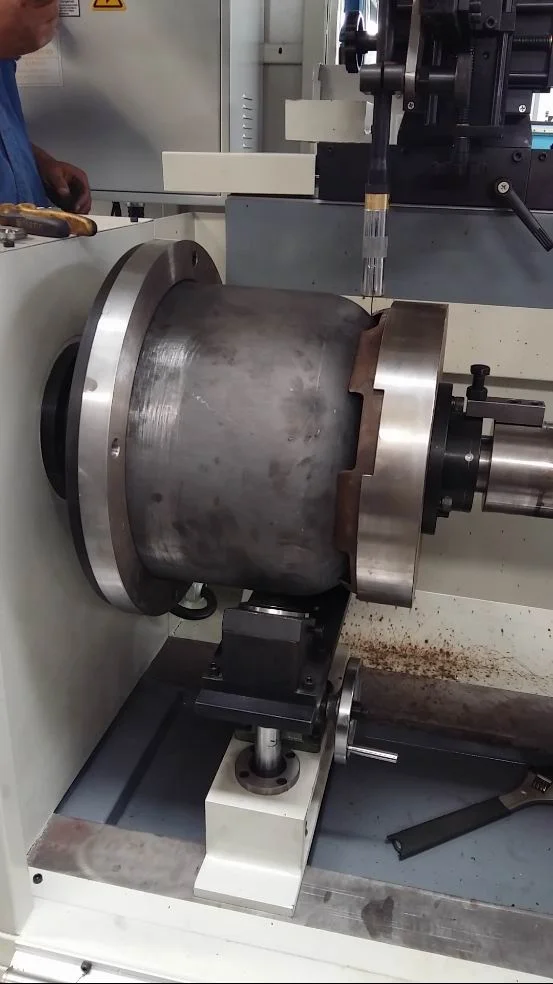

1. Welding torch is fixed while workpiece rotating. Welding position is horizontal. The workpiece is clamped tightly by jig at two ends and rotates.

2.Two welding torches and two power sources work simultaneously to improve work efficiency.

3. Torch, spindle box and tailstock can be adjusted longitudinally to fit various kinds of welding.

4. Japan Omron PLC is adopted to control the machine to run and speed is adjusted by AC servo, which can improve the reliability of the equipment.

5. Adopts end face positioning and pneumatically clamping mode.

6. Adopts human-machine interface to alter the parameters. The welding time and weld length can be set via this interface. The alteration of the parameters can be input through the touch button conveniently and timely. Parameters can be stored and called.

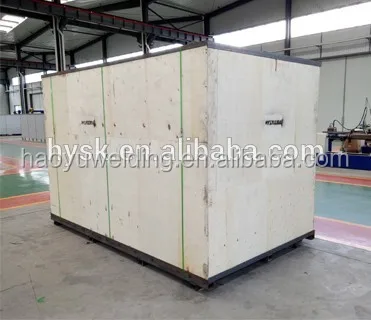

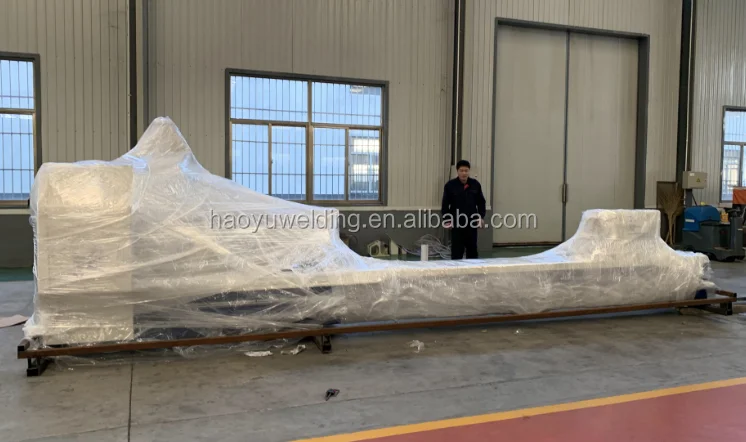

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.

2.Package can be as customers' requirement

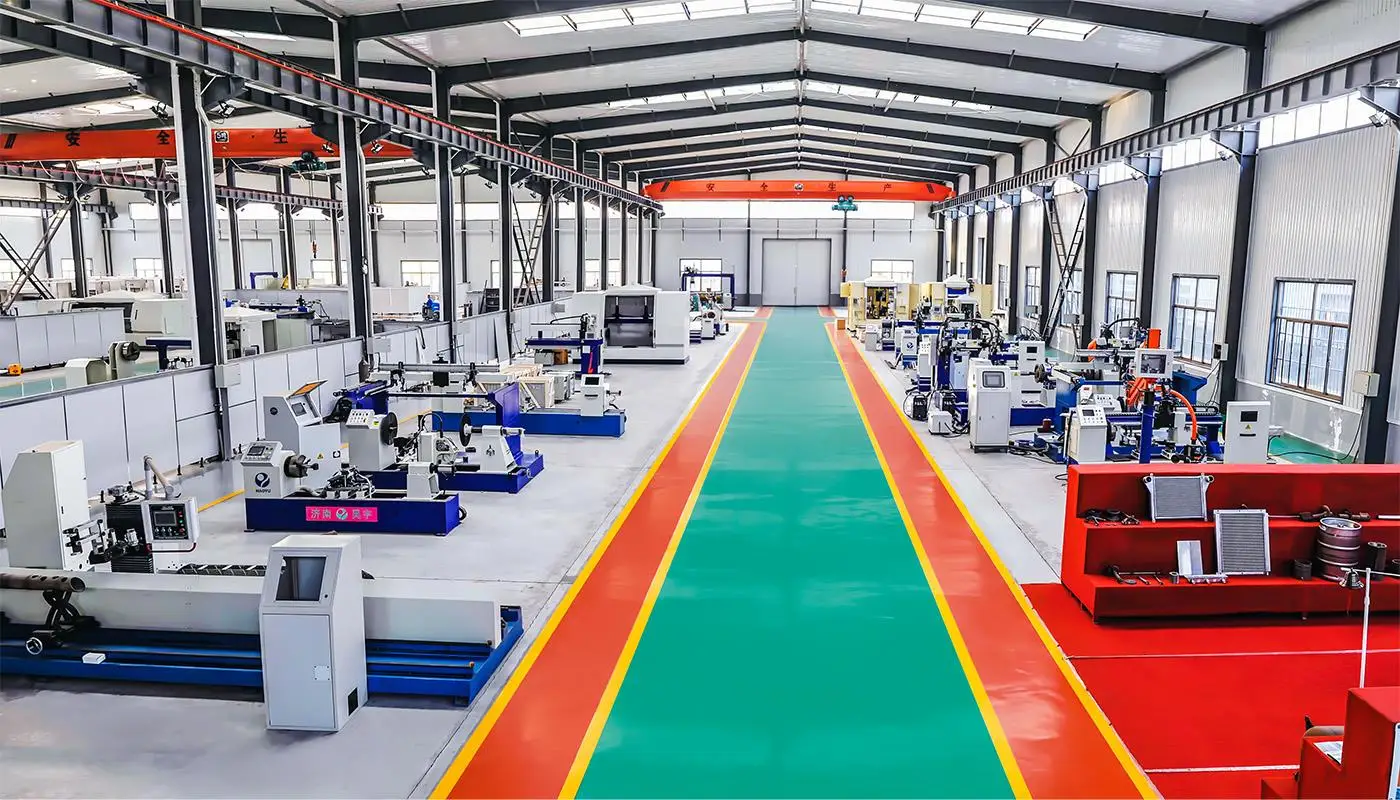

Jinan Haoyu Automation system Co., Ltd (another name is Jinan Haoyu CNC Machinery Co., Ltd) is a high-tech private company located in Jinan City ,Shandong province. We have been a professional manufacturer in the field of welding automation over 17 years.

Our products mainly include automatic welding machine, robot welding station, automatic pipe cutting machine, automatic material handling equipment, automatic assembling machine,these machines are widely used in the areas of automobile,construction machinery, railway vehicle, electric power, shipbuilding, pressure container, petrochemical, house appliances and military industry, etc.

We established a long-term cooperative relationship with more than 60 countries and regions, such as Canada,Italy,Australia,United States,India,south America.Our welding machines are recognized by customers with quality and excellent service.the company have obtained CE and ISO certification .

With strong R&D staffs and Strict QC&QA team,so can design and produce as customers' requirements.Our sales team provide perfect support from Pre-sale and after-sale, in-sale.Technology Improvement and perfect products are the eternal pursuit of the company.

Welcome to Visit us at any time!

1. Payment term: 30% T/T advance along with the purchase order, balance should be cleared before delivery

2. Delivery time: 60 days on receipt of payment in advance

      3. Warranty: 12 months for the whole machine.

 We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.

1. Pre-sales Service

Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.

2. Training service

2.1.Customers can get free technical training in China factory. Mainly training are operate the machine to weld,Basic daily cleaning and maintenance for the machine,Solutions for common hardware problems,online training is ok.

2.2.When Sellers send engineer to Buyer's place for Installation, Commissioning and training in Buyer's place, Buyer should afford the Labour cost of engineers(100.00 USD per person per day),undertake all the relative expenses,like Transportation expenses, accommodation expenses and so on.

2.3 When the Seller's engineer carries out the services in Buyer's place, Buyer shall arrange a Translator that can speak Chinese for Seller's engineer.

3.Pre-shipment inspection system:

3.1 According to the customer‘s shipping details, we will check the products size, weight, spare parts, protective film and other information one by one for each part of goods. If there are any doubtful goods before delivery, quality inspectors will open the package in time and inspect the goods through professional testing equipment to ensure the accuracy of delivery.

3.2.The outer packaging of each goods will also be checked, such as whether the packing is damaged, whether the wooden pallet is fumigated, whether the exported goods are packed with steel strips,etc. To ensure that the goods are not damaged during loading and unloading.

4 .Afer sale service system

4.1 After our customer having received goods, if there are problems caused by the transportation of materials, we would let the customer take photos before unloading, give feedback to the freight forwarder, and make insurance compensation.

4.2. After customers received the goods, if there some quality problems ,production problems. If it is confirmed that there are indeed quality problems.Our QA and QC managers and relevant responsible department will give the reasonable compensation content based on the business contract .

5.We provide Lifelong technology support.

6.Warranty :uausally is one year for main part(PLC,HMI,Gearbox) ,also can be 2~5years as customers requirement

7. My whatsapp/wechat is 0086 15854187090,weclome to inquiry or ask for technology support any time !
