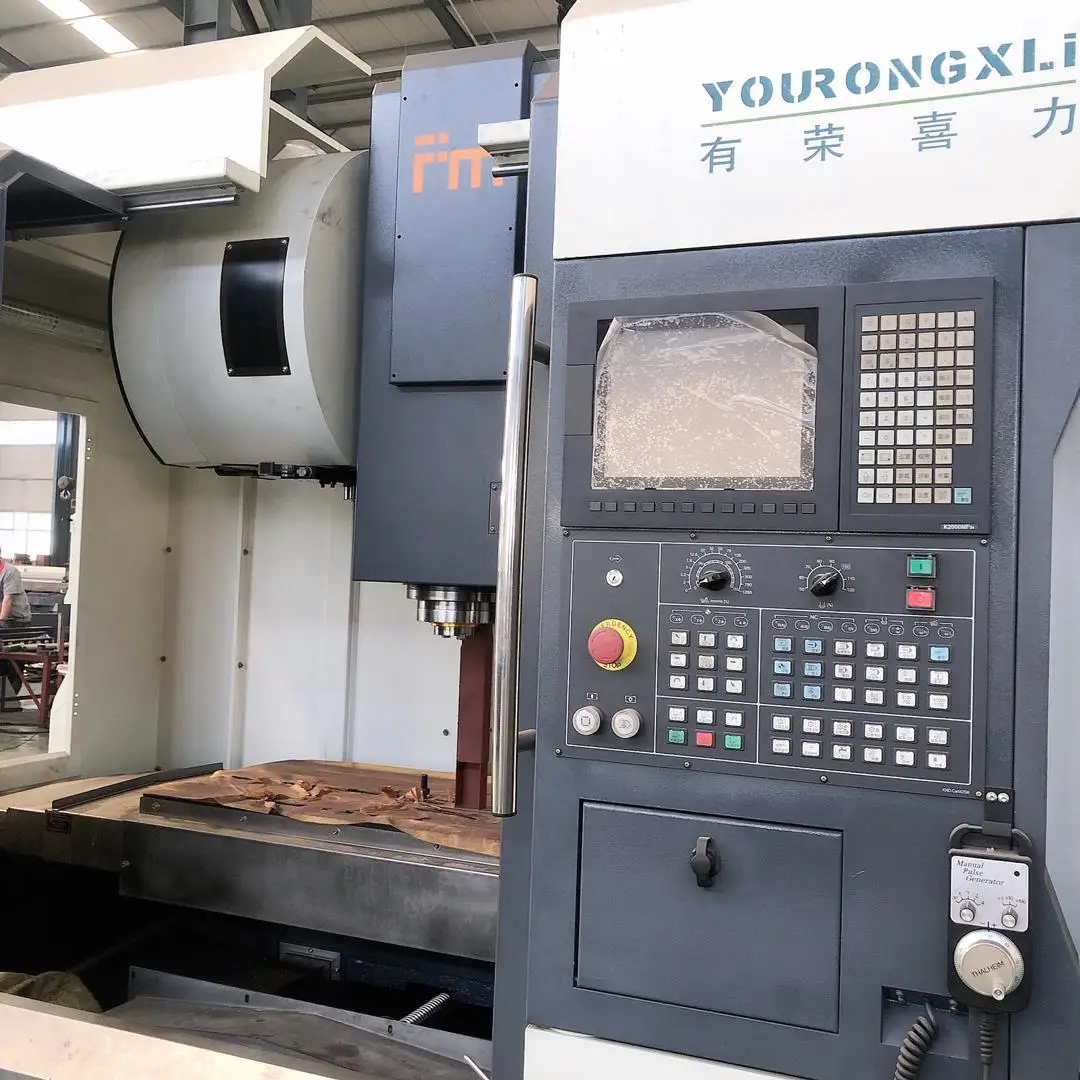

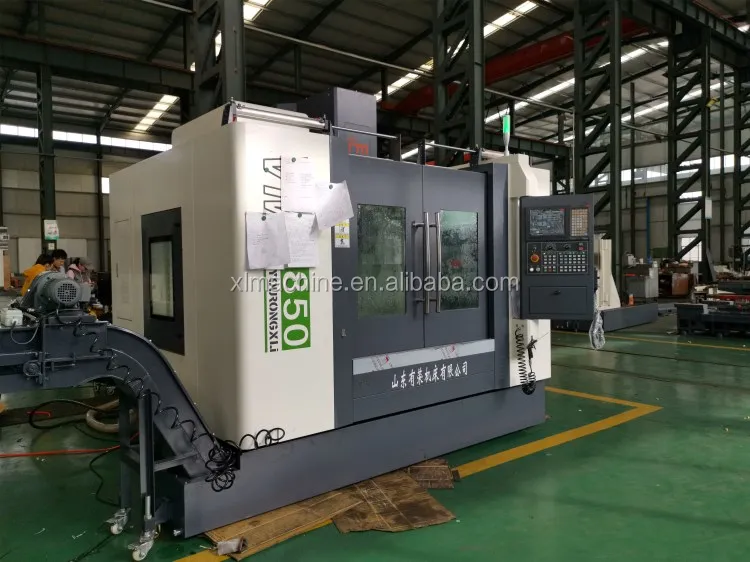

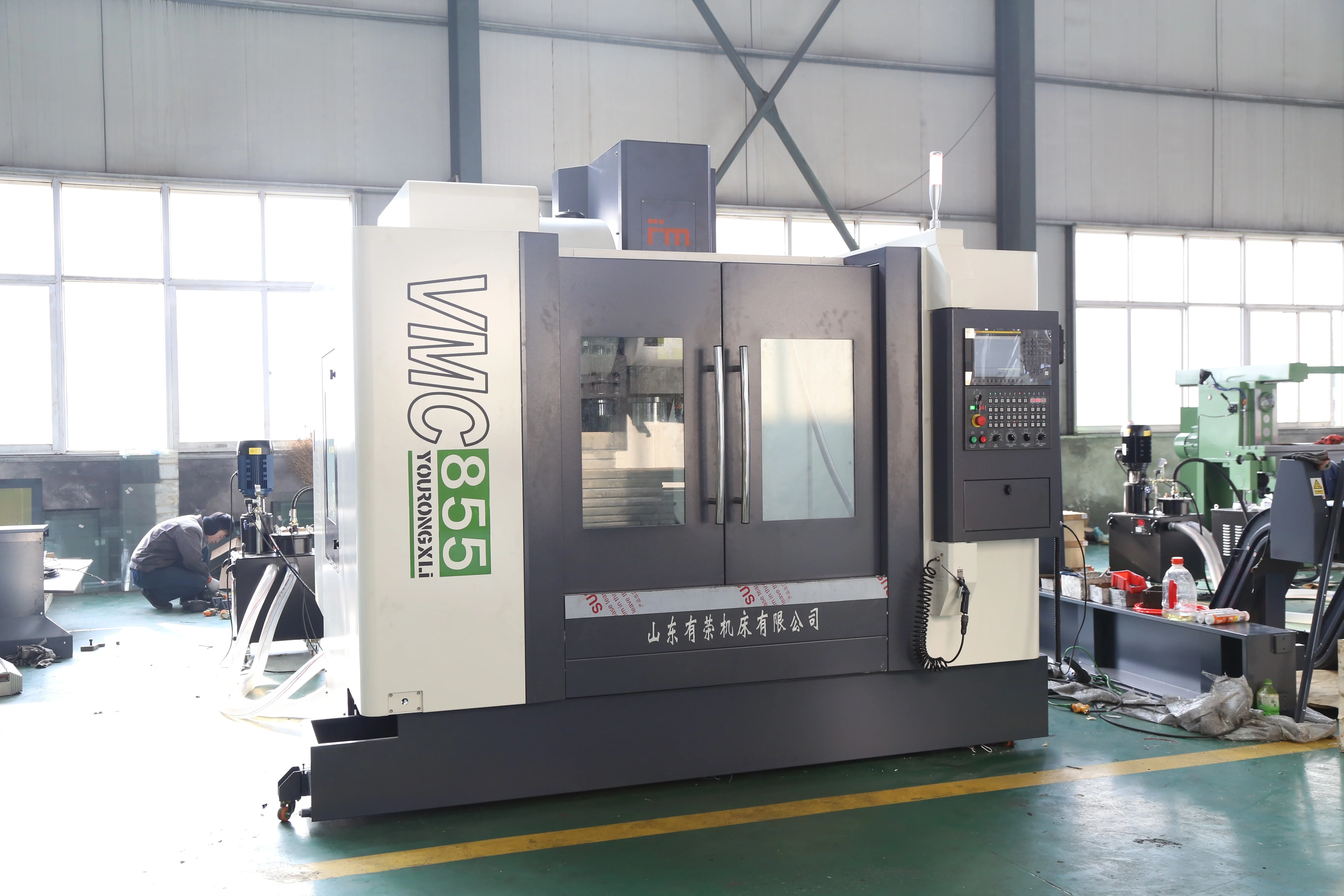

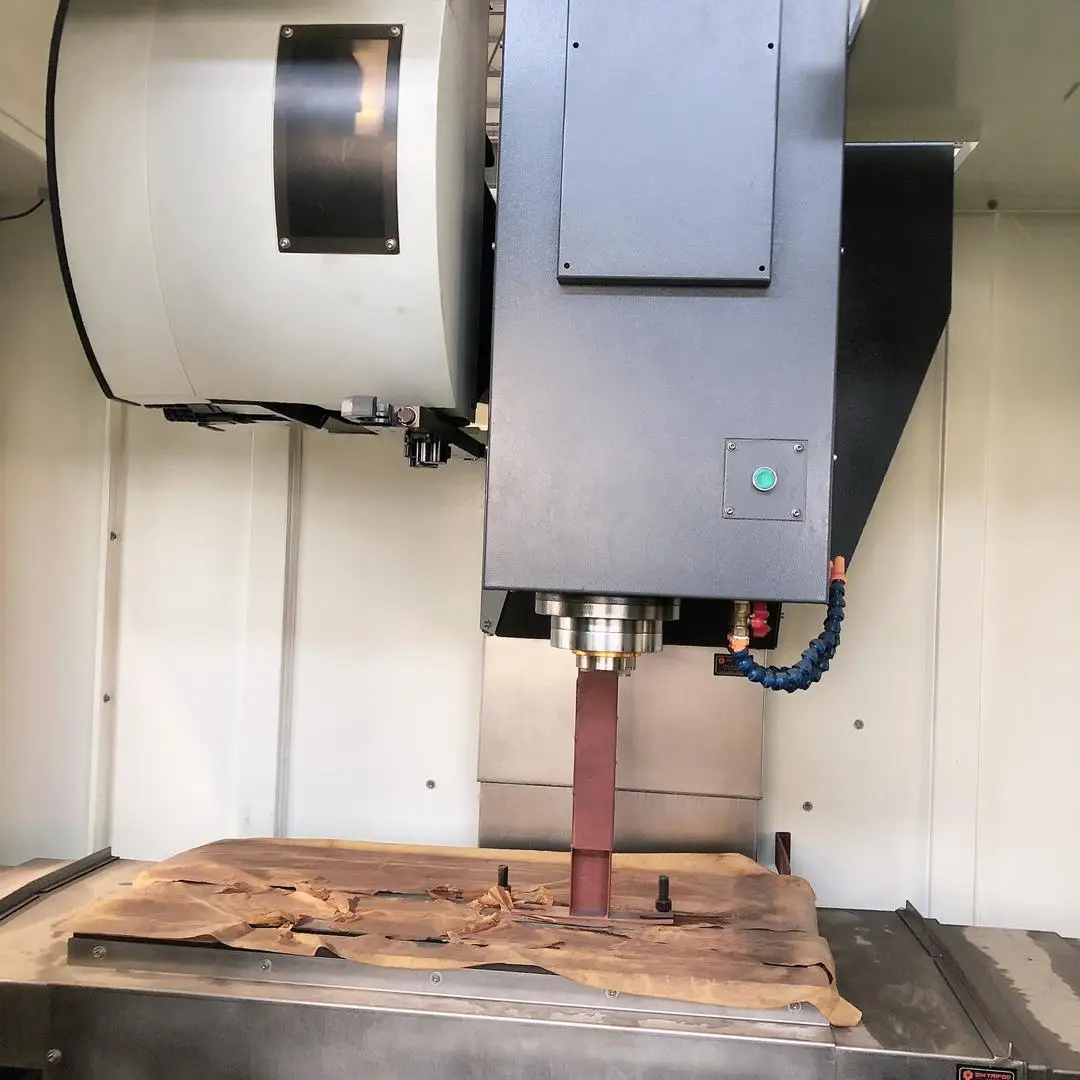

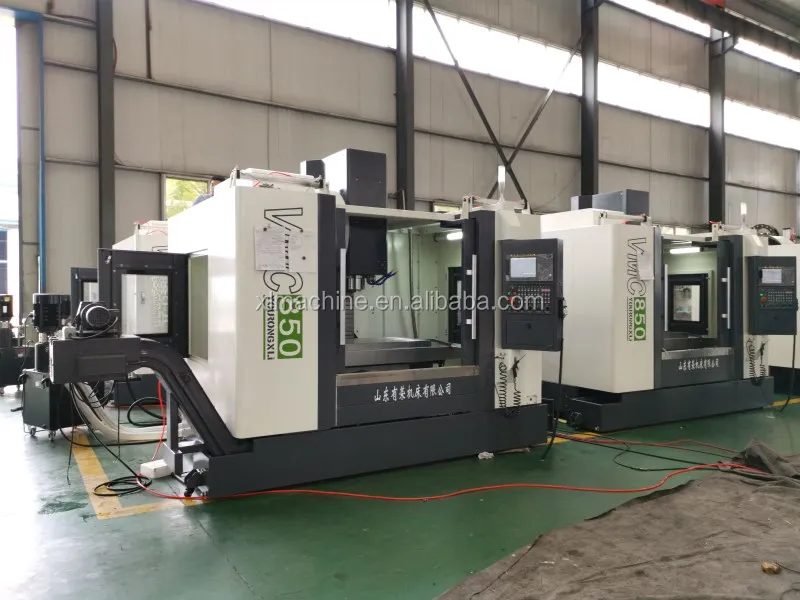

Top manufacturer 3 axis VMC850 high speed smart cnc vertical machining center
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (1600200848896):
Product Overview
Description
Top manufacturer 3 axis VMC850 high speed smart cnc vertical machining center
Product Description
Machine Characteristics
1.Precision linear guideways on X/Y/Z axes-provide high speed rapids2.High quality castings provide a solid structure and foundation
3.Full enclosed way covers
4.Direct drive servo motors on all axes
5.Disc ATC
6.High speed rapids standard-higher speeds available on axes and spindle
Specification
Specification | Unit | VMC850 |
Table size | mm | 1000*500 |
Max table load | Kg | 500 |
Table travel X | mm | 800 |
Table travel Y | mm | 550 |
Table travel Z | mm | 550 |
Spindle nose to table surface | mm | 150-650 |
Spindle center to column surface | mm | 575 |
Spindle speed range and driving method | rpm | 8000/10000 belt driving |
Spindle taper | / | BT40 |
Spindle diameter | mm | 150 |
Max tool diameter(No adjacent tool) | mm | φ80(φ130) |
Max tool length | mm | 300 |
Max tool weight | kg | 8 |
Tool selection | random | |
Shank | Type | BT-40 |
Magazine capacity | T | 24 |
Tool exchange mode | Arm type | |
Tool change time | 3 | |
Rivet | type | P40-1(45°) |
Controller | FANUC/Siemens | |
Spindle motor power（straight/15 minutes） | Kw | 7.5 |
Servo motor power | Kw | 1.8/1.8/3.0 |
Spindle oil cooling | W | 750 |
Automatic lubrication | W | 30 |
Cutting fluid pump | W | 840 |
Power capacity | KVA | 25 |
Air source pressure | Kg/cm | 6 |
Water tank capacity | L | 200 |
Positioning accuracy(JIS standard) | mm | ±0.005/300 |
Repeatability Positioning accuracy(JIS standard) | mm | ±0.003 |
Net weight | kg | 5200 |
Overall size | mm | 2450*2050-2250 |
Packing & Delivery
Plywood case and steel pallet

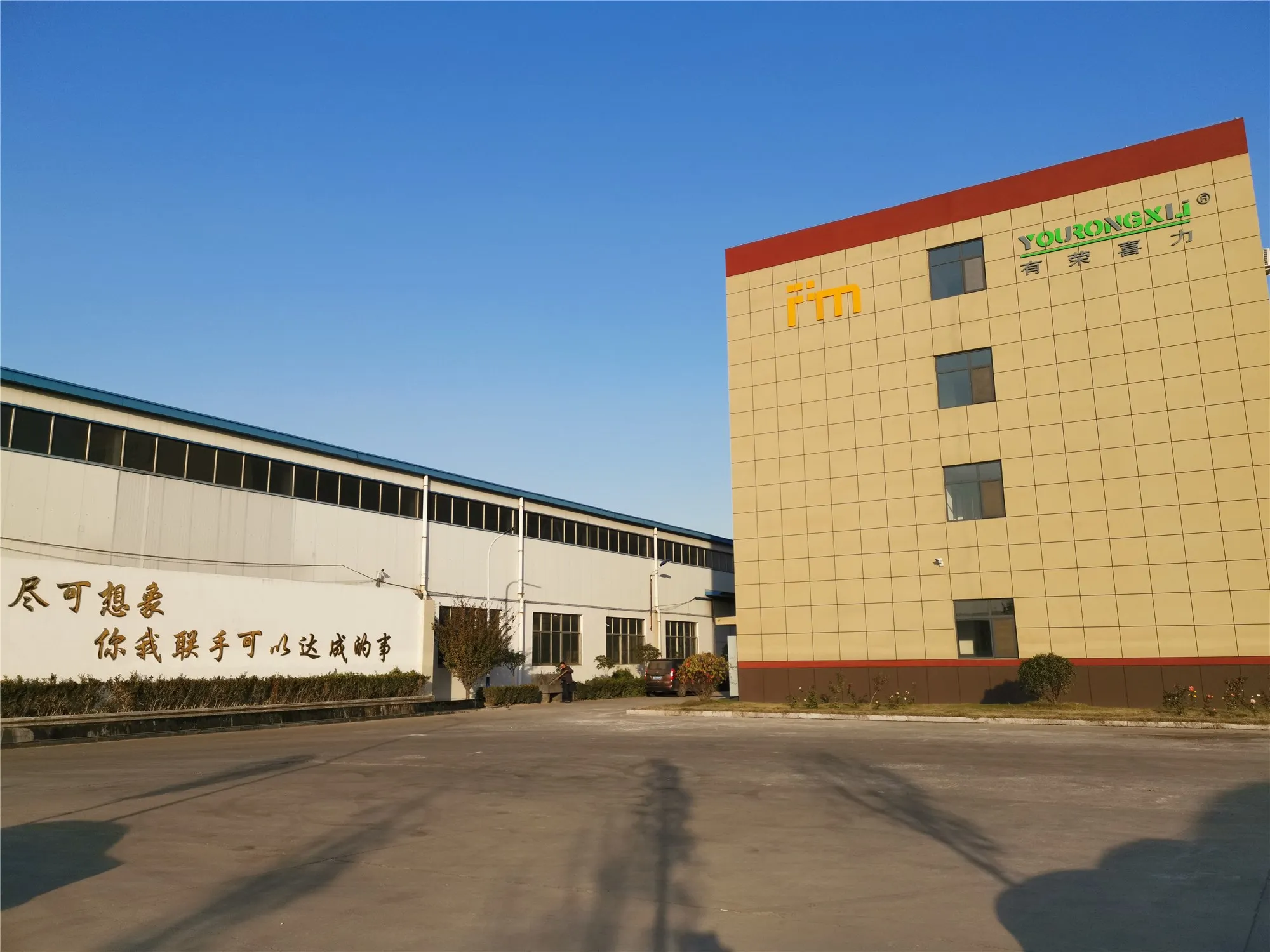

Company Profile

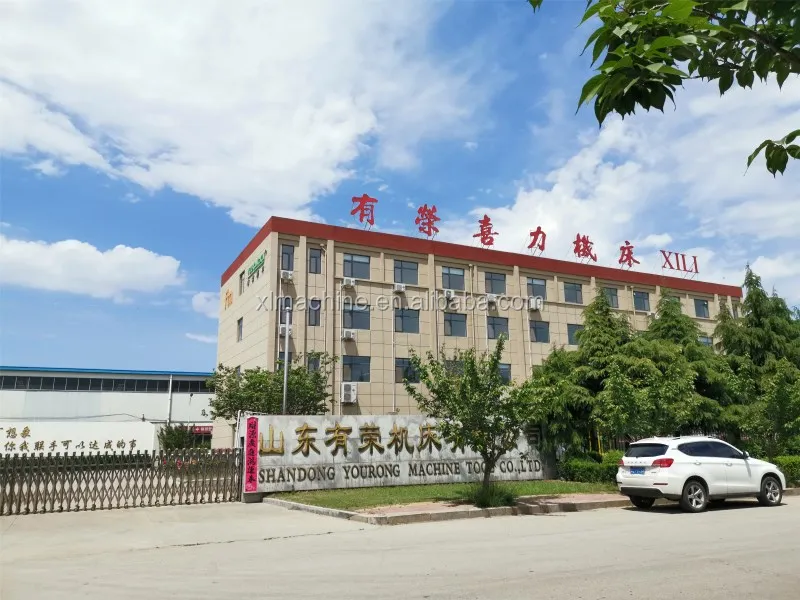

Tengzhou Xili Machine Tool Co., Ltd.(Shandong Yourong Machine Tool Co.,LTD.) is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. Our company is located in the scenic hometown of Mozi who is the famous thinker in ancient China.
It covers an area of about 20000 square meters. Our fixed assets are 20 million RMB. There are 430 workers, including 132 technicians. We are equipped with 18 sets of precision processing machines and 260 sets of testers. Our company is a high tech enterprise for strong technical strength. With business management standardization and perfect sales and after-sales service, we have established the best brand of "YOU RONG XI LI"
Our main products include vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
In 2003, we attained ISO9001 quality guarantee system certification. With more than 10 years' history of milling machine production, we have advanced technology and rich managing experience. Our milling machine was ranked the first place in China. We are capable of designing and manufacturing special machine tools which sell well all over country and are exported to the USA, Germany, Britain, Southeast Asia, the Middle East and Africa.
Our company insists on "professional services and creating value for customers". We provide high quality products, reasonable prices, satisfactory service and timely delivery. President Li Jian and all staff welcome all customers from at home and abroad to visit our factory.
It covers an area of about 20000 square meters. Our fixed assets are 20 million RMB. There are 430 workers, including 132 technicians. We are equipped with 18 sets of precision processing machines and 260 sets of testers. Our company is a high tech enterprise for strong technical strength. With business management standardization and perfect sales and after-sales service, we have established the best brand of "YOU RONG XI LI"
Our main products include vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
In 2003, we attained ISO9001 quality guarantee system certification. With more than 10 years' history of milling machine production, we have advanced technology and rich managing experience. Our milling machine was ranked the first place in China. We are capable of designing and manufacturing special machine tools which sell well all over country and are exported to the USA, Germany, Britain, Southeast Asia, the Middle East and Africa.
Our company insists on "professional services and creating value for customers". We provide high quality products, reasonable prices, satisfactory service and timely delivery. President Li Jian and all staff welcome all customers from at home and abroad to visit our factory.
FAQ
1. who are we?
We are based in Shandong, China, start from 1999,sell to Domestic Market(50.00%),Western Europe(30.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Southern Europe(2.50%),Central America(2.50%),North America(2.50%),Oceania(2.50%),Africa(2.50%),South America(2.00%),South Asia(0.50%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,machining cener,gantry milling machine,cnc gantry milling machine
4. why should you buy from us not from other suppliers?
Xili Machine has independent import & export right for self-manufactured products. In 2002, we passed ISO9001 and got CE certification in 2007. it was awarded as the national high-tech enterprises in 2010
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;RMB
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 1999,sell to Domestic Market(50.00%),Western Europe(30.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Southern Europe(2.50%),Central America(2.50%),North America(2.50%),Oceania(2.50%),Africa(2.50%),South America(2.00%),South Asia(0.50%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,machining cener,gantry milling machine,cnc gantry milling machine
4. why should you buy from us not from other suppliers?
Xili Machine has independent import & export right for self-manufactured products. In 2002, we passed ISO9001 and got CE certification in 2007. it was awarded as the national high-tech enterprises in 2010
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;RMB
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
