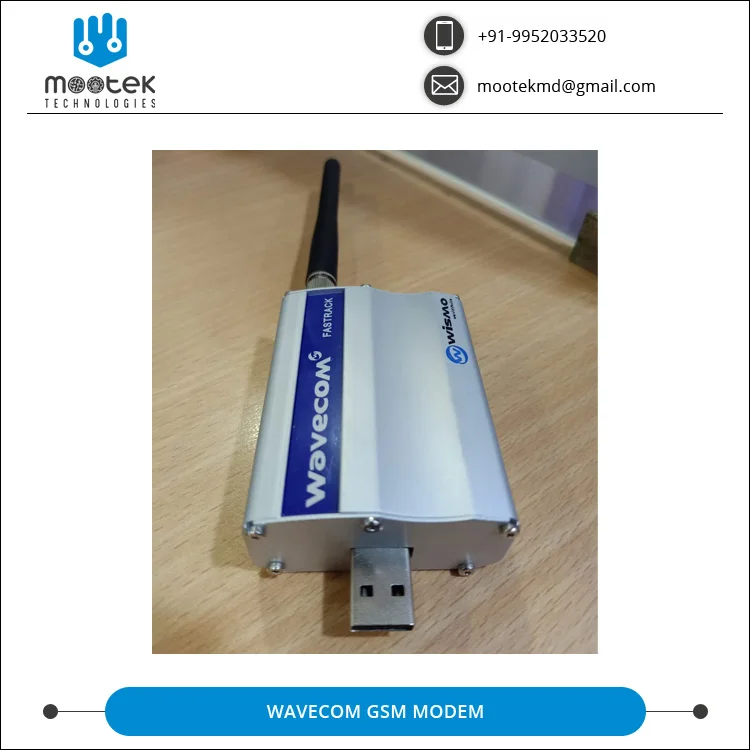

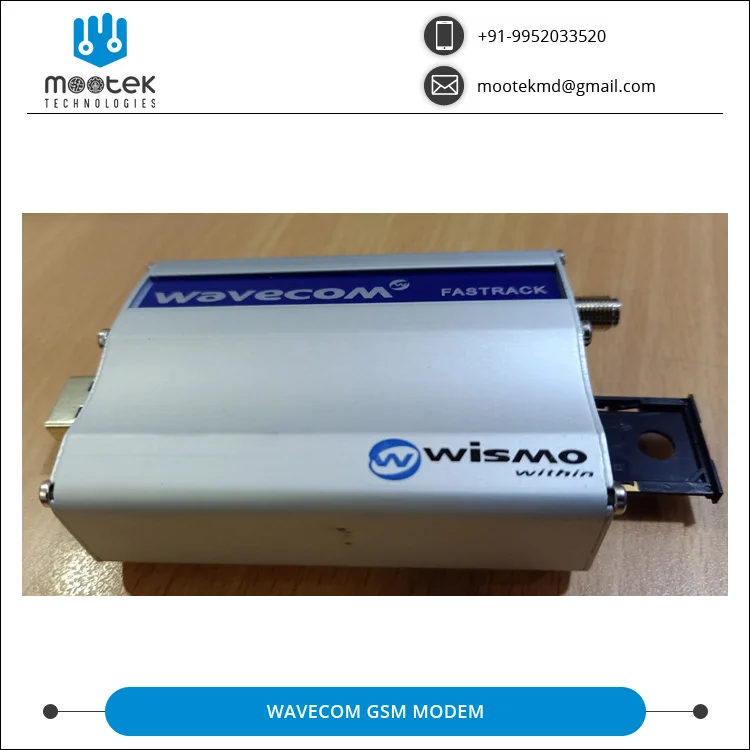

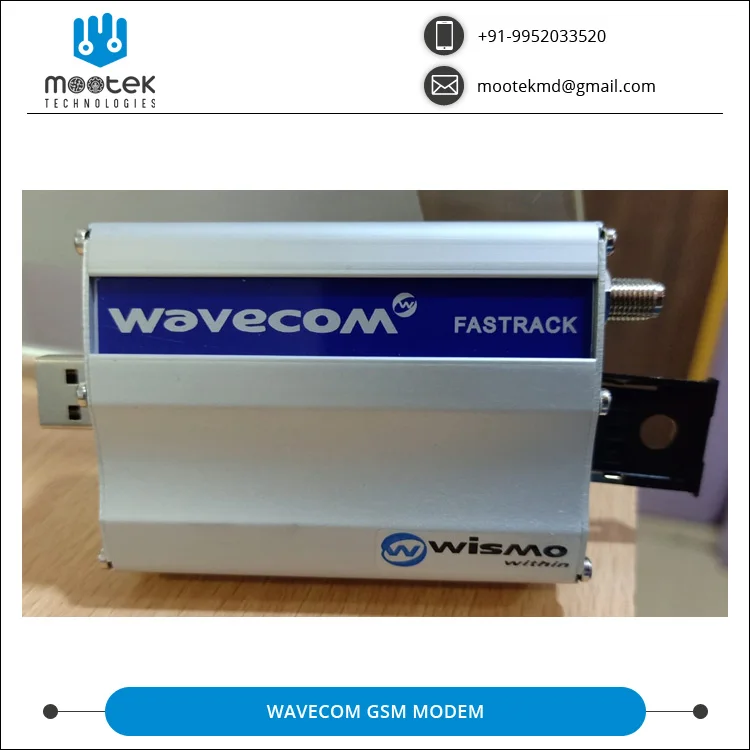

Hot Selling Wavecom Modem with Power Adapter, Data Cable Accessories from Top Supplier
Summary:
Type :
Quad-band GSM GPRS external modem
Frequency:
EGSM 850/900/1800/1900Mhz
Design:
Industrial Aluminium Casing
Support TCP/IP Stack.
Features:
SMS Specifications
Text and PDU mode
Cell broadcast
Point to Point MO and MT
Fax Specification
Group 3(Class 1,2)
Supported Operating System
Windows 8
Windows 7,Vista,2000,NT,XP
Linux
Mac OS X
Product Performance:
Quad-band GSM modem (EGSM850/900/1800/1900MHz applied to the data, fax, voice and messaging applications, has been certified by all of it's design and development of the ETSI GSM Phase2+standard(General Telephone).
Specifications
Product Name
WAVECOM GSM Modem
Output power
Class4 (2w@900MHz)
Class4(2W@900MHz)
Input voltage
5V-32V
Input current
5mA standby,140mA@12V calls in the state GSM900MHz 5mA standby,100 mA @ 12 V calls in the state GSM 1800/1900MHz
Product Size
74x54x25 mm
Weight
130g
Temperature Range
-20°c to +55°C Working State
-25°c to +70°C Storing State
Interface
RS-232 connections through a small mouth and Sub-D15 connector plugs audio
Interface Support
AT command used for the remote control(GSM0.7.07 and07.05)
Link bit rate from 300 to 115200 bits /s
Automatic bit rate(300 to 38400 bits /s)
Trough micro-FIT4 Plug power connector
SMS Antenna Interfase
Down the SIM card memory
Included Accessories

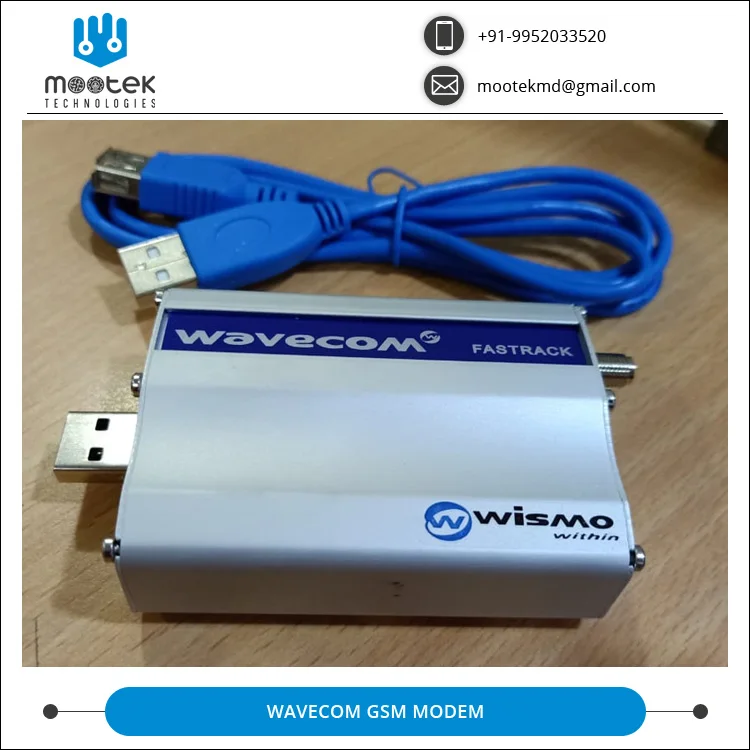

Power Adapter, Data Cable(15Oin-9Pin) Antenna, Mounting Clamps.
