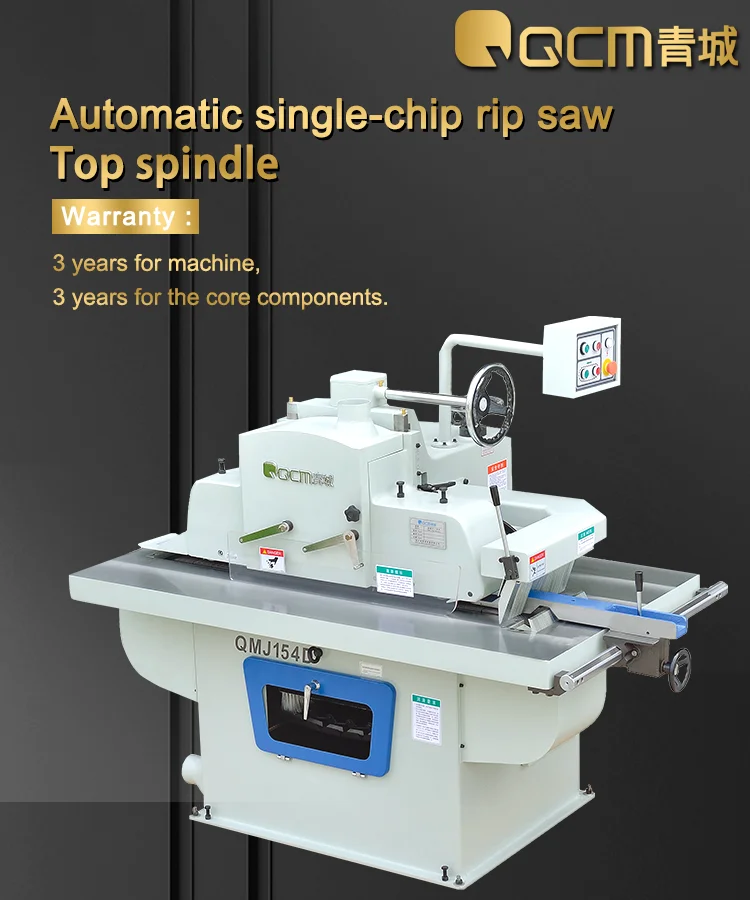

QCM QMJ154F-T Automatic Single Chip Rip Saw Mills Electric Wood Cutting Saw Machine Powered Table Wood Saw
Technical Parameter
Wood Planer Moulder Four Side Moulder
Specifications
Unit
QMJ154D/D-T
QMJ154F/F-T
Maximum sawing thickness
mm
125
125
Minimum sawing length
mm
300
300
Deep throat
mm
510
510
Saw shaft diameter
mm
Φ30
Φ30
Saw shaft speed
r/min
3450
3450
Saw blade diameter
mm
Φ300-Φ400
Φ300-Φ400
Feeding speed
m/min
8/13.6/19.1/24
5-24
Total motor power
kW/HP
12.5/17
12.5/17
Main motor
kW/HP
11/15
11/15
Feeding motor
kW/HP
1.5/2
1.5/2
Lifting motor
kW/HP
0.37/0.5
0.37/0.5
Vacuum port diameter
mm
2*Φ100
2*Φ100
Overall dimensions
mm
1960*1180*1600
1960*1180*1600
Weight
kg
1150
1150
Product Main Features
1. Professional Electrical Appliances Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
2. Anti-Rebound Safety Device
The anti-rebound safety device located on the infeed ensures operational safety.
3. Wear Resistance Guide Track The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance;
4. Automatic lubricator The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
5. Dust Removal Brush The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time;
6. Guide Rail The guide card board is equipped under the guide rail, which can effectively prevent the chain plate from clamping materials and damage the chain plate and saw blade by lifting, making it safer to use.
7. Professional Electrical Appliances Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
Related Products
Company Information
HUZHOU QINGCHENG MACHINERY CO., LTD.
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now. We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
1.Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2.Payment Term?
TT , 50% ADVANCE PAYMENT and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving deposit.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8.Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4) .Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
